HUGEROCK R36 R3613 5.5inch Handheld Terminal Pda With Touch Screen 4G WIFI Logistics Express Scanning Pdas
- Category: >>>
- Supplier: Shenzhen Soten Technology Company Limited
Share on (1600664829901):
Product Overview
Description

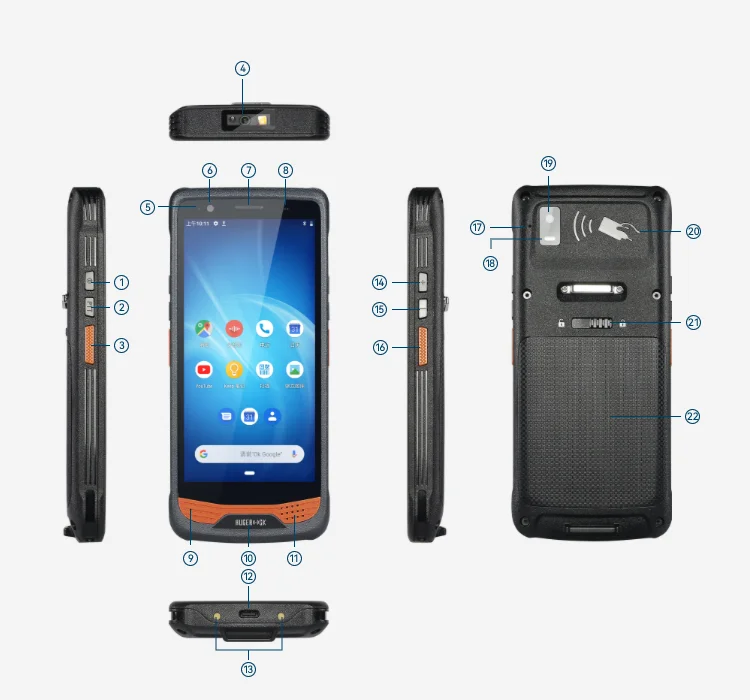

1：Power key | 2：PTT key | 3：Side scan key | 4：Scanning head | 5：Indicator light |
6：Front camera | 7： Receiver | 8：Proximity sensor | 9：Main mic hole | 10：Nameplate |
11：Speaker hole | 12：TYPE -C interface | 13：Charging base contact | 14：Volume + | 15：Volume - |
16：Side scan key | 17：mic | 18： Flash lamp | 19：Rear camera | 20：Card reading area |
21：Battery cover sliging buckle | 22：Battery |
Hardware | ||
CPU | Octa-core Qualcomm SDM450 1.8GHz | |
GPU | Adreno 506 | |
RAM | 2GB （4GB optional） | |
Internal Memory | 16GB （64GB optional） | |
External Memory | Micro SD card ( T-FLASH card), max 128GB | |
Main Camera | Rear 16 MP，autofocus camera with flash | |

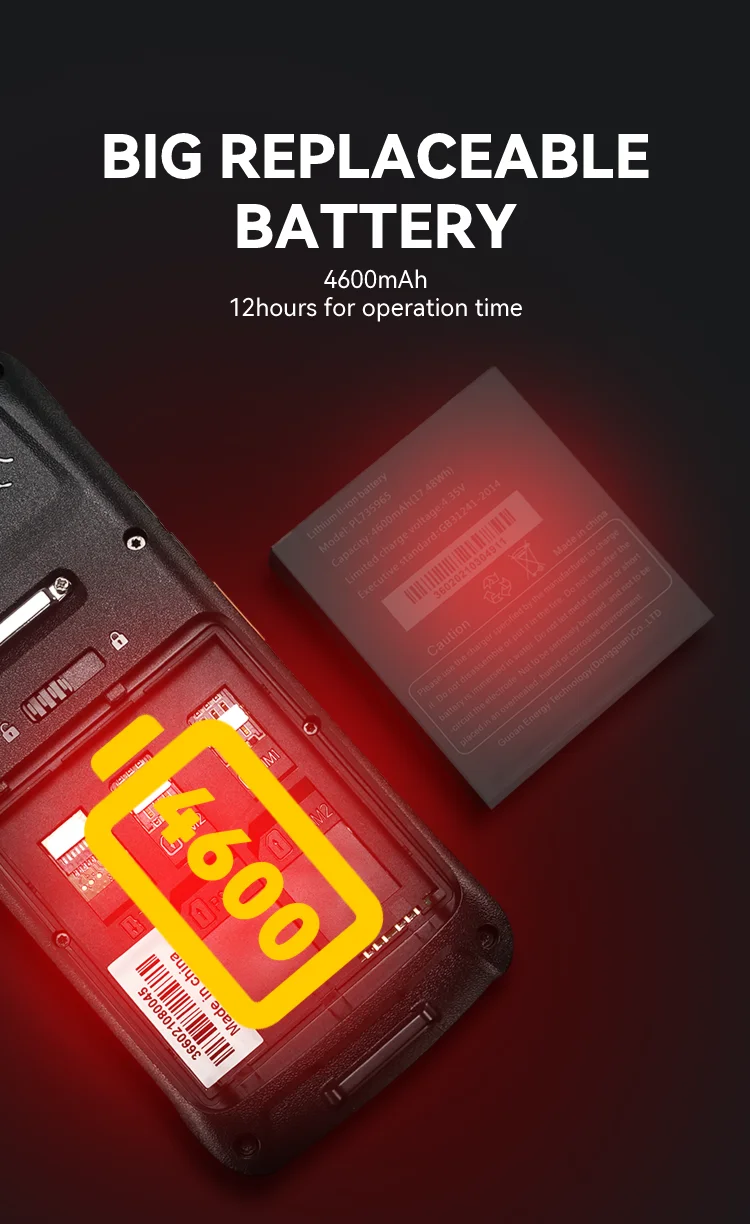

Battery | 3.8V，4600mAh(removable) | |

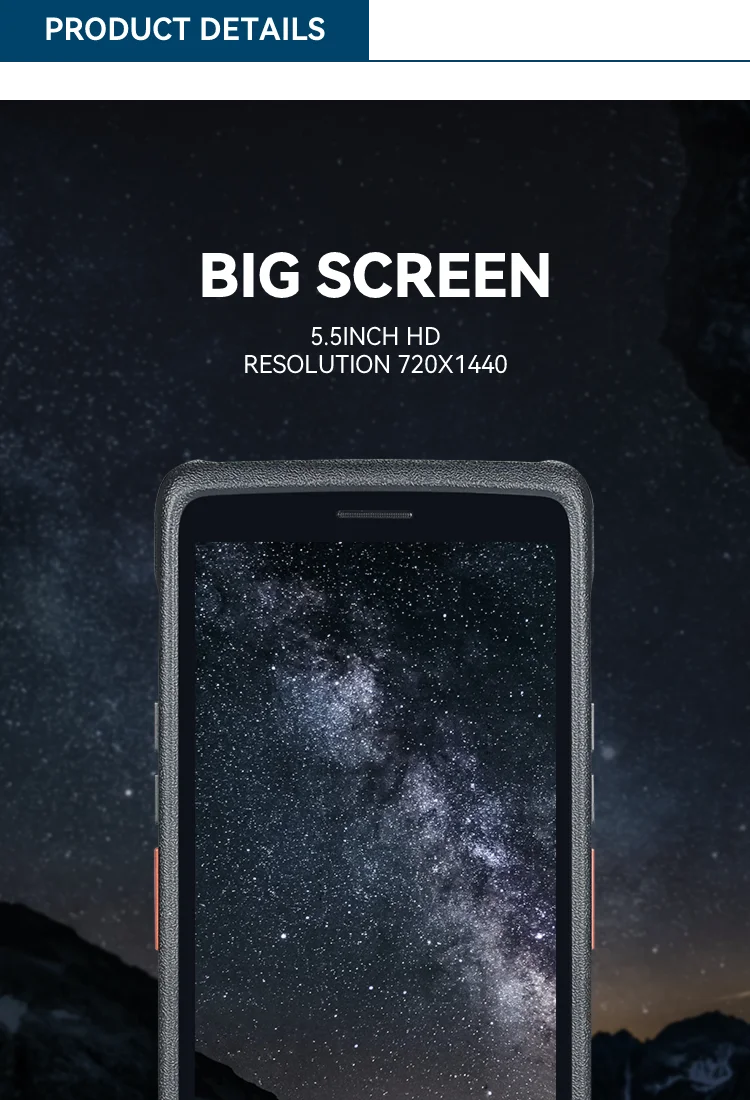

Display | 5.5 inch IPS HD screen 450nit, respectively rate (720 * 1440) | |
Touch Panel | Corning's third-generation Gorilla Glass, capacitive screen, multi-touch, support wet hands, glove operation Use anti-oil stain and anti-fingerprint coating | |
IO/Sensor/Navigation | ||

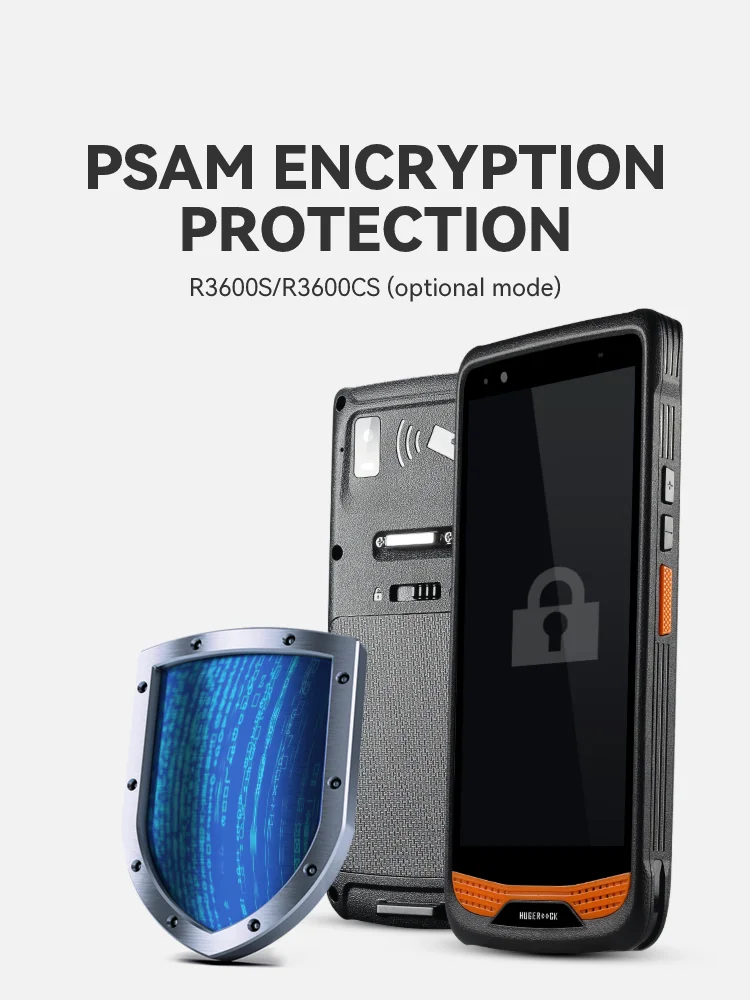

Expansion Slots | Nano-SIM card*2, TF card*1, PSAM*2 | |
TF Card | Expansible through TF, support 128GB | |
keyboard | Side buttons: Power button, SCAN button*2, Volume button, PTT button Screen virtual button: Back, Menu, HOME | |
Data interface | USB 2.0 Type-C, support OTG | |
Motion sensor | support | |
Direction Sensor | Optional | |
Magnetic Field Sensor | Optional | |
Gyro sensor | Optional | |
Rotation Vector | Optional | |
Light-sensor | Optional | |
Charger | 5.0V 2A-10W | |
Navigation | Integrated GPS + GLONASS + Beidou positioning, support AGPS | |
Appearance | ||

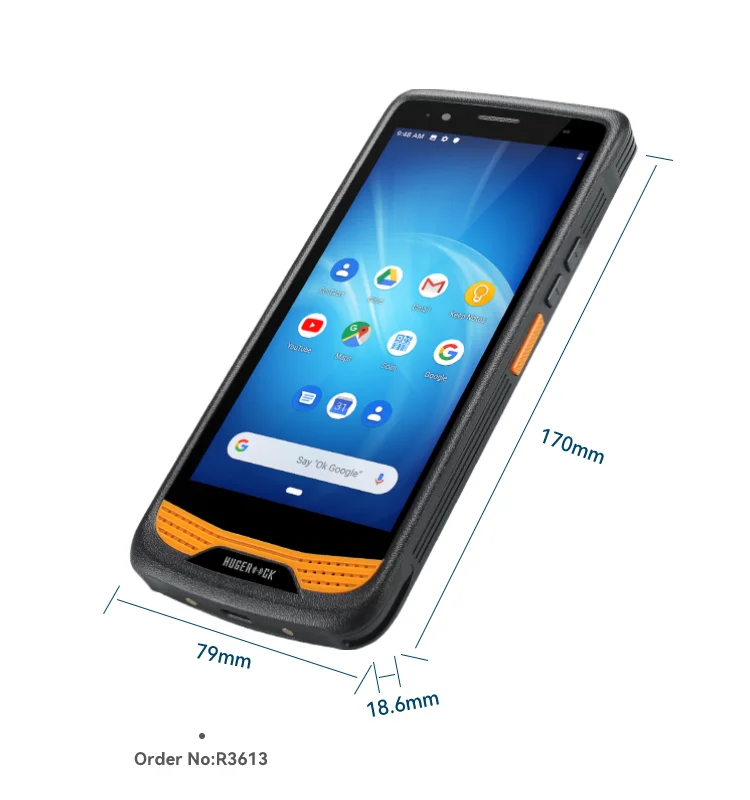

Size | 170*79*18.6mm(L×W×H) | |
Weight | 285g | |
Color & Material | Black | |
Communications & Networking | ||
Phone Call | GSM/GPRS /TD-SCDMA/WCDMA | |
EUR&AP VER（Standard） | GSM: B2/B3/B8 WCDMA: B1/B5/B8 TD-SCDMA(B34/B39), CDMA: BC0, EVDO(BC0) TDD-LTE: (B38/39/40/41) FDD-LTE: (B1/3/5/7/8/20) | |
NA&SA VER（Options） | TDD-LTE: B3/4/5/4/7/12/13/17/28b, WCDMA: B2/4/5 | |
JPN VER（Options） | TDD-LTE: B1/3/8/9/19/26/28, WCDMA: B1/8/9/19 | |

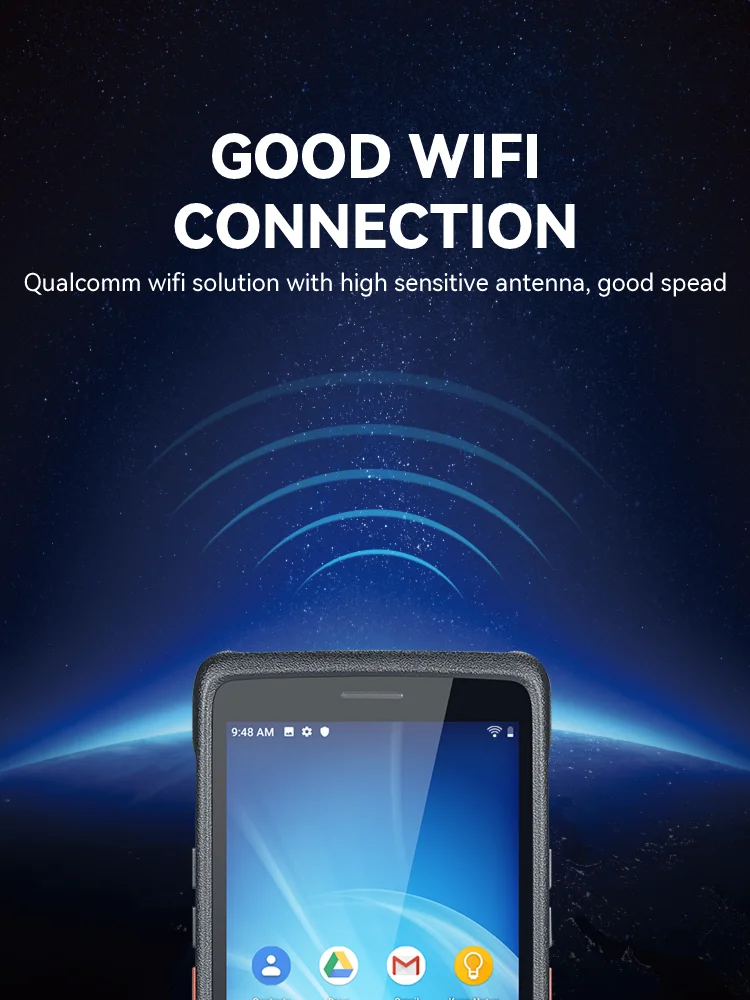

WI-FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac | |
BT | 4.0 BLE | |
Industrial & Reliability Design | ||
Dustproof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |
Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 | |

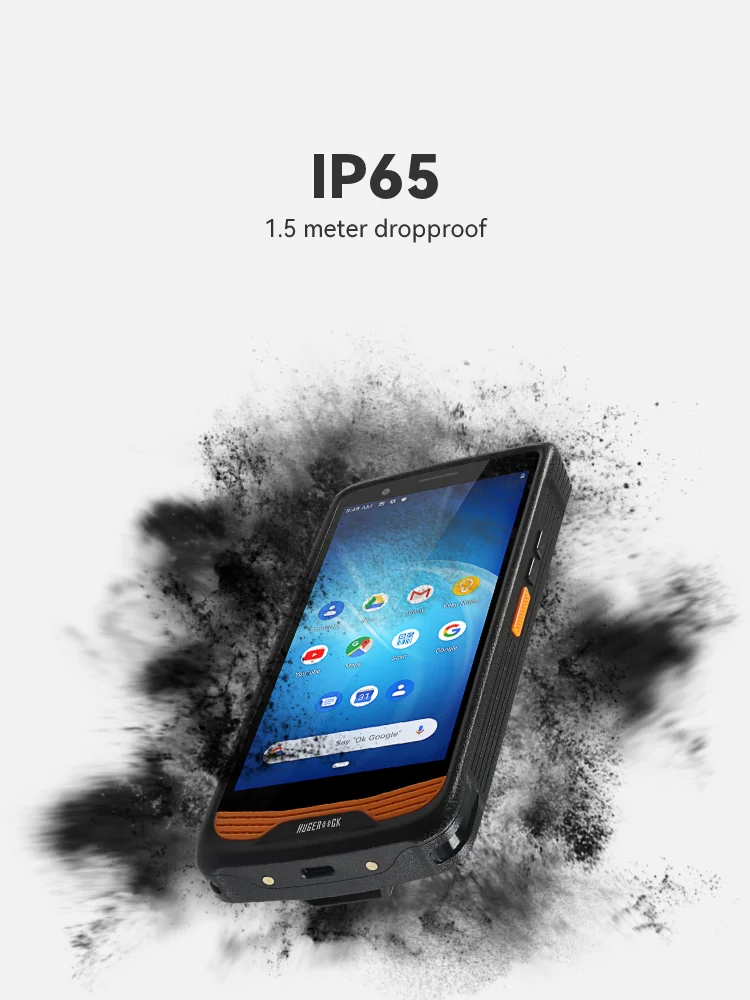

Waterproof | Class 5 ( IEC 60529 ) | |
Dustproof | Class 6 ( IEC 60529 ) | |
Drop specification | Within the operating temperature range, all 6 sides can withstand the impact of multiple drops to the concrete floor from a height of 1.2 meters | |
Rolling test | Continuously rolling 1,000 times at 1.6 feet/0.5 meters, the 6 contact surfaces still run stably after rolling, reaching IEC rolling specifications | |
Static Protection | ±8KV air discharge, ±4KV contact discharge | |
Operating temperature | 10°C to 50°C | |
Storage Temperature | -40°C to 70°C | |
Reliability | MTBF>5000h; MTTR<0.5h | |
RH | 5% to 95% (No condensation) | |
Operating Altitude | Max: 4,500m (15,000 feet) | |
Certification/OS/Software | ||
Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese,Chinese Traditional, etc | |
OS | Android 9.0 | |
SDK | Software Development Kit | |
Development language | Java | |
development tools | Eclipse/Android Studio | |
Package/Warranty terms/OEM | ||
Warranty | 12 months | |
OEM/ODM | Support | |

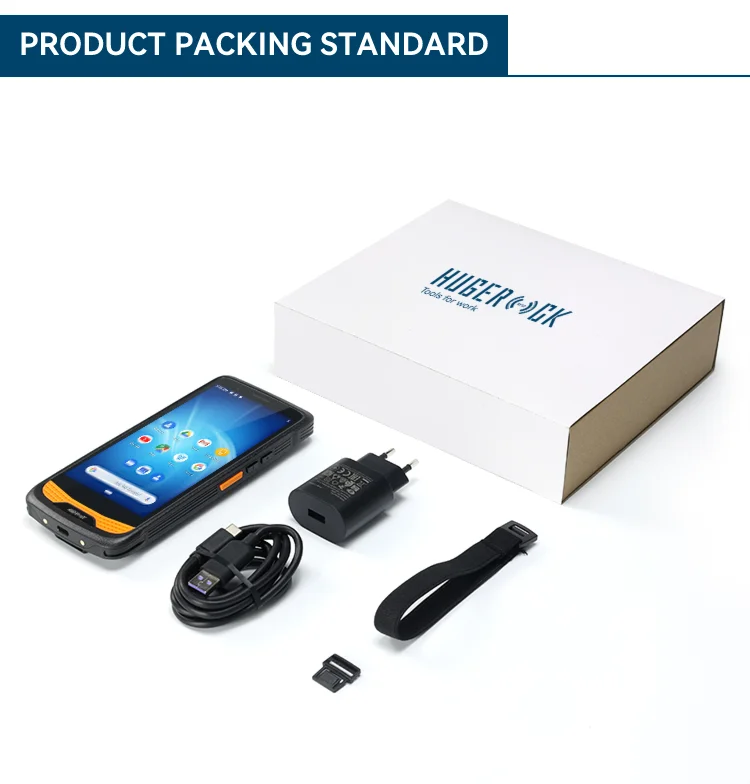

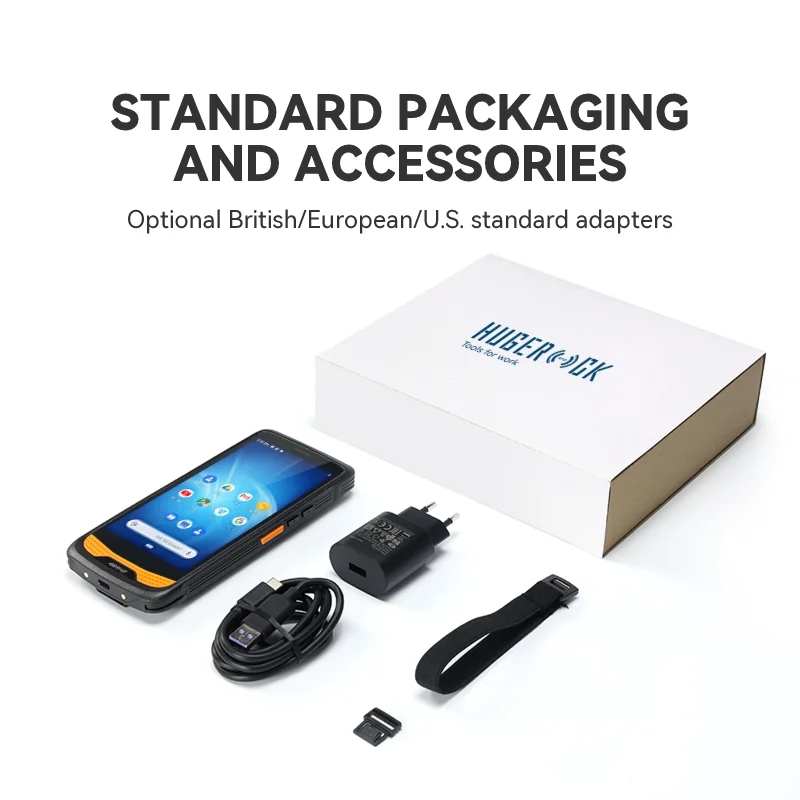

Package | Power adapter, USB data line, Screen protector, Manual, hand strap | |
Sub Camera | ||
8.0MP | ||
LF RFID data collection | ||
125K LF ID Module | LF RFID，125K | |
134 LF RFID Module | LF RFID，134k Animal module | |

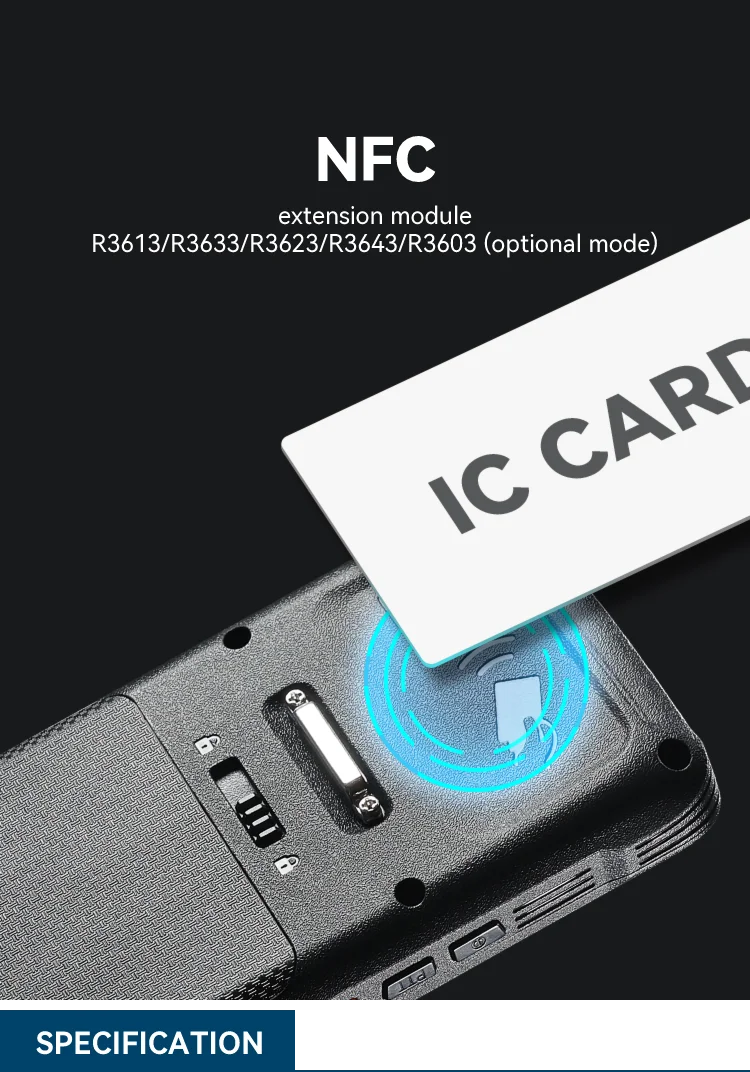

HF RFID/NFC | ||
Frequency | 13.56MHz | |
Protocol standard | ISO14443A/B, ISO15693, zNFC | |
Label standard | M1(S50, S70), CPU, NFC | |
Read-write distance | 2-5cm | |

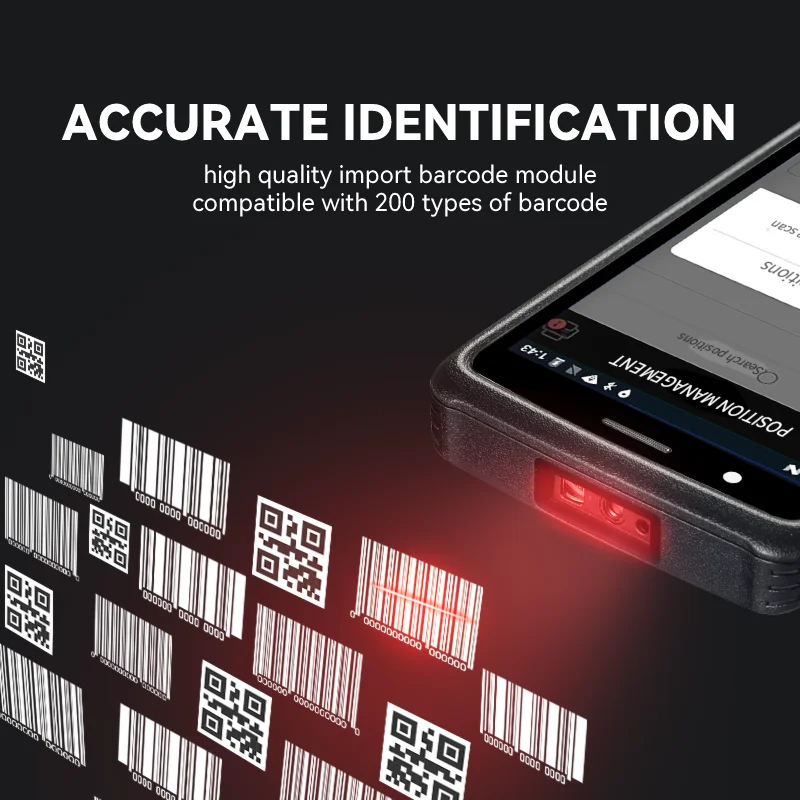

Data Collection | ||

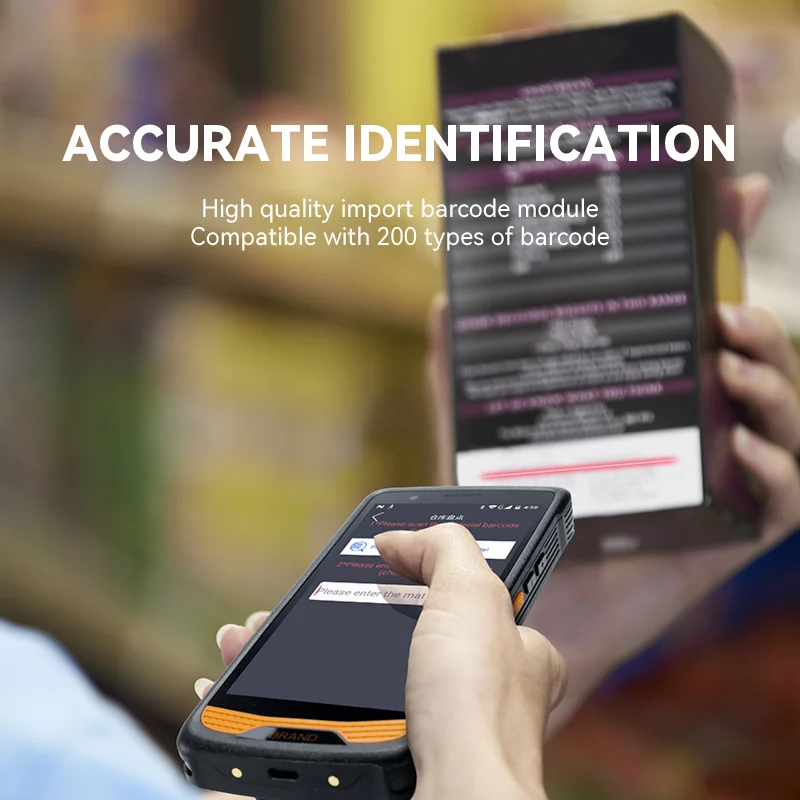

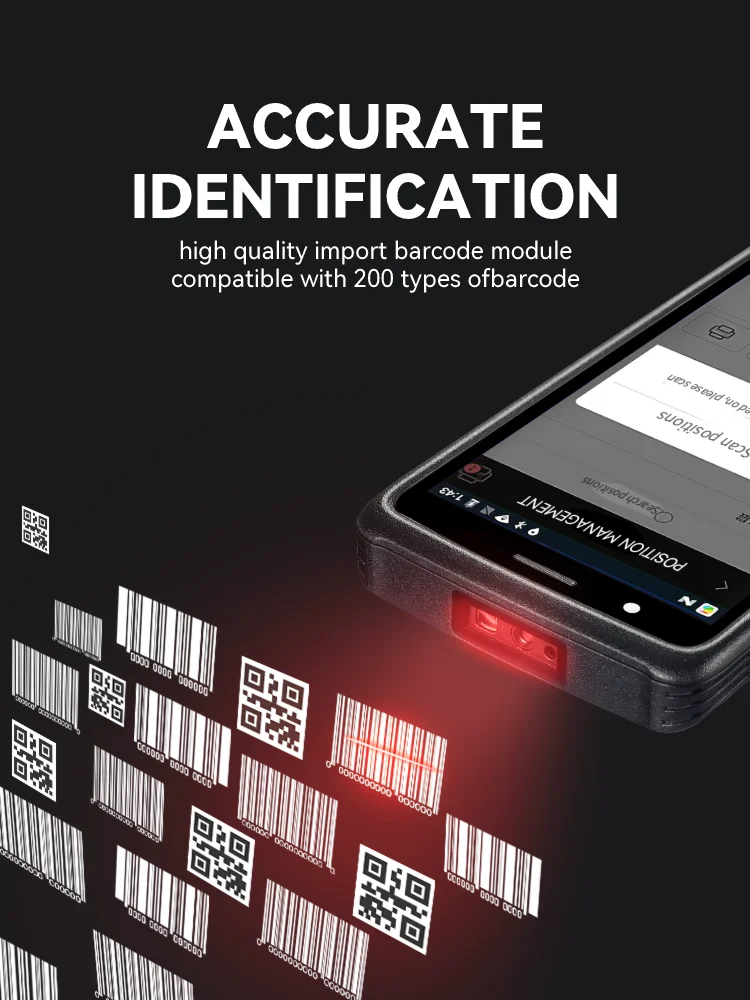

Scanning engine | Newland N1, Minde M5600, Honeywell 6603/3603 | |
1D | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, ETC | |
2D | Code39, Code128, PDF417, MicroPDF417, DataMatrix, Composite, RSS, TLC-39, QR code, Micro QR code, Aztec, MaxiCode, Postal Code; US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, etc. | |
Q :Are you manufacturer?
A: Yes, we are manufacturers.All of our products are fully patented, ID/MD design, hardware and
software,mold,assembly are done by our own team.
software,mold,assembly are done by our own team.
Q: Does the handheld can read QR code and common 1d bar codes?
A: Yes, if choose 2d scan version, it can read both 1D common code and 2d codes such as QR, PDF417, Data Matrix, PDF417 code...
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software
development.ment.
development.ment.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up..
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
