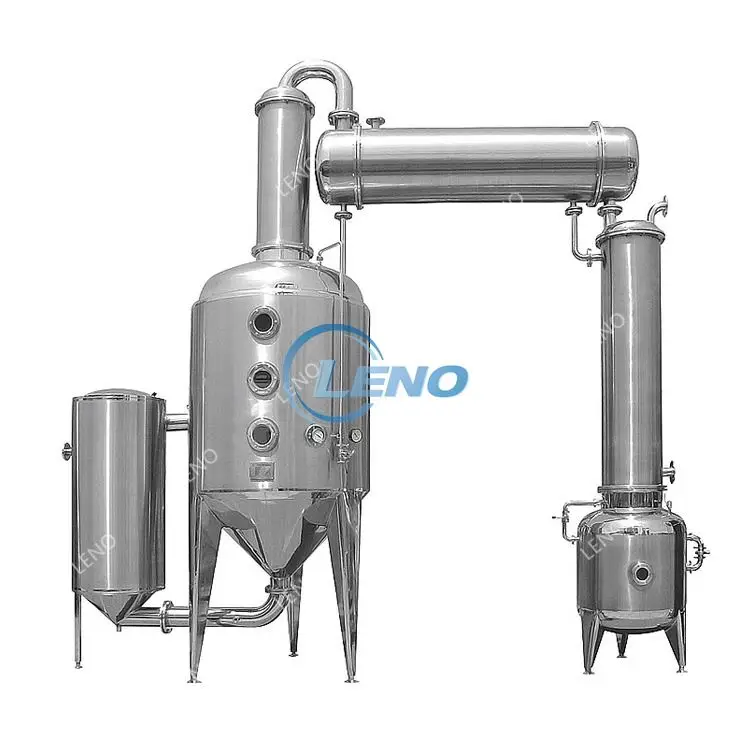

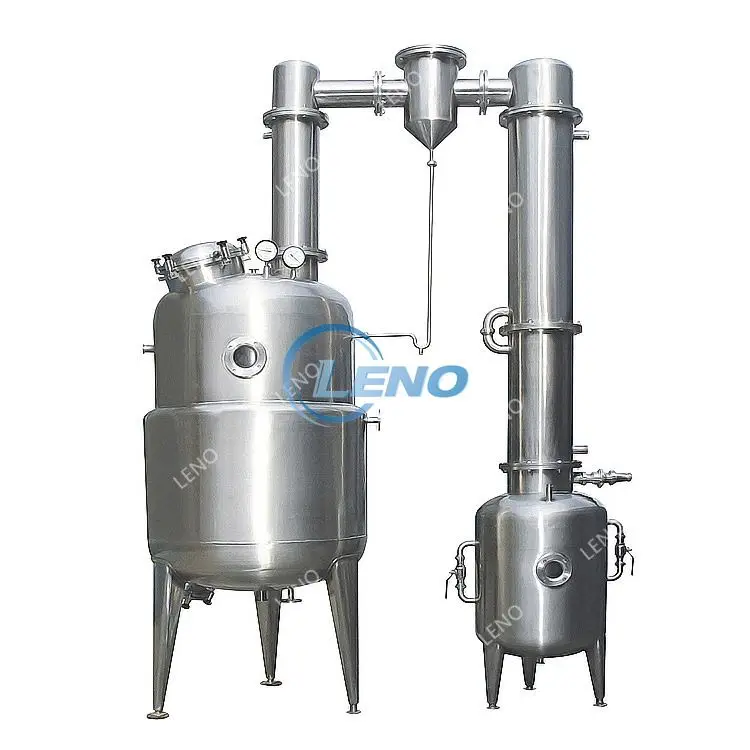

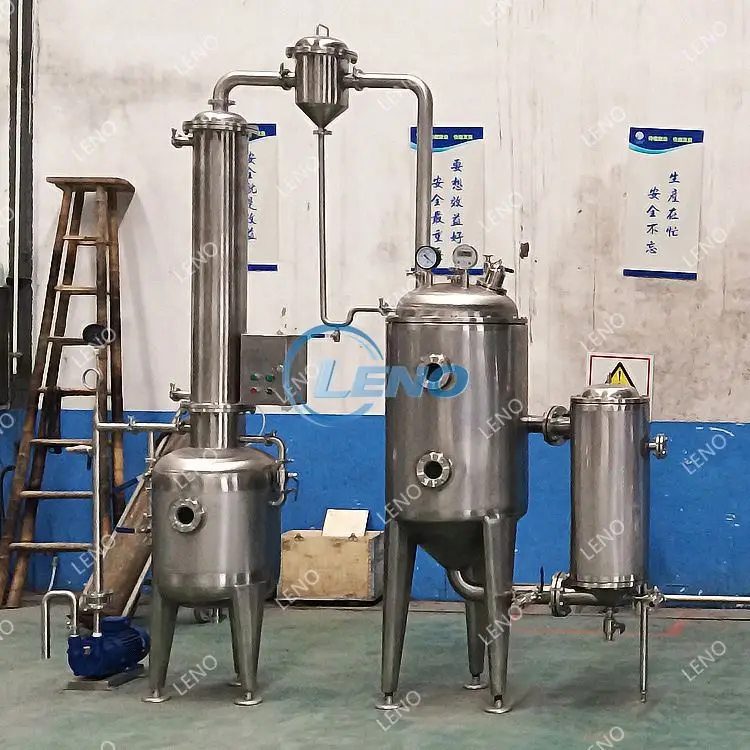

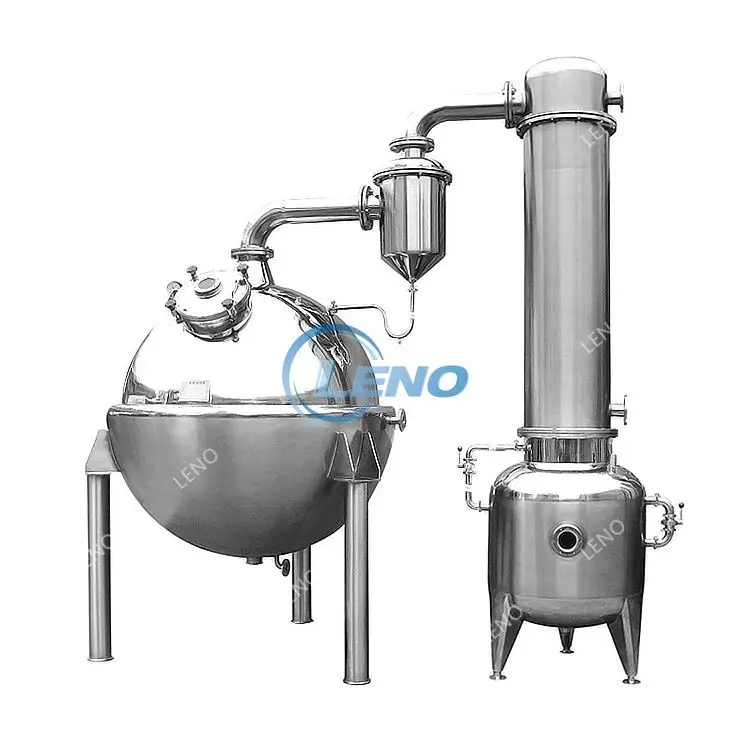

Types Steam / Electric Heating Juice Evaporator For Milk Food Vacuum Concentrator
- Category: >>>
- Supplier: Wenzhou Leno Machinery Co. Ltd.
Share on (1600664831650):
Product Overview
Description
Products Description

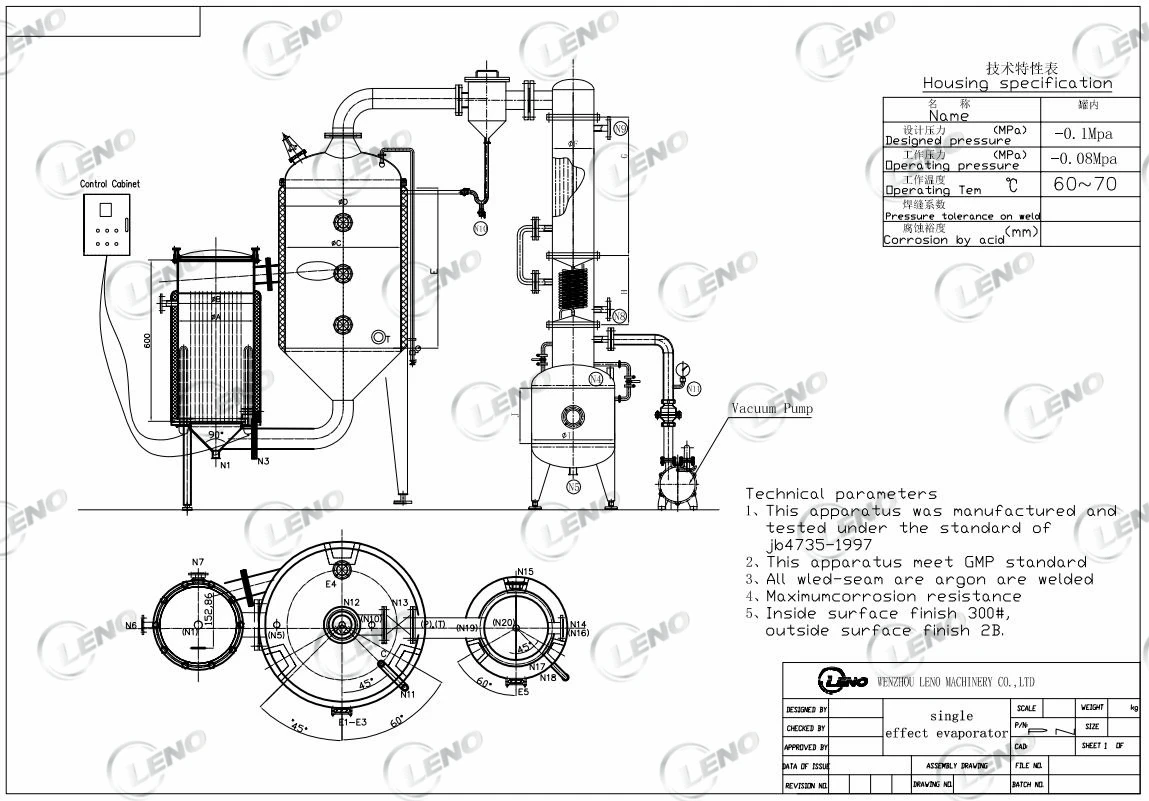

How it works:
The steam enters the shell process of the heating chamber. After the material liquid in the column tube is heated,
the liquid level rises. It is sprayed into the evaporation chamber from the nozzle for vapor-liquid separation. The material
liquid returns from the circulating tube to the lower part of the heating chamber for reheating. When the material liquid is
heated and sprays into the evaporation chamber to form a cycle. The degree of concentration of the liquid shall be discharged from the outlet after sampling. The secondary steam evaporated from the evaporation chamber eliminates the foam through the foam remover and then passes through the vapor-liquid separator. Some of the material and liquids return to the evaporation chamber. The remaining secondary steam is cooled into liquid by the condenser and cooler and enters the collector. The non-coagulated gas is extracted by the vacuum pump.
the liquid level rises. It is sprayed into the evaporation chamber from the nozzle for vapor-liquid separation. The material
liquid returns from the circulating tube to the lower part of the heating chamber for reheating. When the material liquid is
heated and sprays into the evaporation chamber to form a cycle. The degree of concentration of the liquid shall be discharged from the outlet after sampling. The secondary steam evaporated from the evaporation chamber eliminates the foam through the foam remover and then passes through the vapor-liquid separator. Some of the material and liquids return to the evaporation chamber. The remaining secondary steam is cooled into liquid by the condenser and cooler and enters the collector. The non-coagulated gas is extracted by the vacuum pump.
Profile type | vacuum evaporator concentrator | ||||
Material | SS304 or SS316L | ||||
Capacity | 0.1T/H-5T/H (Customized) | ||||
Heater type | Electric heating / Steam heating | ||||
The Working Temperature | 40°C~80°C | ||||
The Working Pressure | -0.08Mpa | ||||
Power | 0.55KW-30KW | ||||
PARTS DETAILS | 1.Quick open manhole / Pressure manhole | ||||
2.Various types of CIP cleaners | |||||
3.Sterile respirator | |||||
4.Adjustable Legs | |||||
5.Inlet and Outlet sanitary valve. | |||||
6.Thermometer (According to customer requirements ). | |||||
7.Scraped wall mixer .(According to customer requirements). | |||||
8.Liquid level meter and lever controller (According to customer requirements) . | |||||

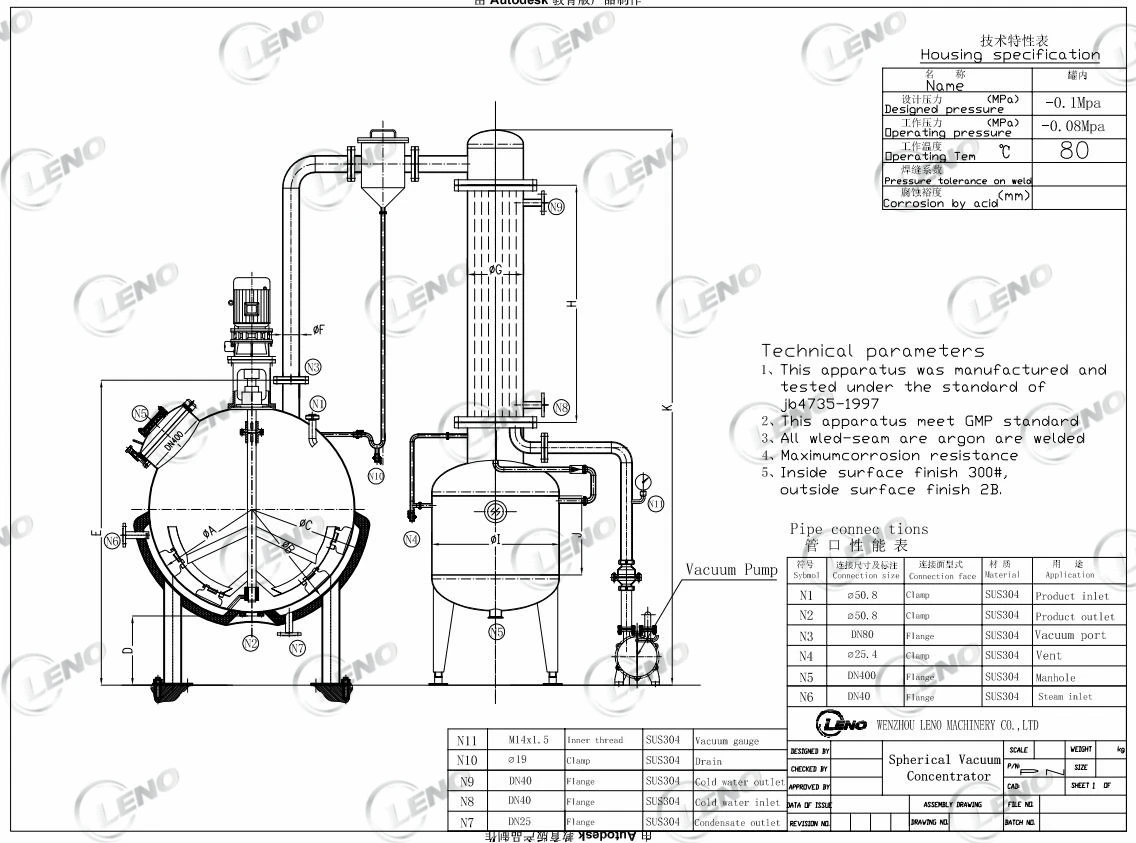

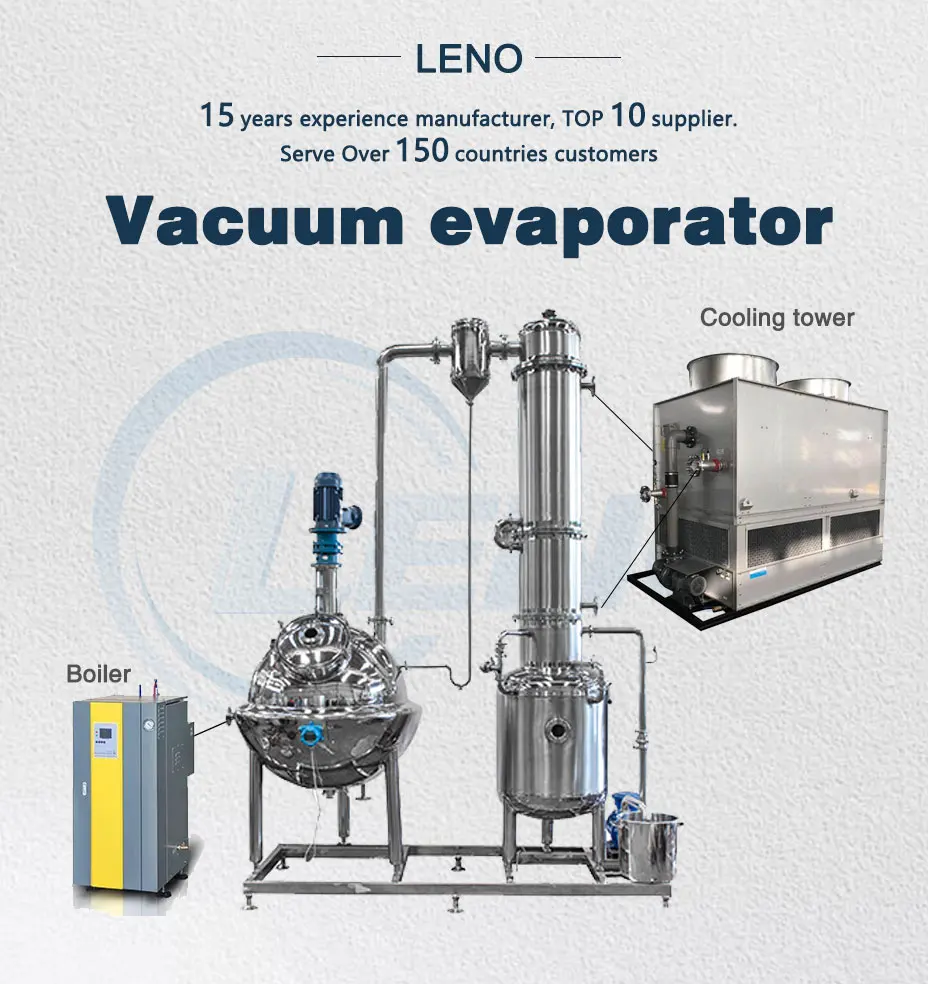

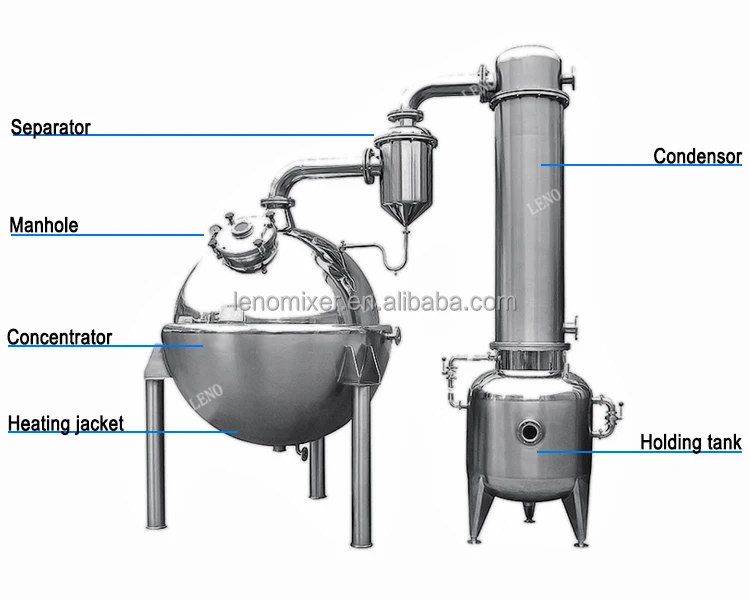

1. vacuum concentrator makes use of the methods of vacuum evaporation or mechanical separation to concentrate the materials.vacuum concentrator is composed of heater, evaporation chamber, foam remover, condenser, cooler and liquid receiver, etc. All the parts contacting with materials are made of SUS304/316L.
2. vacuum concentrator is suitable for the liquid evaporation concentration in the industries of food, chemical, light industry, etc. This equipment features short concentration time, fast evaporation time and can protect the thermal sensitivity materials well.
3. At present, in order to improve the concentrated products’ quality, concentrator widely adopts vacuum concentration
process. Usually, under 18-8Kpa low pressure state, it heats up the liquid materials by indirect steam heating to make it
evaporate under low-temperature. So, the temperature difference between heating steam and liquid materials is larger. Under the same heat transfer condition, its evaporation rate is higher than atmospheric evaporation, which can reduce the liquid nutrition loss.
Product Paramenters
Model | (L) Equipment volume | (KG/H) Evaporation quantity | (Mpa) Working Pressure in jacket | (Mpa) Vacuum degree in tank | KW Vacumm Pump | (KG) Weight of equipment | (RPM) Agitator speed |
RVC100 | 150 | 100 | ≤0.1MPa (According to customer requirements) | -0.08Mpa | 1.5KW | 320 | (According to customer requirements) |
RVC200 | 250 | 200 | 2.2KW | 460 | |||
RVC500 | 600 | 500 | 3.0KW | 680 | |||
RVC1000 | 1000 | 1000 | 4.0KW | 860 | |||
RVC2000 | 2000 | 2000 | 5.5KW | 1120 | |||
RVC3000 | 3000 | 3000 | 7.5KW | 1300 | |||
RVC5000 | 5000 | 5000 | 11.0KW | 1700 |

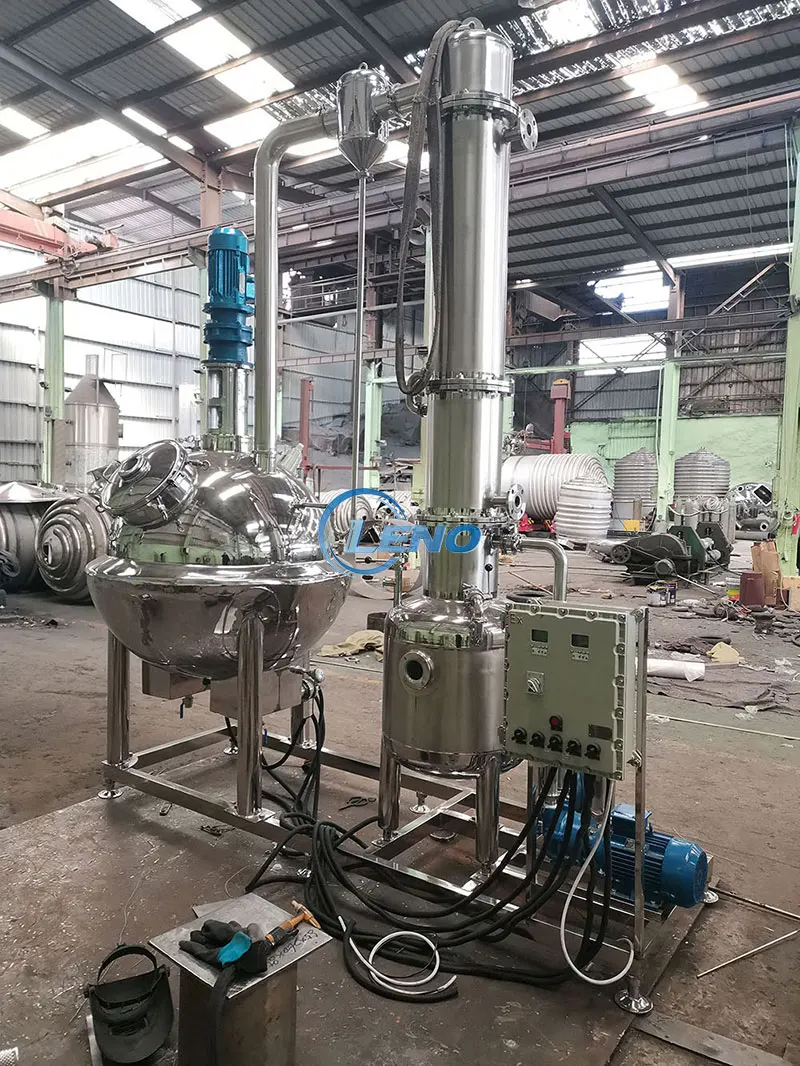

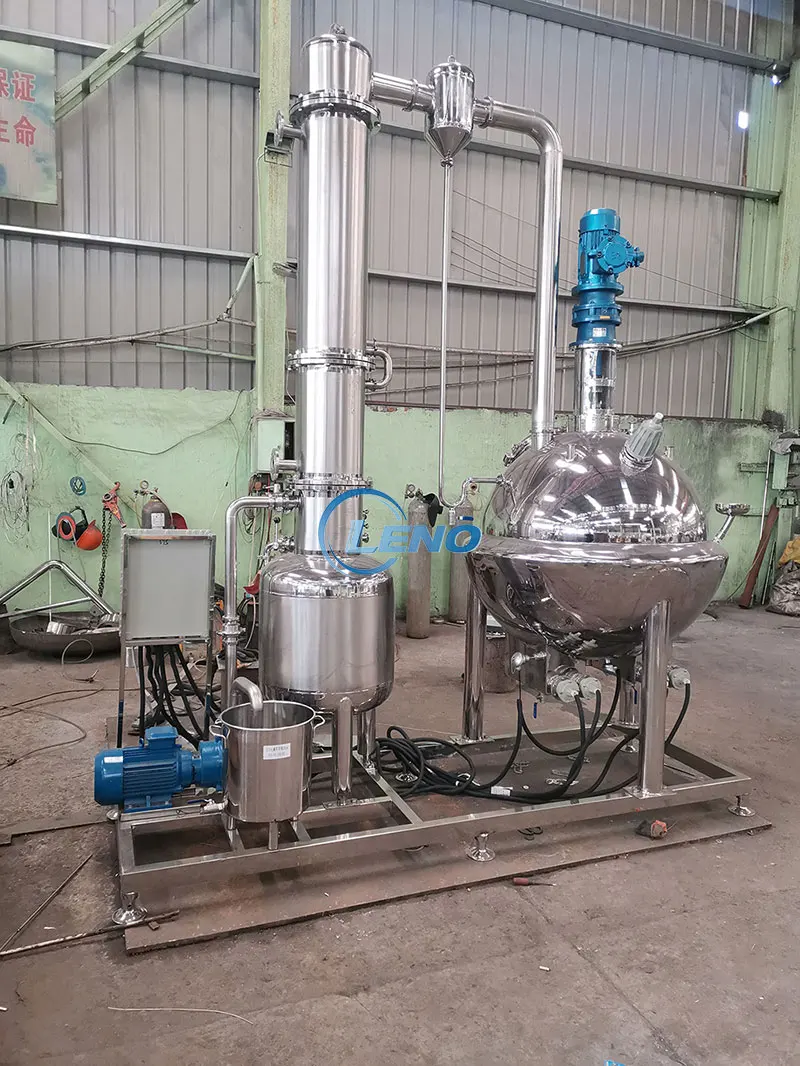

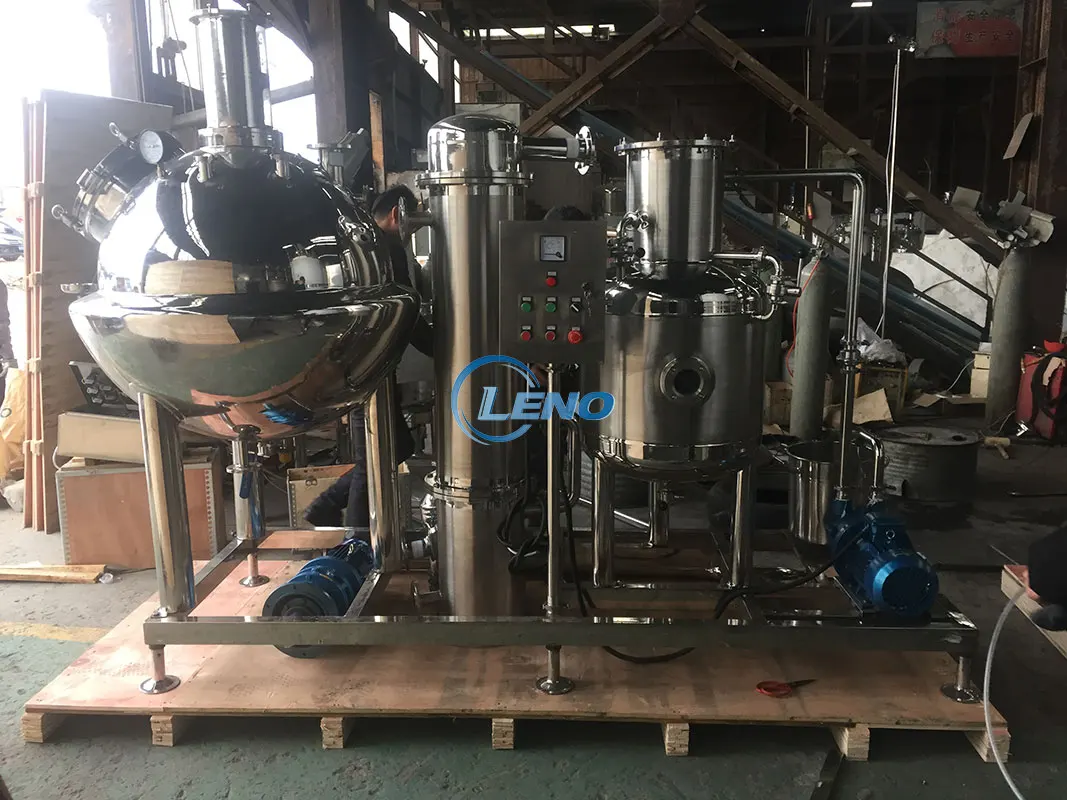

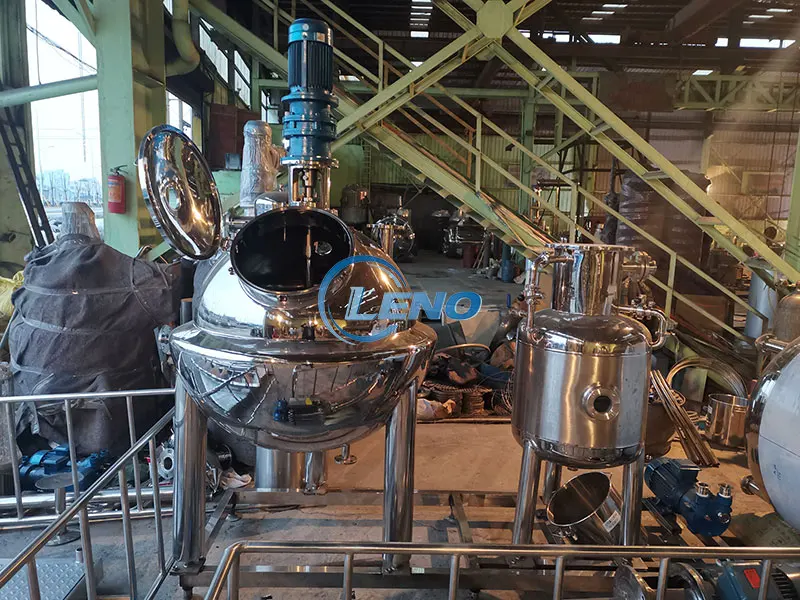

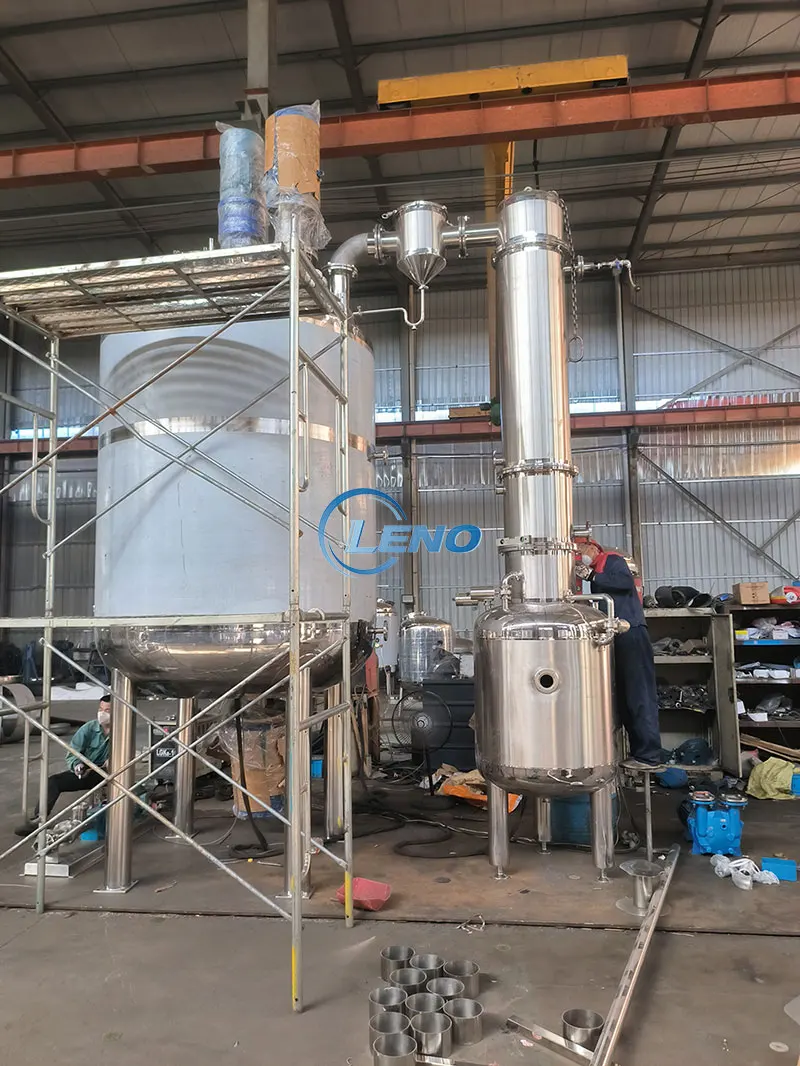

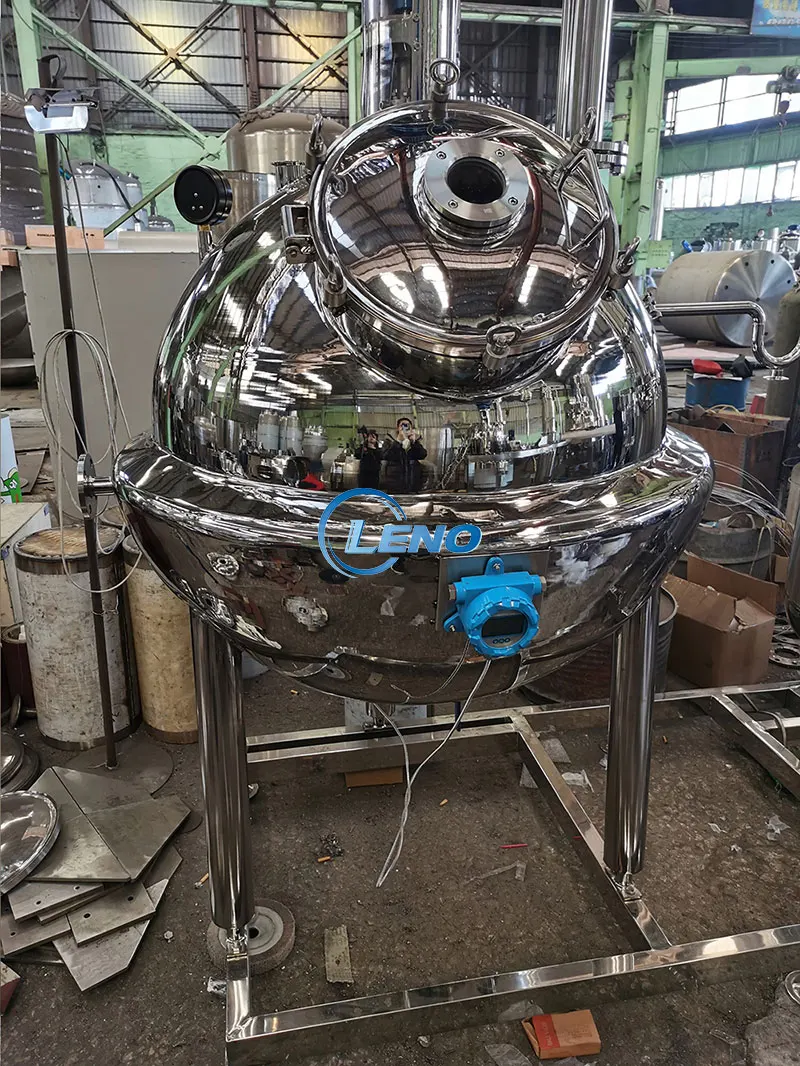

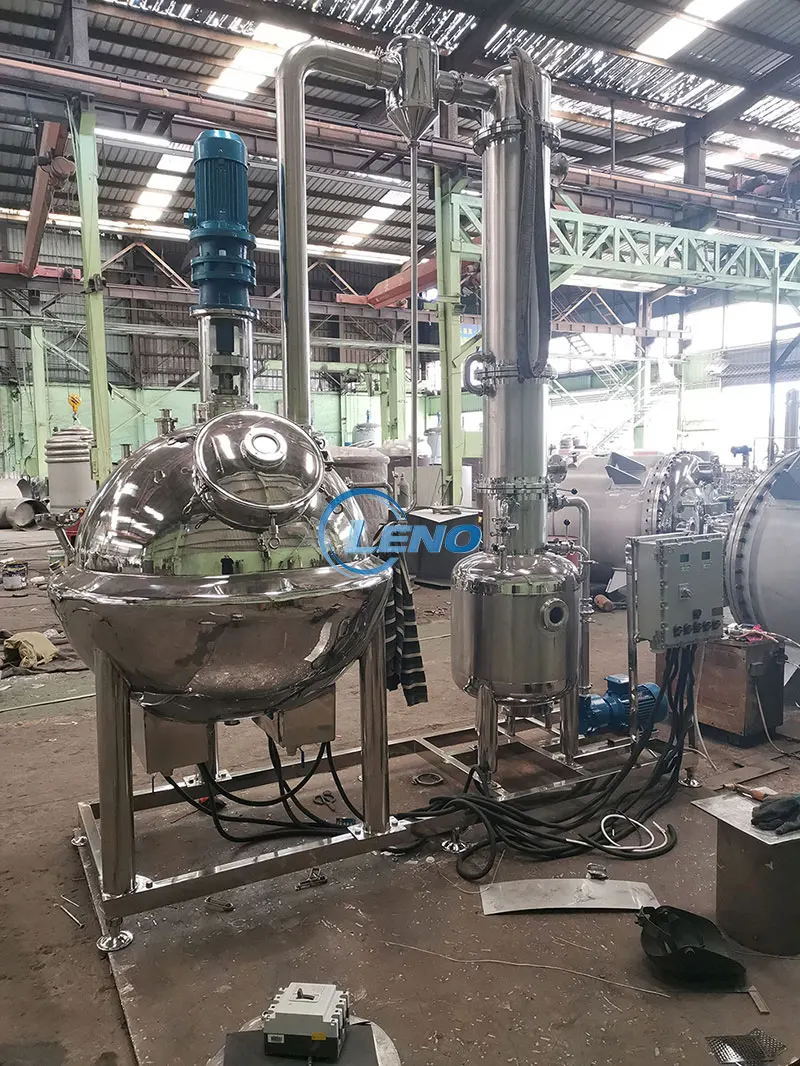

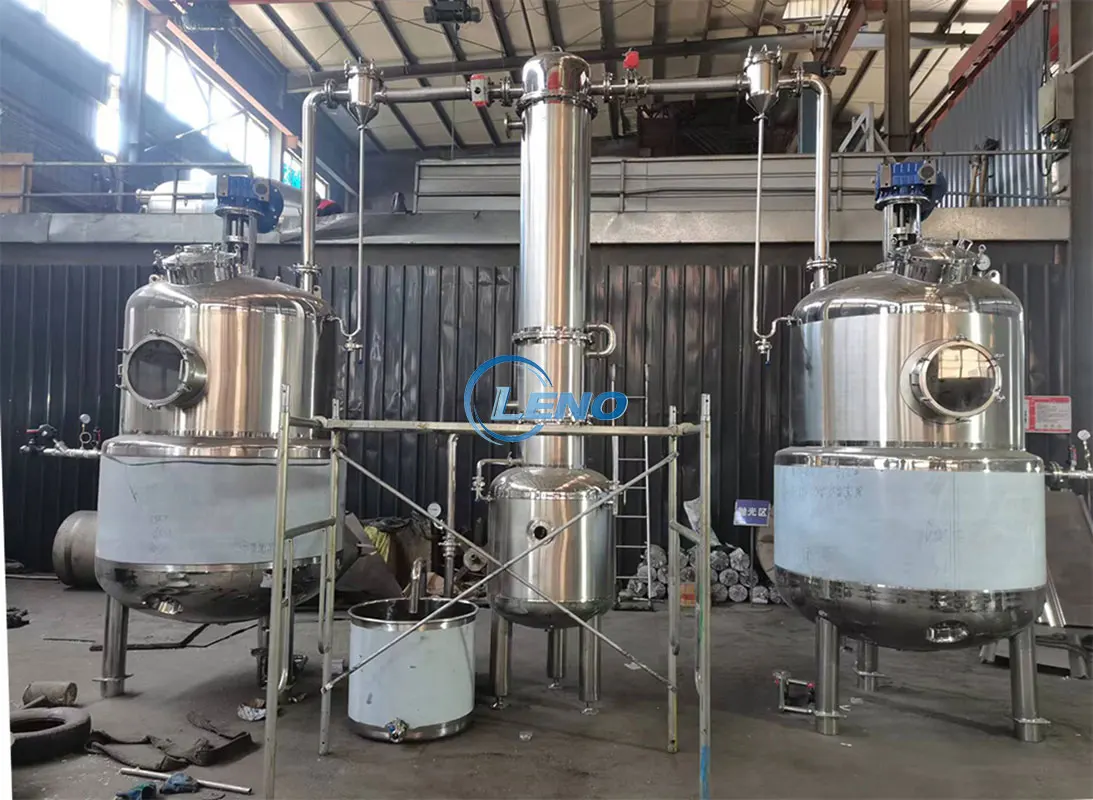

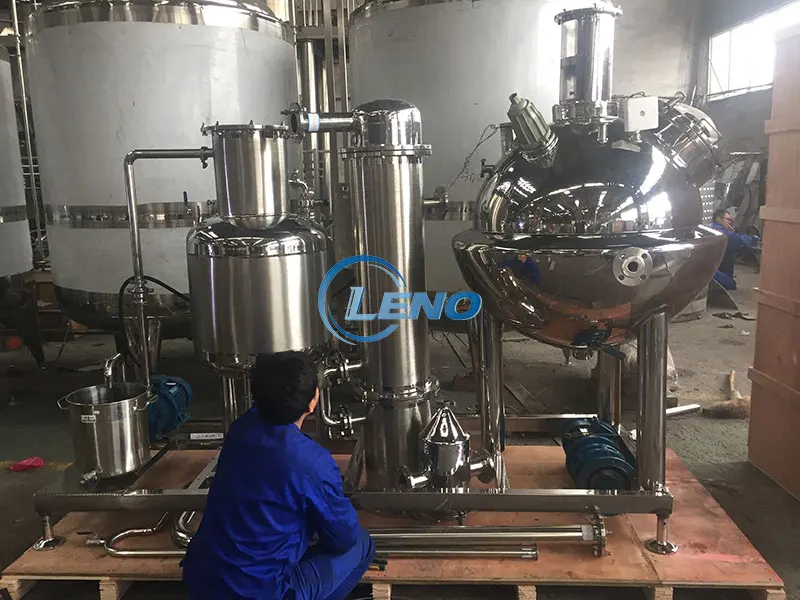

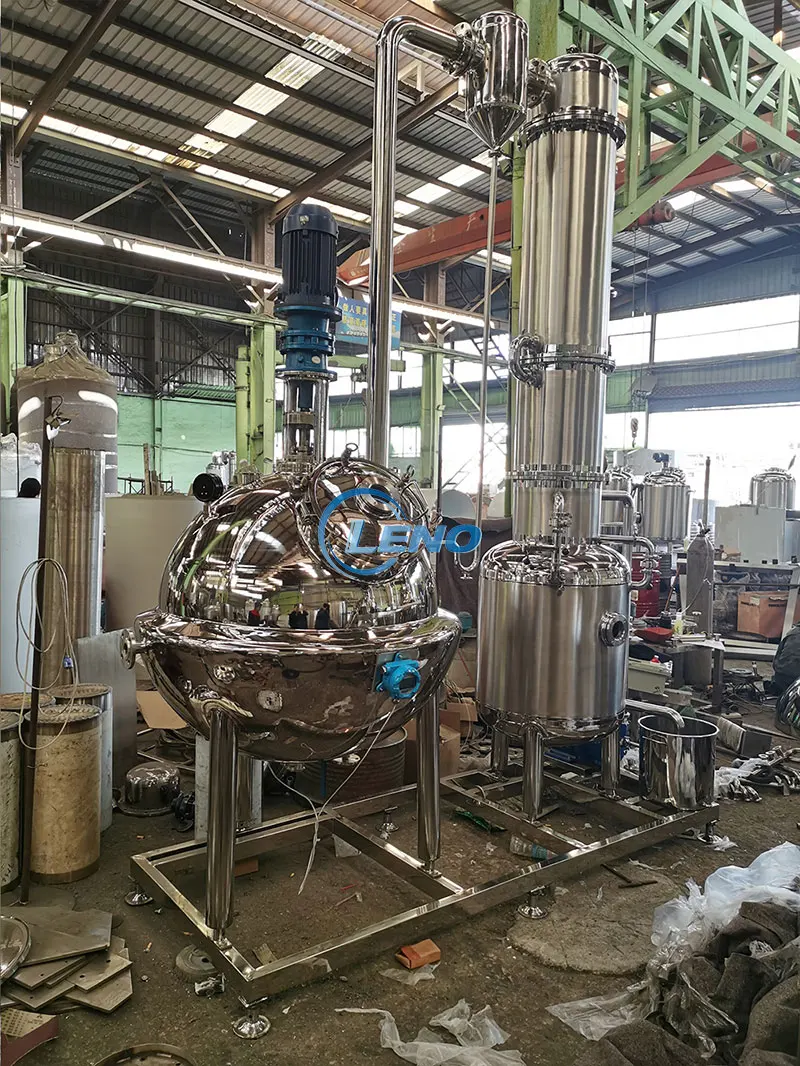

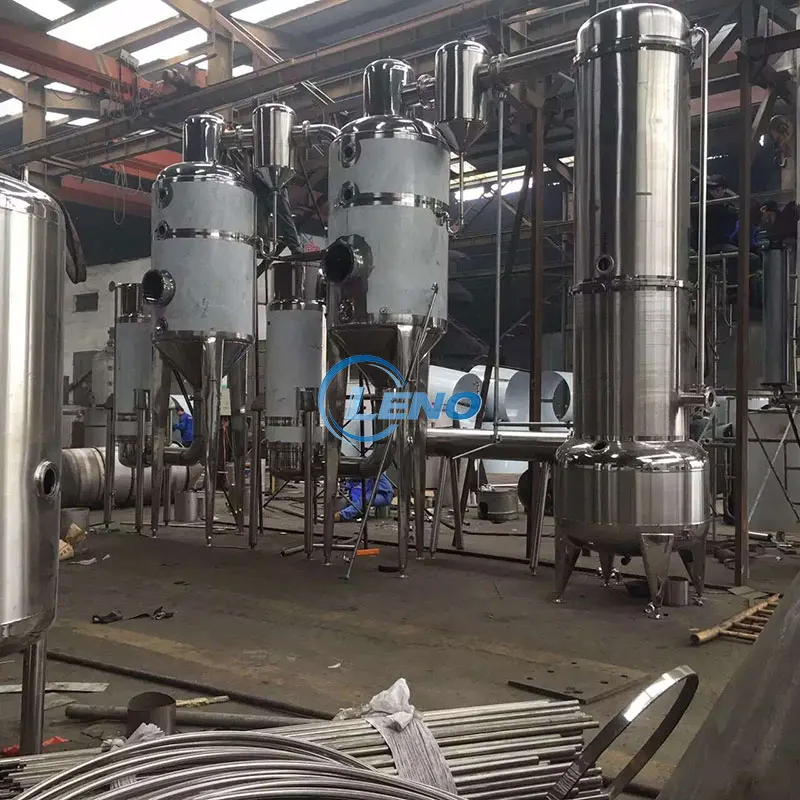

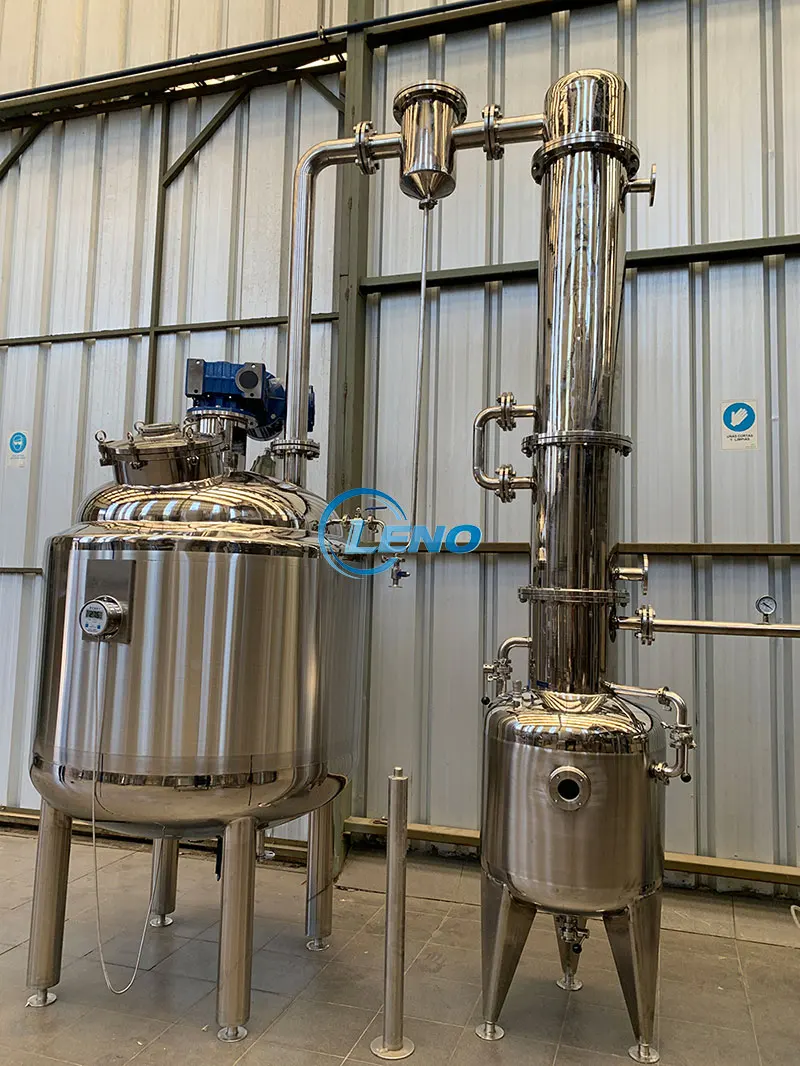

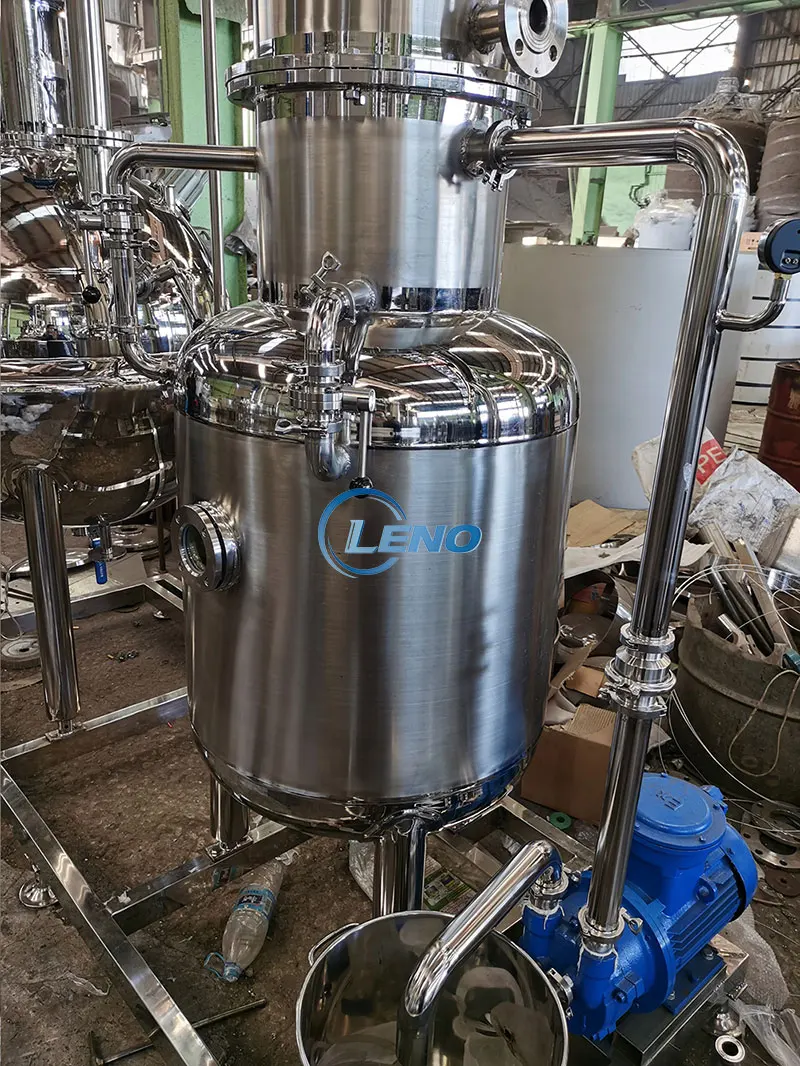

Product Images
Company Profile
Wenzhou Leno machinery Co., ltd. Is established in 2008, which is a professional manufacturer and exporter of Stainless-steel equipment for food, dairy, pharmacy, chemical with more than 15 years’ experience.We are located in Wenzhou City, with convenient transportation access, we have 50 workers, 5 high level engineers, 2 after service, over 4000 Squares Working Place. 300 Square Office.
Our Modern management mode, well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Whether selecting a current equipment from our catalogue or seeking engineer assistance for your application, you can tell us your sourcing requirements freely. Our Company advantages, 1 Hours quick response, 6 hours got quotation, Design Drawing within 24 hours, small order Customized, OEM. We would like to cooperate with the same occupations to improve Stainless steel light industry machinery, and welcome warmly our old and new customers' visiting and viewing.
Thank you!
Thank you!
Logistics information
FAQ
1. | Are you trade or manufacturer? |
We are a factory with an international sales company specialized in support for global distributors. | |
2. | Can you provide instant technical consulting services? |
We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days. | |
3. | What is the payment terms? |
We accept Alibaba Trade Assurance Order, also can T/T and L/C. | |
4. | How to choose the shipment way? |
It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) | |
5. | How about the after-sales service? |
Ast after-sales support. Our products have a one-year warranty and free permanent consulting services. | |
6. | what can you buy from us? |
Stainless steel tank, mixing equipment, sanitary pump, distillation equipment, Vacuum Concentrator |
