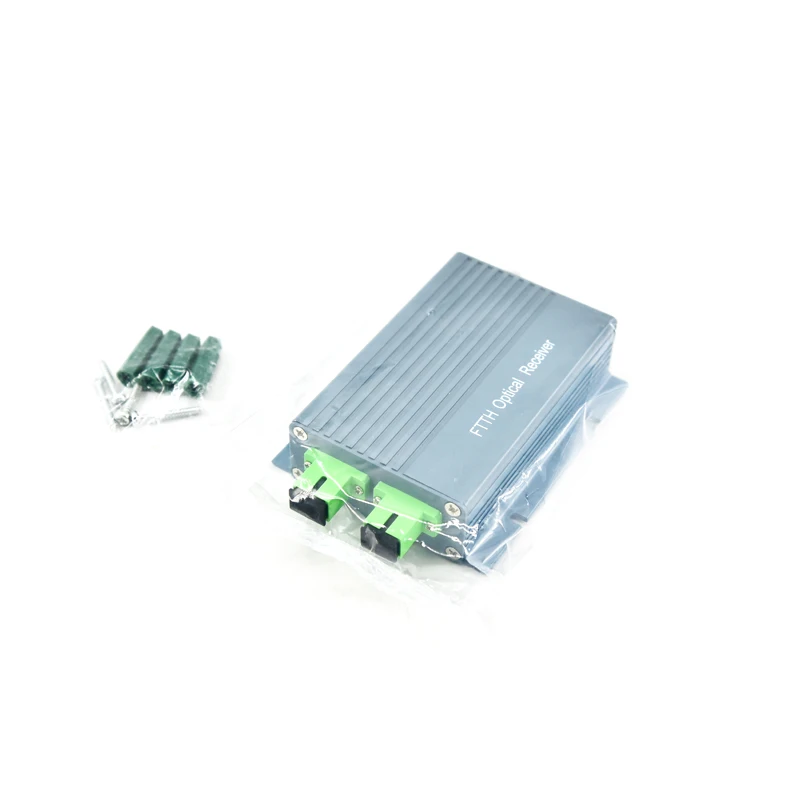

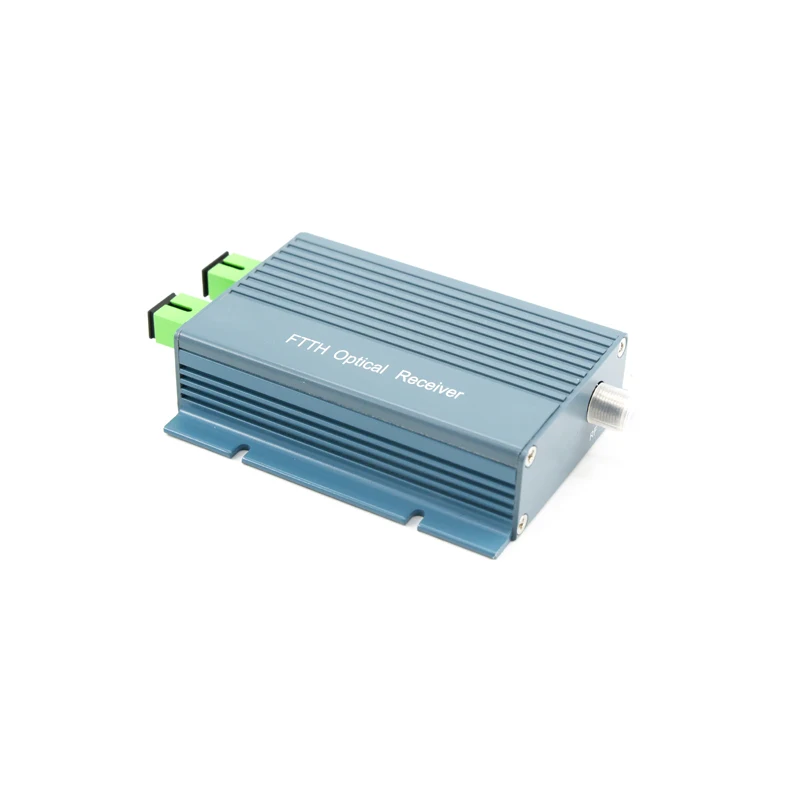

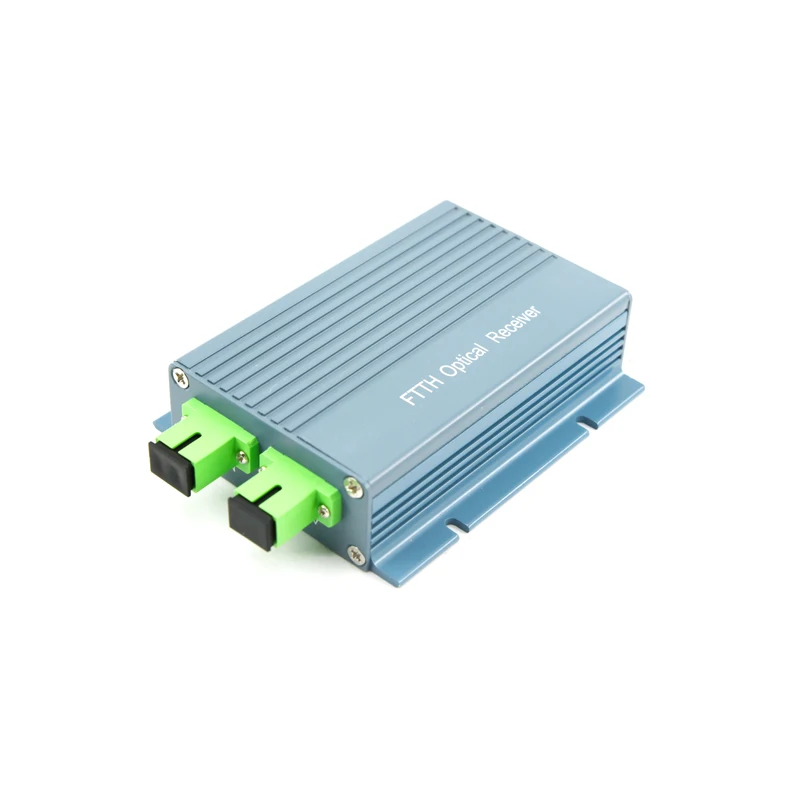

Passive Triplexor Indoor Micro Fiber Optical Receiver With WDM Two Optical Inputs RF Output
- Category: >>>
- Supplier: HANGZHOU SCOPE TECHNOLOGY CO. LTD.
Share on (1600664845566):
Product Overview
Description
HOT SALE
Product Description
FTTH optical receiver is specifically designed for CATV FTTHnetwork structure.Adopting UFo plastic shell, with optical control AGC circuit built in, compact structure and externalmodular power supply make the installation and debugging very convenient.lt is an ideal product to build FTTH CATVnetwork.
1. Beautiful plastic shell with excellent heat dissipation.
2. Adopt the GaAs low noise amplification circuit, optical input power for digital signal can reach to -22dBm, analog signal can reach to -10dBm.
3. Use the switching power supply to ensure the high reliaility and stability of the power supply.
4. Low consumption design, total receiver consumption less than 2W
1. Beautiful plastic shell with excellent heat dissipation.
2. Adopt the GaAs low noise amplification circuit, optical input power for digital signal can reach to -22dBm, analog signal can reach to -10dBm.
3. Use the switching power supply to ensure the high reliaility and stability of the power supply.
4. Low consumption design, total receiver consumption less than 2W
Product Paramenters
Item | Index | Supplement | ||
CATV working wavelength | (nm) | 1260~1620 | ||
1540~1560 | WF/WD | |||
Optical input power | (dBm) | +2~-10 | Analog TV | |
+2~--20 | Digital TV | |||
Optical return loss | (dB) | ≥45 | ||
Bandwidth | (MHz) | 47~862&1000 | ||
Flatness | (dB) | ±0.75 | ||
RF output power | (dBuv) | ≥68 | ||
Output port | (ea) | 1 | ||
AGC character | (dB) | ≤±0.5 | Pin:0~-7.0dBm | |
Return loss | (dB) | ≥14 | 47-862MHz | |
Output impedance | (Ω) | 75 | ||
CNR | (dB) | ≥51 | Pin=-2dBm | |
CTB | (dB) | ≥61 | Pin=-2dBm | |
CSO | (dB) | ≥60 | Pin=-2dBm | |
Power consumption | (W) | ≤2 | ||
Operating temperature | (℃) | -25~+45 | ||
Dimension | (mm) | 112*106*28 | (W)*(D)*(H) | |
