Hospital /Operating Room/Laboratory Modular 10000 cfm Air Handling Unit
- Category: >>>
- Supplier: Changzhou Vrcoolertech Refrigeration Co. Ltd.
Share on (1600664894990):
Product Overview
Description
Product Description
Air-cooled direct-expansion air handling unit
Air-cooled direct-expansion air handling unit, a professional air conditioning unit launched for special occasions, with its own cold and heat source, integrating air handling and automatic control functions, with simple system, convenient installation, convenient maintenance, efficient operation, and low investment Features.

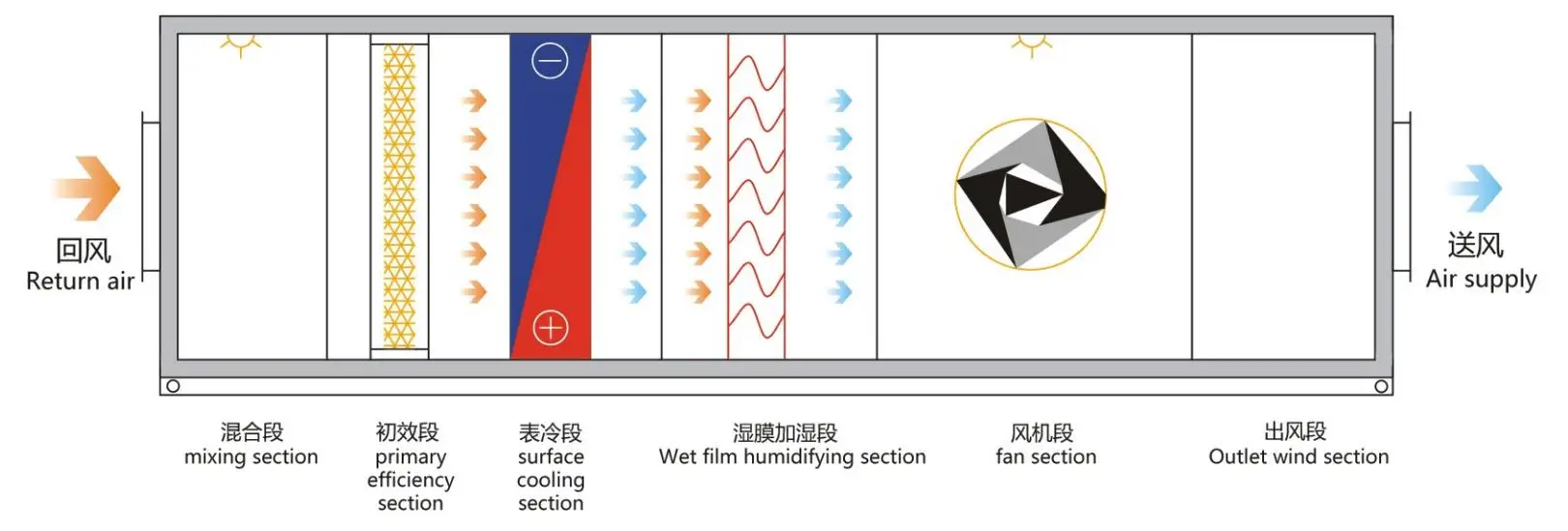

Set up the basic function section, air treatment unit with primary filter and refrigeration hot coil (wet film humidification is selected), with the features of simple function and controllable size.
Suitable for general building room comfort air conditioning treatment process.
Suitable for general building room comfort air conditioning treatment process.

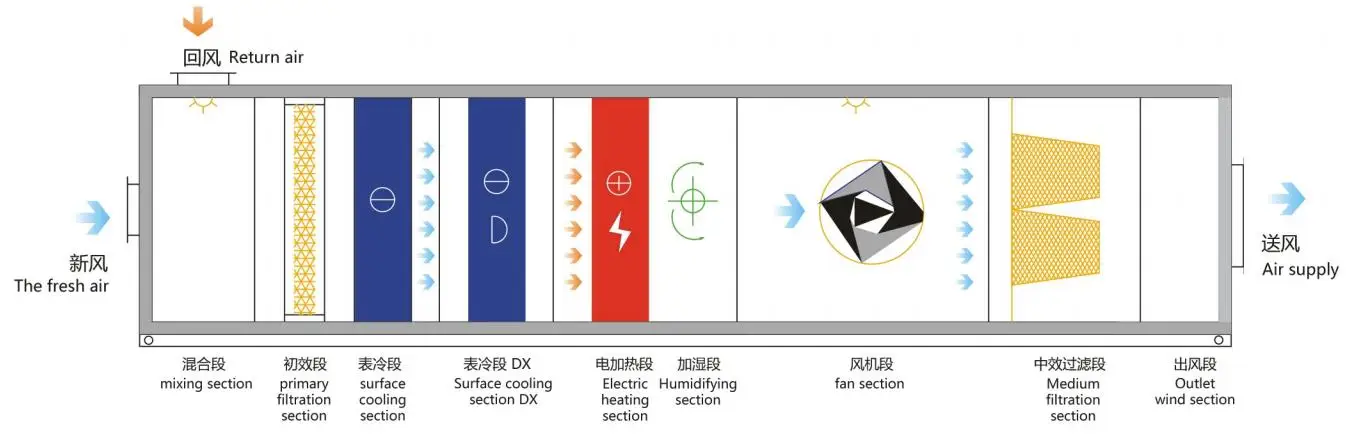

High in clean operating room occasion with air handling units,in addition to the basic function of configuration,effectively fiter with junior high school,equipped with electric heating and humidification,mainly considering particularity medical situations, adopt double cold source system(chilled water＋direct evaporative)and efficient without the volute blower,provide the frequency conversion control, in order to satisfy the requirements of high reliability.
Benefits
For design consultants:
Complete equipment specifications and convenient model selection help shorten the project design cycle to select and recommend energy-saving and high-efficiency solutions for end users, and promote the success of the project.
Lower downtime and higher reliability are the key advantages of specific systems that meet the requirements of end-user production processes
For end users:
The system scheme is simple, inspection and maintenance are more convenient, and achieve better cost-effectiveness. Higher energy efficiency and energy saving can reduce electricity bills. Reliability makes you more worry-free and reduces downtime,.
For design consultants:
Complete equipment specifications and convenient model selection help shorten the project design cycle to select and recommend energy-saving and high-efficiency solutions for end users, and promote the success of the project.
Lower downtime and higher reliability are the key advantages of specific systems that meet the requirements of end-user production processes
For end users:
The system scheme is simple, inspection and maintenance are more convenient, and achieve better cost-effectiveness. Higher energy efficiency and energy saving can reduce electricity bills. Reliability makes you more worry-free and reduces downtime,.

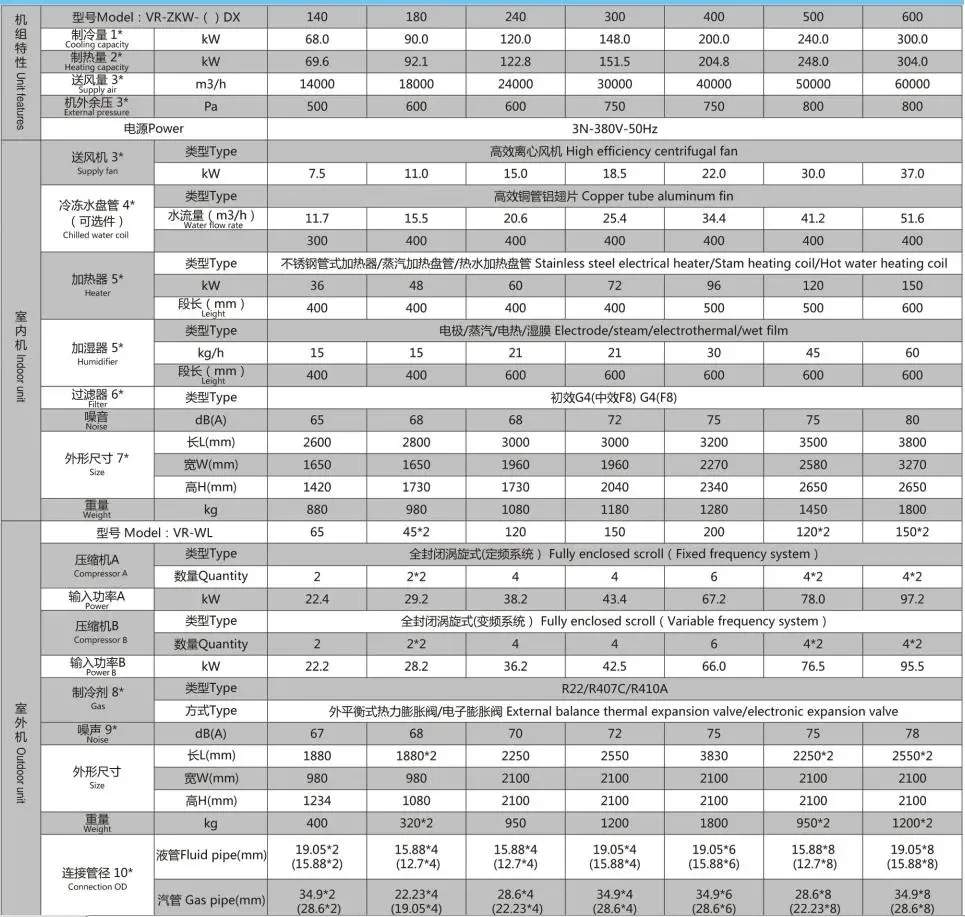

Specification
Note：
■Refrigeration conditions: indoor dry bulb/metering bulb temperature 27/19℃; outdoor dry bulb/ink bulb temperature 35/24℃;
■The unit length does not include the heating section, humidification section and other functional sections, please consult vrcoolertech for details;
■ Heating conditions; indoor dry bulb/test bulb temperature 20/—℃; outdoor dry bulb/wet bulb temperature 7/6℃;
■ The air-cooled split type air-conditioning unit does not carry refrigerant at the factory, and the selected refrigerant model needs to be indicated in the order;
■ The noise value is measured at a height of 1.2m and 2m from the front of the unit when cooling under standard air volume;
■The chilled water coil is an optional part, which can be configured as a dual cold source model according to customer site requirements;
■The brackets are the connection substitutes for R410A coal chillers. It is recommended that the connecting copper pipe between indoor and outdoor units be within 35 meters.
■Adder, adder, and picture receiving device are optional parts, and the specific form is configured according to customer site requirements。
■The unit length does not include the heating section, humidification section and other functional sections, please consult vrcoolertech for details;
■ Heating conditions; indoor dry bulb/test bulb temperature 20/—℃; outdoor dry bulb/wet bulb temperature 7/6℃;
■ The air-cooled split type air-conditioning unit does not carry refrigerant at the factory, and the selected refrigerant model needs to be indicated in the order;
■ The noise value is measured at a height of 1.2m and 2m from the front of the unit when cooling under standard air volume;
■The chilled water coil is an optional part, which can be configured as a dual cold source model according to customer site requirements;
■The brackets are the connection substitutes for R410A coal chillers. It is recommended that the connecting copper pipe between indoor and outdoor units be within 35 meters.
■Adder, adder, and picture receiving device are optional parts, and the specific form is configured according to customer site requirements。

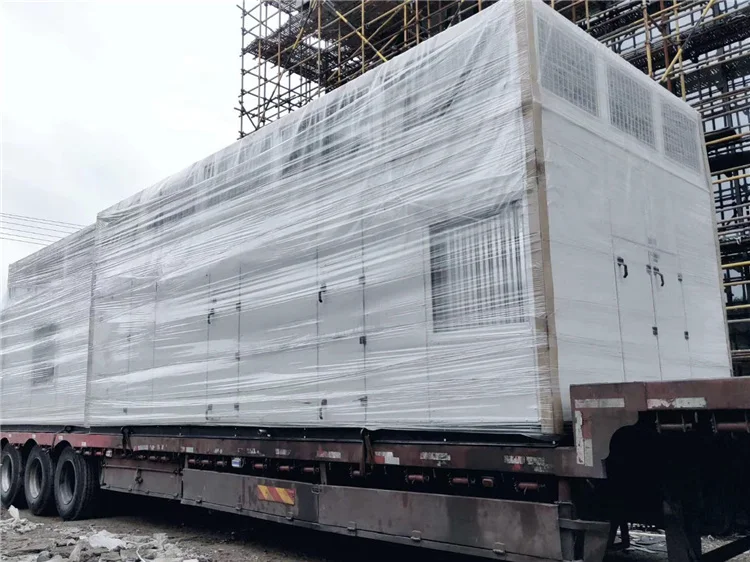

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Changzhou VRcooler Refrigeration Co.,Ltd specializes in the researching, manufacturing and exporting of Air Conditioning Unit, Heat Exchangers, Evaporators, Condensers and other heat transfer equipments for the HVAC&R markets, with applications for commercial, industrial, telecommunications, and transportation industries since 2004.
We are committed to quality products and services to meet our customer's expectations and the needs of industrials. We are dedicated to our mission and goal and we believe in long term business relationship with our customers which is based on integrity, responsiveness and quality.
Fin machine
Expanding machine
Bending machine
FAQ
Q. Are you a trading company or a manufacturer?
A: We are a manufacturer as you can see our workshop as above.
Q:What kind of trade terms can you do?
A:EX-WORKS, FOB, CFR, CIF, etc.
Q. What is your payment term?
A:Normally T/T 50% in advance, balance to be paid before delivery, We also support the trade assurance,O/A.
Q:Does Trade Assurance charge fees?
A:No. Trade Assurance is free for both buyers and suppliers.
Q: what is your main market?
A: North America,Greenland,South America,Africa,Southeast Assia, Former Soviet Republics ,East Assia,and Europe.
Q: Can I place sample order to your factory?
A: Yes, Samples can be provided.
