3Nm integrated closed loop dc servo motor nema24/60 integrated hybrid servo motor cnc kit
- Category: >>>
- Supplier: Shenzhen Melike Technology Co. Ltd.
Share on (1600664898796):
Product Overview
Description
Product Overview
3Nm integrated closed loop dc servo motor nema24/60 integrated hybrid servo motor cnc kit
FEATURES AT A GLANCE
TST60-68P
NEMA24, 2.2N/m, 490g/cm2,
NEMA24, 2.2N/m, 490g/cm2,
Supply Voltage:24-60Vdc,
Encoder Resolution:4000counts/rev,(1000 lines)
Pulse Input Type,
Control Command:Pulse Input
Control Command:Pulse Input
● Intelligent built-in controller
● Compact all-in-one solution
● Efficient, smooth, accurate, fast
● Enhanced motor, optimized design
Product show

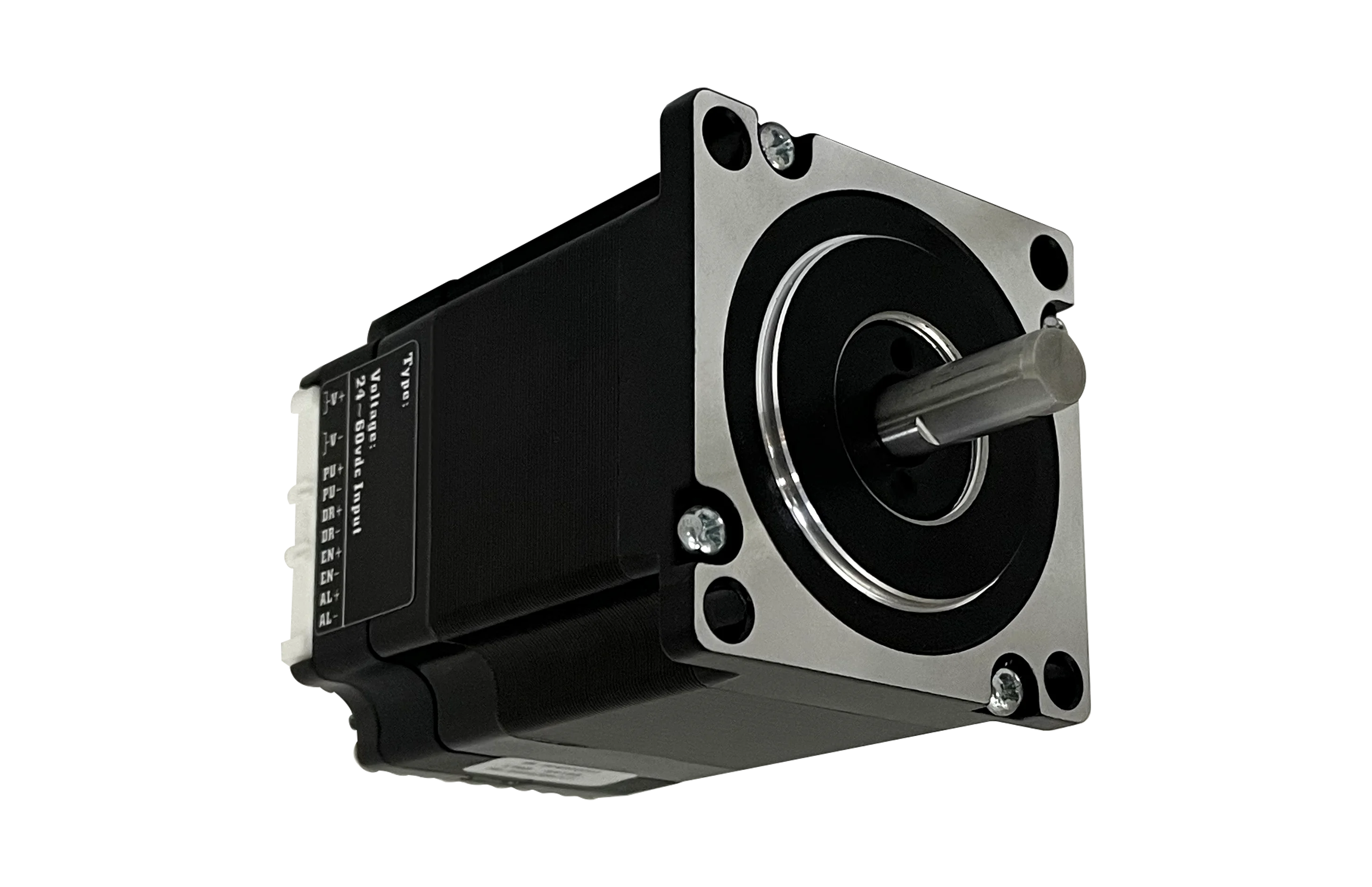

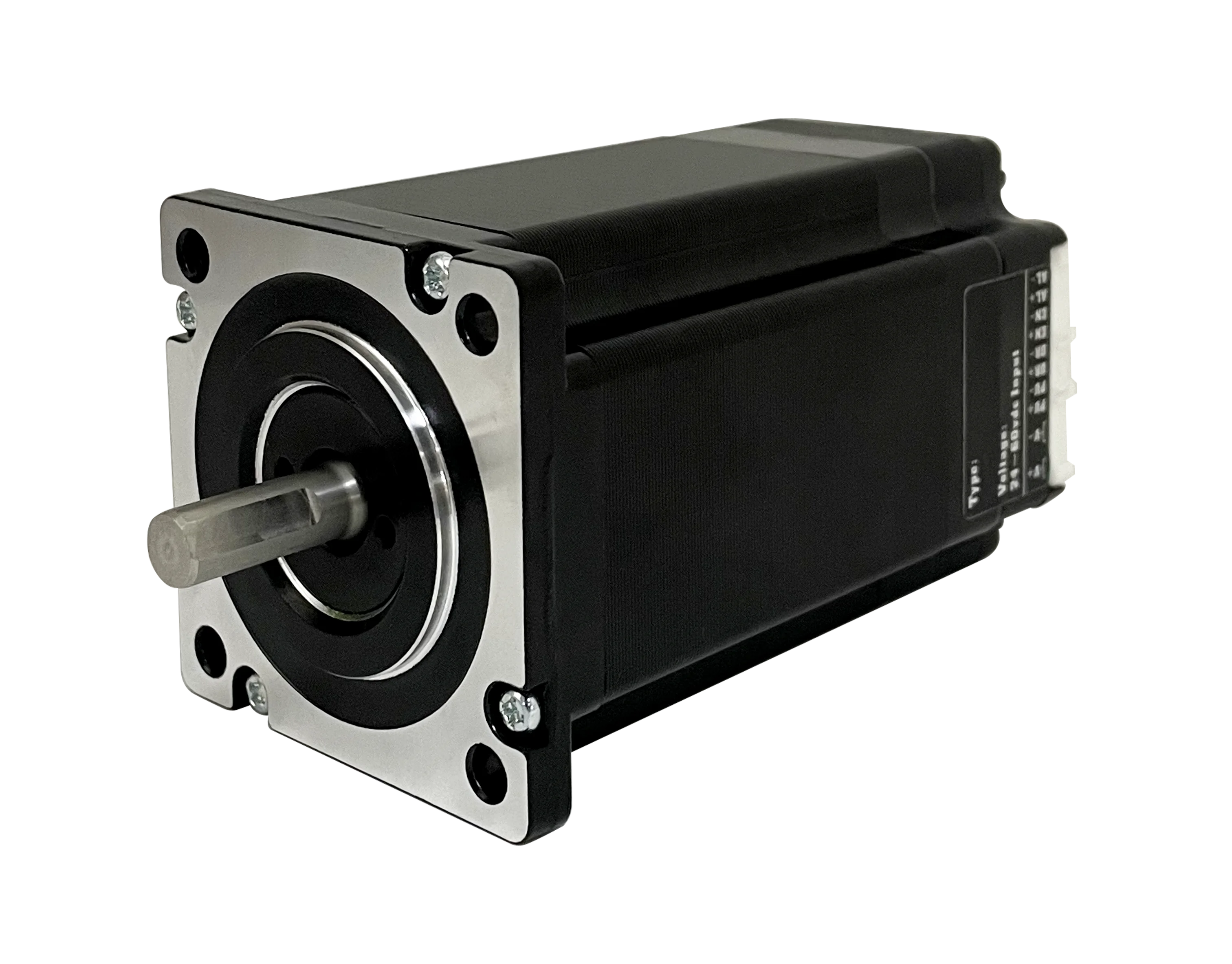

Front

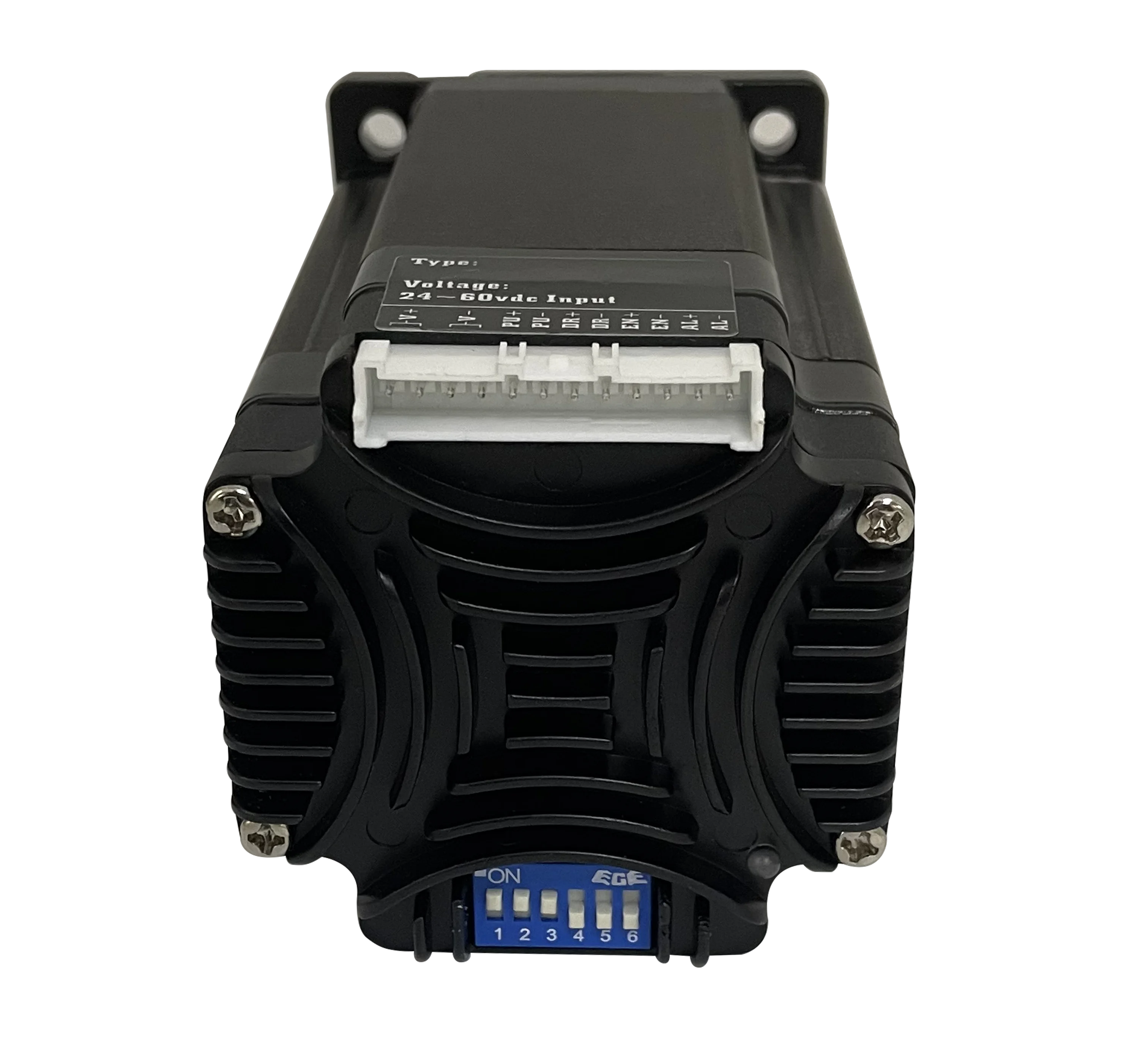

Back
side
Parameter
Parameter | Value |
Supply Voltage | 24-60 VDC |
Control Modes | Pulse Mode |
Rated Current | 5.0A |
Resistance | 0.33±10%ohm(20℃) |
Inductance | 1.05±20%mH(1KHz) |
Step Angle | 1.8 degree |
No of Phase | 2 |
Holding Torque | 2.2Nm |
Rotor Inertia | 490g·cm² |
Dielectric Strength | 500VA.C |
Insulation Resistance | 100MΩ above/MIN |
Insulation Glass | B |
Operation Ambient Temperature | 0℃～+50℃ |
Operation Ambient Humidity | 20%RH～90%RH |
Weight | 1.3kg |

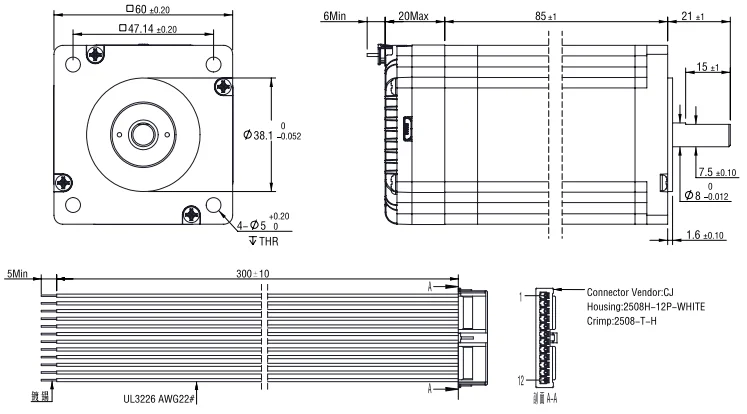

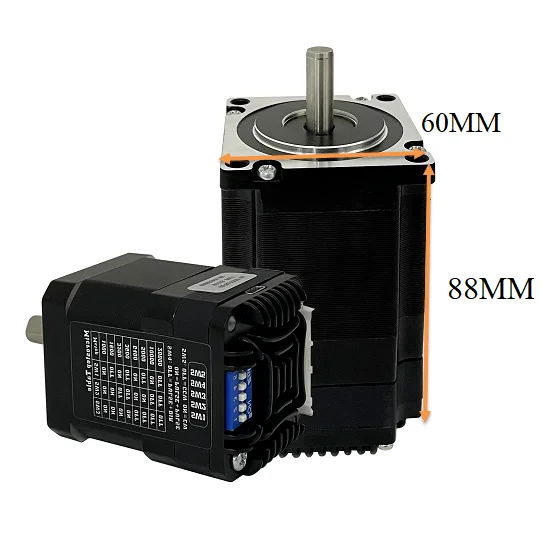

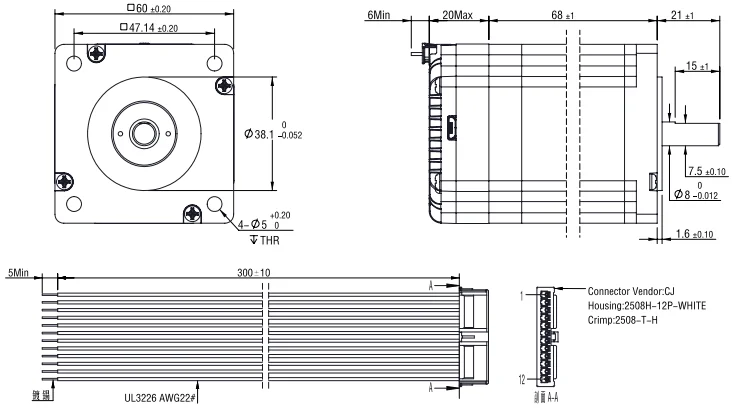

Dimensions(Unit:MM)
TST60-68P
Terminal Definitions/Port Function

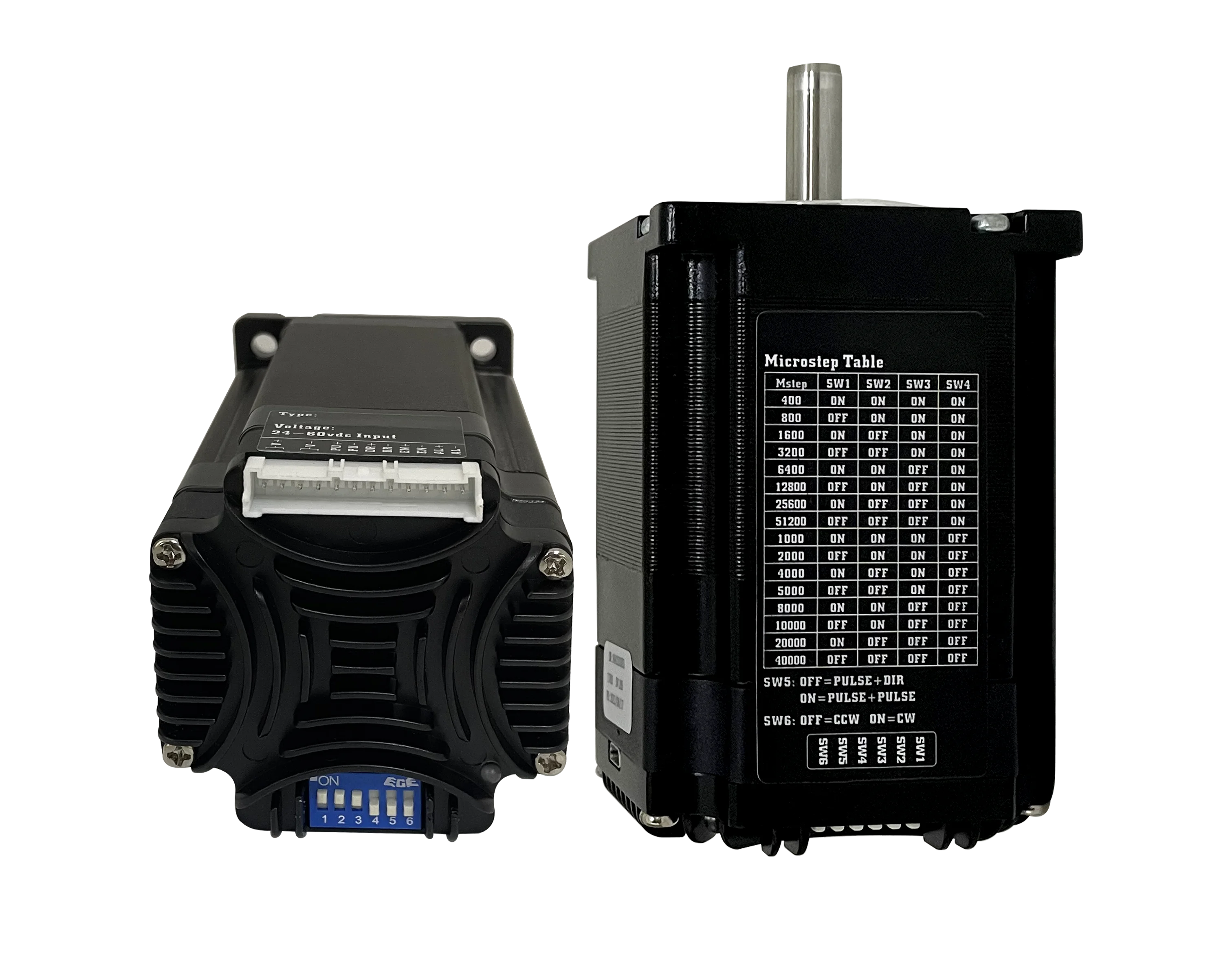

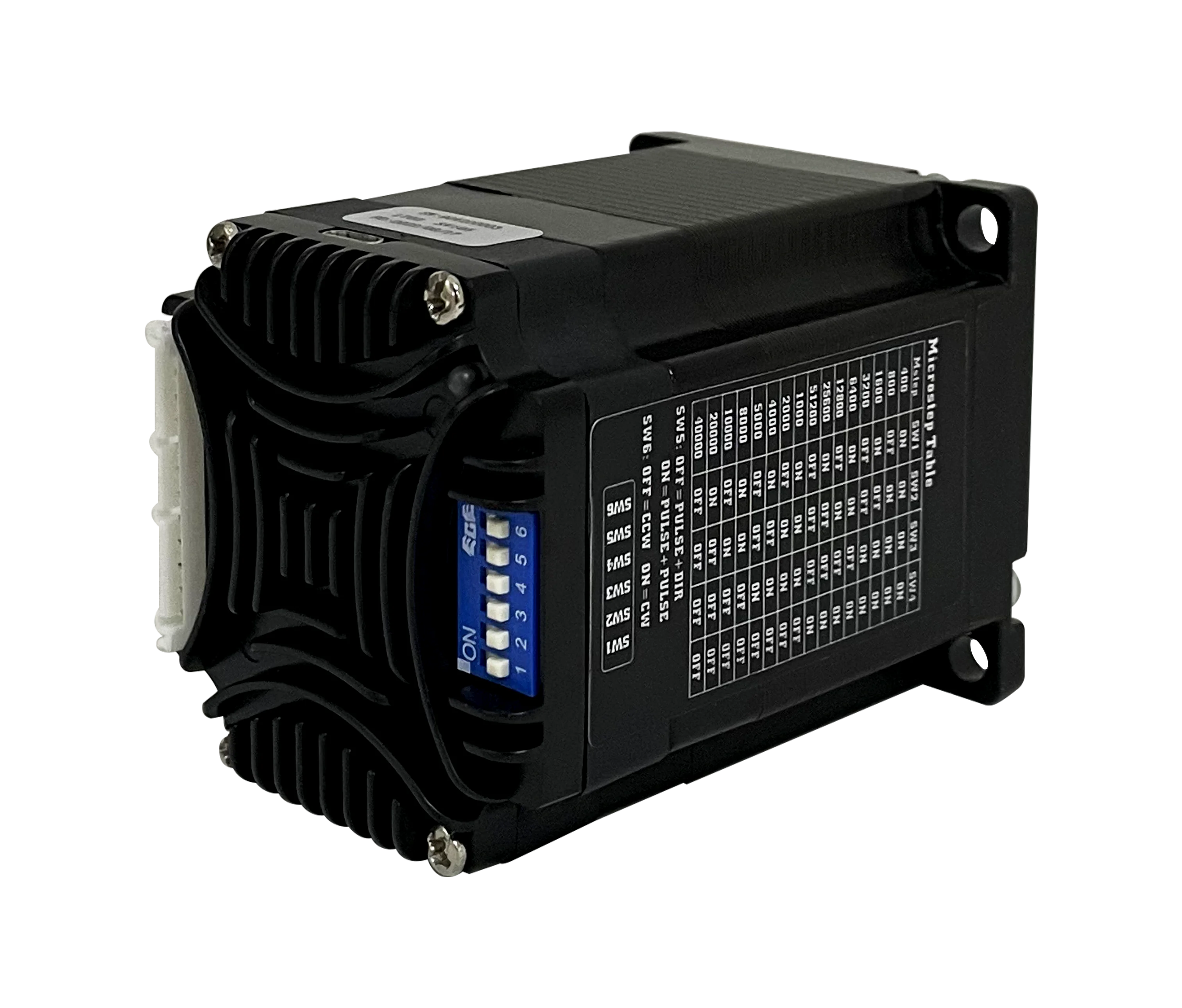

Microstep Setting
SW5 ：Setting single/double pulse
OFF:Single pulse
ON:Double pulse
SW6:Setting Motor running direction
OFF:Counterclockwise rotating
ON:Clockwise rotating
Successful Project
Coating machine
Laser cleaning + winding equipment
Volumetric OCV detection equipment
