Product Overview
Description
Product Description
| Payload | 110,000kg |
| Tare | 15,500kg |
| Total weight | 125,500kg |
| Over size | 19,000*3,000*1,660mm |
| Platform height | 1394mm |
| Platform length | 4,275+14,725mm |
| Platform width | 3,000mm |
| Floor thickness | 3mm checker plate |
| Gooseneck length | 4,275mm |
| Crank height | 266mm |
| Wheelbase | 1,360mm |
| Tread | 2,180mm |
| Main beam(I beam) | H500*T(5+5),W180*T20,W180*T20 |
| Axle | 6 unit 13 ton Lengthen FUWA |
| Suspension | 3 Germany Mechanic + 3 Air liftable |
| Leaf spring | W100mm*T16mm*10piece |
| Wheel | 9.75*22.5 |
| Tire | 315/80R22.5 |
Landing gear | FUWA 28T double speed |
King pin | JOST 90# 3.5’ |
Fifth-wheel height | Customizable |
| Brake | Drum brake |
| Brake chamber | Double-chamber spring brake |
| Relay valve | WABCO |
| ABS | Optional |
| Voltage | 24V |
| Painting | 1 primer+2 topcoat, imported two component polyurethane paint |

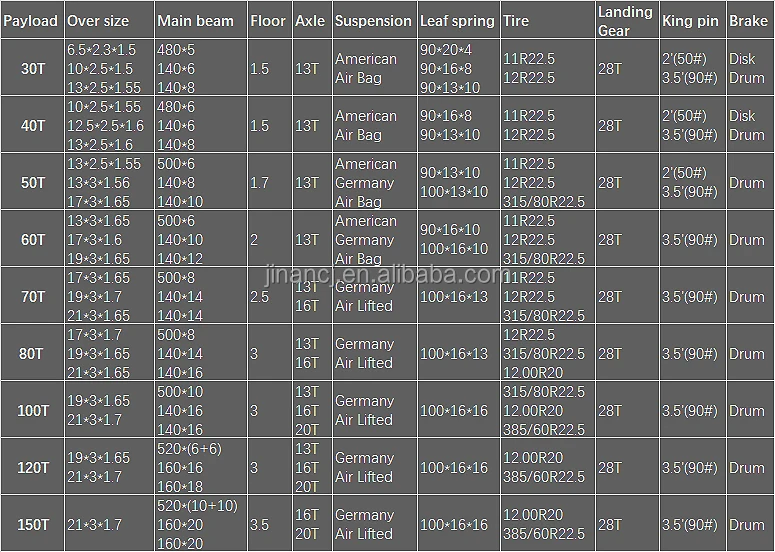

Step-Deck Trailer Configure

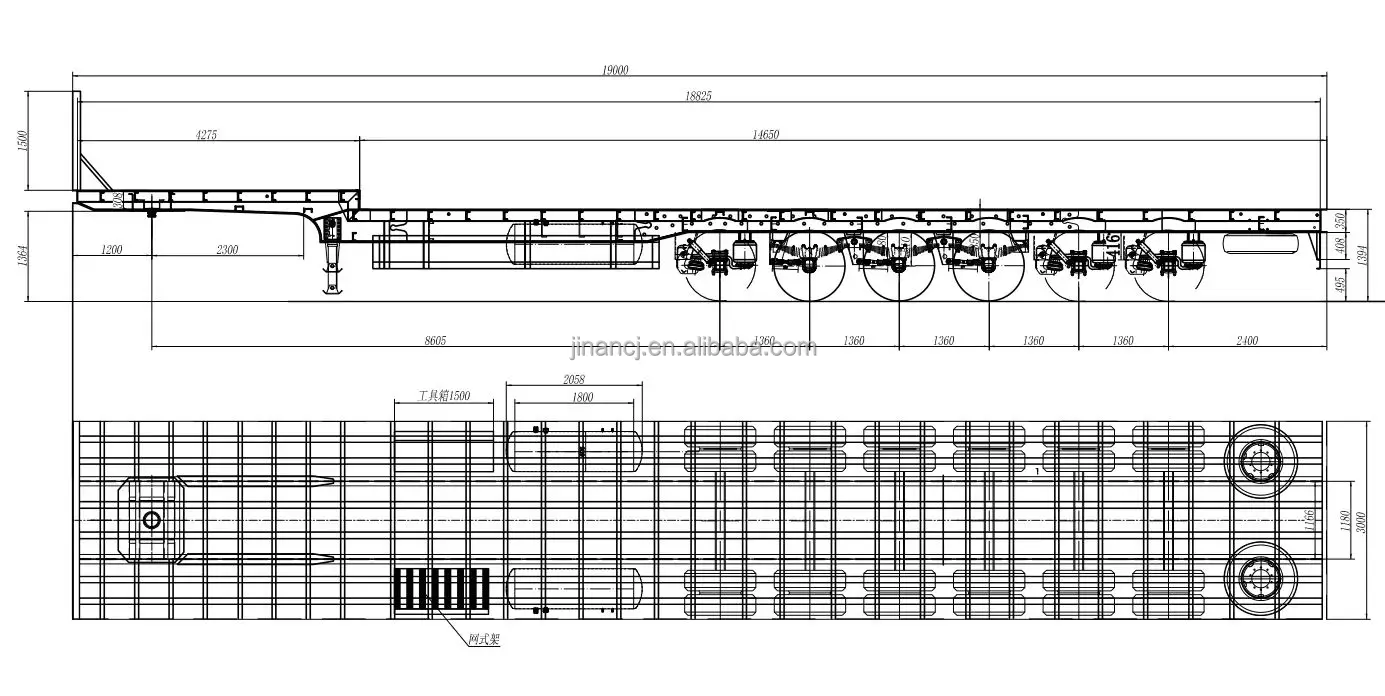

Trailer Assembly
Steel and parts for the semi-trailers are all famous brands in the industry.
Trailer part position

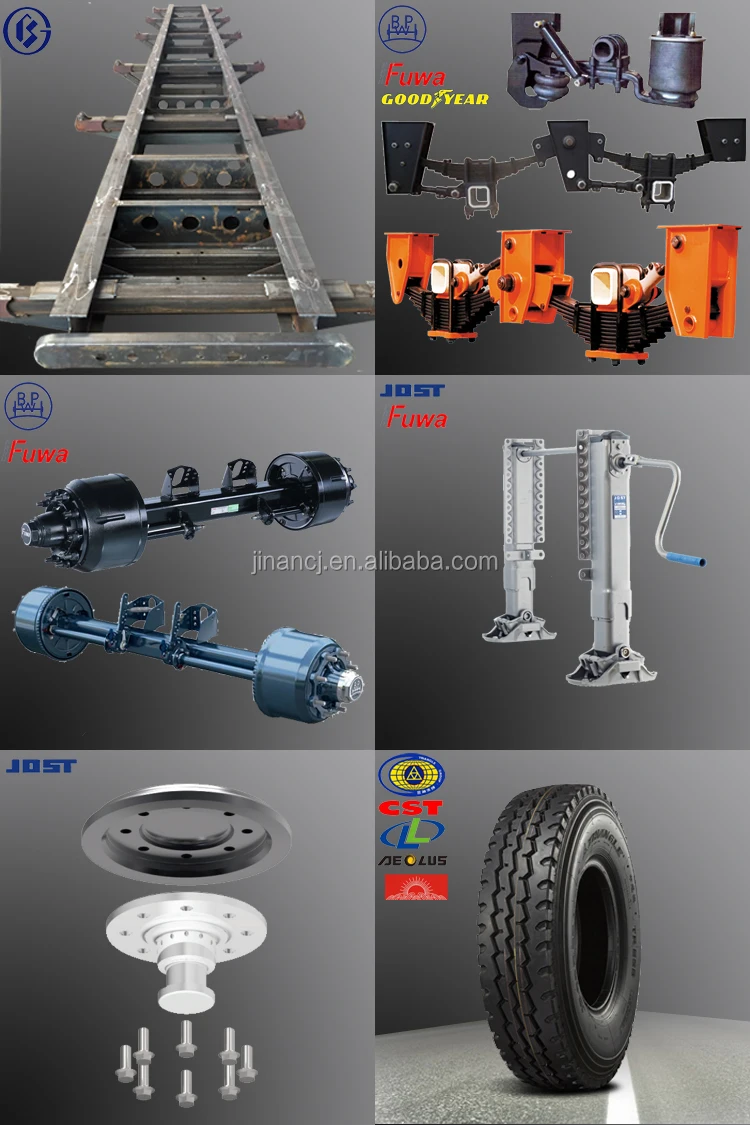

Trailer Parts
Other Trailers
Our Services

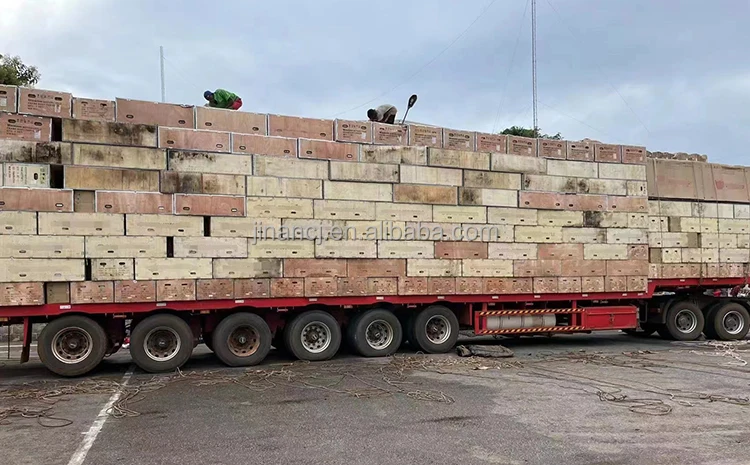

Packaging & Shipping
We have been engaged in many years of overseas trade and have extensive experience in cargo transportation. We will provide efficient and economical transportation solutions based on your needs. SAFE, SPEED, SAVE & SERVICE are our standards.
