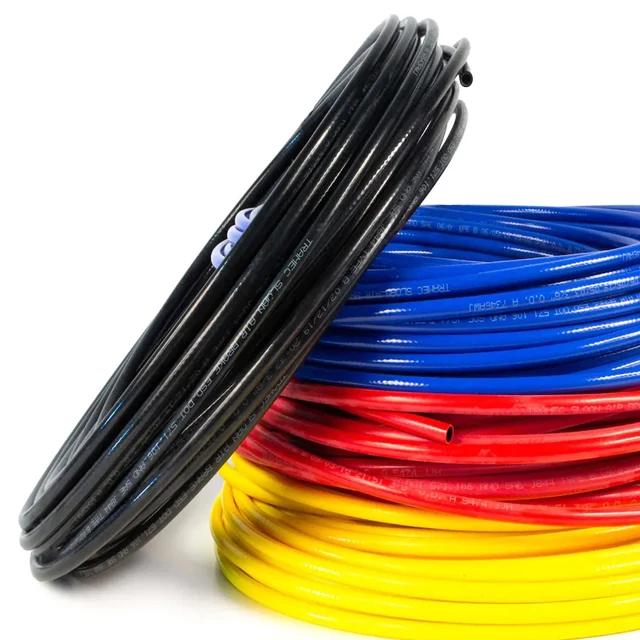

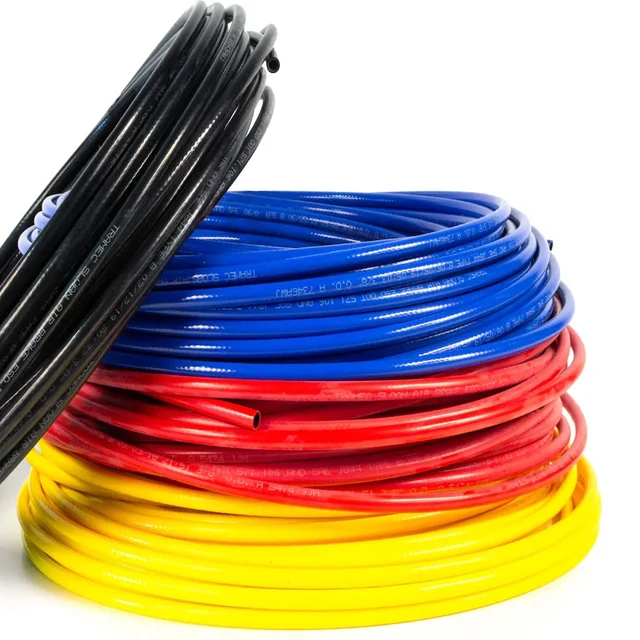

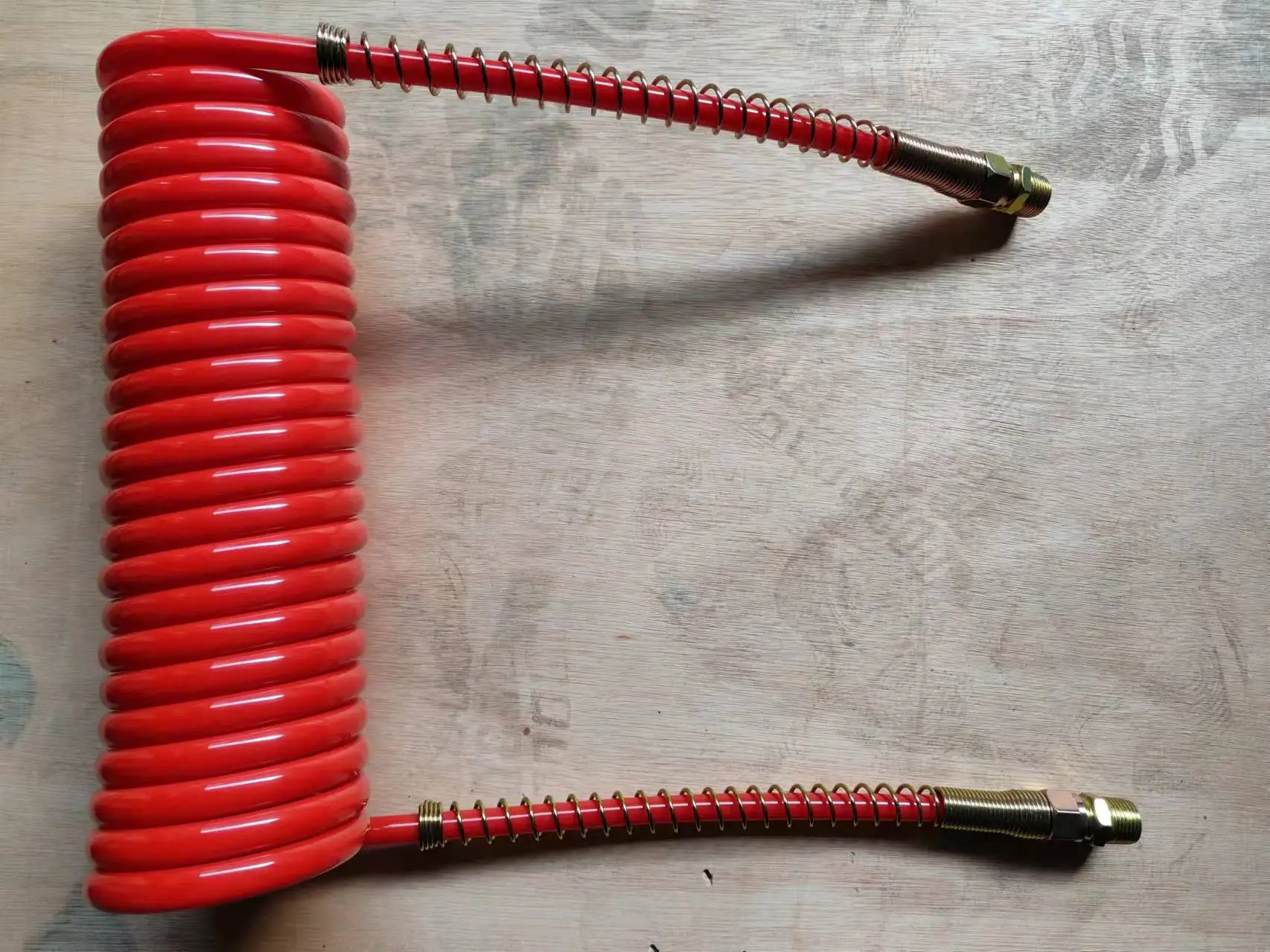

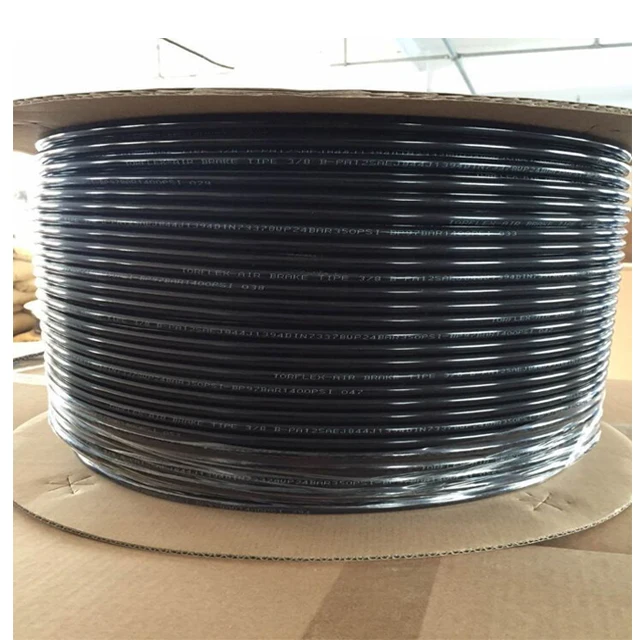

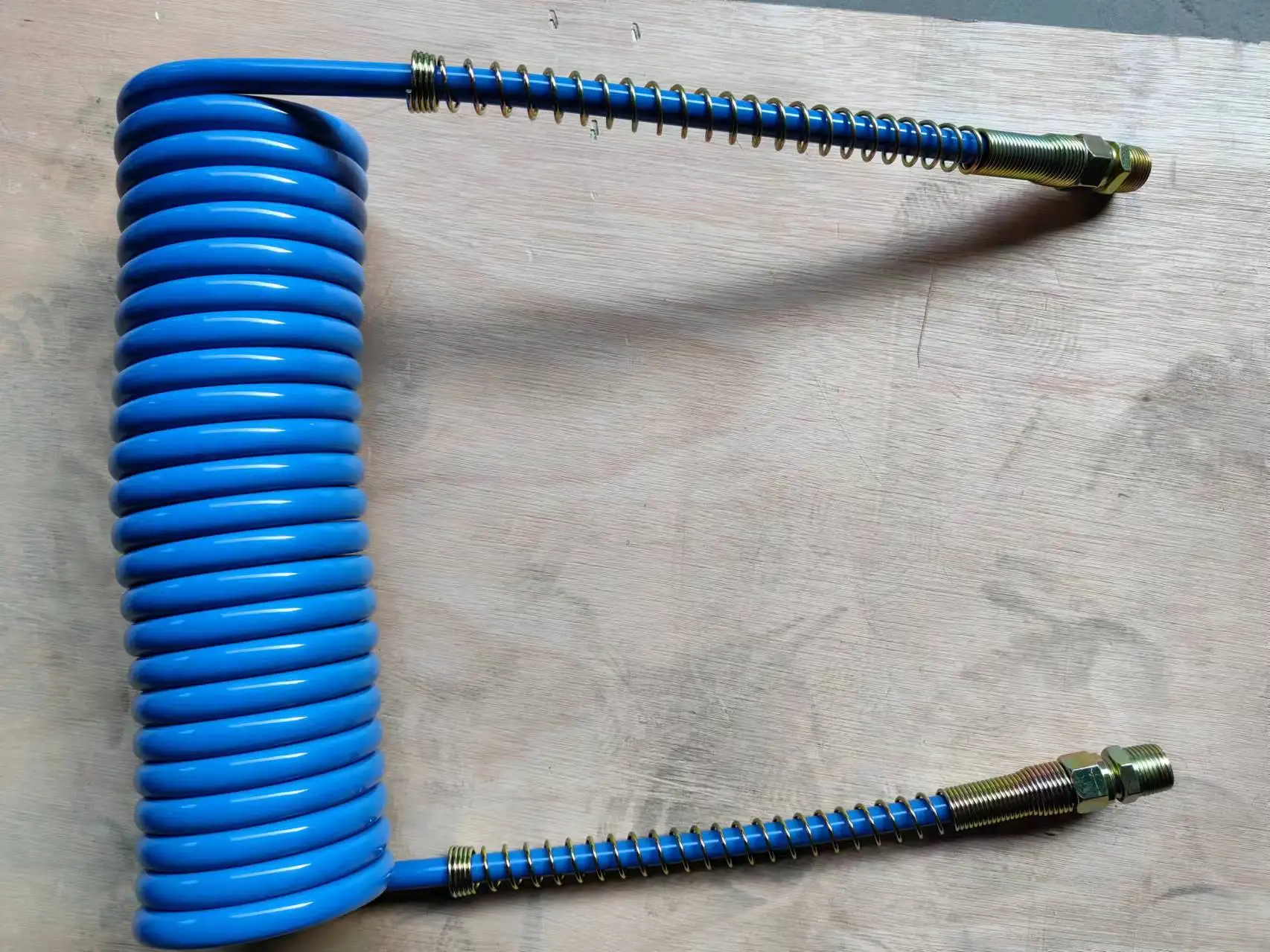

Пневматический нейлоновый шланг SAEJ844 PA12 для пневматического тормоза типа A
- Category: >>>
- Supplier: Sinopulse Hose Factory Co. Ltd.
Share on (1600664933279):
Product Overview
Description
Products Description
Construction:
Material:nylon
Application:
The PA air hose used for transport compressed air,water,oil,chemicals etc.
Such as the nylon hose widely used in light truck,air brake hose in
car,power steering hose; forklift truck,loading care excavator,crane,
ships,engineering machinery and control system line;paint;high
pressure liquid resin spraying pipe,air condition etc
Characteristic:
* PA hose has superior mechanical strength
* excellent abrasive resistance,oil resistance, superior cold resistance
* The nylon air hose is high precision of inside and outside
diameter,suitable for various kinds of fittings.
* It is high resistance to hydrocarbons oils and chemical products
Temperature:
-40℃ (-104 ℉ ) to +121℃ (+250 ℉ )
Material:nylon
Application:
The PA air hose used for transport compressed air,water,oil,chemicals etc.
Such as the nylon hose widely used in light truck,air brake hose in
car,power steering hose; forklift truck,loading care excavator,crane,
ships,engineering machinery and control system line;paint;high
pressure liquid resin spraying pipe,air condition etc
Characteristic:
* PA hose has superior mechanical strength
* excellent abrasive resistance,oil resistance, superior cold resistance
* The nylon air hose is high precision of inside and outside
diameter,suitable for various kinds of fittings.
* It is high resistance to hydrocarbons oils and chemical products
Temperature:
-40℃ (-104 ℉ ) to +121℃ (+250 ℉ )
Size Tube O.D. | Working Pressure Mpa | Burst Pressure Mpa | Length Per Coil (meters) | Min bend Radius (mm) |
1/8'' | 4.0 | 12.0 | 300 | 15 |
3/16'' | 3.1 | 9.3 | 200 | 20 |
1/4'' | 4.5 | 13.5 | 200 | 20 |
5/16'' | 3.1 | 9.3 | 100 | 50 |
3/8'' | 1.9 | 5.7 | 100 | 65 |
1/2'' | 1.9 | 5.7 | 100 | 70 |
5/8'' | 1.9 | 5.7 | 100 | 130 |
4mm*2.5mm | 3.1 | 9.3 | 200 | 20 |
6mm*4mm | 2.7 | 8.1 | 200 | 30 |
8mm*5mm | 3.1 | 9.3 | 200 | 40 |
10mm*7.5mm | 1.9 | 5.7 | 100 | 60 |
12mm*9mm | 1.9 | 5.7 | 100 | 70 |
Packing & Delivery
Related Products
Why Choose Us
Exhibition
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us!
