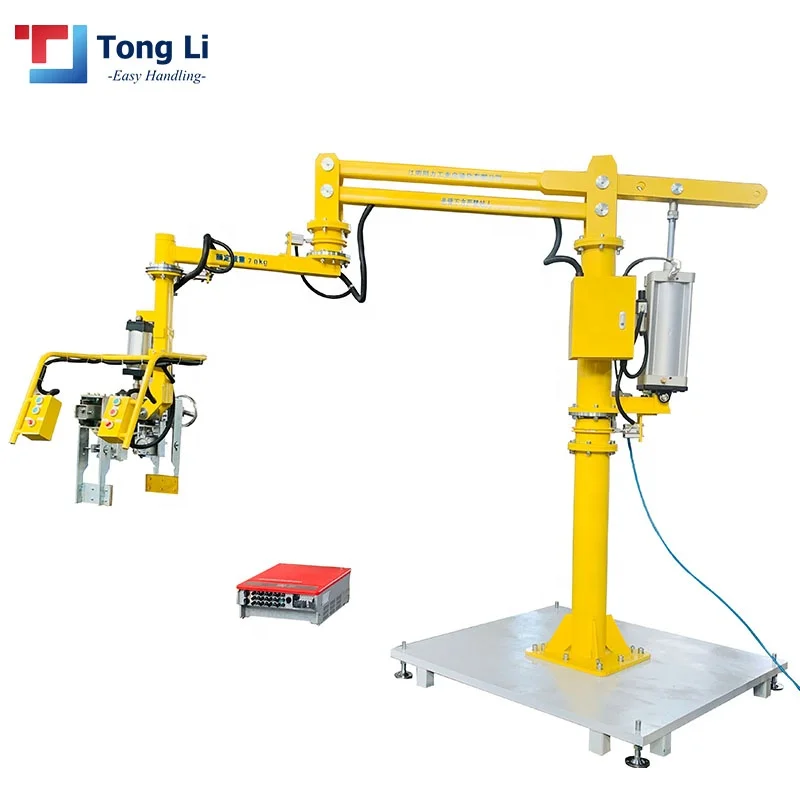

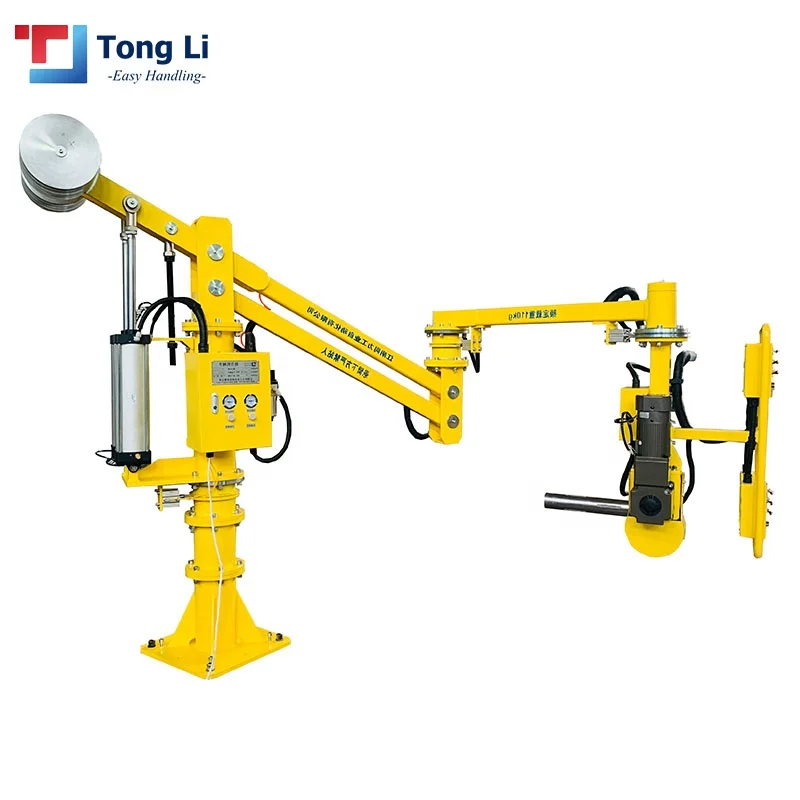

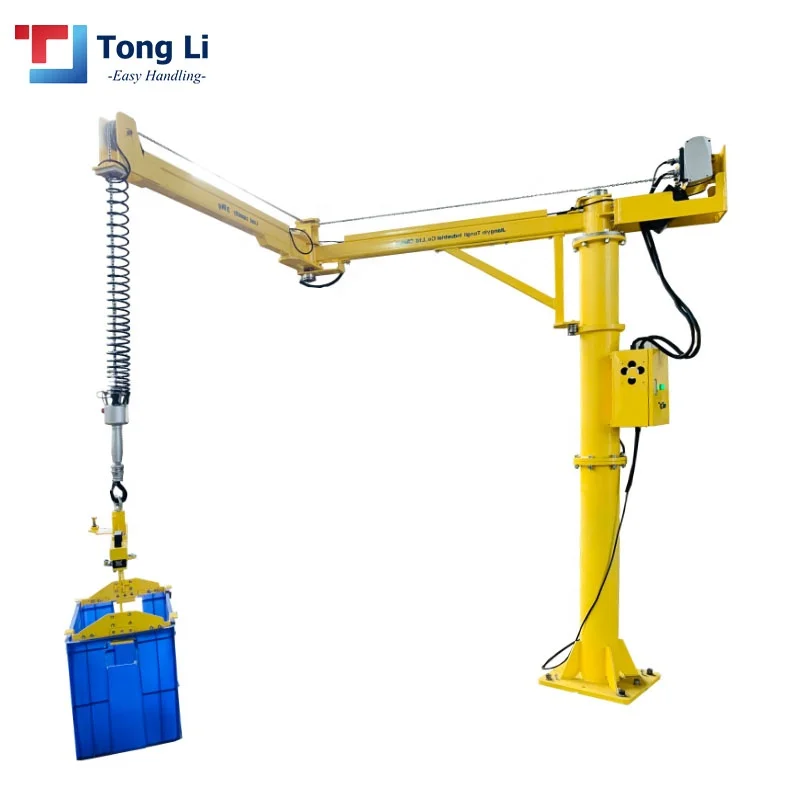

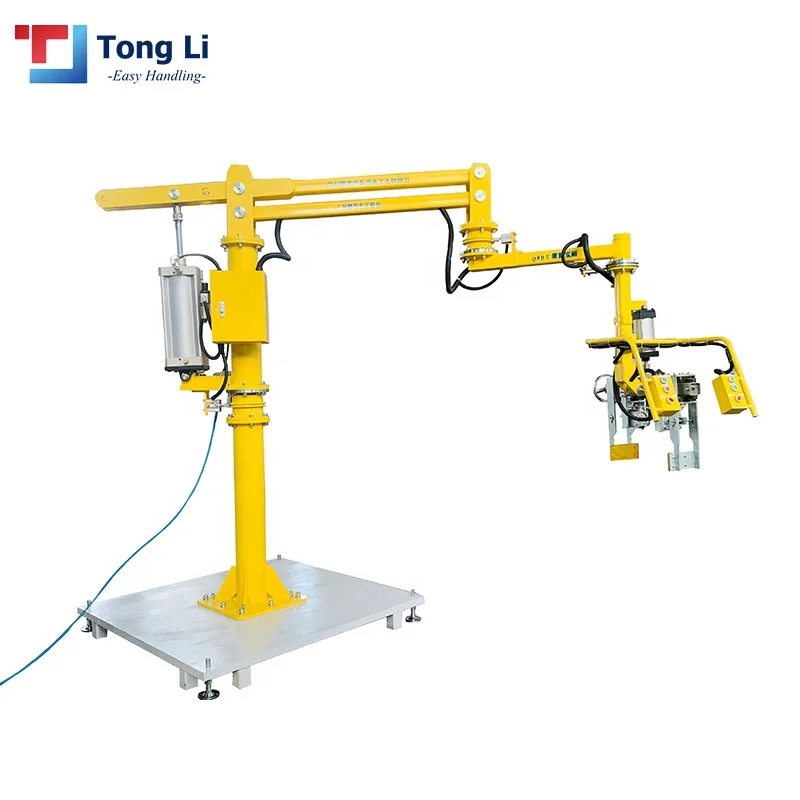

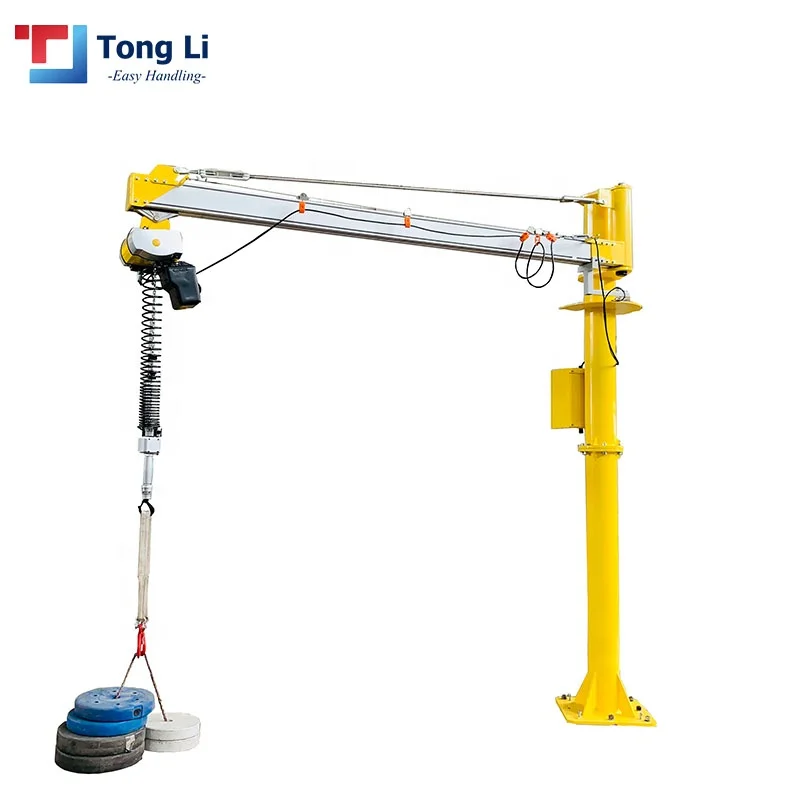

Robotic Arm Manufacturers Stamping Manipulator 2Axis Pick And Place
- Category: >>>
- Supplier: Jiangyin Tongli Industrial Co. Ltd.
Share on (1600664955432):
Product Overview
Description
Products Description
Name | Manipulator with fixture |
Load-bearing | within 500kg |
Working radius | 2500mm |
Lifting height | 0-2000mm |
Working pressure | 0.5-0.8Mpa |
Fixture type | Clamp type, hook type, expansion type, lifting type, flip type (turn 90° or 180°) |

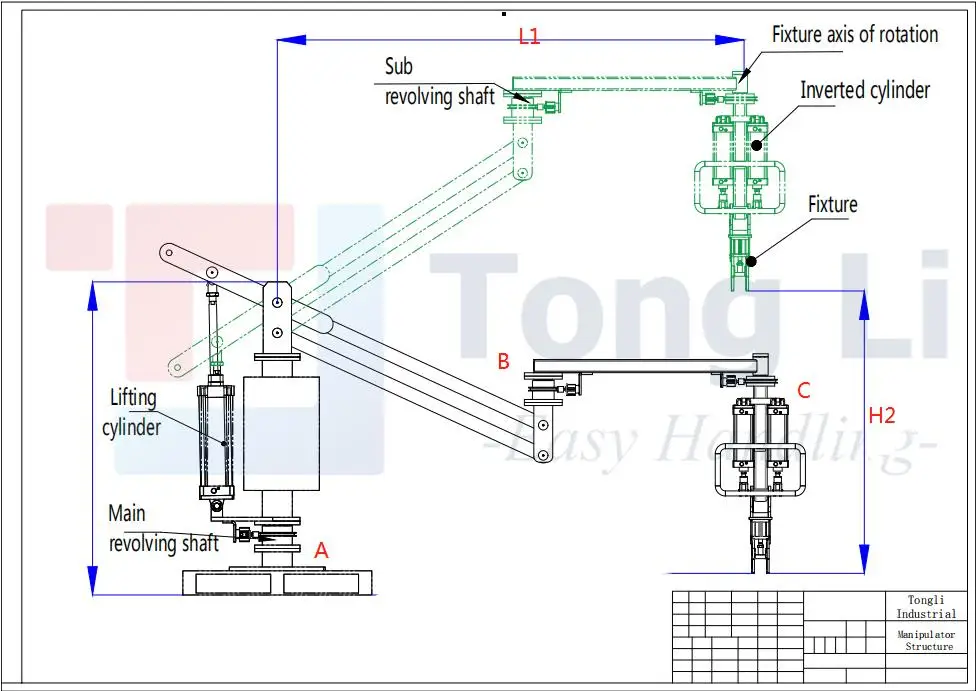

Product Specifications
Equipment model | TLJXS-YB-50 | TLJXS-YB-100 | TLJXS-YB-200 | TLJXS-YB-300 |
Max Load-bearing | 50KG | 100KG | 200KG | 300KG |
Working radius L1 | 2500MM | 2500MM | 2500MM | 2500MM |
Lifting height H2 | 1500MM | 1500MM | 1500MM | 1500MM |
Air pressure | 0.5—0.8Mpa | 0.5—0.8Mpa | 0.5—0.8Mpa | 0.5—0.8Mpa |
Rotation angle A | 330° | 330° | 330° | 330° |
Rotation angle B | 300° | 300° | 300° | 300° |
Rotation angle C | 360° | 360° | 360° | 360° |
Manipulator Style Display
Application
Product Features
Handling crucible
a) The same force hard arm assist manipulator can balance various weights from 2 to 500kg.
b) The power-assisted manipulator is composed of a balance host, a grasping fixture, and an installation structure.
b) The power-assisted manipulator is composed of a balance host, a grasping fixture, and an installation structure.
Handling car wheels
c) The manipulator host is the main device that realizes the non-gravity floating state of materials (or workpieces) in the air.
d) The manipulator is the device that realizes the grasping of the workpiece and completes the corresponding handling and assembly requirements of the user.
d) The manipulator is the device that realizes the grasping of the workpiece and completes the corresponding handling and assembly requirements of the user.
Handling security door
e) The installation structure is a mechanism that supports the entire set of equipment according to the user's service area and
site conditions.
site conditions.
Packing and Transportion
Package
Ordinary packaging is wood and tray, if exports to Europe, the cases will befumigated (insect disinfection). If the
container has remaining space, we will use PE film , or also can pack according to requiremen
container has remaining space, we will use PE film , or also can pack according to requiremen
Mode of transport
Sea, land, and air transportation are all available, and everything is based on the wishes of customers!

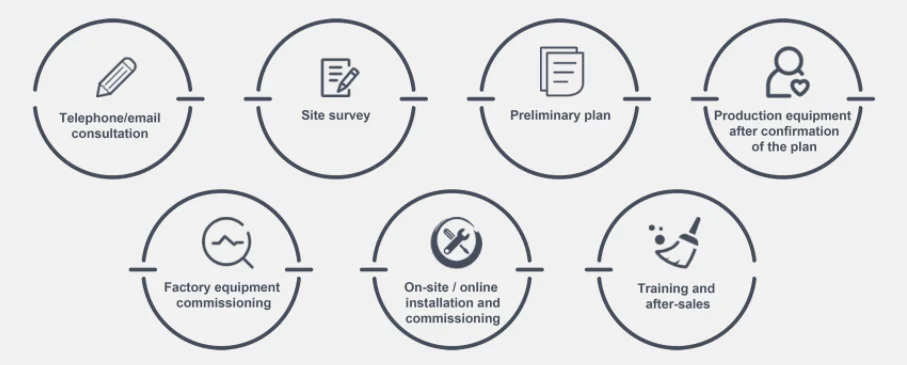

Sales And Service Network

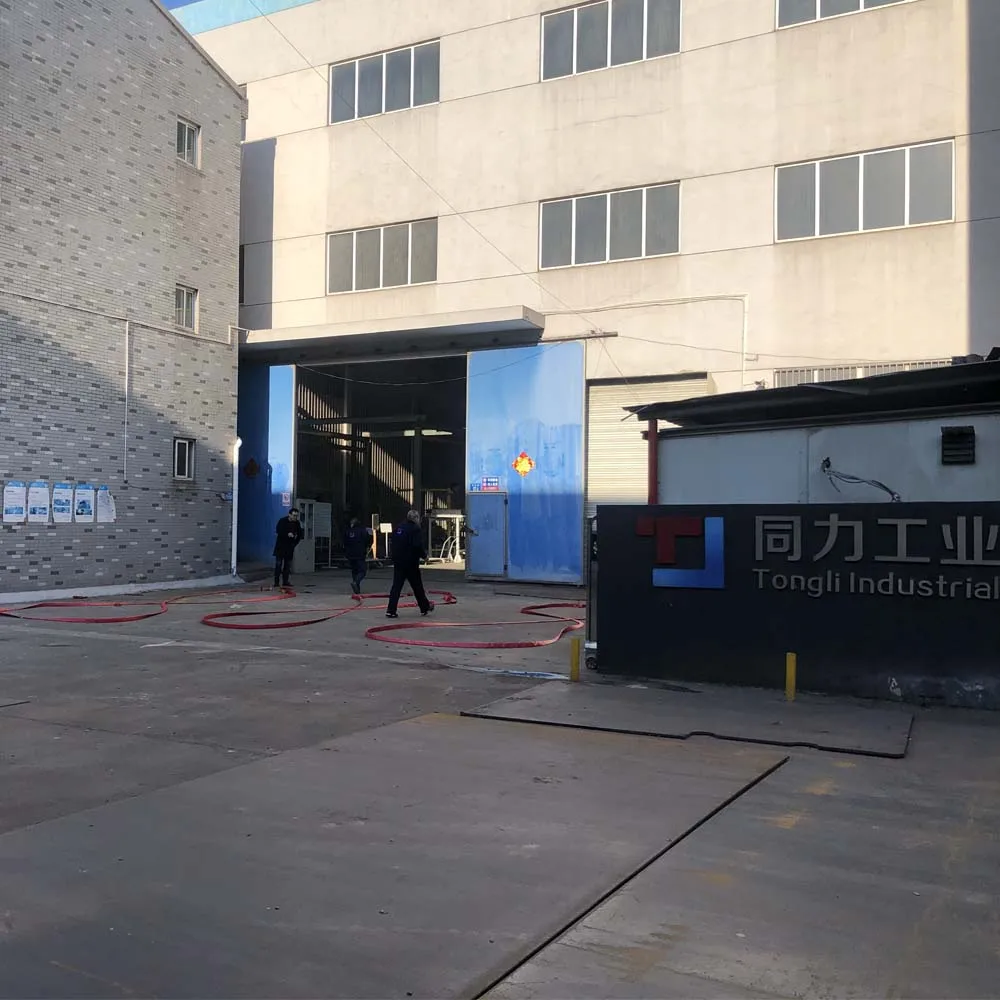

Company Introduction
Jiangyin Tongli Industrial Co., Ltd.
is a modern manufacturing enterprise specializing in the research and development, design, production, sales and service of storage and handling equipment automation. Since its establishment, the company has been committed to solving the storage and handling problems of various materials, providing corresponding, perfect and professional solutions to complex requirements. We can also provide effective and suitable solutions according to the customer's budget.
Exhibition experience.
Jiangyin Tongli participated in machinery exhibitions at home and abroad several times, committed to the promotion of manipulators, and achieved remarkable results.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory for OEM Manipulator
Q: How long is your delivery time?
A: Generally it is 35-50days
Q: What about payment terms ?
A: Usually 40% T/T in advance,60% Balance before shipping out goods against B/L
Q: What should we offer ?
A: Offer Radius ,lifting Height,Max /Min Load weight,and pictures of products to be transported and lifted.It would be better if there were a video of the current working scene!
A: We are factory for OEM Manipulator
Q: How long is your delivery time?
A: Generally it is 35-50days
Q: What about payment terms ?
A: Usually 40% T/T in advance,60% Balance before shipping out goods against B/L
Q: What should we offer ?
A: Offer Radius ,lifting Height,Max /Min Load weight,and pictures of products to be transported and lifted.It would be better if there were a video of the current working scene!
