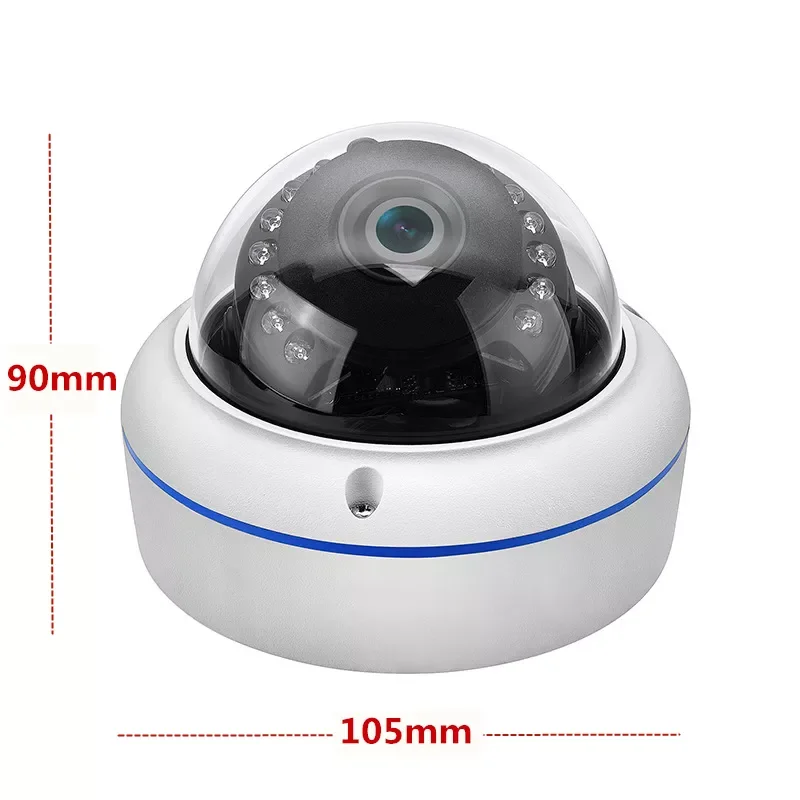

2.8 4 6 8mm Lens XM 4MP IP CCTV Camera Human Face Detection Support Audio Waterproof Metal Housing Dome Security IP POE Camera

Model

MA10-G4-POE

System structure

Embedded RTOS,dual-core 32bit DSP,pure hard compression ,watch dog

Sensor

5.0M 1/2.8"SC5239S Low illumination CMOS sensor,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2

Video compression

H.265 +(Compatible with H.265/H.264),support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable

Image output

Main stream:2560*1440@18fps,2304*1296@20fps,1920*1080@25fps;sub-stream: 800*448@25fps

Shutter

1/50(1/60)s to 1/10,000s

Lens

M12 5MP Optional 2.8/4/6/8mm

Day and night

Support IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V

Noise reduction

Support 2D/3D

Wide dynamic

Support digital

Auto iris

N/A

Audio compression

G.711,support bidrectional talk,audio&video synchronization

Audio interface

1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone

Network interface

1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/DHCP/NTP/UPnP etc

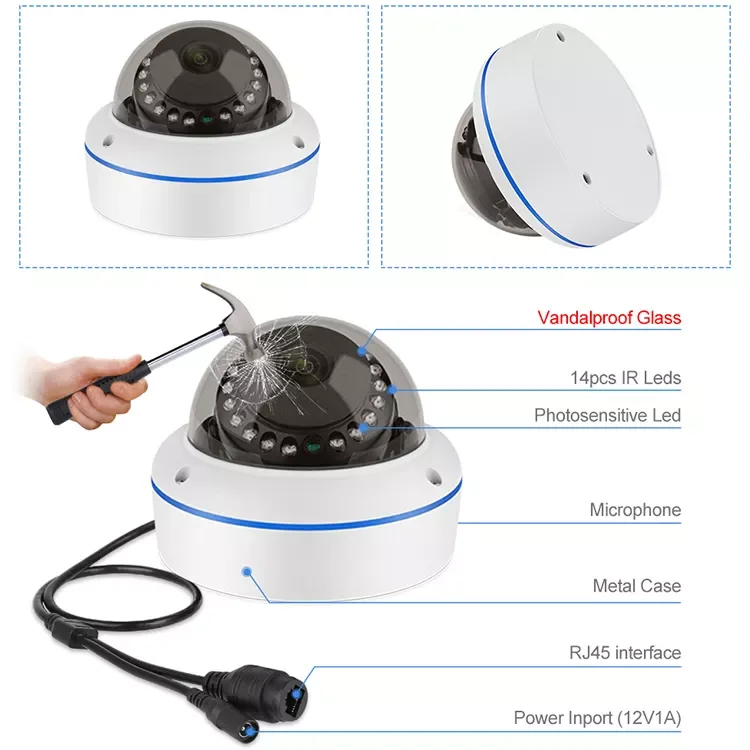

Audio

Built-in MIC

Singal interface

One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR

Reliability

Comprehensive lightning protection, 7 * 24 hours-10℃～65℃ high temperature stable and reliable testing

Intelligence analysis

Supporting human detection, face detection, and support to customize other intelligent functions

Other function

Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and
image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK

ONVIF

Support

Mobile monitoring

Support multiple mobile monitoring（iOS，Android）

Power

DC12V/2A input, power consumption:≤3W,

Other

Support POE power supply (optional)，The drive voltage of the light board is at 3.3V
