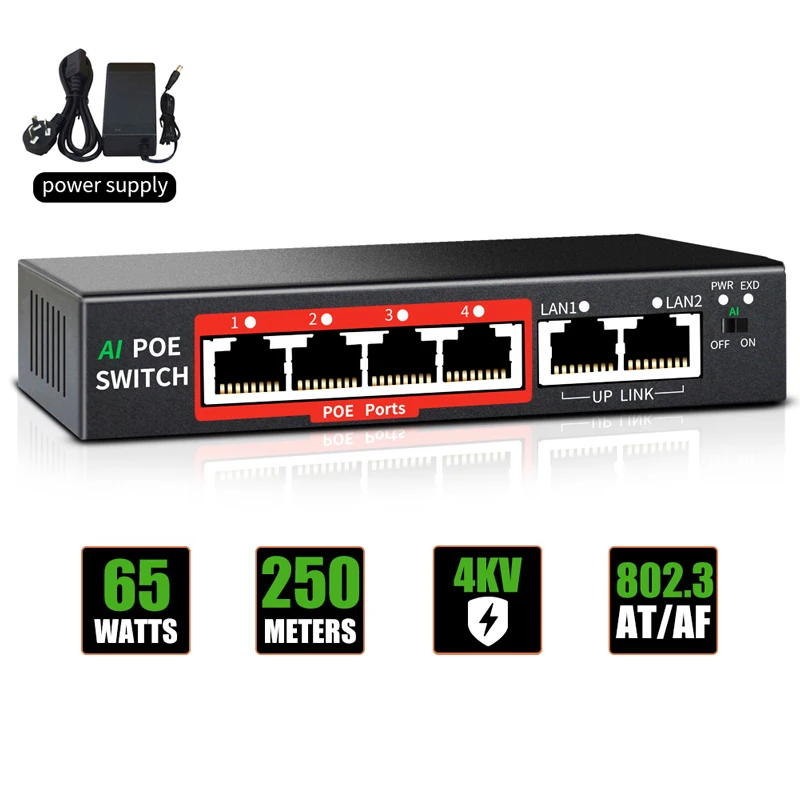

LOW Price 4 Ports POE Switch 10/100M 48V/65W External power supply IEEE802.3 AT/AF suitable for CCTV, NVR, Camera
- Category: >>>
- Supplier: Huoyi Technology (Shenzhen) Co. Ltd.
Share on (1600664968134):
Product Overview
Description
Product Description
Modle | POE106D |
Ports Composition | 4*100Mbps PoE ports, 2*100Mbps Uplink ports |
Bandwidth | 1.2Gbps |
MAC Address | 2K |
POE Protocols | IEEE 802.3 AF/AT |
Power Input | 100-240V 50/60Hz, 65W |
Power Output | 52V/30W(Max) |
Switch Capability | up to 1.2Gbps |
Data transfer rate | Ethernet 10Mbps half duplex, 20Mbps full duplex Fast Ethernet 100Mbps half duplex, 200Mbps full duplex |
Network media | 1000Base-T: 4 to Cat5e or over UTP/STP(≤100m) 100Base-TX: 2 to Cat5 or over UTP/STP(≤100m) 10Base-TX: 2 to Cat6 or over UTP/STP(≤250m) |
Basic function | Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet protocol Support IEEE802.3af/at standard Store and forward Support self-learning and aging of MAC address Support full-duplex flow control and half-duplex flow control |
Temperature | Working temperature：0℃～40℃ Storage temperature：-40℃～70℃ |
Humidity | Working humidity：10%～90% RH Non-condensing Storage humidity：5%～90% RH Non-condensing |
Weight | 0.75KG |
Dimensions | 125mm*115mm*34mm |

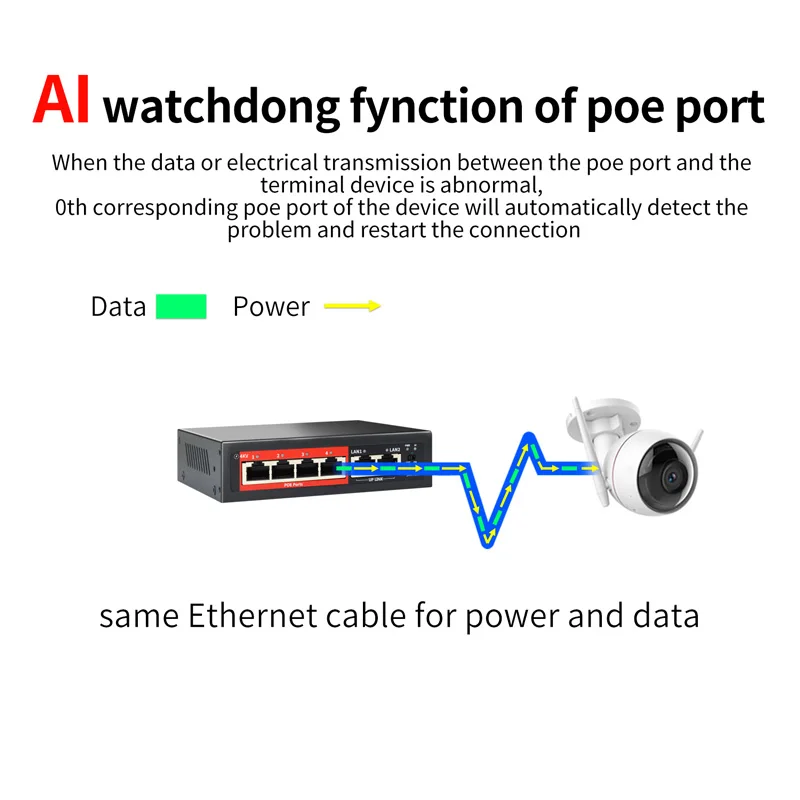

Active poe switch with 802.3af/at compliant
Poe switches support poe devices and non-poe devices, But when connecting passive poe device or non-poe device,the switch can only transmit data and cannot power your device,so the connected device needs to be separately powered. Or you can use it with active poe splitter.
---------------------------------------------------------------------------------------------------------------------------------------

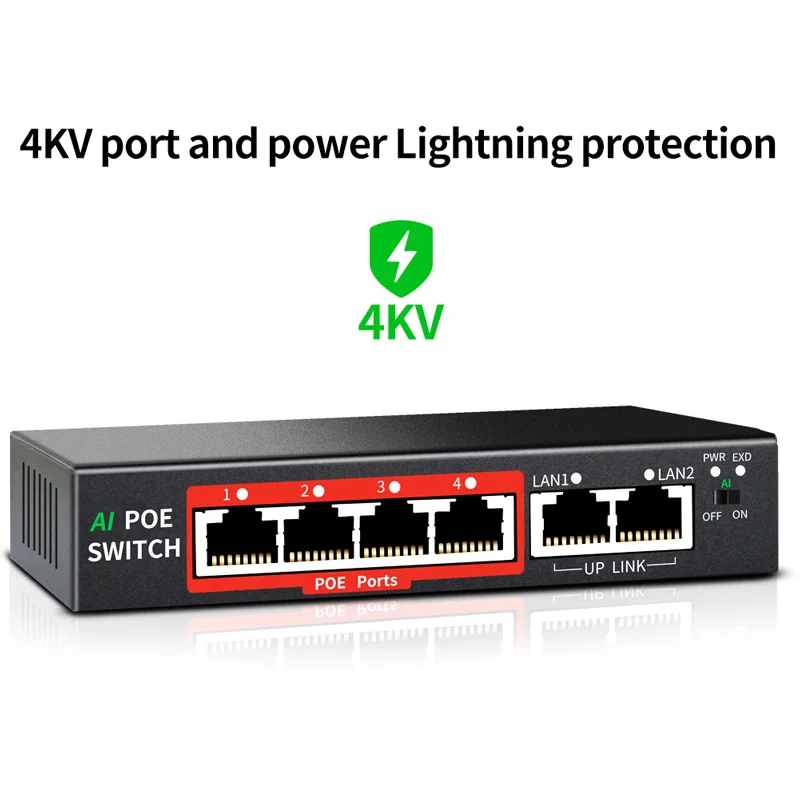

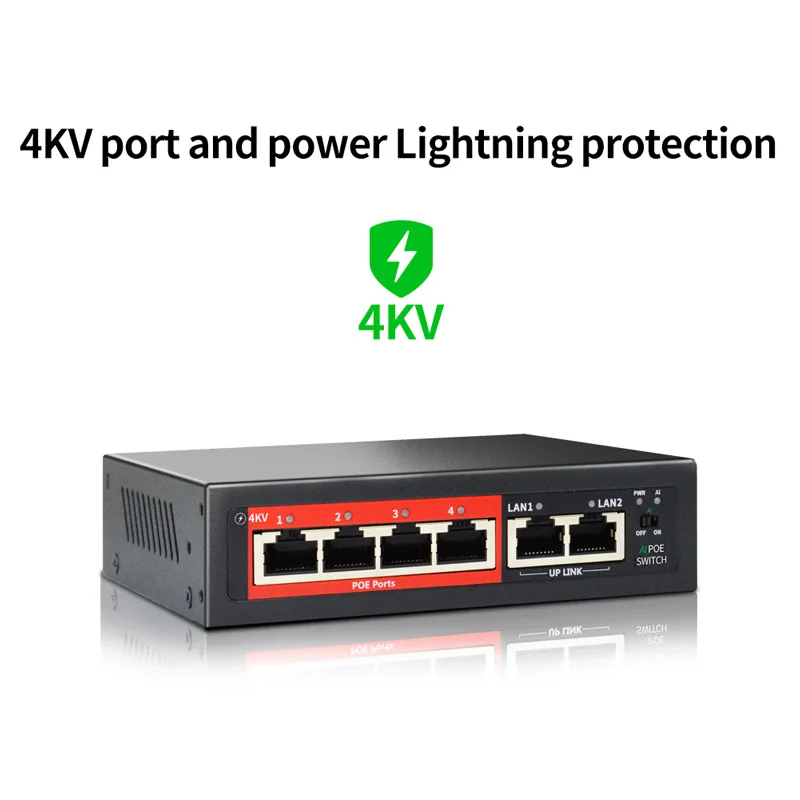

4KV Lightning Protection
PoE switch have professional lightning protection design-up 4KV port and power supply thunder prevents, with two levels of protection design respectively, effectively restrain the power of lightning from cable, which equivalent to give the entire network monitoring system with a security fence.
---------------------------------------------------------------------------------------------------------------------------------------

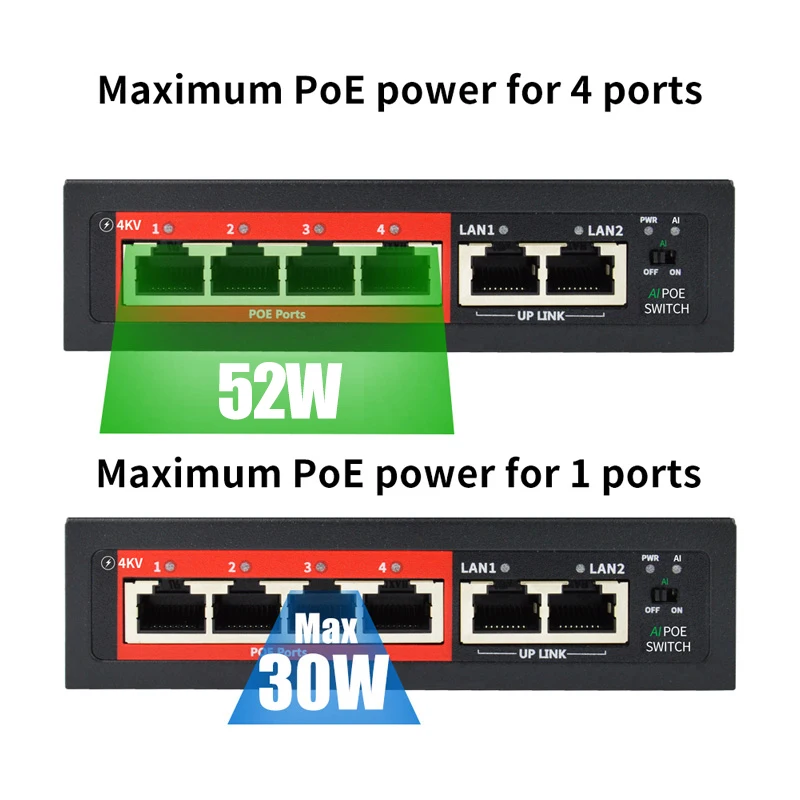

4 Port 100M POW Switch-52W
PoE switch with 4 100M PoE port + 2 100M Uplink port, 4×PoE ports providing up to 30W per port, total PoE budget 52W. 2 100M ethernet Uplink Port for connecting NVR and Internet , etc.
----------------------------------------------------------------------------------------------------------------------------------------

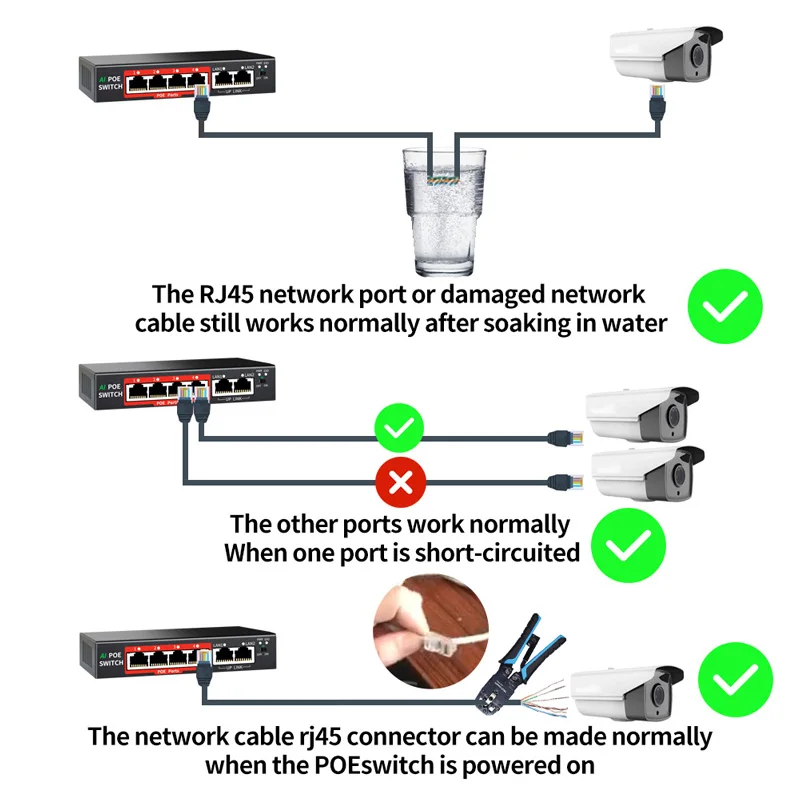

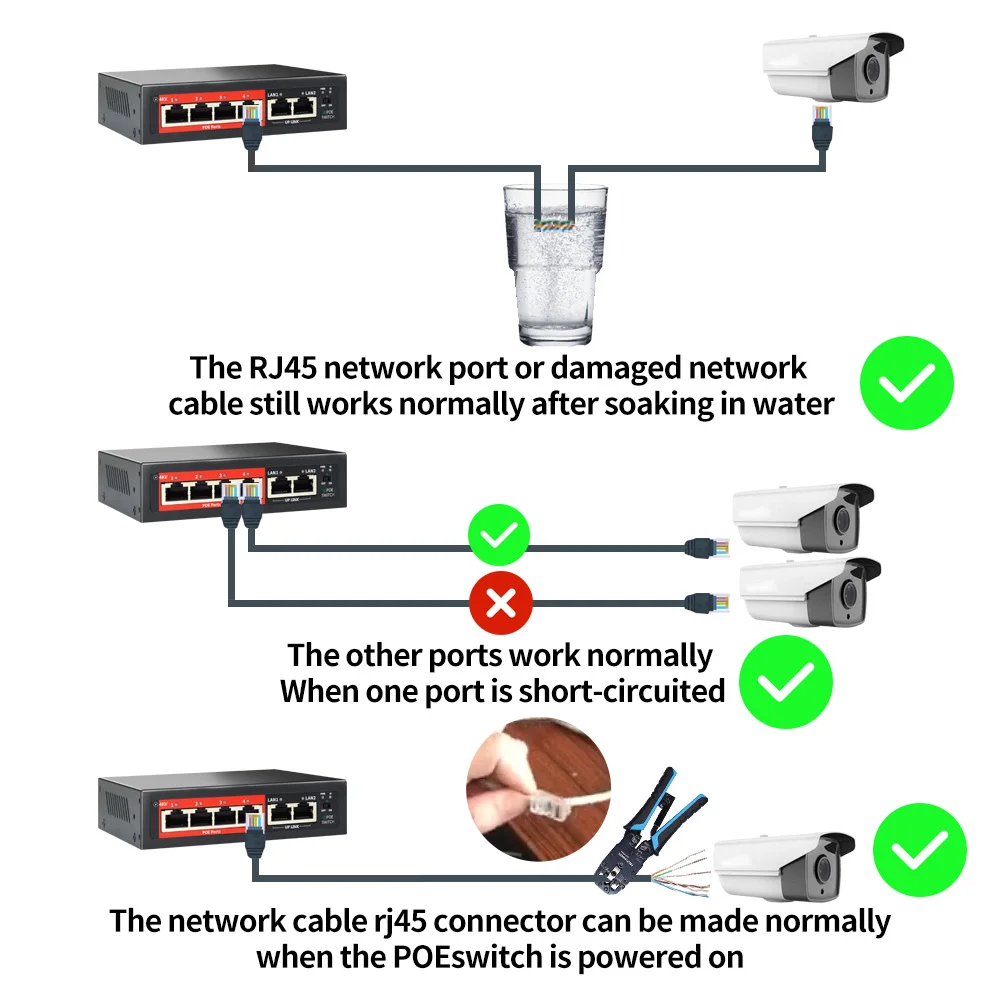

Network cable short-circuit protection
POE switch is stable and has strong anti-interference ability, protect the fault caused by the short circuit of the network port.Short Circuit, Over Current and Over Voltage Protection.
---------------------------------------------------------------------------------------------------------------------------------------

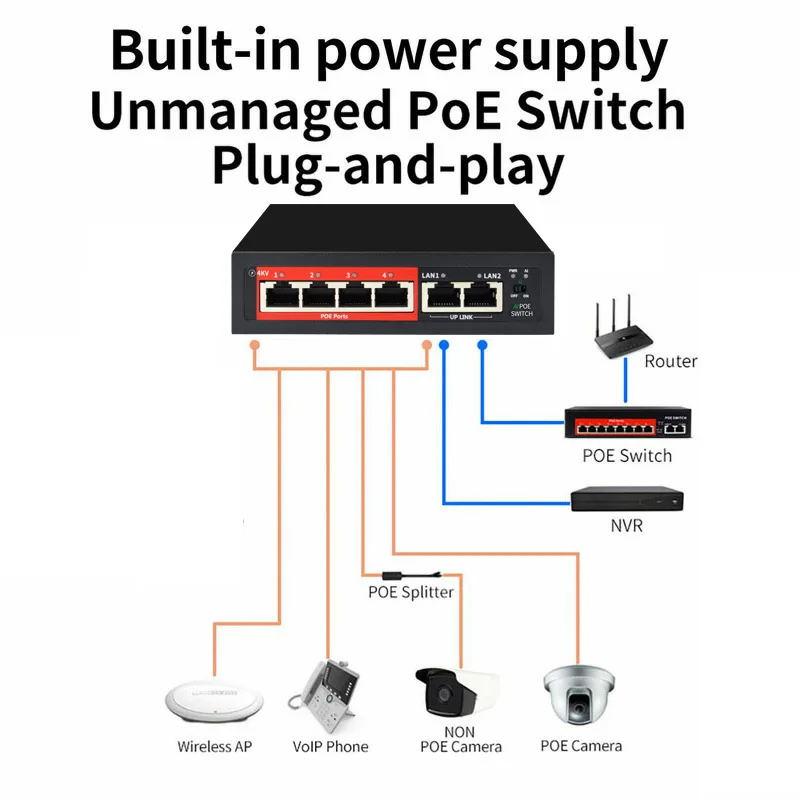

Built-in Power and Fanless design
The POE switch adopts a built-in power supply (the power supply is placed inside the switch) and a fanless design. The product is simple and light, always working there silently.
Company Introduction
HUOYI Technology (Shenzhen) Co., Ltd.was a professional Poe switch ,ethernet switch,IP camera and NVR manufacturer with more than 10 years experience in CCTV and network communication fields ,have a professional team of about 200 workers and The production of dust-free workshop can reach 3500 units per day. For years,Our research and development achievements have SPOE,PSE,CCTV managed system,CCTV smart router,IPC tester and cable tester products.
Our Services & Strength
We are a team with 10 years of experience in R&D and production,Focus on the R&D, production and sales of network equipment, POE equipment, 4G/5G and wireless routers etc..Efficient R&D, low failure rate (0.04%) , and low prices are our biggest advantages.
