Product Overview
Description
Factory Customized 2MP 1920x1080 Usb Camera Module OV2710 Sensor HD 1080p 3.5mm Lens Wide Angle Camera USB
Product Description
Hampo 003-0533 is a true full HD (1080p) camera module adopting CMOS Omnivision OV2710 image sensor, designed specifically to deliver high-end HD video to digital video camcorders, notebooks, PC webcam, robot,document scanner,industrial machine,drone,security and other mobile applications，addresses the fast growing demand for affordable, HD-quality digital video solutions for video conferencing and recording.
The 2MP full HD (1080p) camera module offers HD video format with a display resolution of 1920 x 1080 pixels, operating at 30 frames per second. Built with OMNIVISION’s proprietary 3 µm OmniPixel®3-HS high sensitivity pixel technology, delivers low-light sensitivity of 3700 mV/lux-sec, S/N ratio of 40 dB, and a peak dynamic range of 69 dB, enabling cameras to operate in virtually every lighting condition from bright daylight to nearly complete darkness below 15 lux.

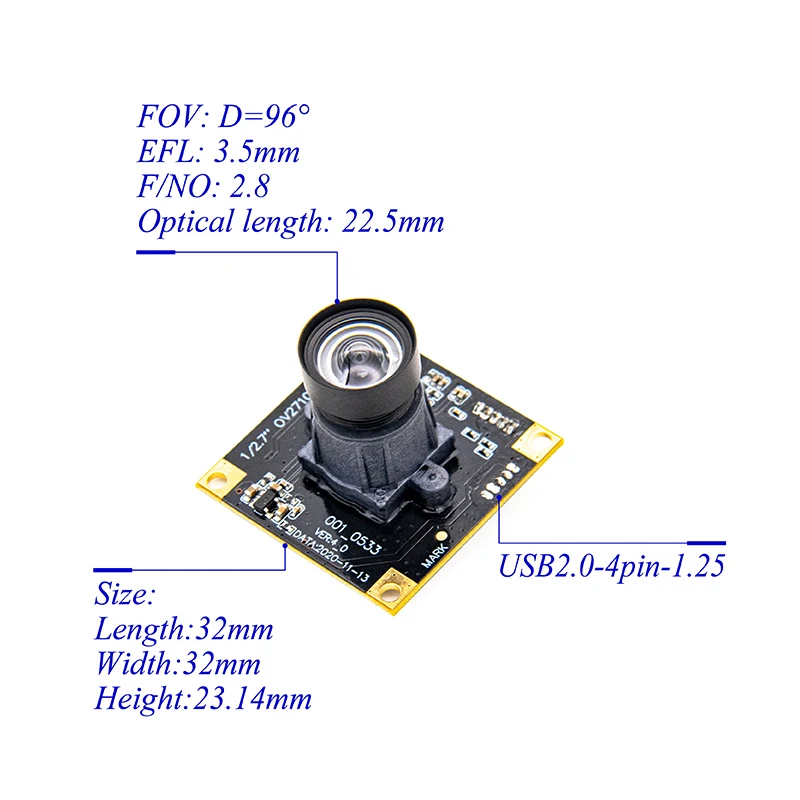

The board's specification is 32MMx32MM and customization is fully supported; There are a wide range of different lenses available for this module, which view angle from 20°-200° and the focal length from 2.8MM-12MM.
Key Features

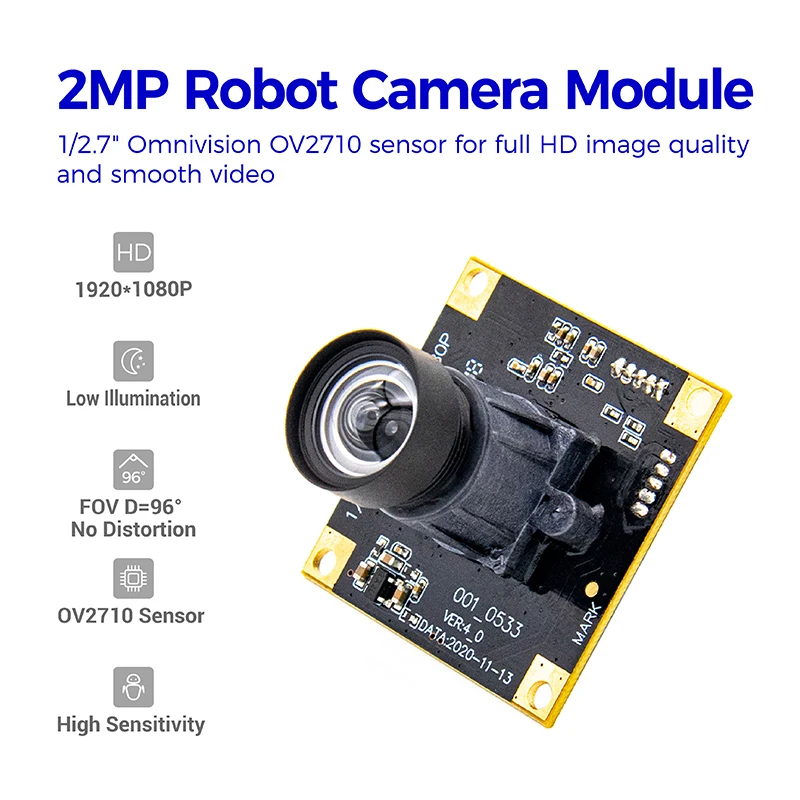

More than HD: This camera module adopts 1/2.7" Omnivision OV2710 sensor for full HD image quality and smooth video.
Capture Video with Audio: High frame rates, MJPG:1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 320X240@30FPS;YUY2:1920x1080@10FPS; 1280x720@15FPS; 800x600@15FPS; 640x480@30FPS; 320X240@30FPS;
Low Light: The camera has a good low light performance, the low illumination could up to 0.5Lux.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: This tiny 32mm x 32mm camera board can be installed in most hidden and narrow position for notebooks, PC webcam, robot,document scanner,industrial machine,drone,security and other mobile applications.

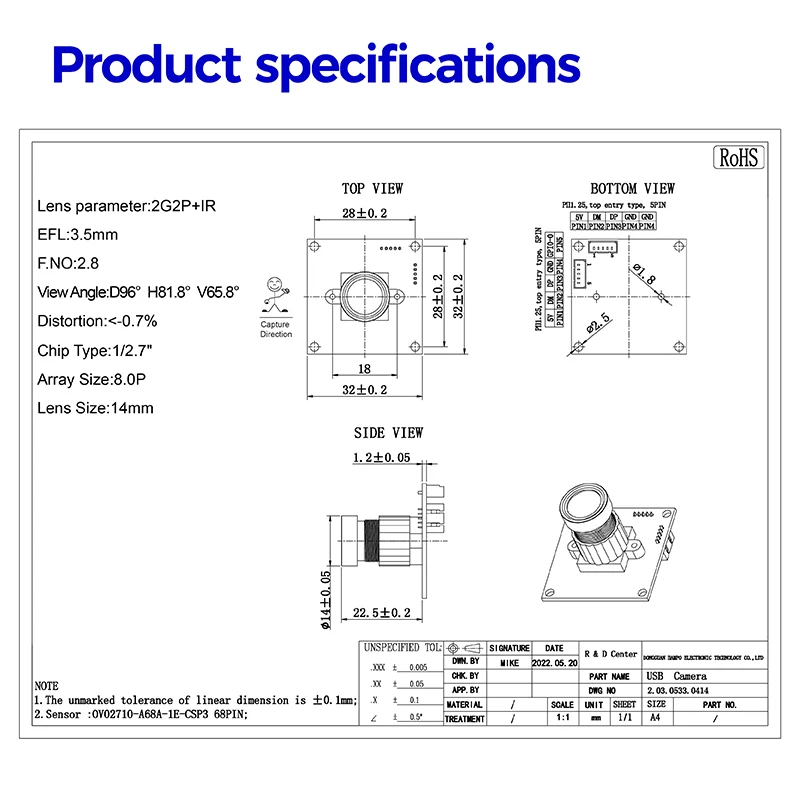

Specification
Camera | ||
Model No. | 003-0533 | |
Max Resolution | 1920*1080P | |
Sensor | 1/2.7" OV2710 | |
Frame Rate | MJPG:1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 320X240@30FPS; YUY2:1920x1080@10FPS; 1280x720@15FPS; 800x600@15FPS; 640x480@30FPS; 320X240@30FPS; | |
Pixel Size | 3.0μm*3.0μm | |
Output Format | YUY2/MJPG | |
S/N Ratio | 40dB | |
Dynamic Range | 69dB | |
Illumination | 0.5Lux | |
Lens | ||
Focus | Fixed focus | |
FOV | D=96° H=81.8° | |
Lens Mount | M12 * P0.5mm | |
Focusing Range | 3.3ft (1M) to infinity | |
Power | ||
Working Current | MAX 220mA | |
Voltage | DC 5V | |
Physical | ||
Interface | USB2.0 | |
Storage Temperature | -20ºC to +70ºC | |
Operating Temp | Depend on environmental temperature | |
PCB Size | 32mm*32mm | |
Cable Length | 3.3ft (1M) | |
TTL | 3.5MM | |
Functionality and Compatibility | ||
Adjustable parameter | Exposure/ White balance | |
System Compatibility | Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver | |
Applications
Machinary equipment
All-in-one machine
Robot
Document scanner
Industrial machine
Drone
Medical auxiliary equipment
Access control system...
Company Profile
Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products.
Hampo owned two buildings(Building58 and building 26) as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.

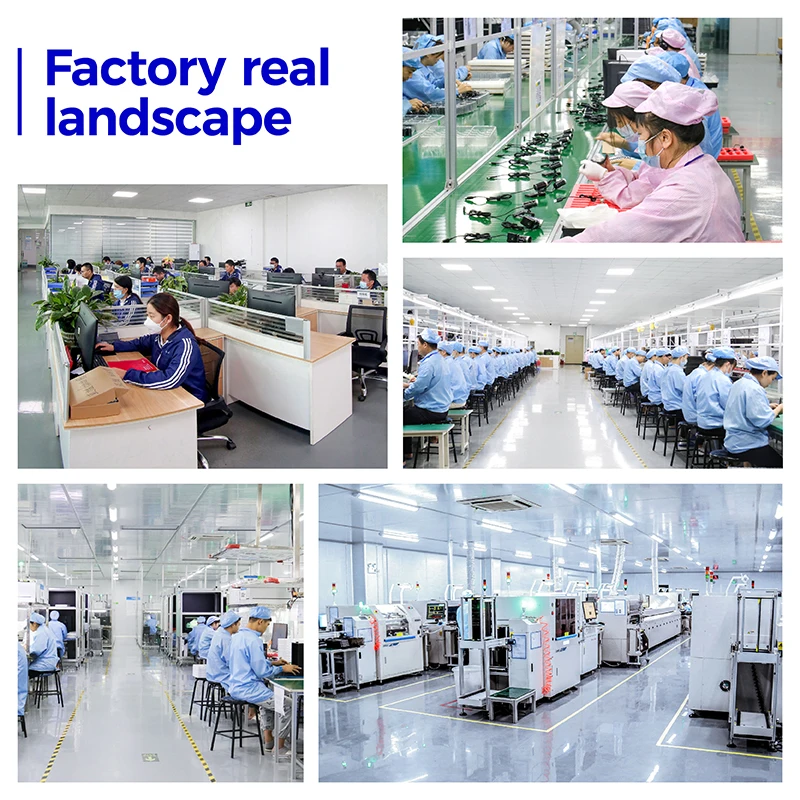

To meet customers’ needs and ensure a timely delivery, Hampo has equipped 3 SMT lines, 5 module assembly lines and 8 PC camera lines. Those production lines can output 600K camera modules and 767k PC cameras monthly.
Hampo has been certified and qualified by ISO quality organization in 2015 and awarded the title of National High-Tech Enterprise in 2019, besides this Hampo has registered more than 20 product patents.
Hampo has three product series.
Camera module series includes all kinds of video camera modules, MIPI video camera modules and DVP video camera modules etc. PC Cameras for different applications such as video conference, online classes and facing recognitions etc. OID devices for preschool education purposes, such as talking pen, smart pen and children’s puzzle electronic products.
As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
Hampo has been certified and qualified by ISO quality organization in 2015 and awarded the title of National High-Tech Enterprise in 2019, besides this Hampo has registered more than 20 product patents.
Hampo has three product series.
Camera module series includes all kinds of video camera modules, MIPI video camera modules and DVP video camera modules etc. PC Cameras for different applications such as video conference, online classes and facing recognitions etc. OID devices for preschool education purposes, such as talking pen, smart pen and children’s puzzle electronic products.
As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
FAQ
1. How's the sensitivity this camera module has?
It has a high temperature resistance and high sensitivity feature, which make a good effect on robot camera.
2. What's the illumination this module have?
The camera module adopts ov2710 image sensor, the illumination is about 0.5Lux.
3. Why the image/video is not clear enough on my access control system?
Usually the effect of HDR will cause the quality of image good or not on that case. The value of HDR is higher, then the quality of image will be better. The high dynamic range is up to 96dB on this camera module.
4. Does the camera support OTG?
Most of our usb cameras support OTG function.
5. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
6. How long is your delivery time?
It depends on the quantity and the difficulty of products. Usually our turnover time is 15-25 days.
It has a high temperature resistance and high sensitivity feature, which make a good effect on robot camera.
2. What's the illumination this module have?
The camera module adopts ov2710 image sensor, the illumination is about 0.5Lux.
3. Why the image/video is not clear enough on my access control system?
Usually the effect of HDR will cause the quality of image good or not on that case. The value of HDR is higher, then the quality of image will be better. The high dynamic range is up to 96dB on this camera module.
4. Does the camera support OTG?
Most of our usb cameras support OTG function.
5. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
6. How long is your delivery time?
It depends on the quantity and the difficulty of products. Usually our turnover time is 15-25 days.
