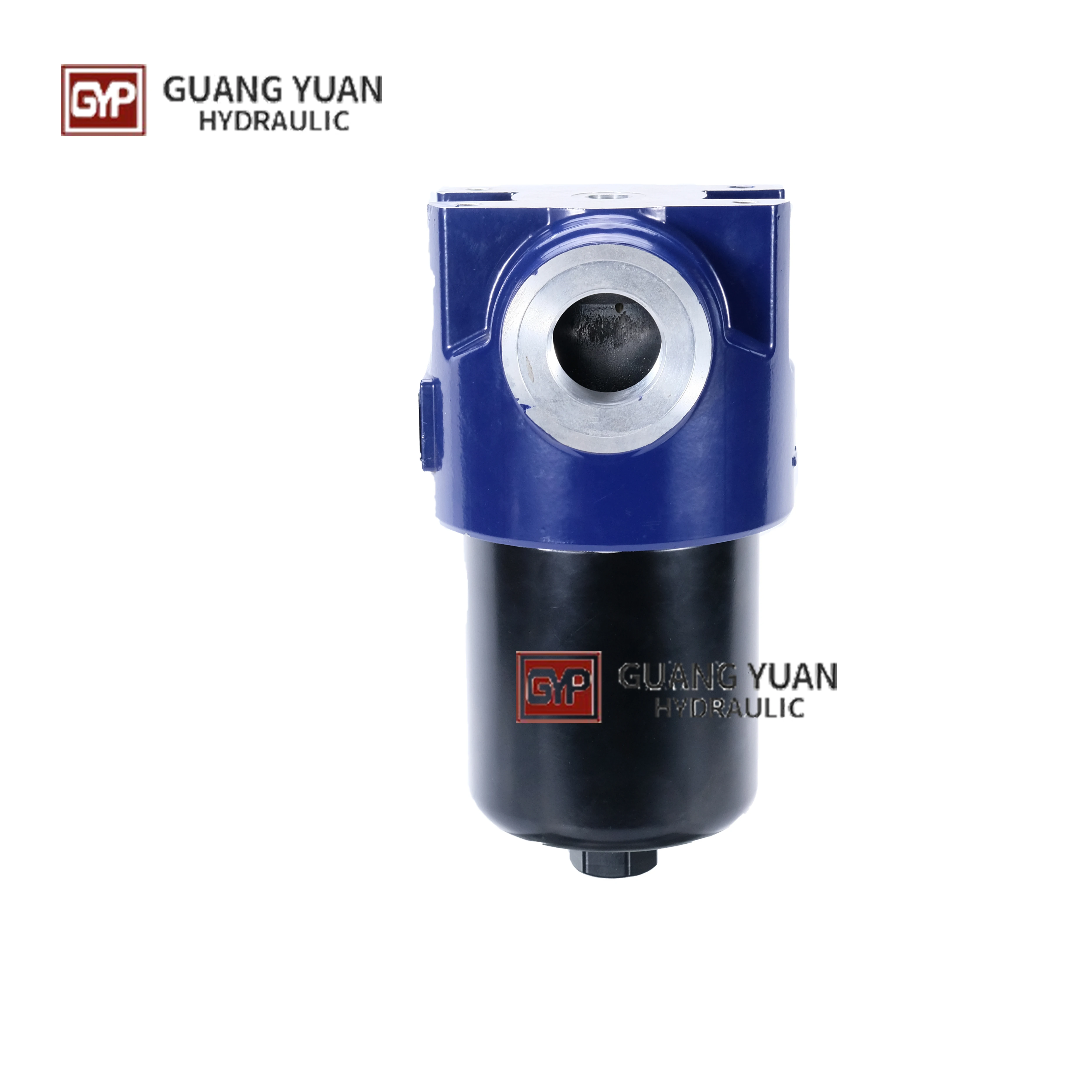

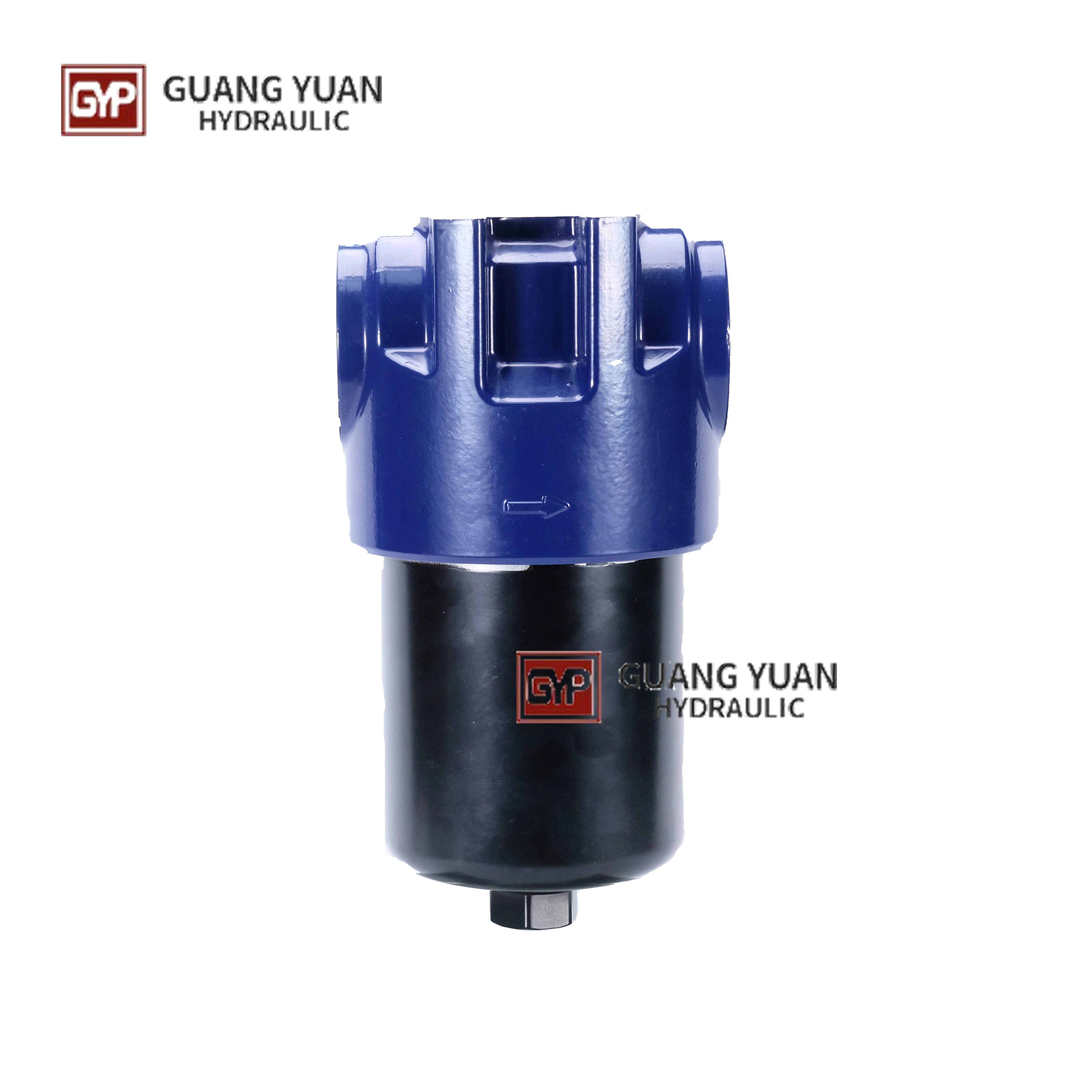

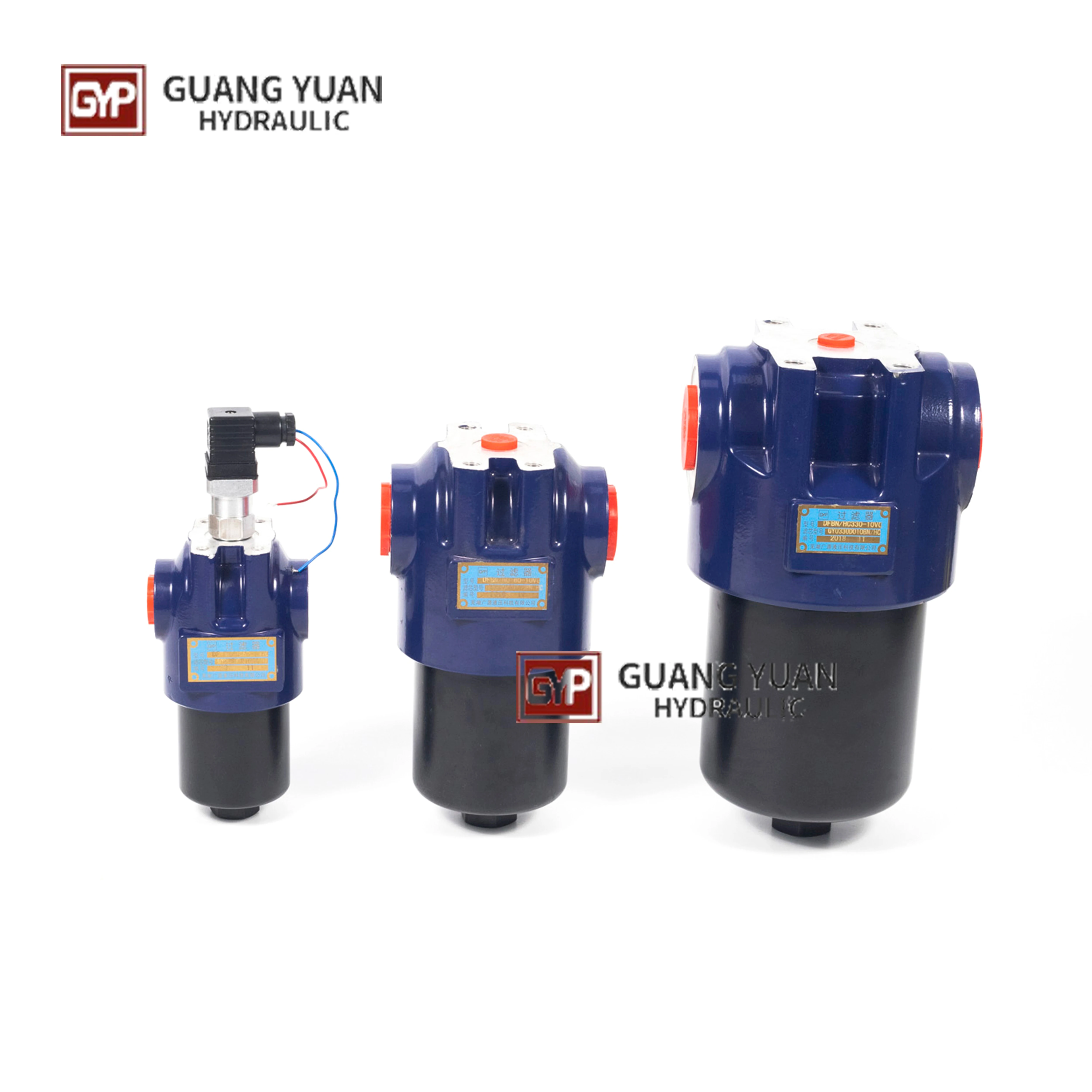

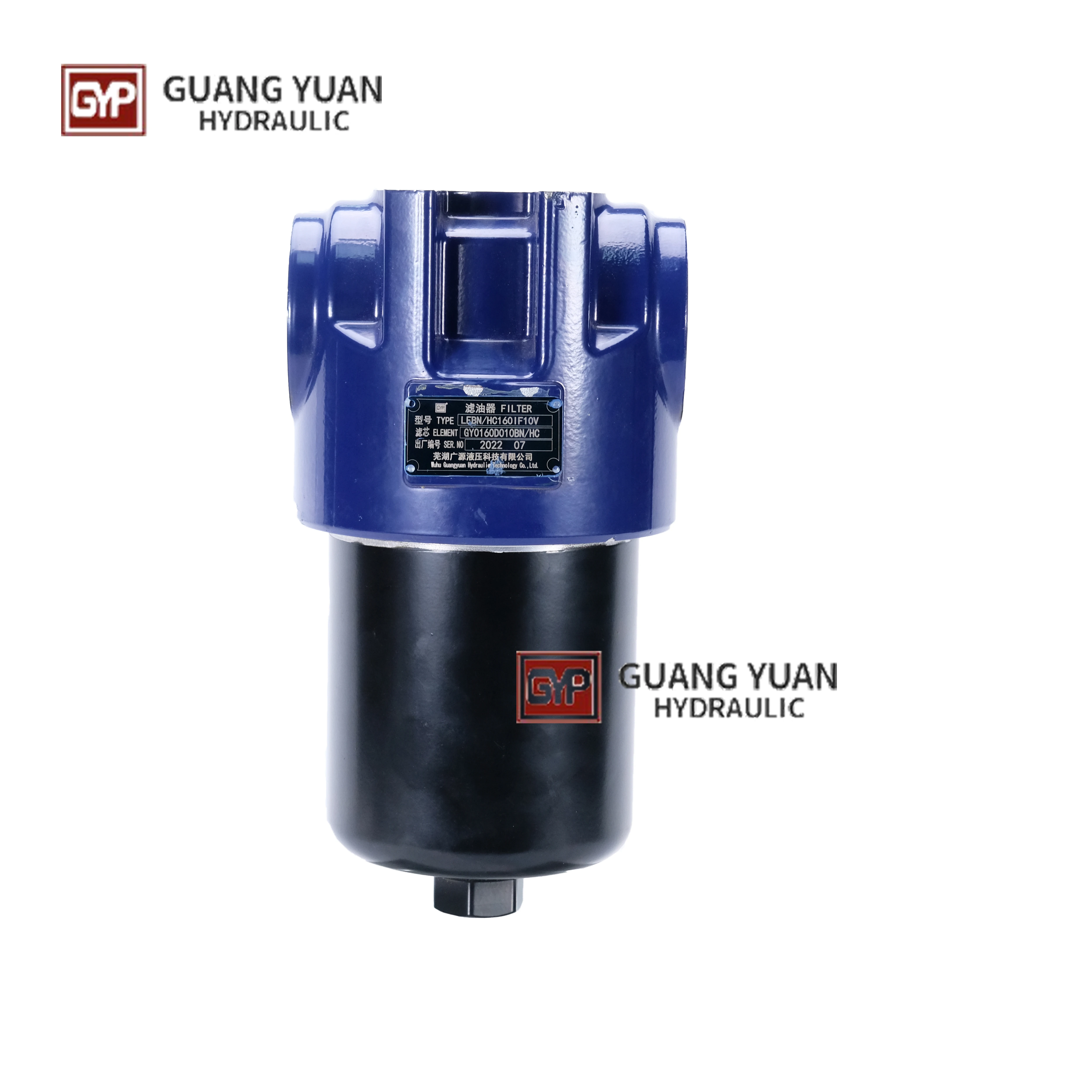

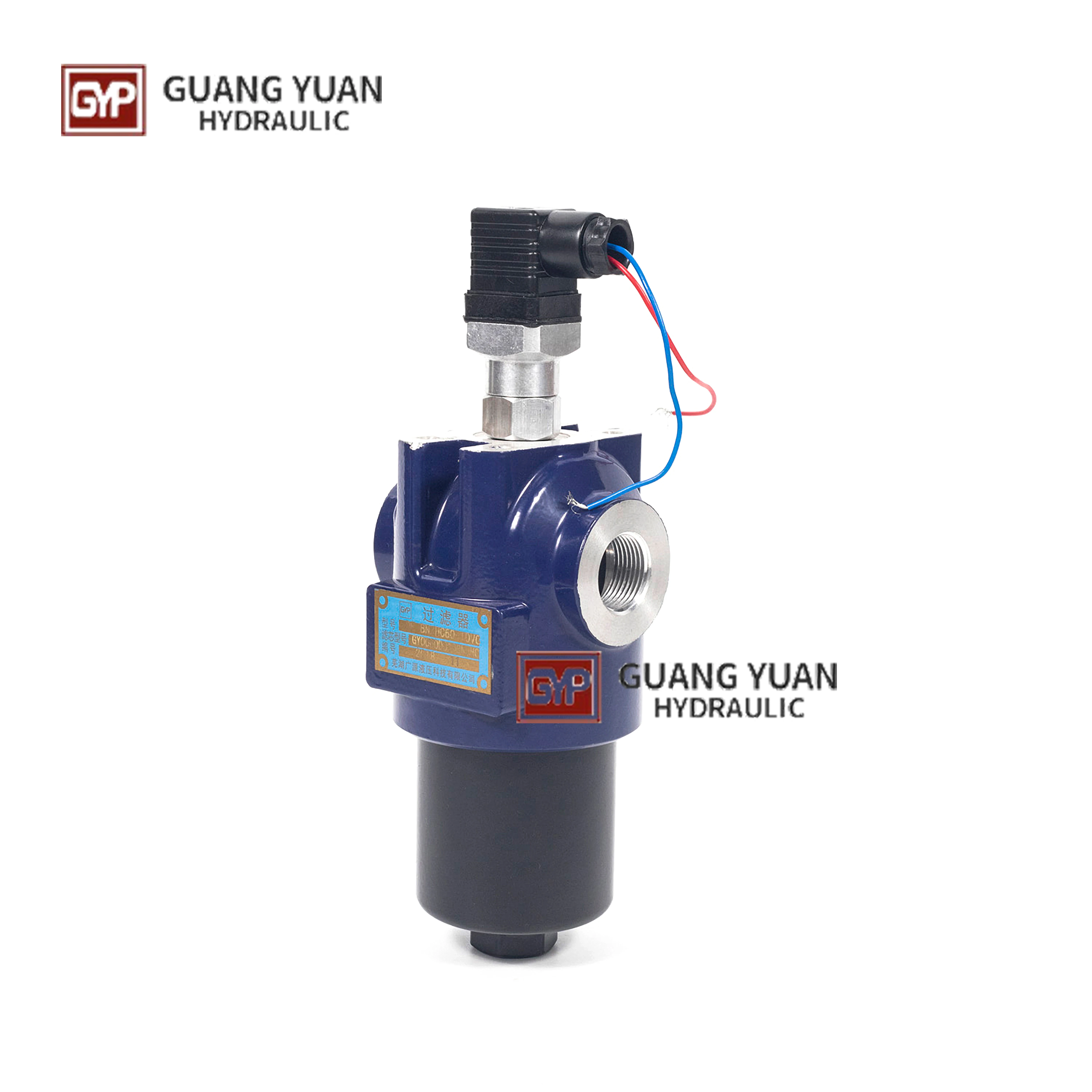

LF BN/HC 110 I C 03 D 1 . X /B 6 High quality hydraulic filter that can withstand 100BAR pressure
- Category: >>>
- Supplier: Wuhu Guangyuan Hydraulic Technology Co. Ltd.
Share on (1600665209178):
Product Overview
Description
PRODUCT PARAMETERS | ||||||
Type of construcion | Inline filter | Mounting method | vertical installation | |||
From outside to insideFlow direction | Inlet to outlet | |||||
Operating pressure | Max100Bar | Operating temperature | -30 ℃ ~ +100 ℃ | |||
Connection ports | threaded connection | Seal material | NBR | |||
Filtration media | Glass fibre: 3,5,10,20,50 um mesh : 10,20,40,60,100,150 um | |||||
Element collapse rating | 120 Bar | Bypass setting | With bypass valve | |||
Indicator setting | 5 Bar-visual-visual/electrical other setting on request | |||||
Filter housing | Steel | |||||
Fluid compatibility | Suitable for mineral oils , synthetic for use with water , please contact our company | |||||
New product!
Excellent performance!
Excellent performance!

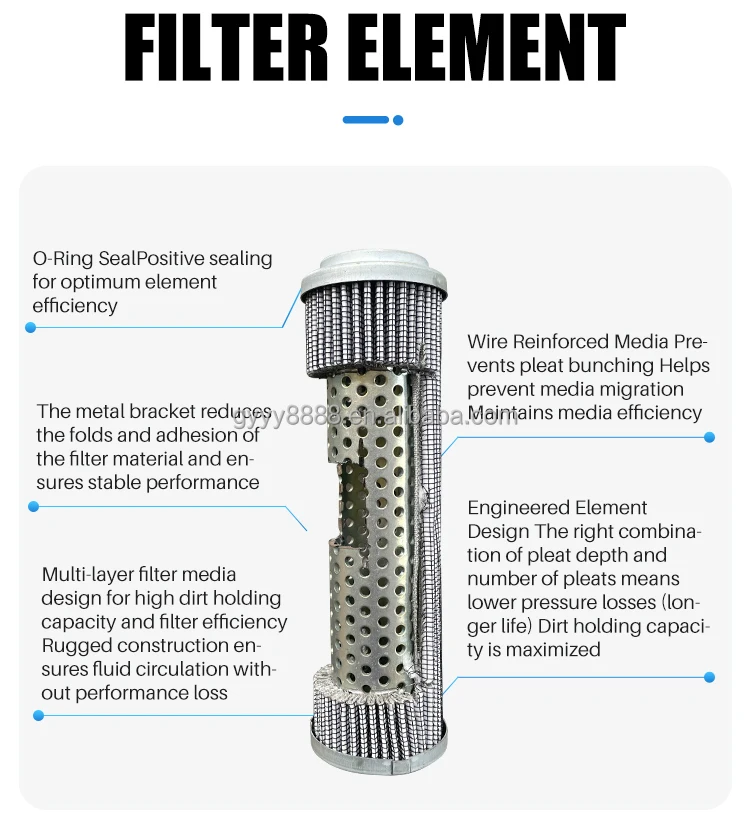

Guangyuan filter elements are known for their high intrinsic stability and excellent filtration capacity, high dirt retention and long service life. Guangyuan filter elements are suitable for all petroleum based fluids, emulsions, most synthetic hydraulic fluids and lubricating oils.
Q:What products do you have?
We are a company specializing in the production of hydraulic accessories, we specialize in the production of hydraulic filters, liquid level and temperature gauges, and pipe clamps. Our company's products include but are not limited to: oil return filter, pressure filter, rotary filter, fuel tank filter, respirator, particulate moisture absorber, visual level gauge, electronically controlled level gauge, pipe clamps , the liquid level relay.
Our company's products can be used interchangeably with those of most international companies

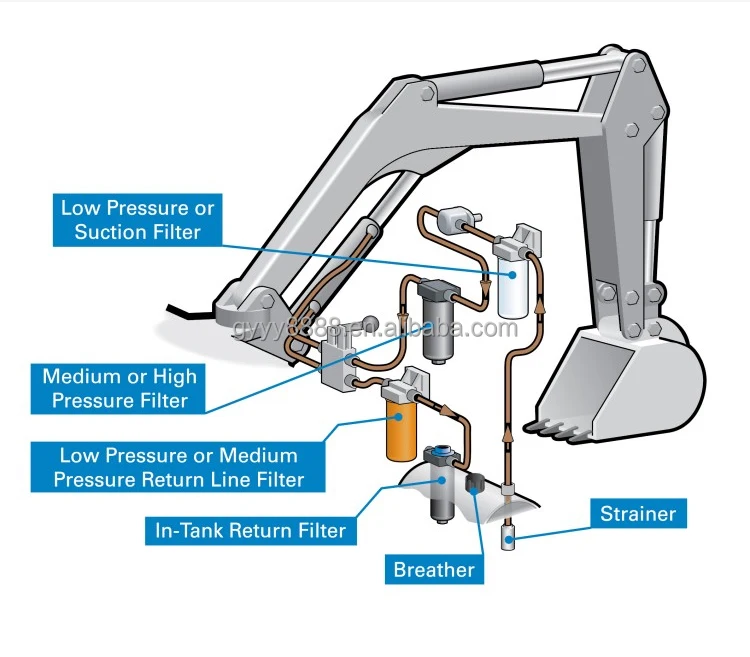

Modern high-pressure hydraulic systems are demanding. For better control and longer component life, clean hydraulic fluid is required. To provide a high standard of performance, hydraulic components are manufactured to tighter tolerances, which increases their susceptibility to contamination. This is where the wide source filter comes into play. They filter out incoming contaminants before they clog the valve or scratch the cylinder. They stop pump debris before it enters the servo or proportional valve. Wide source filters are a key element in meeting the demands of today's systems. Leave your hydraulic system to Guangyuan Hydraulic Filter. We are committed to designing and manufacturing the best filters available.
