Factory directly sell QT4 15 automatic block making machine concrete brick making machine price
- Category: >>>
- Supplier: Linyi Dongyue Building Materials Machinery Co. Ltd.
Share on (1600665288255):
Product Overview
Description
Product Description

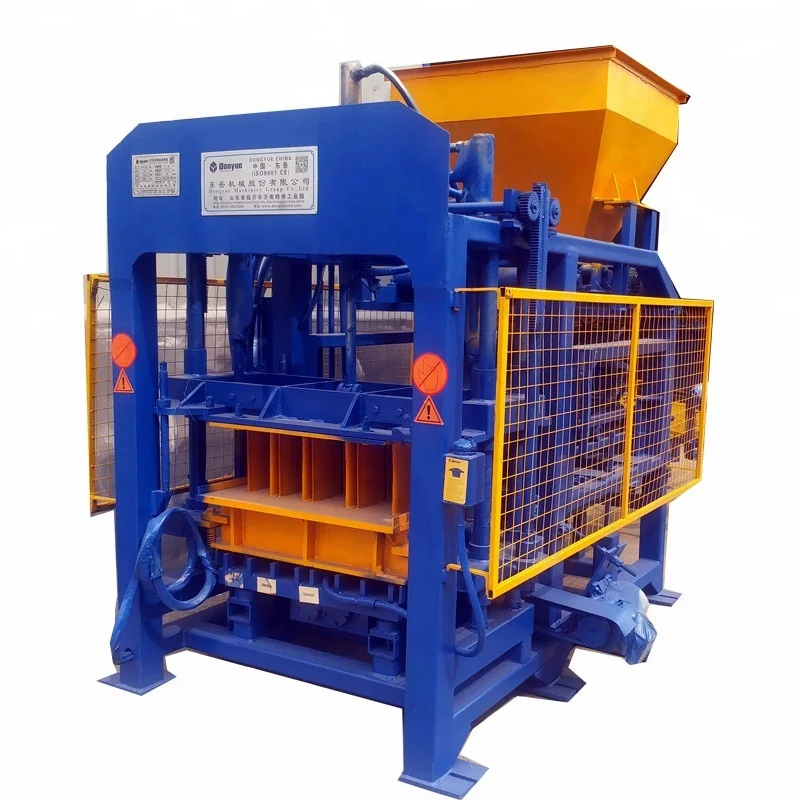

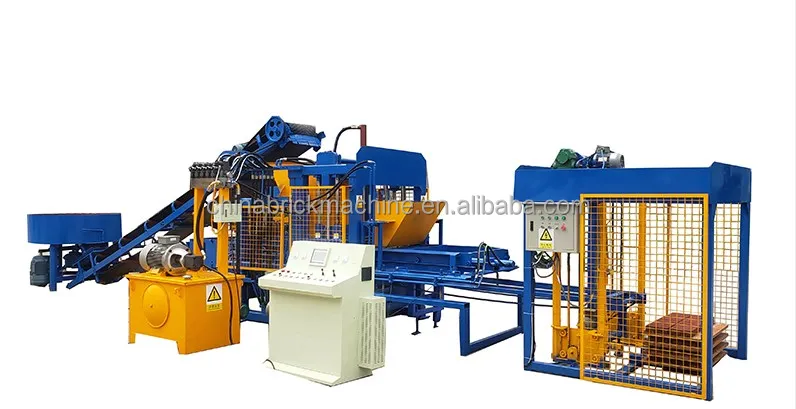

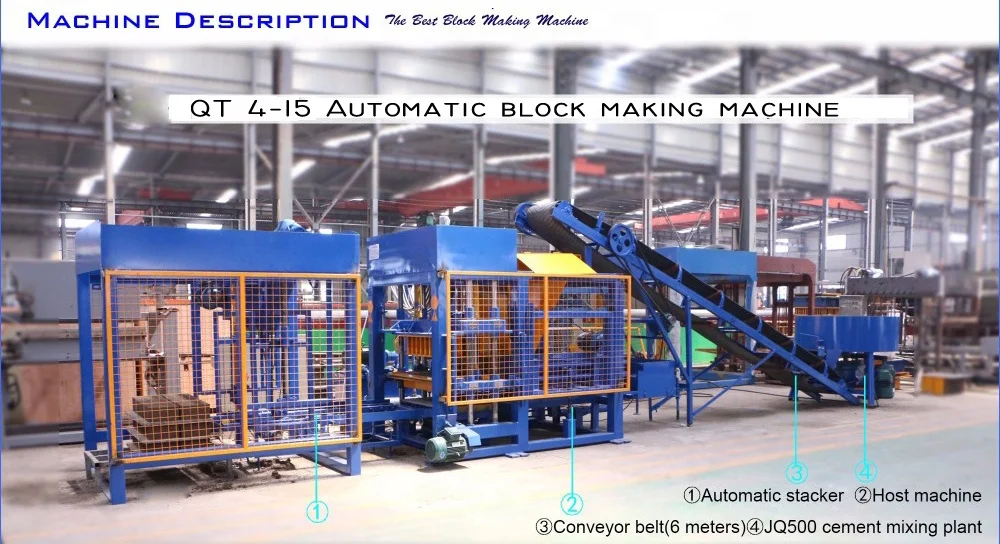

QT4-15 AUTOMATIC HYDRAULIC CONCRETE BLOCK BRICK MAKING MACHINE
Factory directly sell QT4-15 automatic block making machine concrete brick making machine price

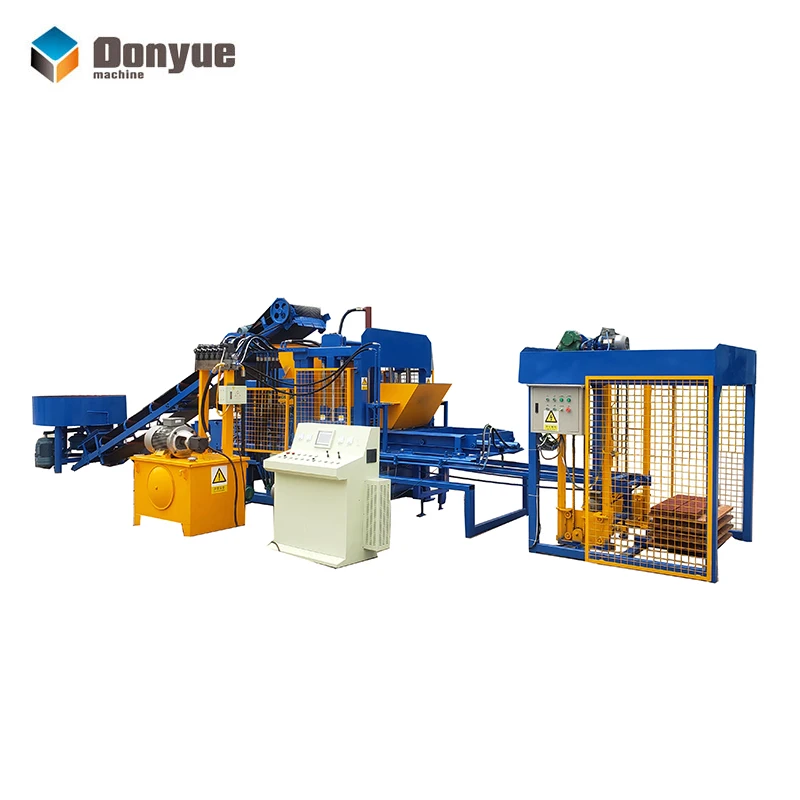

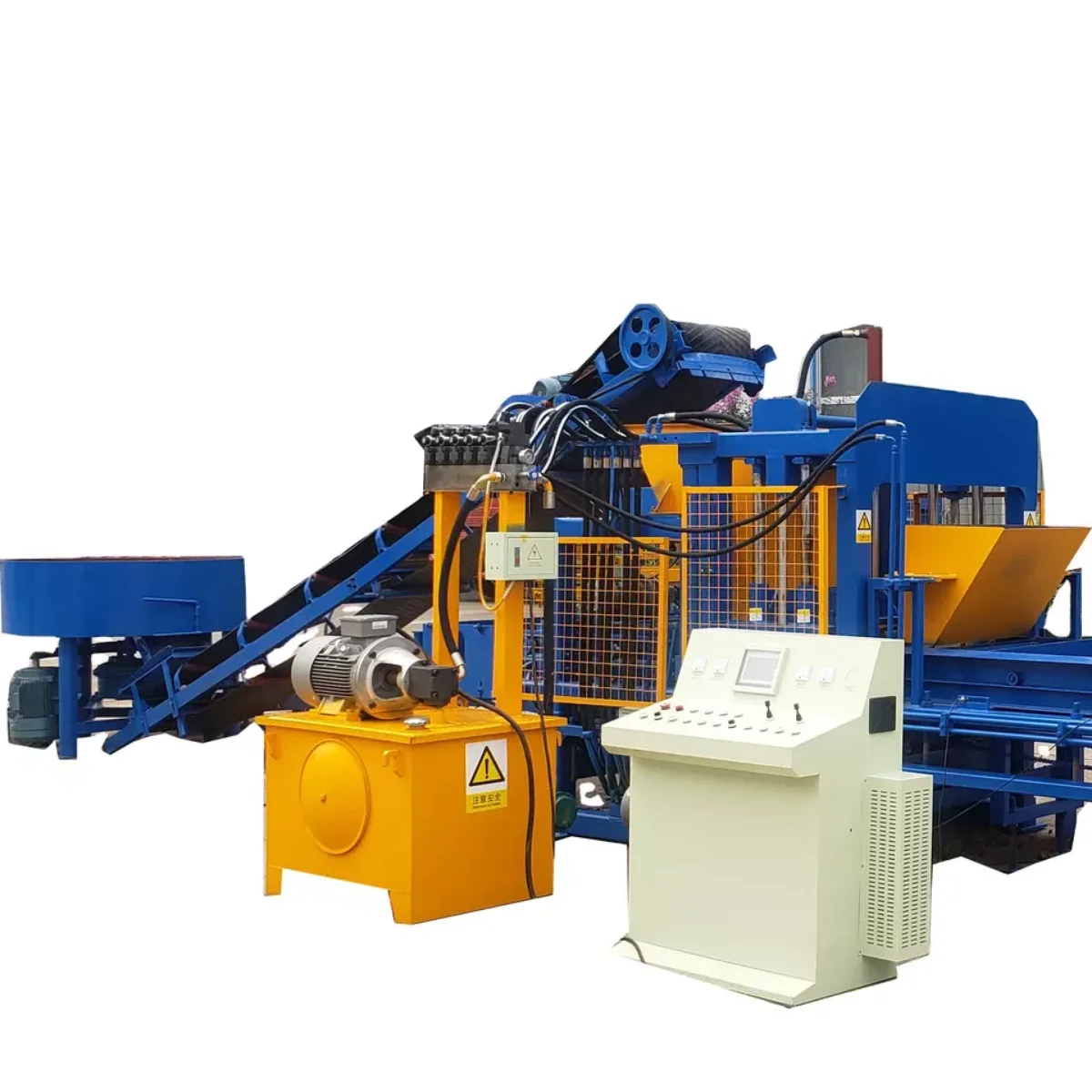

1.QT4-15 Brick Production Line is automatic brick making machine, the equipment structure is simple and practical, outlook is novel and attractive, in addition to produce permeable brick, it is particularly suited to the production of standard bricks, replacement of mold can produce many kinds of paving brick, hollow brick, curb stone etc.2. QT4-15 Brick Making Machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
Specification
MAIN SPECIFICATIONS | ||||||
Dimension of host machine | 2700x1600x2500 mm | Host machine power | 24kw | |||
Weight of host machine | 4.5T | Vibration force | 30-50KN | |||
Water consumption | 4-5Ton/day | Pallet size | 880X580X22mm | |||
workshop area | 200-300m² | Voltage | 380/415/440 | |||

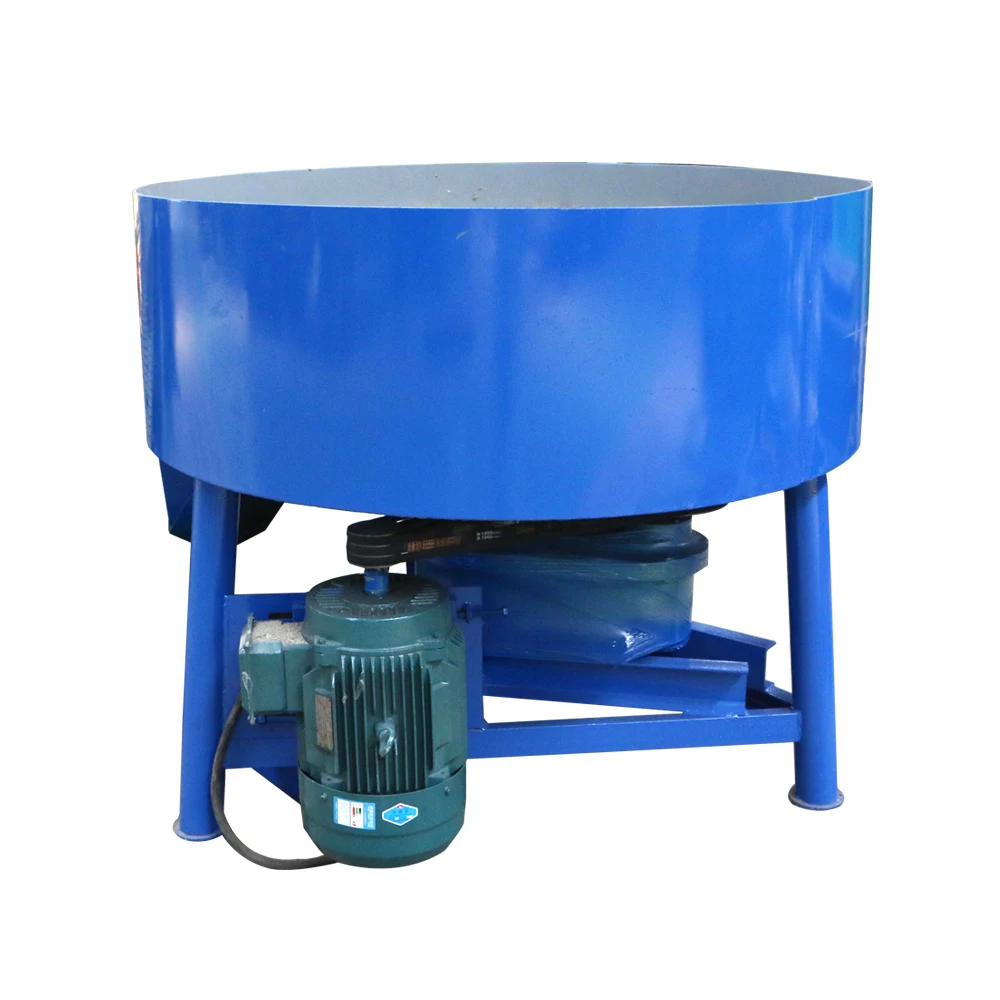

Mixer model | JQ500 | Molding area | 820x520mm | |||
THEORETICAL PRODUCTION CAPACITY | ||||||
Block/ Size(LxWxH) | Pcs/ Mould | Psc/ Hr | Pcs/ 8 Hr | |||
Hollow Block 400x200x200mm | 4 | 720-960 | 5760-7680 | |||
Multi hole brick 240x115x90mm | 12 | 2160-2880 | 17280-23040 | |||
Solid Brick 240x115x53mm | 26 | 4680-6240 | 37440-49920 | |||
I Shape Paver 200x163x60mm | 12 | 2160 | 17280 | |||
Normal Paver 200X100X60mm | 16 | 2880 | 23040 | |||
ADVANTAGES OF QT4-15 BLOCK MACHINE
Factory directly sell QT4-15 automatic block making machine concrete brick making machine price
1) The motor for the host machine is Germany SIEMENS brand or ABB brand
2) Control PLC: we select original Japan Mitsubishi PLCcombine with independently develop machine control program, assure stable and high efficiency working status
3) The switch will use France Schneider brand and Japan Omron
4) Mould: newest heat treatment device and carburizing treatment will assure longer mould life span and ensure the strength of mould reach to 54-58 HRC so that the mould can be used more than 100 thousand times.
5)Material and welding: all materials and spare parts selected according to international CE standard, Carbon dioxide protection welding will assure whole line stable running.
1) The motor for the host machine is Germany SIEMENS brand or ABB brand
2) Control PLC: we select original Japan Mitsubishi PLCcombine with independently develop machine control program, assure stable and high efficiency working status
3) The switch will use France Schneider brand and Japan Omron
4) Mould: newest heat treatment device and carburizing treatment will assure longer mould life span and ensure the strength of mould reach to 54-58 HRC so that the mould can be used more than 100 thousand times.
5)Material and welding: all materials and spare parts selected according to international CE standard, Carbon dioxide protection welding will assure whole line stable running.

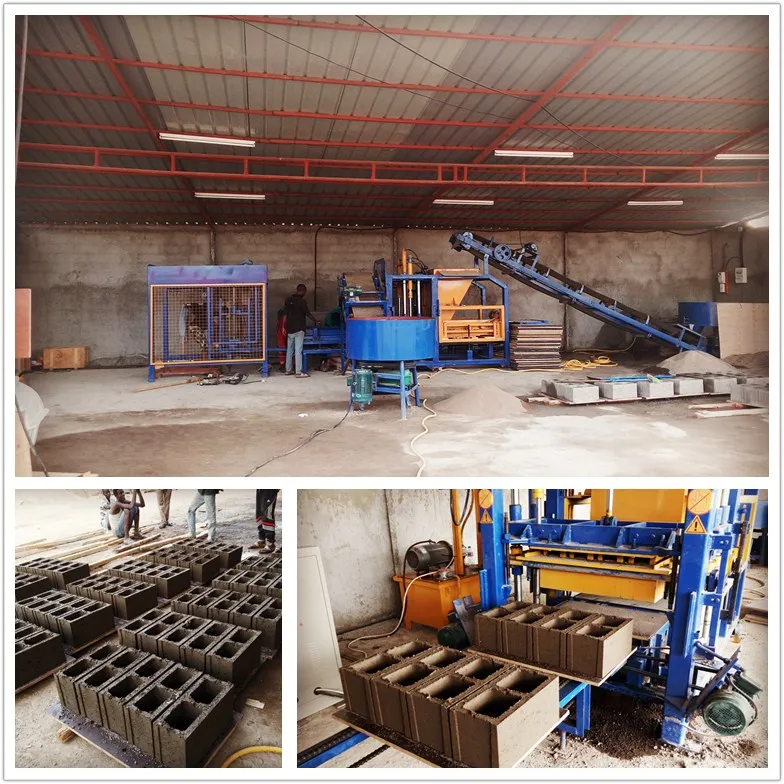

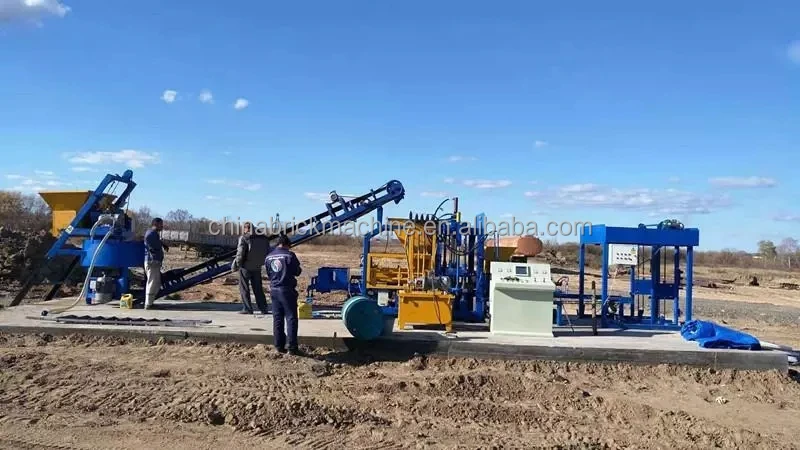

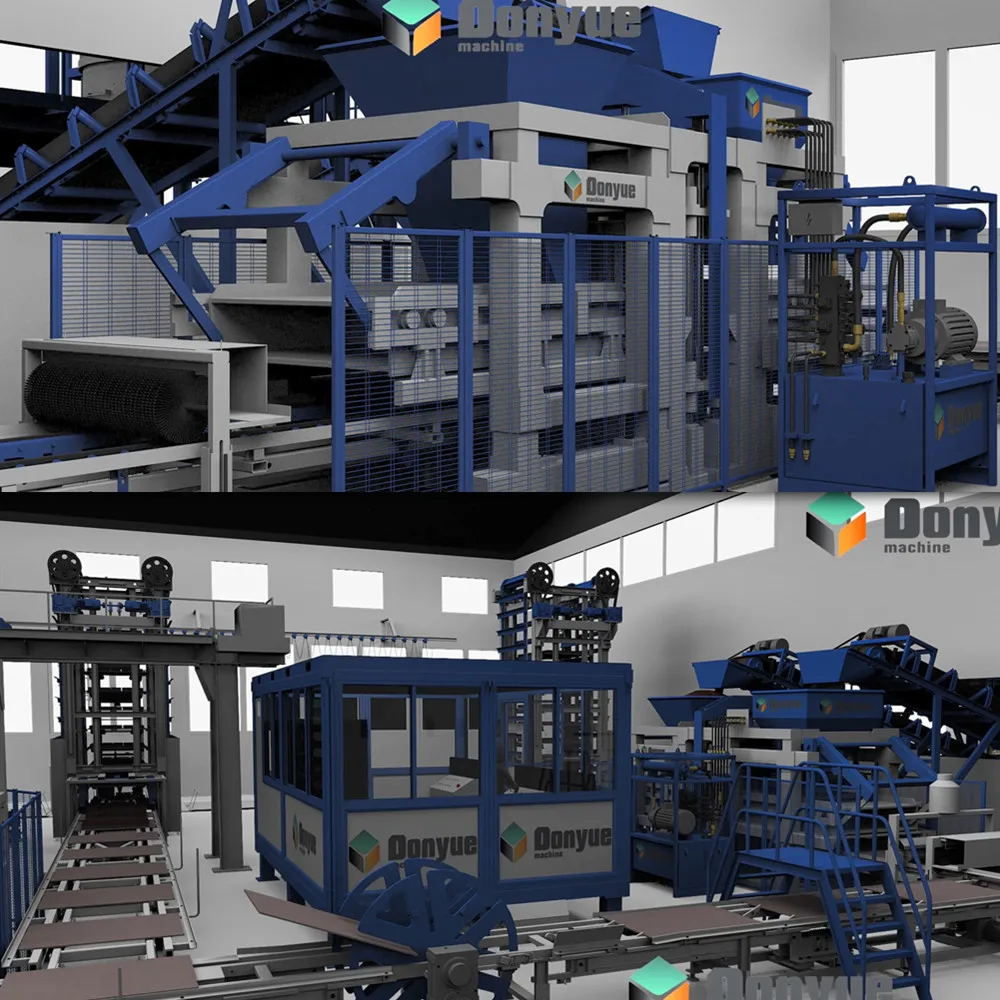

Brick Factory Under Construction
We provide complete technical support, including site planning, installation guidance, technical training and after-sales service.

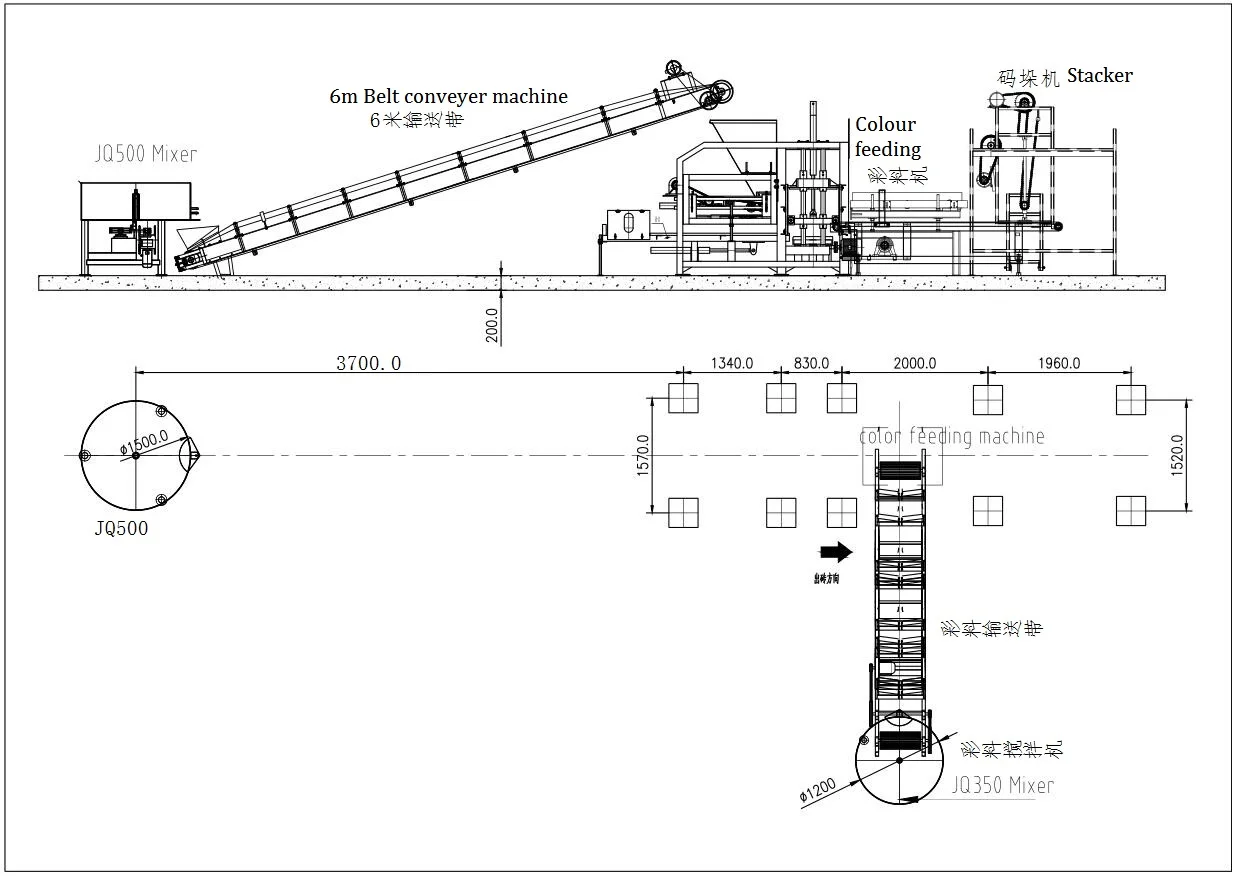

Foundation Drawing
The following drawing is one basic foundation drawing, we can provide drawing according to your land
Recommend Products

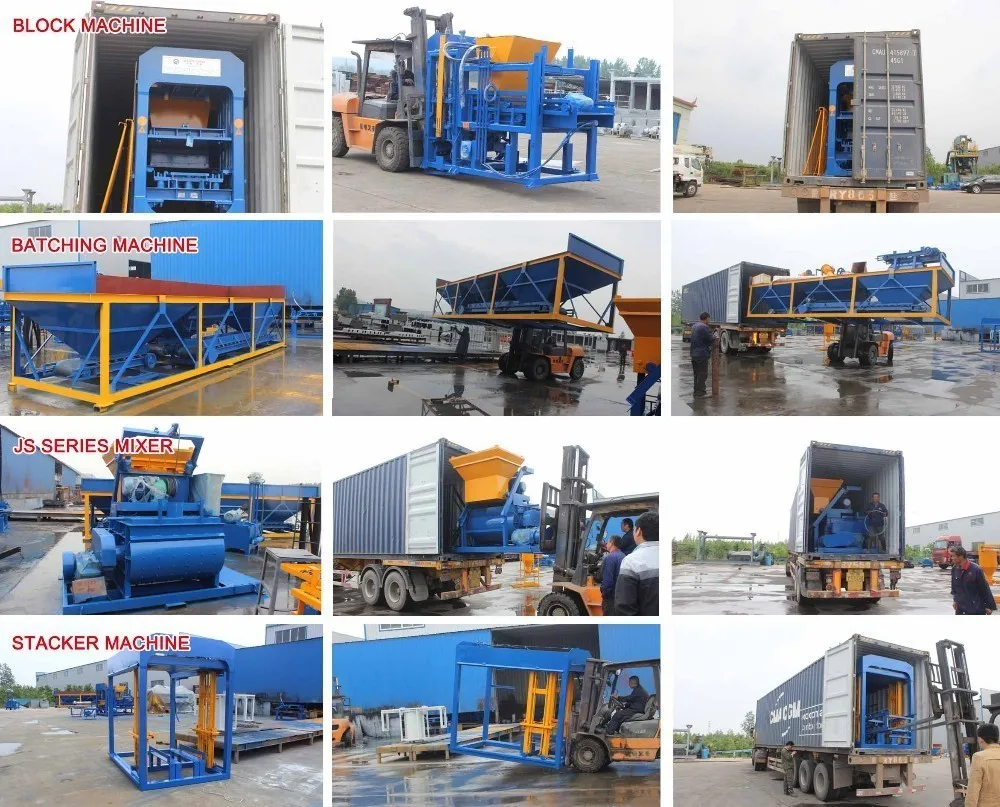

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Factory directly sell QT4-15 automatic block making machine concrete brick making machine price
Finished blocks
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Clients from different countries say:
Click to check the video
Company Profile
Title goes here.
Dongyue Machinery Group was built in 1994,and now Dongyue is a national large-scale designated building materials machinery manufacturer, a coalition of researching, producing and marketing, and services with registered asset of 234 million RMB, total asset of 1 billion RMB, total area of 1,332,000square meters, and over 1500 staff.
