excellent corrosion resistance and stress corrosion nickel alloy inconel 718 pipe/tube
- Category: >>>
- Supplier: Jiangsu Xinhua Alloy Co. Ltd.
Share on (1600665300522):
Product Overview
Description

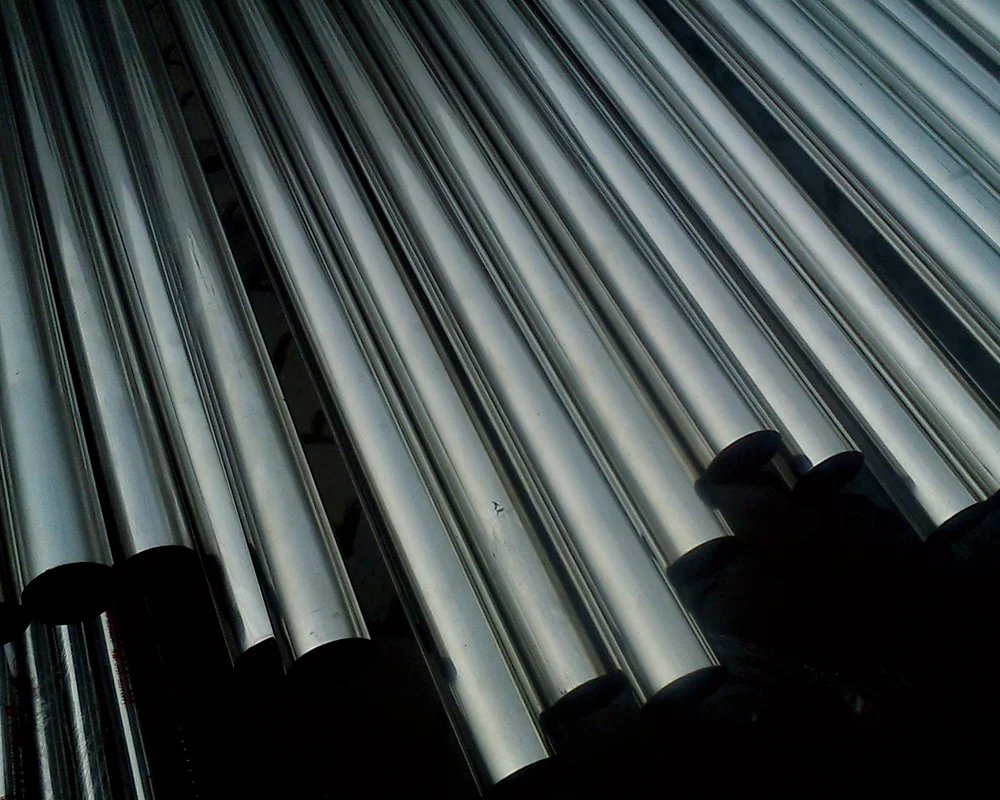

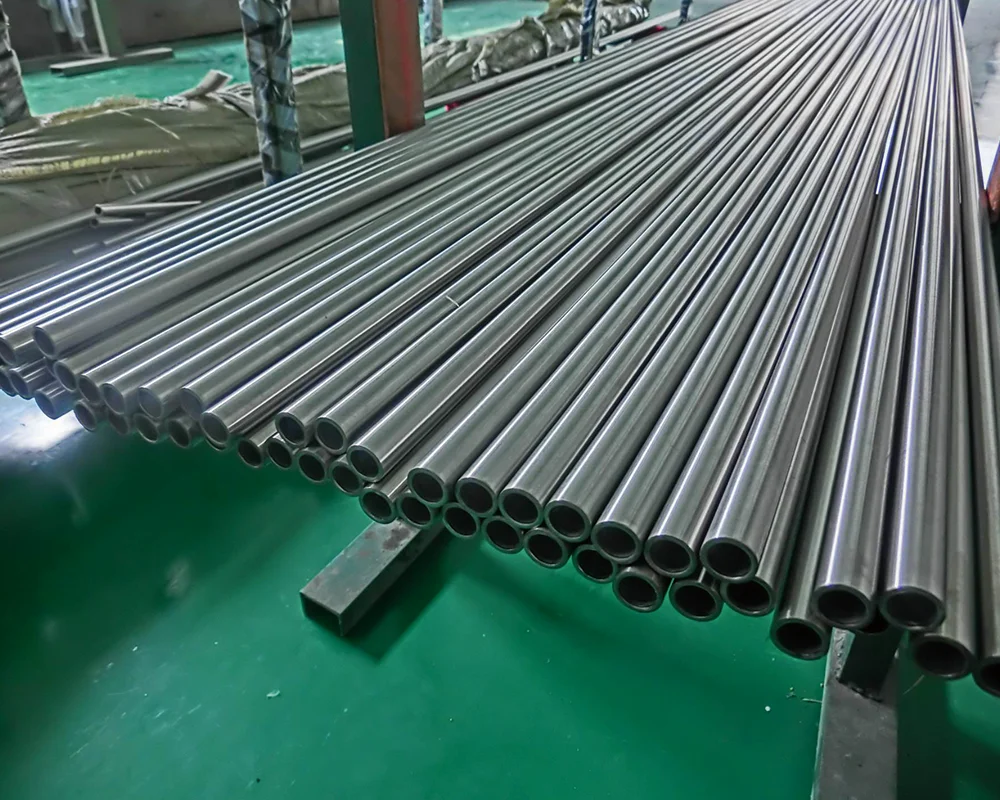

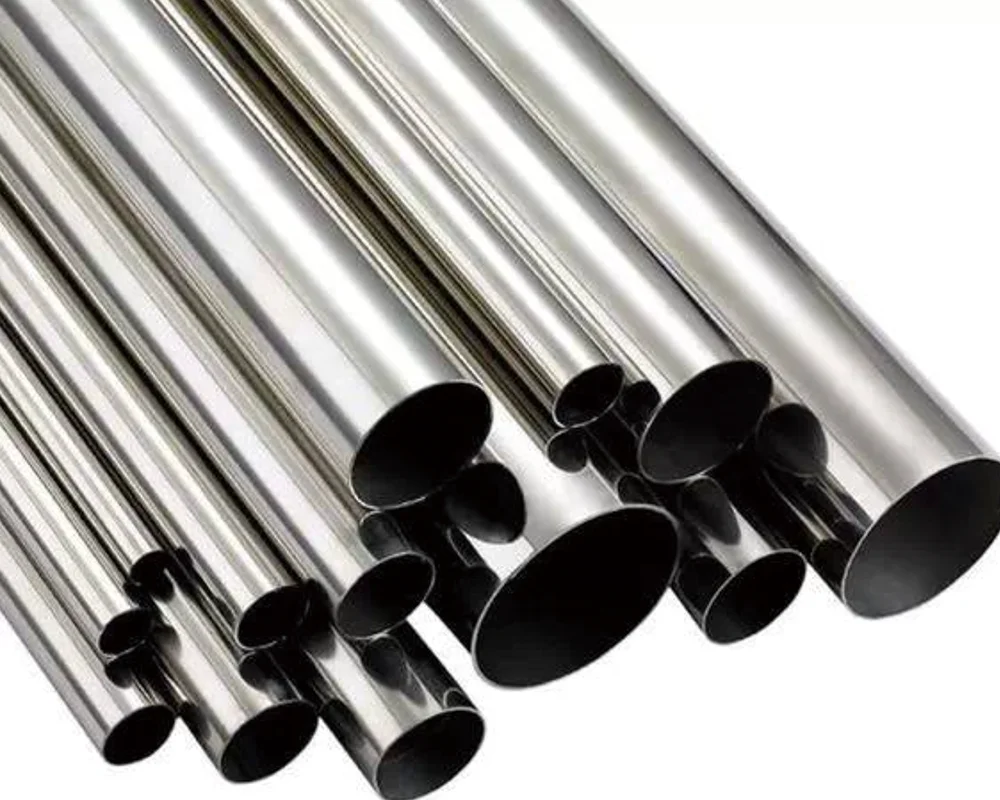

nickel alloy inconel 718 pipe
Product Description
Alloy 718 has excellent corrosion resistance at high and low temperatures and good resistance to stress-corrosion cracking and pitting corrosion. Alloy 718 has good performance in hostile environments containing H2S, CO2, chlorides, sulfides and free sulfur at selected temperatures. Alloy 718 is commonly used for cryogenic storage tanks, downhole shafts and wellhead parts.
Inconel 718 Specifications
UNS | W.Nr |
N07718 | 2.4668 |
Inconel 718 Chemical composition
Grade | % | Ni | Cr | Fe | Mo | Nb | C | Mn | Si | S | Cu | Al | Ti | B |
718 | Min | 50 | 17 | Bal. | 2.8 | 4.75 |
|
|
|
|
| 0.20 | 0.65 |
|
Max | 55 | 21 | 3.3 | 5.50 | 0.08 | 0.35 | 0.35 | 0.015 | 0.30 | 0.80 | 1.15 | 0.006 |
Inconel 718 Mechanical properties:(Minimum value at 20°C)
Tensile Strength σb/MPa | Yield Strength σp0.2/MPa | Elongation σ5 /% |
965 | 550 | 30 |
Inconel 718 Standard
Bar | Forging | Sheet/Strip | Wire |
ASTM B637
| ASTM B637
| ASTM B670
| AMS 5832
|
Hot Sell
Company Information
The reason why you choose us1. The Leading manufacturer of nickel based alloy Porducts
2. The drafter & Reviser Of National Standard GB/T1234 regarding Electrothermal Alloy.
3. Over 20 years experience
4. Small quantity, short time delivery
If we have stocks, we can ship from a minimum of 1 kg sample in a few days.We also manufacture custom-order materials in amounts
of 100 kg and up (Some materials are allowed 50 kg) in as few as 3 weeks.
5. High-precision thickness
We guarantee thickness tolerances that cannot be reproduced by competitors.
Example:
t <0.30mm Tolerance ±1 - 3 μm guaranteed
0.30 mm≤t Tolerance ± 1% guaranteed
6. complete QC system & Advanced physical and chemical testing center
For each production processing, we have complete QC system for the chemical compostion and Physical properties. After production,
all the goods will be tested, and the quality certificate will be shipped along with goods.
7. Effective and strong technical support and custom-made solutions
We provide customed solutions to your problems with our strong technologies and well versed knowledge of materials acquired
through our more than 20 experience.
8. Choose the appropriate base metals for your needs
We carefully balance quality, delivery time and price,procure various base metals from all over the world.We manufacture
appropriate products to your needs.
9. Reliable certificate (ISO 9001/ROHS/BV/SGS/TUV)
Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc. The third party testing is available for us.
2. The drafter & Reviser Of National Standard GB/T1234 regarding Electrothermal Alloy.
3. Over 20 years experience
4. Small quantity, short time delivery
If we have stocks, we can ship from a minimum of 1 kg sample in a few days.We also manufacture custom-order materials in amounts
of 100 kg and up (Some materials are allowed 50 kg) in as few as 3 weeks.
5. High-precision thickness
We guarantee thickness tolerances that cannot be reproduced by competitors.
Example:
t <0.30mm Tolerance ±1 - 3 μm guaranteed
0.30 mm≤t Tolerance ± 1% guaranteed
6. complete QC system & Advanced physical and chemical testing center
For each production processing, we have complete QC system for the chemical compostion and Physical properties. After production,
all the goods will be tested, and the quality certificate will be shipped along with goods.
7. Effective and strong technical support and custom-made solutions
We provide customed solutions to your problems with our strong technologies and well versed knowledge of materials acquired
through our more than 20 experience.
8. Choose the appropriate base metals for your needs
We carefully balance quality, delivery time and price,procure various base metals from all over the world.We manufacture
appropriate products to your needs.
9. Reliable certificate (ISO 9001/ROHS/BV/SGS/TUV)
Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc. The third party testing is available for us.
Certifications
Exhibiton
Main Customers
Packaging & Shipping
1.Packing
Standard export packing, carton with plywood case for safety
Wire: below dia 1.0mm, packed in spool; Above 1.0mm, packed in coil
Strip, Bar & Tube, Sheet: Packed in Nylon Polybag first
Welding wire: TIG, 5KGS / box, MIG, 15kgs /spool
The goods can be packed as the clients demand.
2.Delivery time
We can do the order 45-50days upon receive the 30% deposit or L/C document.
Standard export packing, carton with plywood case for safety
Wire: below dia 1.0mm, packed in spool; Above 1.0mm, packed in coil
Strip, Bar & Tube, Sheet: Packed in Nylon Polybag first
Welding wire: TIG, 5KGS / box, MIG, 15kgs /spool
The goods can be packed as the clients demand.
2.Delivery time
We can do the order 45-50days upon receive the 30% deposit or L/C document.
FAQ
Q:Are you a factory or trading company?
A: Factory. But our production base is in Jiangsu and office is in Shanghai.
Q: What’s your minimum order quantity?
A: Our minimun quantity is 1000 Kg. We also can offer you free samples.
Q: What’s your delivery time?
A: Our normal delivery time is 7-20 days, and it depends on your quantity and items. Of course, if you need products urgently, we also will consider arranging it firstly.
Q: What’s the price of your product?
A: Our prices are based on the material grade, size, quantity and physical performance etc. So if you can offer us the detailed information, then we can give you the best reasonable price. Also, we can do special size and color for customers.
Q: What’s your after-sales service?
A: We have two ways to handle claims by replacement and deduction. Of course, if the material is not good used by wrong parameter from customer, we won’t be responsible.
Q: Why do you think I will want to buy from you?
A: We have advantages with 15 years of professional experiences in manufacturing & designing, advanced technology & the first-class equipment, perfect logistics management, high-quality after-sales service and competitive price.
