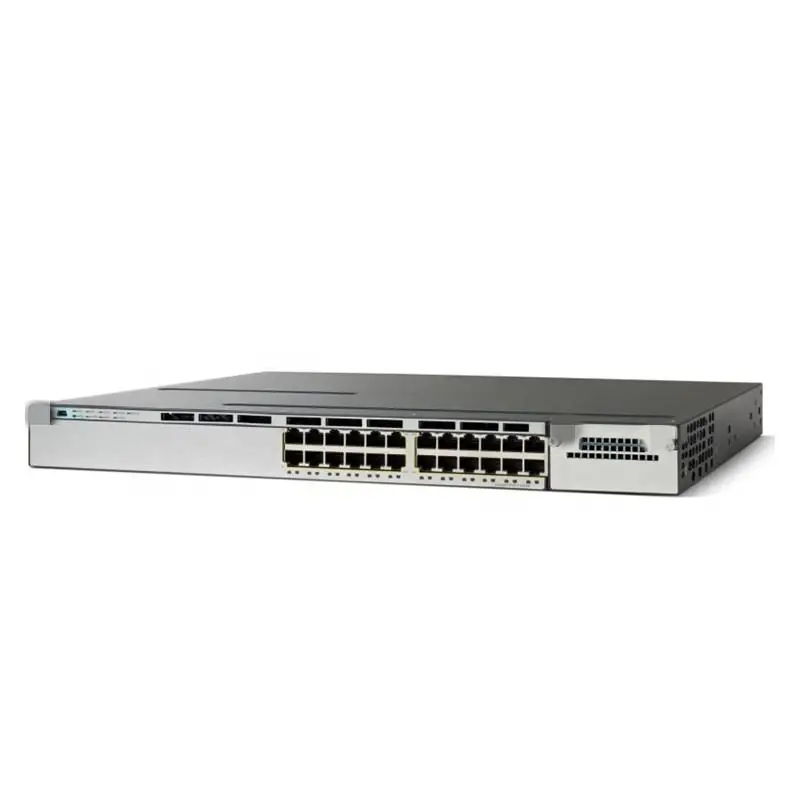

WS C3650 24PS E 24 Port Gigabit PoE Uplink IP Services switch

Model info:

WS-C3650-24PS-E

Enclosure type

Rack-mountable - 1U

Ports

24 x 10/100/1000 (POE+) + 4 x 1G SFP

Network management Interface

● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
● Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power

390W

Switching Capacity

88Gbps

Maximum stacking number

9

Stack Bandwidth

160Gbps

Forwarding Performance

41.66Mpps

FNF entries

24000

Maximum VLANs IDs

4,094

Maximum VLANs IDs

32K

CPU

Multicore CPU

RAM

4 G

Flash Memory

2 G

Wireless

Number of AP per switch/stack

50

Number of wireless clients per switch/stack

1000

Total number of WLANs per switch

64

Wireless bandwidth per switch

up to 20Gbps

Supported Aironet AP series

3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

power redundant slot

Accessory & Rack Moubt Kits

●ACC-KIT-T1: Accessory kit
●RACK-KIT-T1: Rack mount kit
●4PT-KIT-T1:Extension rails and brackets for four-point mounting

Stacking module & cable

●C3650-STACK-KIT: Stack Module
●STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
●STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
●STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length

Power supply

PWR-C2-640WAC

Power Device

Power supply - redundant - plug-in module

Power Redundancy

optional

Voltage range (Auto)

100V-240V

Power Consumption of standalone (in Watts)

65.9 (max)

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

17.625 Inches (44.8 cm)

Height

1.73 Inches (4.4 cm)

Shipping Weight

17.49 Kg

Rack Mounting Kit

optional
