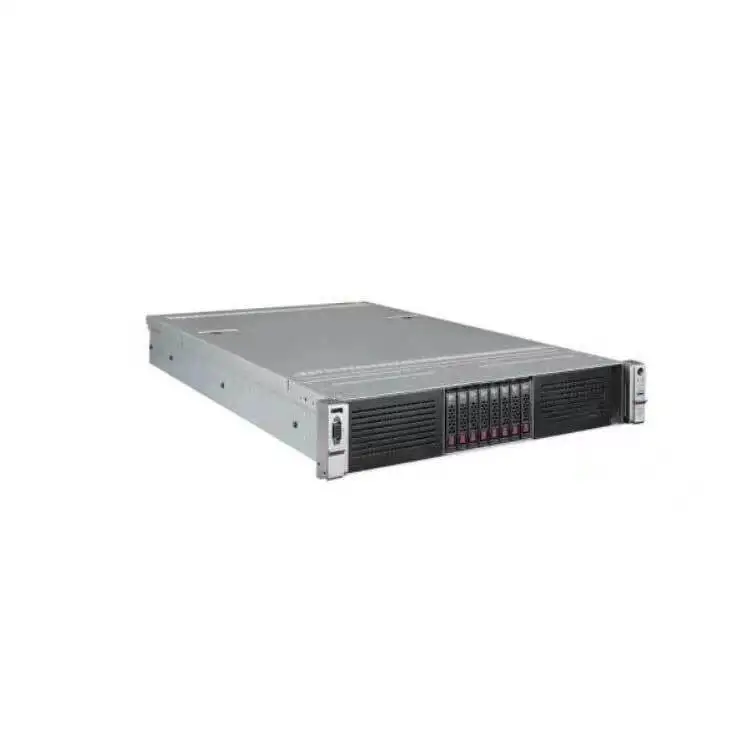

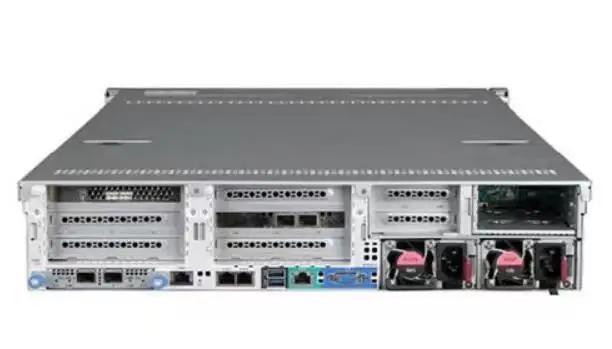

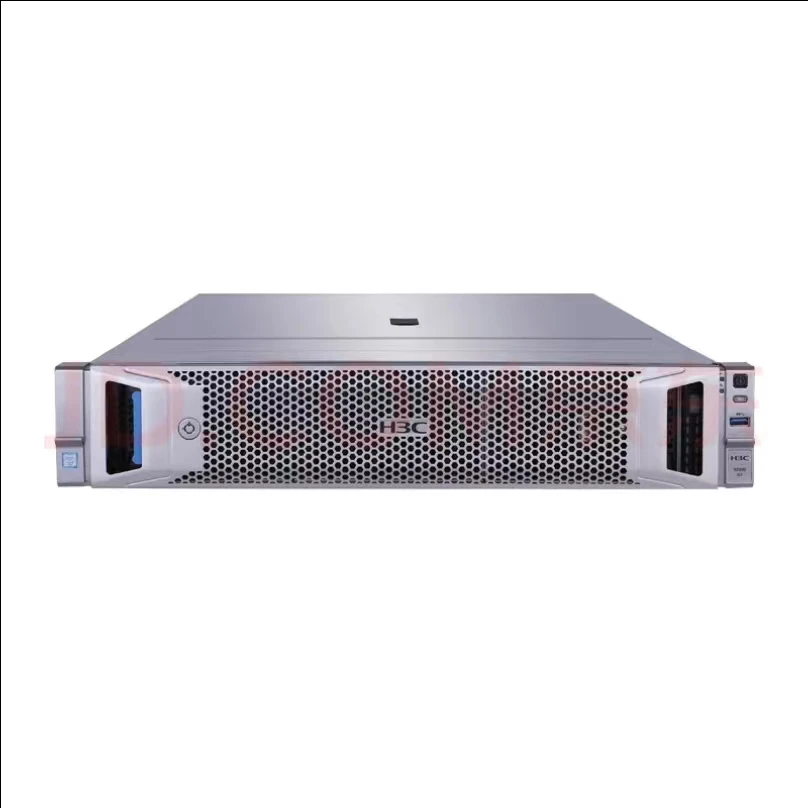

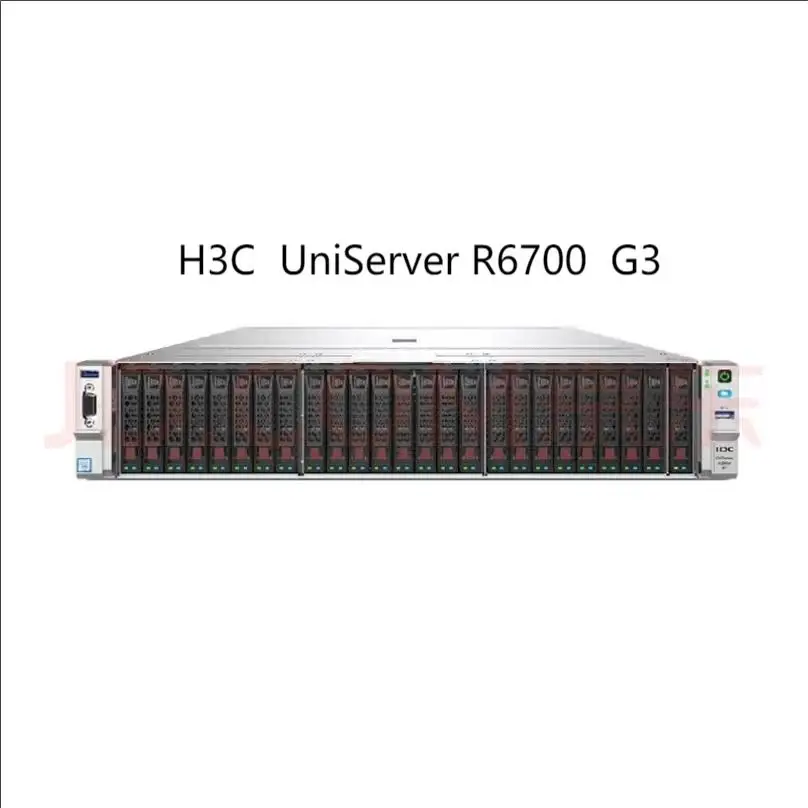

H3C UniServer R6700 G3 8SFF 6226 4P 128GB LSI9361 800W 2U rack server

MODEL

H3C UniServer R6700 G3 8SFF

Processor

Cpu Slots

4

RAM Slots

(48) DDR4 memory modules, with a maximum speed of 2933MT/s, RDIMM or LRDIMM, a maximum capacity of 6TB *, and Apache Pass*

Drive bays

Support SAS/SATA HDD/SSD hard disk; Up to 24SFF front+2SFF rear Supports up to 16 NVMe hard disks in the front and PCIe M.2 option

Storage controllers

Standard on-board array controller, supporting SATA RAID 0/1/10/5 Optional HBA and high-performance array card options based on
standard PCI-E 3.0 slots

network controller

Onboard 2 × 1GE electric interface network card Support for extension through sLOM 4 × 1GE port, 2 × 10GE electrical port, 2 ×
10GE/2 × 25GE optical port, sLOM supports NCSI function Support standard PCI-E 3.0 network adapter options, support 10/25/40/100GE
and IB/OPA and other high-performance network cards, and support FC-HBA storage adapters

Power supplies

800W /1200W/1600W

Form Factor

Dimensions (H x W x D)

87.5mm(H)*445.5mm(W)* 748mm(D)

Weight

50kg

Warranty

3 years
