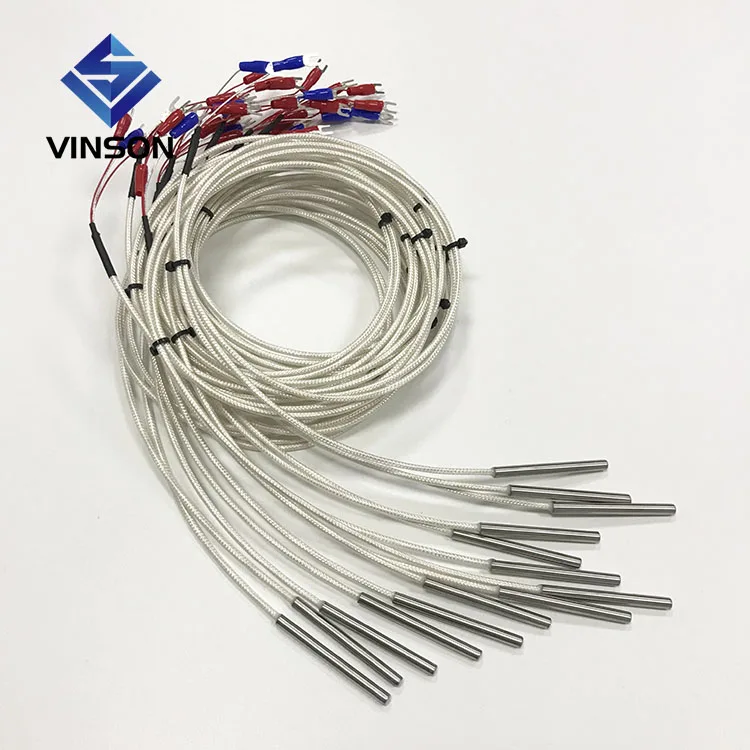

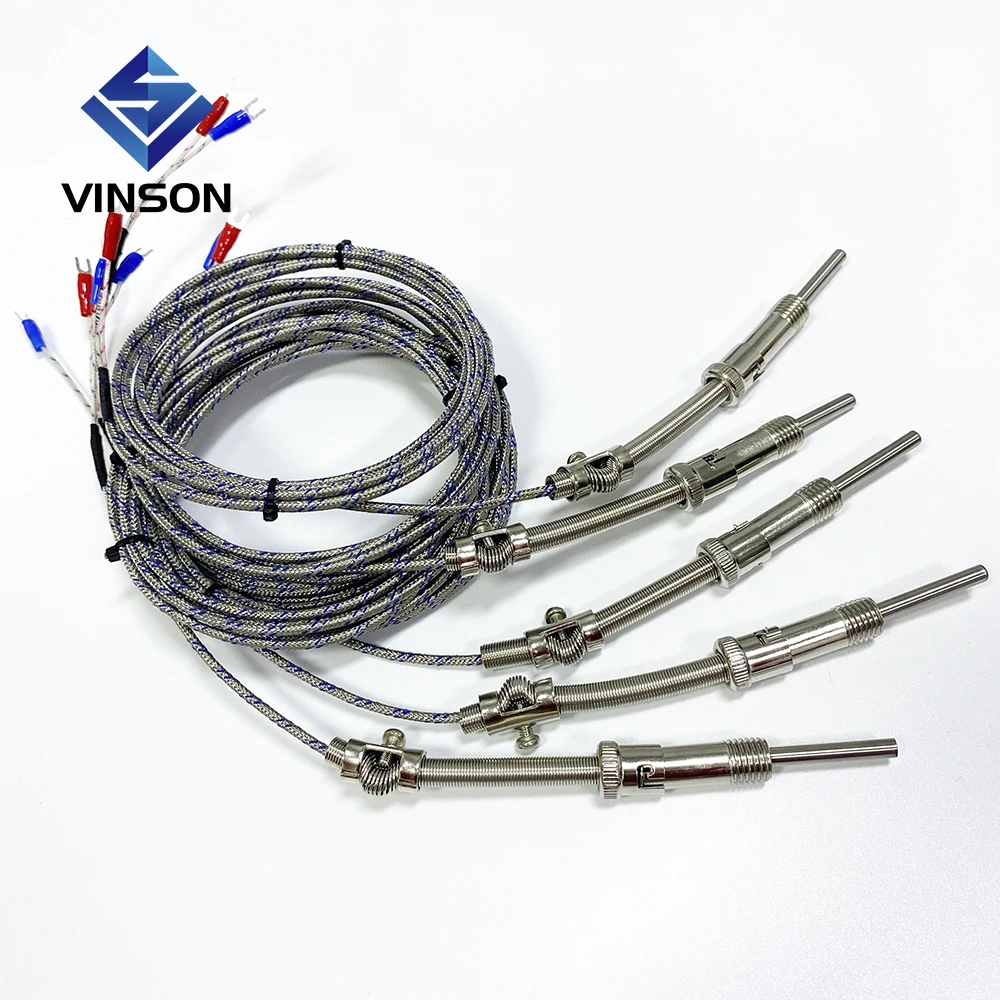

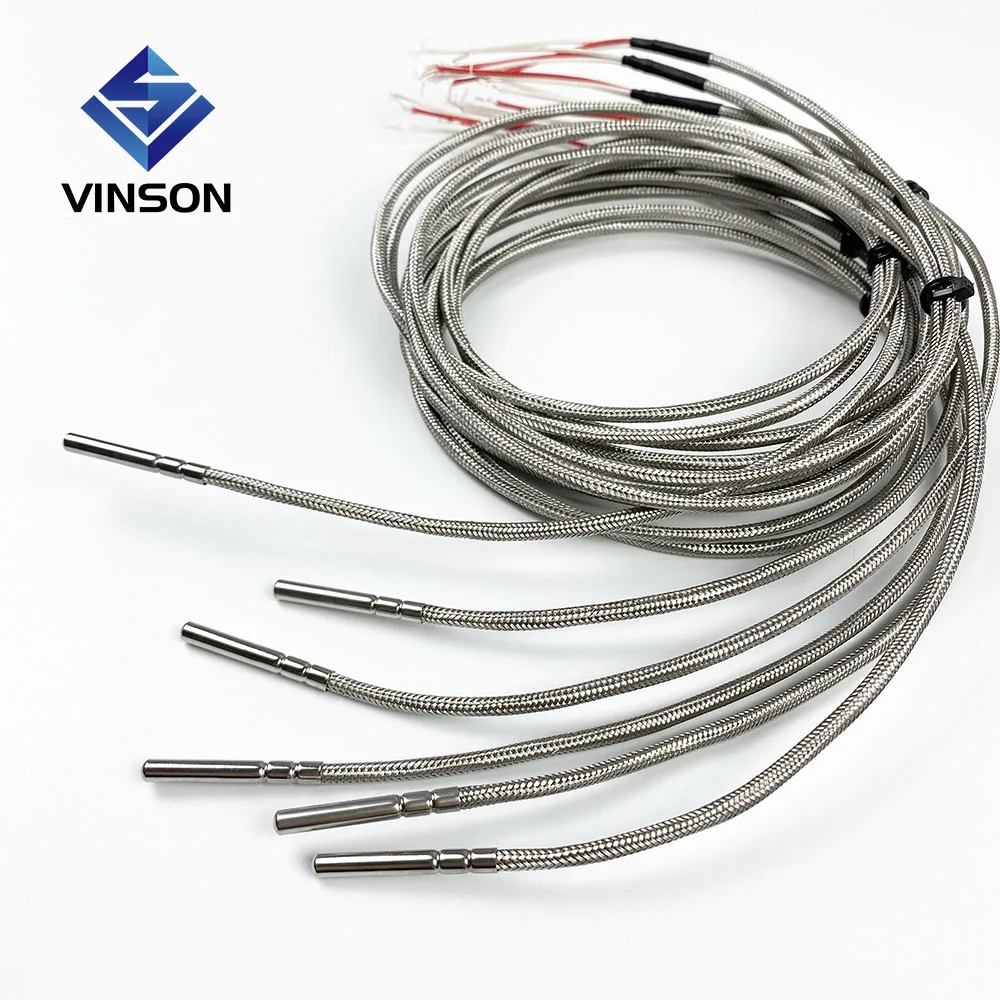

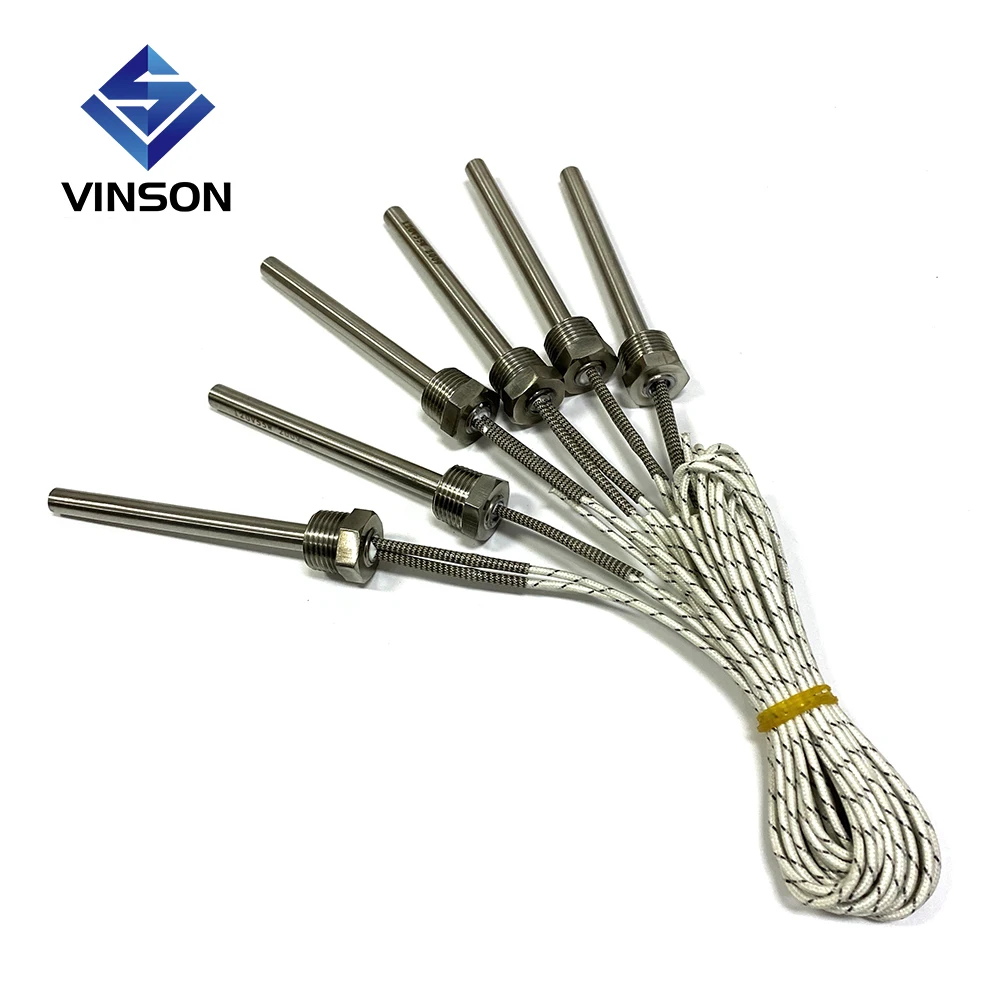

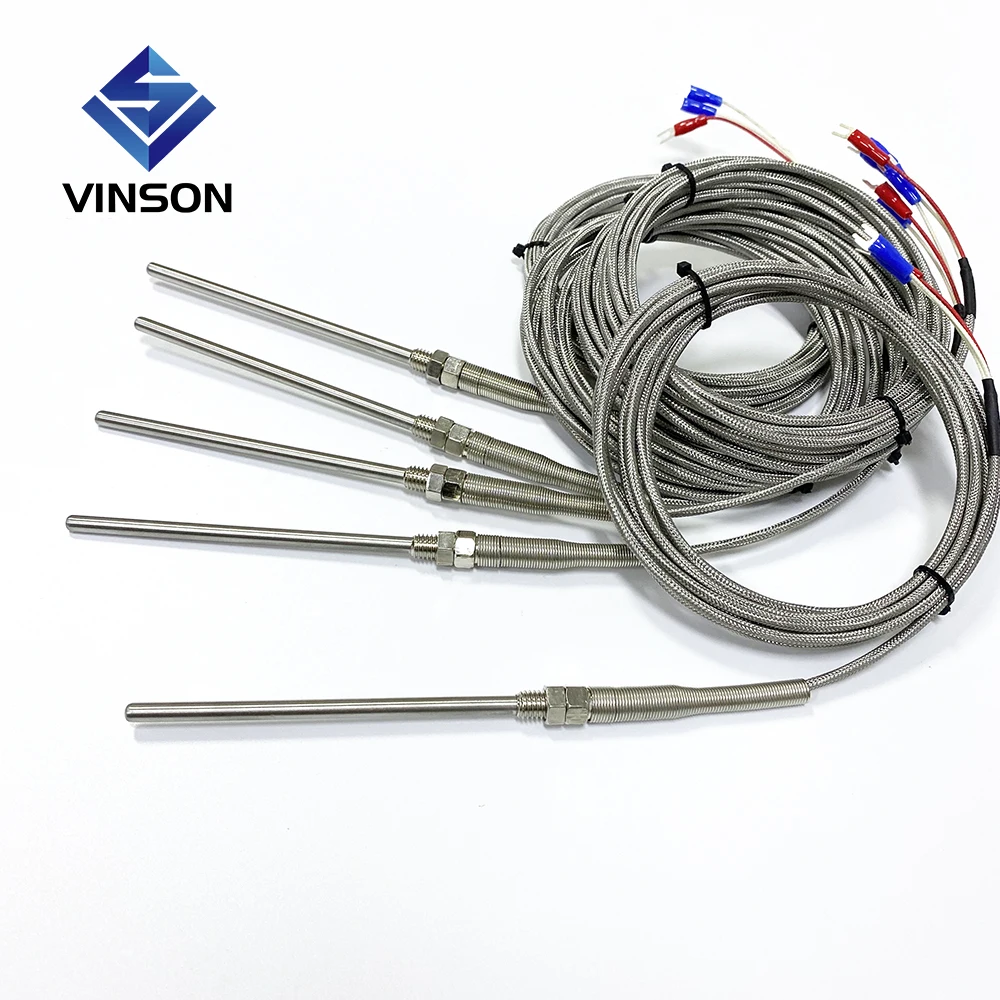

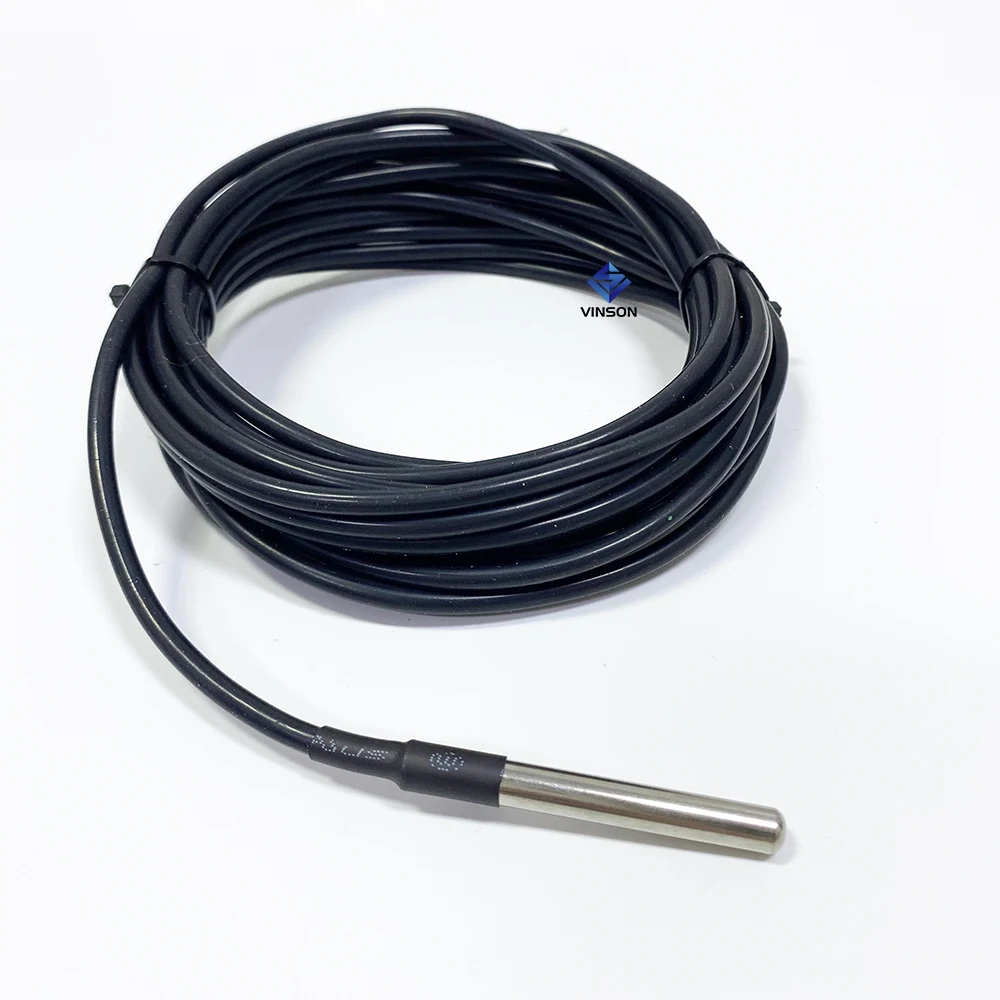

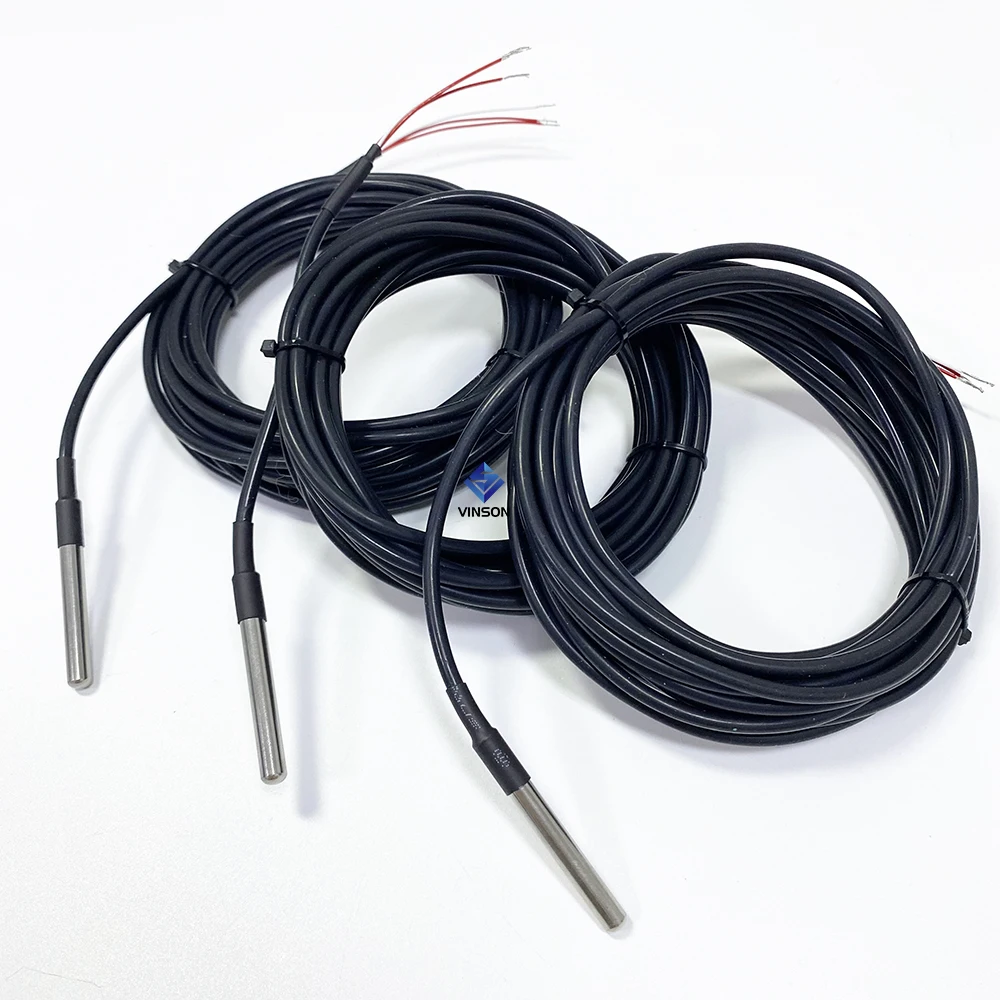

High sensitive 3 wire 4 wire waterproof PT1000 PT100 thermocouple k type thermal resistance temperature sensor

A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation





Specification Temperature sensor

High sensitive 3 wire 4 wire waterproof PT1000 PT100 thermocouple k type thermal resistance temperature sensor


Classify
Armored thermocouple
Assembly Thermocouple
Model
YS-WRK
YS-WR
Thermocouple type
K,N,E,J,T,S,B,R
K,N,E,J,T,S,B,R
Thermocouple diameter (mm)
φ3,φ4 ,φ4.5 ,φ5,φ6 ,φ8
 φ12,φ16,φ20,φ25,etc.
Sheath material
304,316,310s, Incoloy600 etc.
304,316,310s, Incoloy600 etc.
Probe structure
 Grounded,Ungrouned,Exposed(YS-WR)
 Core number
1,2,4
Terminal box(optional)
Cast aluminum,Stainless steel
 Accuracy
±1.5℃/±0.5℃ or 0.4%|t|℃
Electrical connection
 Thread
Explosion proof level
√
Installation
Thread/flange
Output Signal
mV,4-20mA


Model and tolerance


Conductor
Model
Type
Use temperature°C
(short time)
Use temperature°C
(long time)
Ni-Cr / Ni-Si
WRKK
k
0-1200°C
0-900°C
Ni-Cr-Si / Ni-Cr-Mg
WRKN
N
0-1000°C
0-1000°C
Ni-Cr / Ni-Cu
WRKE
E
0-700°C
0-600°C
Fe / Cu-Ni
WRKJ
J
0-600°C
0-500°C
Cu / Cu-Ni
WRKT
T
0-400°C
0-350°C
Pt-Rh10 / Pt
Pt-Rh10 / Pt
S
0-1600°C
0-1300°C
Pt-Rh13 / Pt
WRKR
R
0-1600°C
0-1300°C
Pt-Rh30 / Pt6
WRKB
B
0-1800°C
0-1600°C


Classification
Type
Standard Model
Features
Temperature
Material
Use Requirement





Resistance
C
WZP
Special
0~2300℃
W/Re
Vacuum field
PT10
WZP
Normal
-200~650℃
Pt
Stable
PT100
WZP
Normal
-200~650℃
Pt




With Different Range
PT1000
WZP
Normal
-200~650℃
Pt
Cu50
WZC
Normal
-50~100℃
Cu
Cu100
WZC
Normal
-50~100℃
Cu
PT500
WZP

Special
-200~650℃
Pt
PT200
WZP
-200~650℃
Pt
Thermistor
NTC
Low Accurcy













Application
1. Widely Used In Science and Industry
2. Temperature Measurement for kilns
3.Gas Turbine Exhaust Application
4. Used For Diesel Engines and Other Industrial Processes

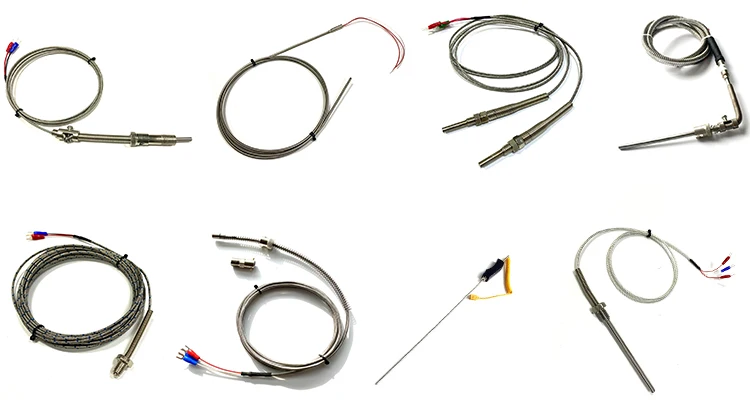

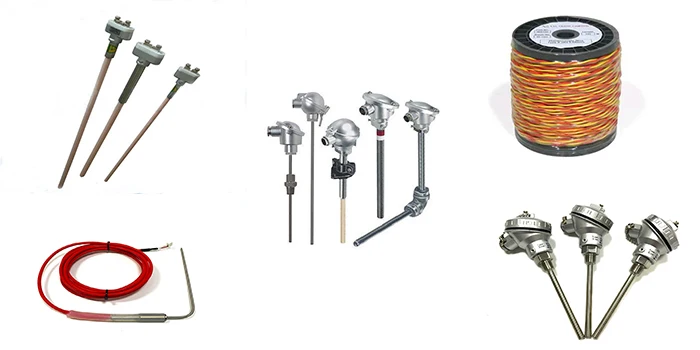

Cusomized of K N J E T type temperature sensor thermocouple


Type: K/J/PT100/PT1000/Cu50...

Diameter and length of probe

Material of probe

Size of thread

Material and length of lead wire
