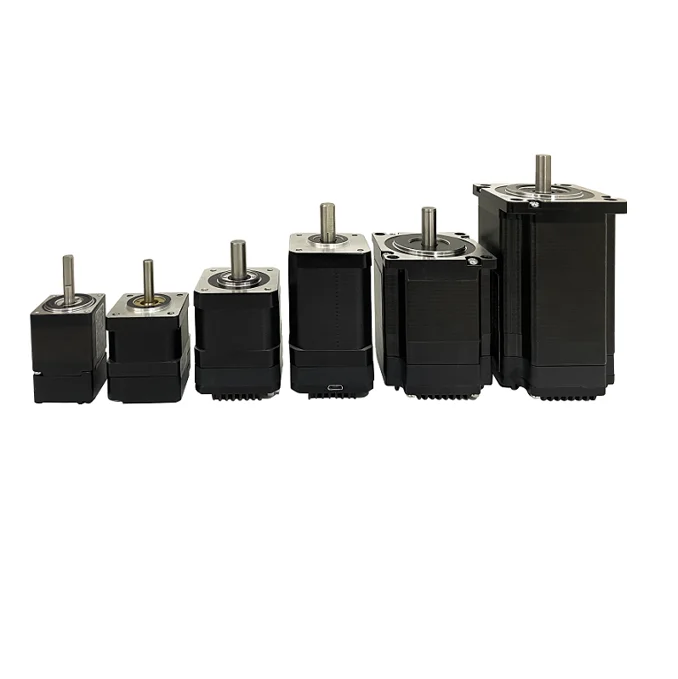

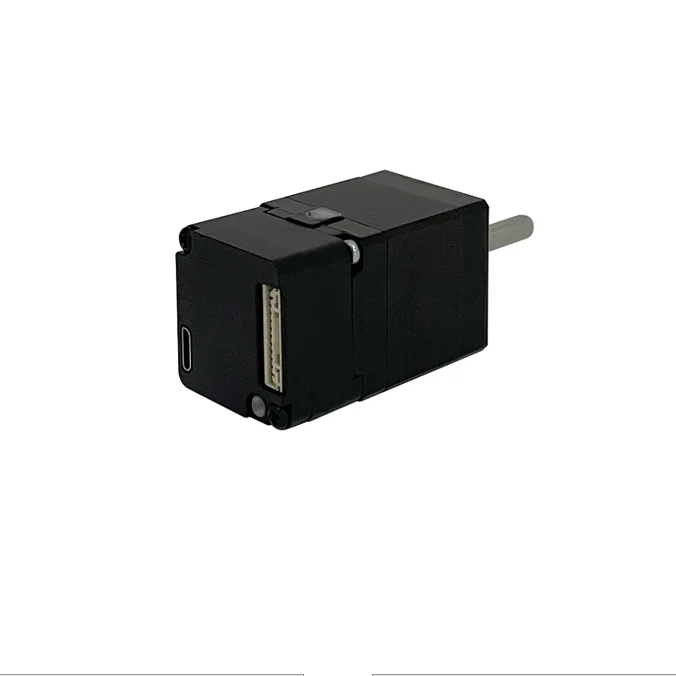

mini closed loop integrated stepper motor nema 8 stepmotor servo driver
- Category: >>>
- Supplier: Shenzhen Melike Technology Co. Ltd.
Share on (1600666271981):
Product Overview
Description
Product Overview

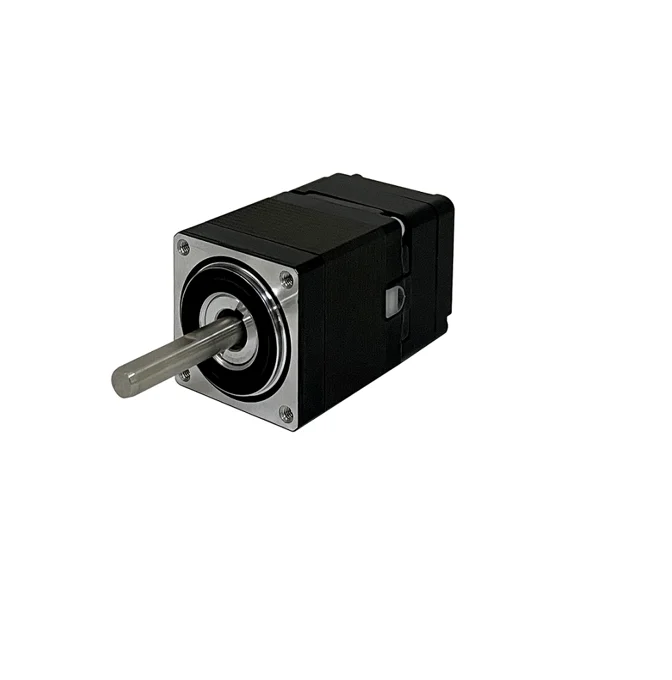

mini closed loop integrated stepper motor nema 8 stepmotor servo driver
FEATURES AT A GLANCE
TST20-28P
NEMA8, 0.015N/m, 2.5g/cm2,
NEMA8, 0.015N/m, 2.5g/cm2,
Supply Voltage:8-36Vdc,
Encoder Resolution:4000counts/rev,(1000 lines)
Pulse Input Type,
Control Command:Pulse Input
Control Command:Pulse Input
TST20-38P
NEMA11, 0.04N/m, 3.3g/cm2,
Supply Voltage:8-36Vdc,
Encoder Resolution:4000counts/rev,(1000 lines)
Pulse Input Type,
Control Command:Pulse Input
NEMA11, 0.04N/m, 3.3g/cm2,
Supply Voltage:8-36Vdc,
Encoder Resolution:4000counts/rev,(1000 lines)
Pulse Input Type,
Control Command:Pulse Input
● Intelligent built-in controller
● Compact all-in-one solution
● Efficient, smooth, accurate, fast
● Enhanced motor, optimized design
Product show

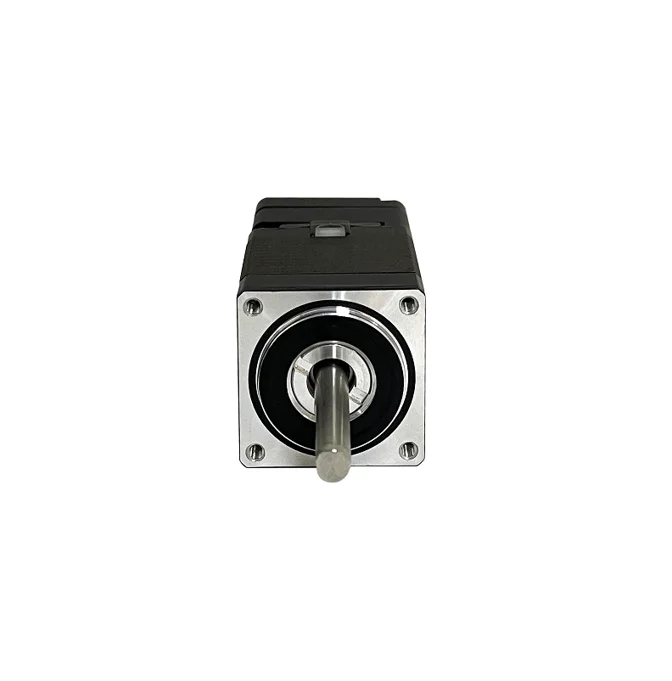

Front
Back
side

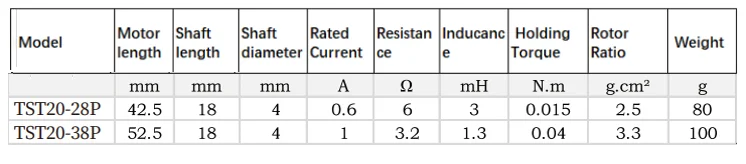

Parameter
Parameter | Value |
Model | TST20-28P/TST20-38P |
Supply Voltage | 8-36 VDC |
Control Modes | Pulse Mode |
Rated Current | 0.6A/1.0A |
Resistance | 6.0±10%ohm(20℃) /3.2±10%ohm(20℃) |
Inductance | 3.0±20%mH(1KHz) /1.3±10%ohm(20℃) |
Step Angle | 1.8 degree |
No of Phase | 2 |
Holding Torque | 0.015Nm /0.04Nm |
Rotor Inertia | 2.5g·cm² / 3.3g·cm² |
Dielectric Strength | 500VA.C |
Insulation Resistance | 100MΩ above/MIN |
Insulation Glass | B |
Operation Ambient Temperature | 0℃～+50℃ |
Operation Ambient Humidity | 20%RH～90%RH |
Weight | 0.06kg /0.08kg |

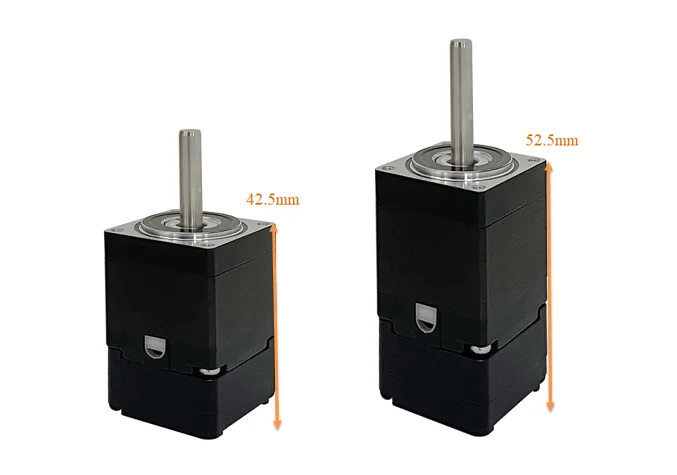

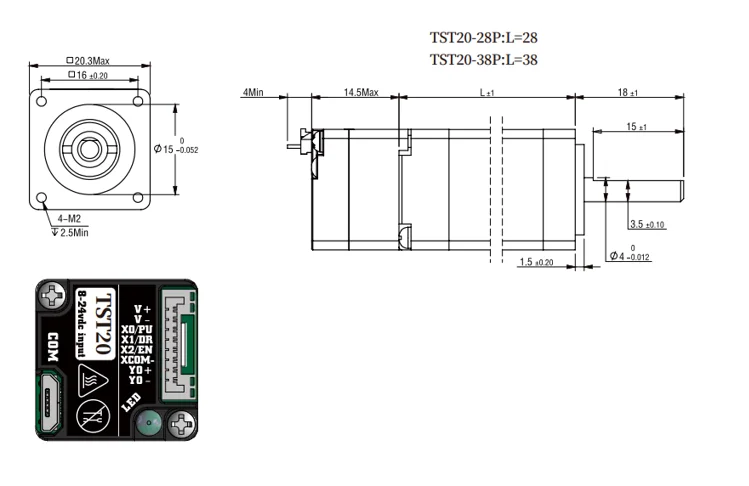

Dimensions(Unit:MM)
Diamensions(Unit:MM)

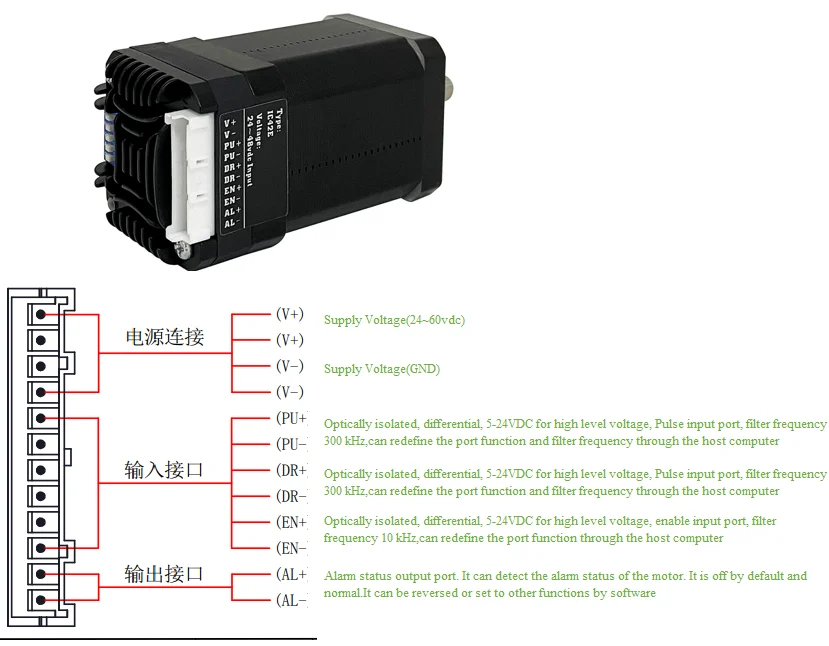

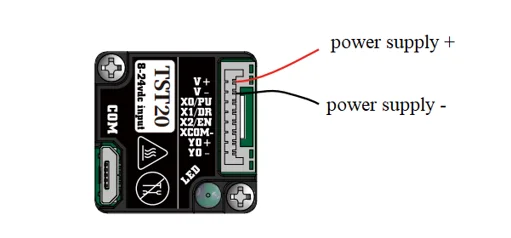

Terminal Definitions/Port Function

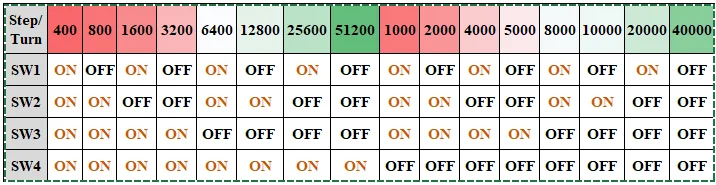

Microstep Setting
SW5 ：Setting single/double pulse
OFF:Single pulse
ON:Double pulse
SW6:Setting Motor running direction
OFF:Counterclockwise rotating
ON:Clockwise rotating
Successful Project
Coating machine
Laser cleaning + winding equipment
Volumetric OCV detection equipment

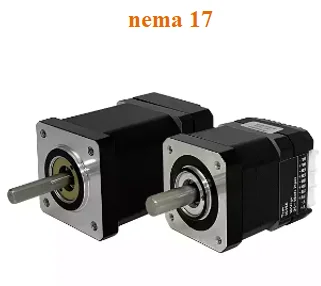

SIMILAR PRODUCTS
FAQ
FAQ
1.Factory or Agent?
We are Agent, but have professional R&D team as introduced in company information.
2. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 5-20 days.
3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.
4. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished
product inspection.
5. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.
1.Factory or Agent?
We are Agent, but have professional R&D team as introduced in company information.
2. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 5-20 days.
3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.
4. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished
product inspection.
5. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.

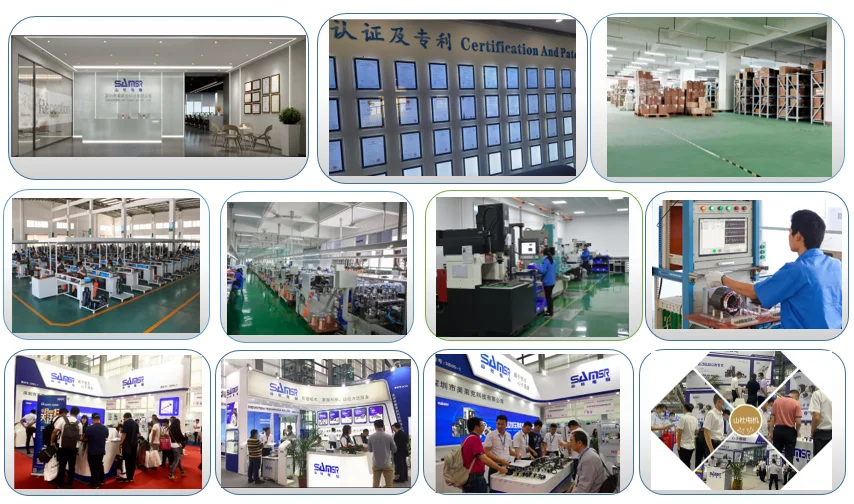

Company Information
