China Supplier Thermal Paper Coating Machine
- Category: >>>
- Supplier: Wenzhou Shuanglong Machinery Co. Ltd.
Share on (1600666348562):
Product Overview
Description

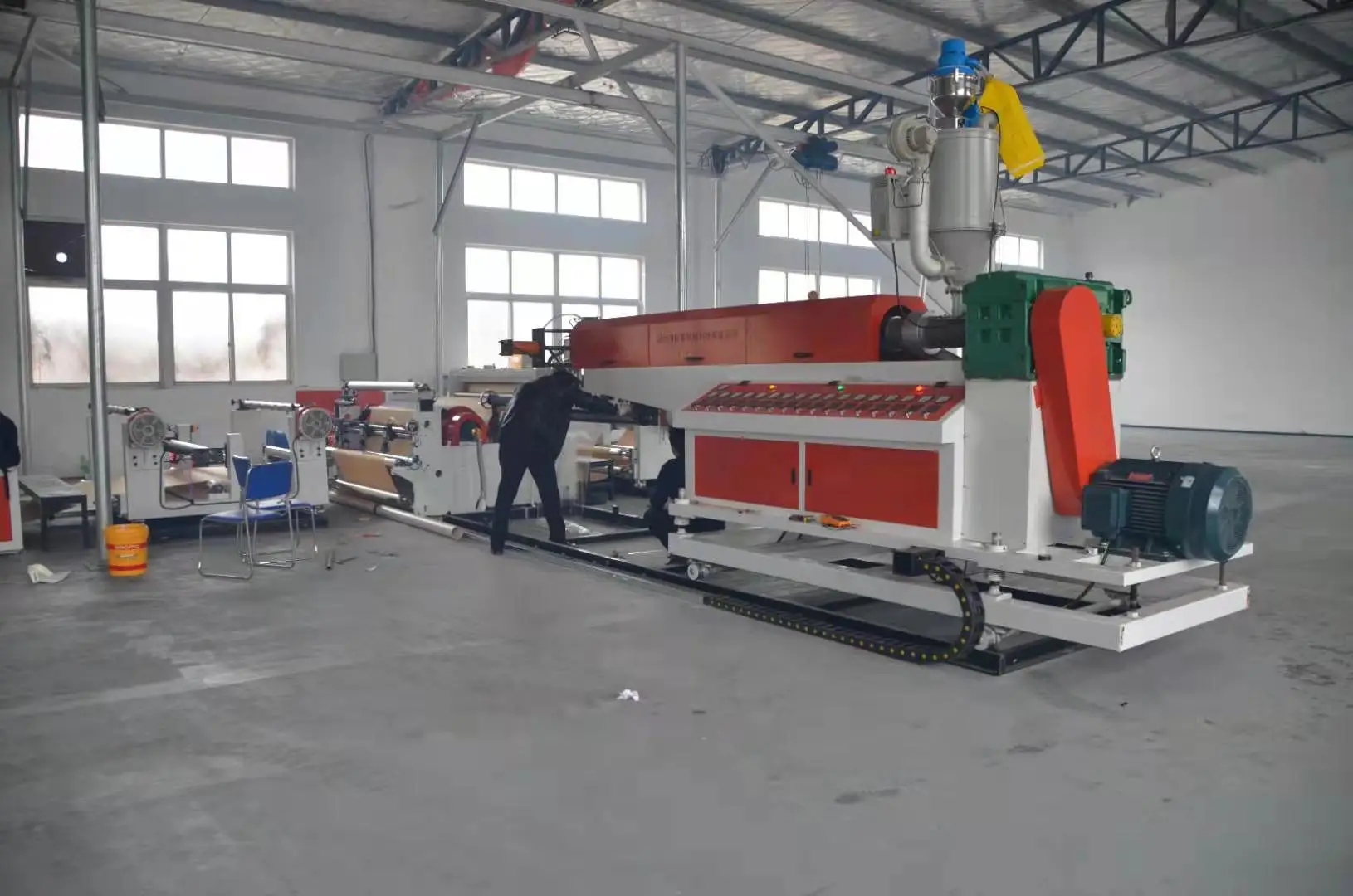

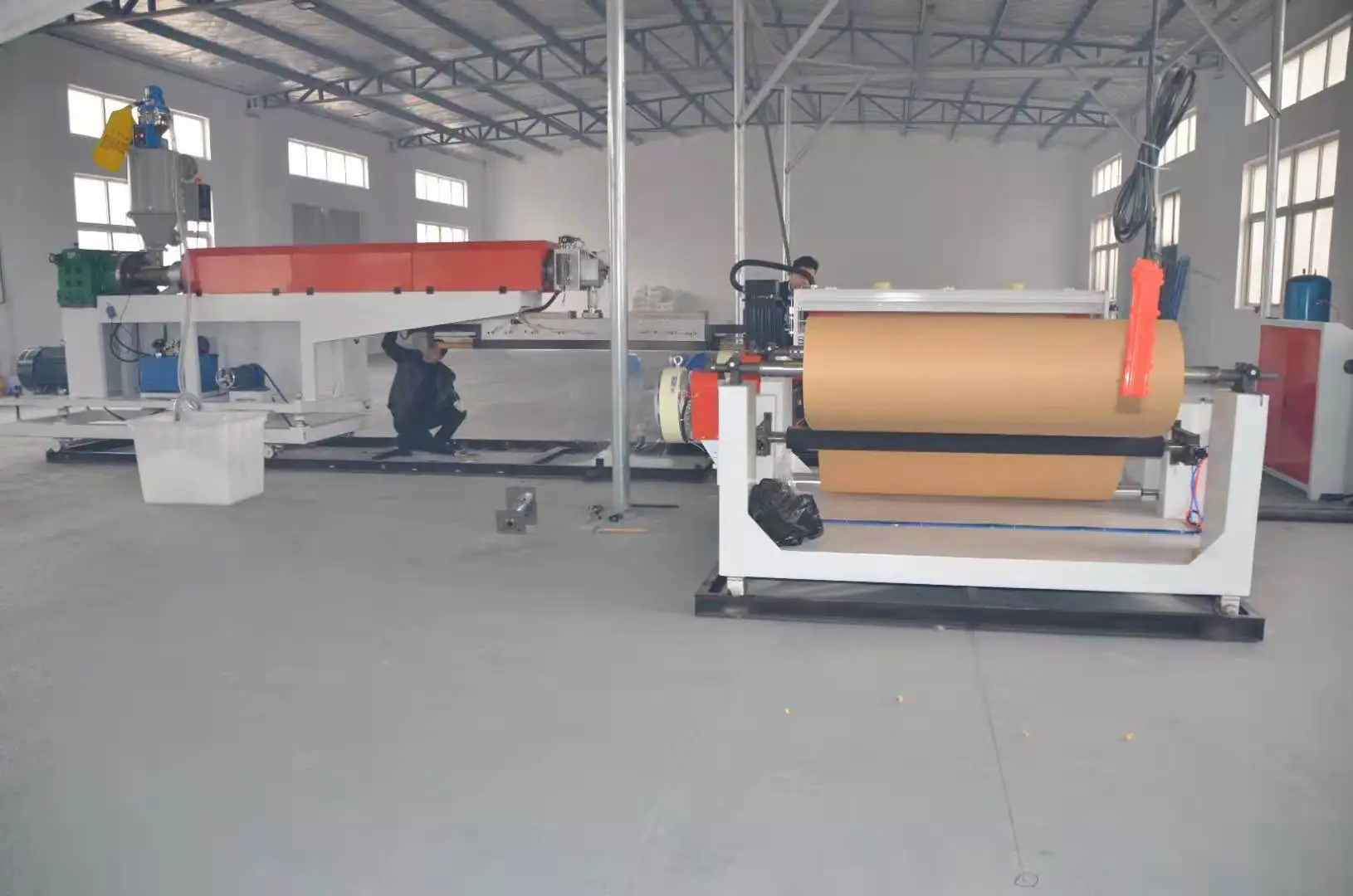

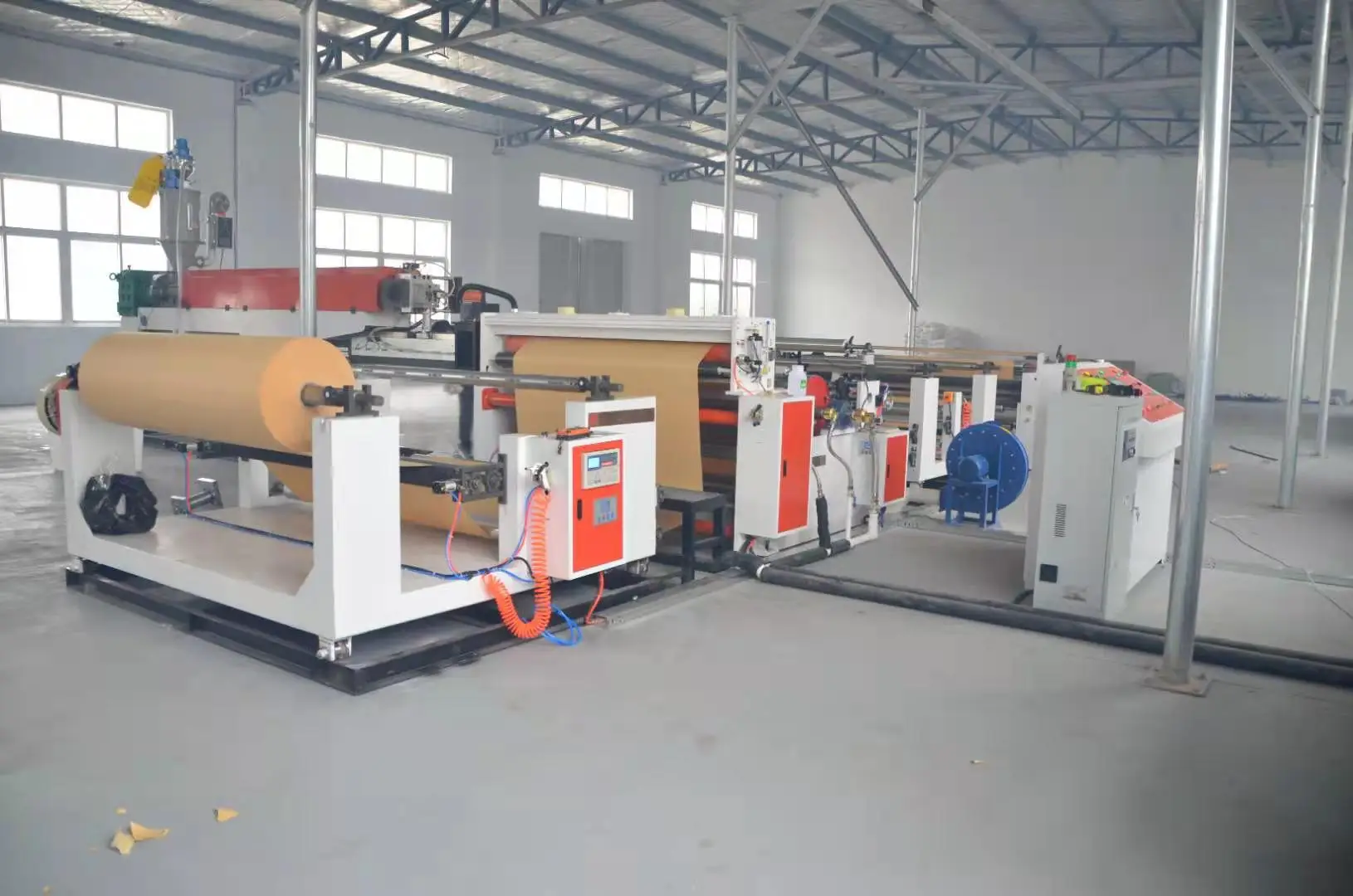

New Product Extrusion Coating Lamination Machine
Product Description
Feature:
1.T-Die : it applies to high precision Hanger-type.Width of lamination is adjustable.
2.The Unwinding Device,Laminating Device and Rewinding Device synchronized
auto control.
3.Large diameter Auxiliary Unwinding Device, suit for laminate various types of
substrate.
4.Automatic Roller Changing Device,chang rolls without stopping the machine.
5.The whole machine is PLC computerized control.
6.Equipped with Corona Treatment, Automatic Edge Trimming Device, Production
Quantity Calculate,and Adjustable Edge Cutting.
7.Appear of new design structure,nice exterior,easy of installation as well as operation.
Advantages:
SLLM-B The Extrusion Laminating Machine takes LDPE,HDPE,PP, etc. resin as raw
material. It processes by melting the plastic particles,extruding from the T-Die and
finally laminating with the base material. This type of machine has been widely
used for the lamination of substrates such as white cardboard paper,kraft paper,
non woven fabric,woven fabric,aluminum foil, gauze, etc. The finished product
was famous for its high fastness,uniformity of thickness and high efficiency.AII
these have contribute to make this type of machine become one of the most popular
and valuable extrusion laminating machine at home and abroad.
If any items you are interest. Warmly welcome you feel free to contact us !
Main Technical Data | ||||||||||
Model | SLLM-B800 | SLLM-B1000 | SLLM-B1200 | SLLM-B1600 | SLLM-B1800 | |||||
Max.coating width | 800mm | 1000mm | 1200mm | 1600mm | 1800mm | |||||
Extruding power | 25Kw | 30Kw | 37Kw | 37Kw | 45Kw | |||||
Extruder screw | ￠80 | ￠90 | ￠95 | ￠100 | ￠110 | |||||
Max.output | 160Kg/h | 180Kg/h | 220Kg/h | 240Kg/h | 260Kg/h | |||||
Coating resin | LDPE、HDPE、PP | |||||||||
Base material | Paper(35-350g/m ),Non-woven fabric,Woven cloth,Aluminum foil | |||||||||
Machine speed | 80~150m/min | |||||||||
Coating thickness | 0.012mm~0.05mm | |||||||||
Diameter of unwinding (step) | ￠1200mm～￠1500mm | |||||||||
Diameter of unwinding (step) | ￠1200mm～￠1500mm | |||||||||
Diameter of rewinding (surface) | ￠1200mm~ ￠1500mm | |||||||||
Electric controller mode | PLC programmable controller,Touch screen operation | |||||||||
Installing area | 13000mm x 7000~9000mm x 2850mm | |||||||||
Different size model can be custom-made , feel free to contact us ! | ||||||||||
Production Details
Why Choose Us
1. We have more than 15 years experience;
2. We are manufacturer who have been exported more than 15 countries;
3. Large production capacity that ensures the shipment on time;
4. Quick responses with full attention
5. Sample fee could be returned after the order has been placed.
6. We guarantee our products quality and pre-sales and after-sales service.
Packaging & Shipping
Packing Details: Packed by pearl cotton and plastic film, some items will packed in wooden ply box
Delivery Time: Within 40-60 days after got deposit
Hot Sale Products
FAQ
Question 1: Where is your factory located? How can I visit there?
Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.
From SHANGHAI by air is 40mins, by train is 4hours.
From GUANGZHOU by air is 2hours.
Question 2: Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
Question 3: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) , All life time repaire, and 24hours HOT Line.
Question 4: What's the payment method?
Answer: We accepted T/T, L/C, Western Union, Moneygram ETC.
