Factory price quartz limestone coal ceramic cement dry grinding industrial wet gold ore mining ball mill rod mill for sale
- Category: >>>
- Supplier: Gainjoys Technology (shenyang) Co. Ltd.
Share on (1600666546554):
Product Overview
Description

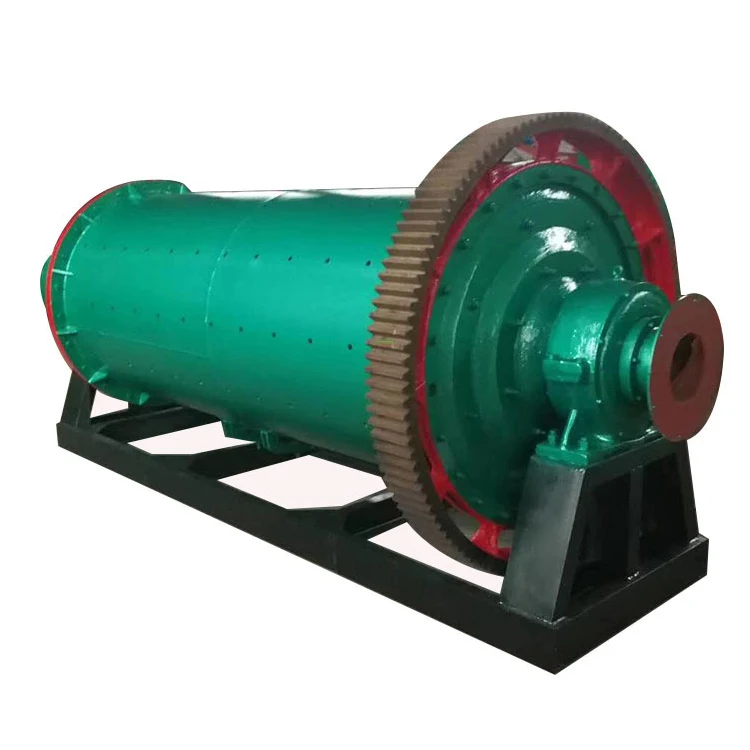

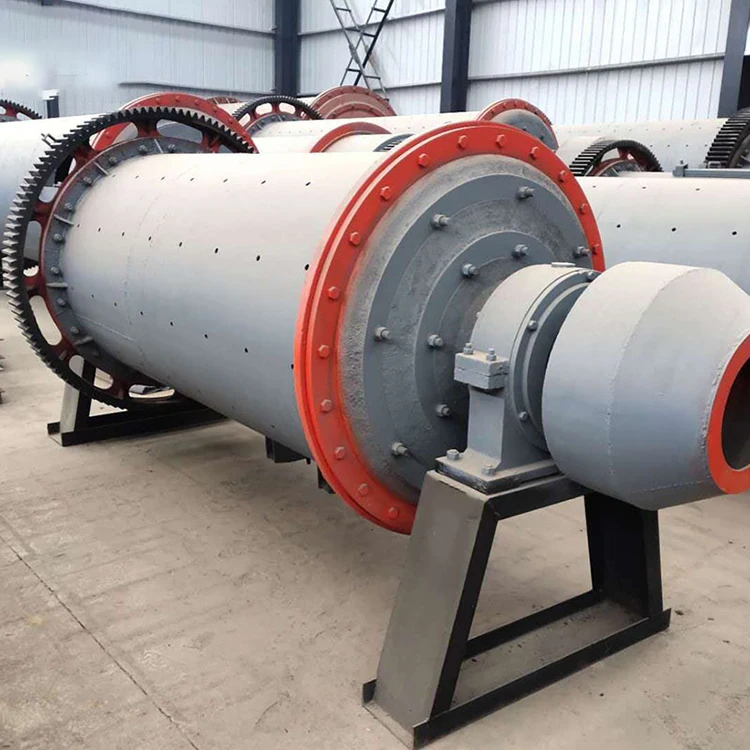

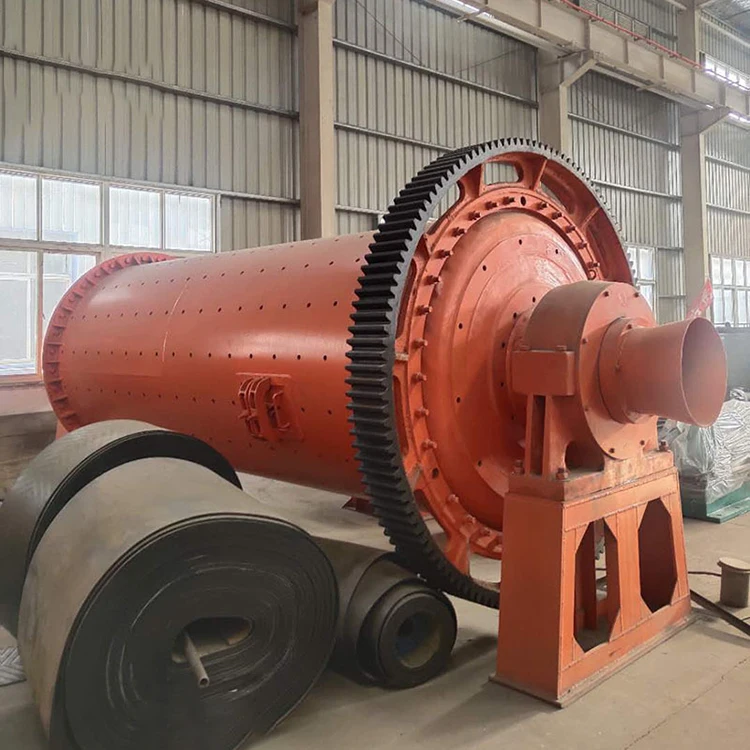

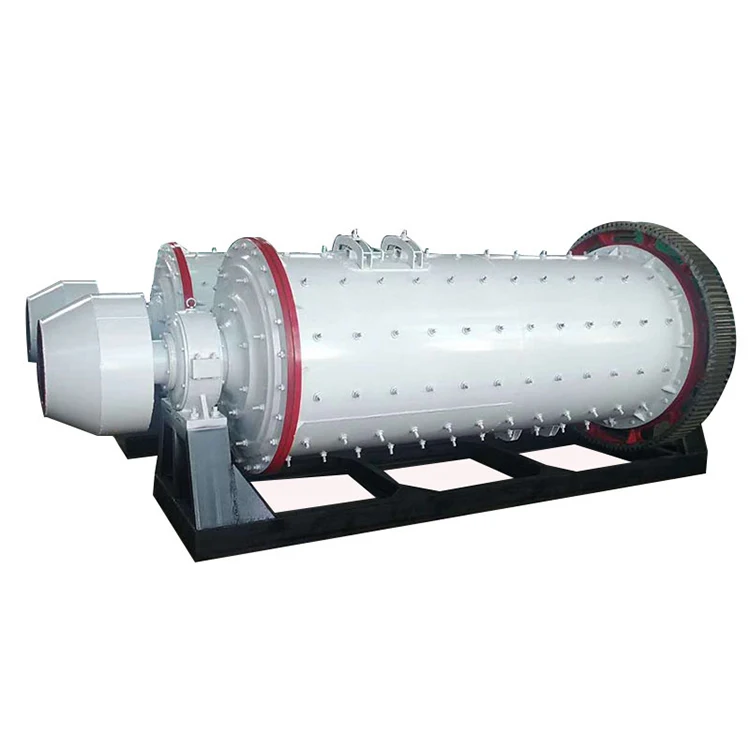

Product display
Cylinder speed | 36（r/min） |
Ball load | 1.6-5.8（t） |
Feed size | 20（mm） |
Discharge particle size | 0.075（mm） |
Yield | 5（t/h） |
Motor power | 55（KW） |
Weight | 3000（kg） |
Applicable materials | Cement ceramic ore |
Structural style | Horizontal |
Length of ball mill | Medium length mill |
Product introduction
The ball mill is composed of feeding device, transmission device, rotary device, discharging device (small transmission gear, reducer, electric control, motor) and other main devices. The hollow shaft is made of cast steel, and the lining can be replaced. The rotary gear is machined by casting hobbing. There are lining plates and steel balls in the grinding bin.
1. Transmission part: there are two parts: edge transmission and center transmission, and auxiliary transmission series are additionally equipped. The pinion is supported by self-aligning roller bearing and connected by elastic coupling. The reducer with hard tooth surface and medium hard tooth surface is selected according to the requirements. 2. Support part: use high and low pressure hydrostatic bearing, and use spherical surface to complete automatic centering. There are two types of supports: hollow shaft support and sliding shoe support. Water cooling device and automatic temperature measuring device are set for bearing pedestal and bearing bush.
3. Rotary part: the barrel of the cement ball mill is made of high-quality carbon structural steel, which is formed by automatic welding. The barrel of the cement ball mill is annealed to relieve stress and machined.
Product features
1. The ball mill integrates the functions of grinding, scrubbing and sanding, and has the advantages of high efficiency, low
noise, large processing capacity, convenient operation and maintenance.
noise, large processing capacity, convenient operation and maintenance.
2. It can not only fine grind ore, but also protect the lamellar crystal form of lamellar minerals. 3. The grinding barrel is made of polymer or alloy materials, and there is no iron pollution in the grinding process, which will not affect the finished products.
4. The proportion of particle size is scientific.Grinding 1t material only consumes 100 medium (equivalent to 0.01 medium mass of mixed material). 5. Wet continuous operation,
high degree of automation.
high degree of automation.
