Гидравлический двойной подземный автомобильный ножничный подъемник, стационарный ножничный подъемник для парковки автомобилей, подъемник для гаража
- Category: Vehicle Equipment >>>
- Supplier: Zhongcan,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Stationary Hydraulic Scissor Car Lift
Stationary Electric Hydraulic Car Lift Tables is a height-altitude working equipment mounted on a vehicle.
It consists of professional chassis, working arm ,hydraulic system, electrical system and installation device.
It uses the DC power of an automobile engine or battery car , no external independent power supply, it can drive the car lifts auto lift platform.
It consists of professional chassis, working arm ,hydraulic system, electrical system and installation device.
It uses the DC power of an automobile engine or battery car , no external independent power supply, it can drive the car lifts auto lift platform.
Single Scissor Car Lift
Two Scissors Car Lift
Single Deck Scissor Car Lift
Double deck Scissor Car Lift
Fixed scissor lift platform is generally used for lifting cargo and people to working place. Loading and unloading goods from ground to underground or to other floors . It is characterized by great loading capacity. And its hydraulic lift system steady ascending and descending. The surface of platform is made of anti-skid steel plate. It is convenient to use,can be outdoor and indoor. We can customize product according to customer needs.
MODEL | LOAD(KG) | CH(MM) | STROKE(MM) | LXW(MM) | VOLTAGE(V) | |||||
ZC2.5-3 | 2500 | 500 | 3000 | 2500*5500 | 220/380/415 | |||||
ZC3-3 | 3000 | 500 | 3000 | 2500*5500 | 220/380/415 | |||||
ZC3.5-3 | 3500 | 600 | 3000 | 2500*5500 | 220/380/415 | |||||
ZC4-3 | 4000 | 600 | 3000 | 2500*5500 | 220/380/415 | |||||
ZC4.5-3 | 4500 | 600 | 3000 | 2500*5500 | 220/380/415 | |||||
ZC5-3 | 5000 | 600 | 3000 | 2500*5500 | 220/380/415 | |||||
ZC3-4.5 | 3000 | 700 | 4500 | 2500*5500 | 220/380/415 | |||||
ZC3.5-4.5 | 3500 | 800 | 4500 | 2500*5500 | 220/380/415 | |||||
ZC4-4.5 | 4000 | 800 | 4500 | 2500*5500 | 220/380/415 | |||||
ZC4.5-4.5 | 4500 | 800 | 4500 | 2500*5500 | 220/380/415 | |||||
ZC5-4.5 | 5000 | 800 | 4500 | 2500*5500 | 220/380/415 | |||||
ZC3-6 | 3000 | 800 | 6000 | 2500*5500 | 220/380/415 | |||||
ZC4-6 | 4000 | 800 | 6000 | 2500*5500 | 220/380/415 | |||||
Customizable solutions can be provided according to the special requirements | ||||||||||
Hydraulic power unit
The hydraulic power unit has incredible feature: small, compact structure, light weight, highly efficient, great working pressure, reliable performance and no leaks.
Hydraulic cylinder
cylinder has outstanding features, includes smooth working performance, heavy workload, hard-wearing parts etc. it is heavy duty with realiable performance and no leaks.
Working plateform
working plateform of scissor lift is made of checkered steel plate, which could prevent people and goods from slipping down from plateform, Guarantee safety of operators.

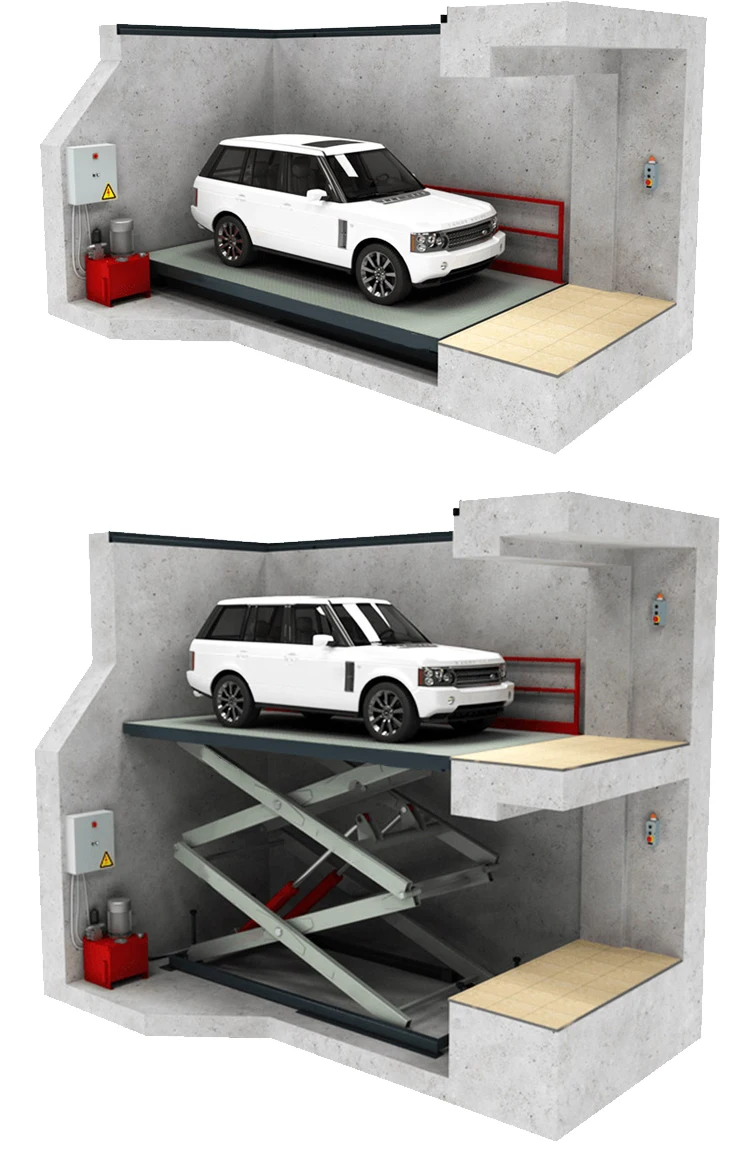

3D sketch drawing brings customer real experience and helps the customer understand the scissor lift table better. Customer is welcomed to send us site pictures, showing us the site condition where the lift is supposed to be installed. Our engineer will make designs of the scissor lift table properly. This shows the customer the real effect of how the scissor lift table will be
installed and how does it looks like.
installed and how does it looks like.
1: High-strength manganese steel scissor lift has stable structure, large load capacity, smooth lifting, easy installation and
maintenance.
2: The cylinder is made of imported high quality seals – NOK Japan
3: Calling box shall be placed on the neighboring wall of each floor, and electrical components adopts DELIXI, PEOPLE, SIEMENS or
SCHNEIDER.(optional)
4: Caution light and alarm bell.(optional)
maintenance.
2: The cylinder is made of imported high quality seals – NOK Japan
3: Calling box shall be placed on the neighboring wall of each floor, and electrical components adopts DELIXI, PEOPLE, SIEMENS or
SCHNEIDER.(optional)
4: Caution light and alarm bell.(optional)
