HA7308CX 1U frame 8PON 10G uplink EPON OLT high integration and medium capacity cassette EPON OLT Without modules

Share on (1600666702383):


Price:$420.00 - $460.00

Quantity:


Product Overview

Description

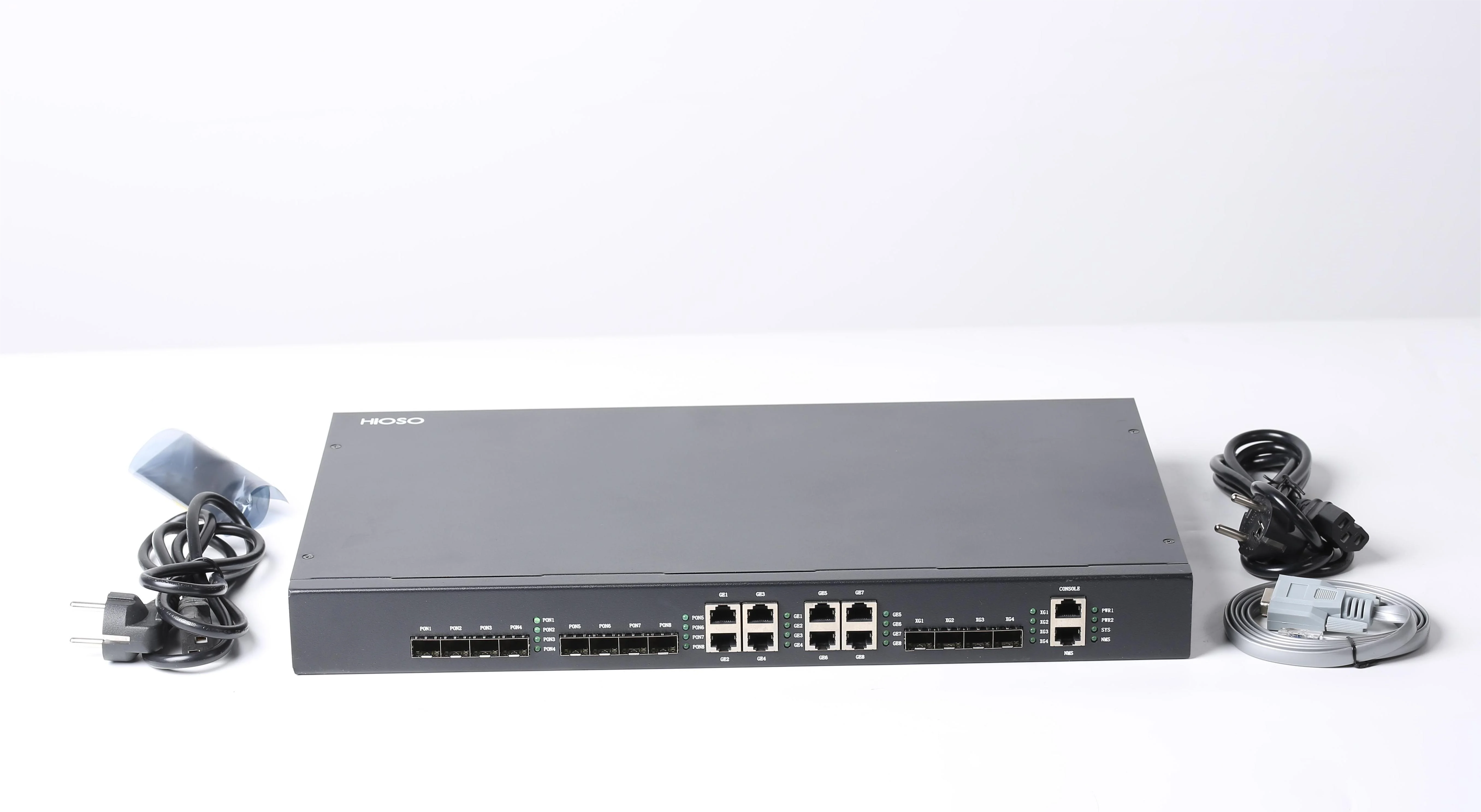

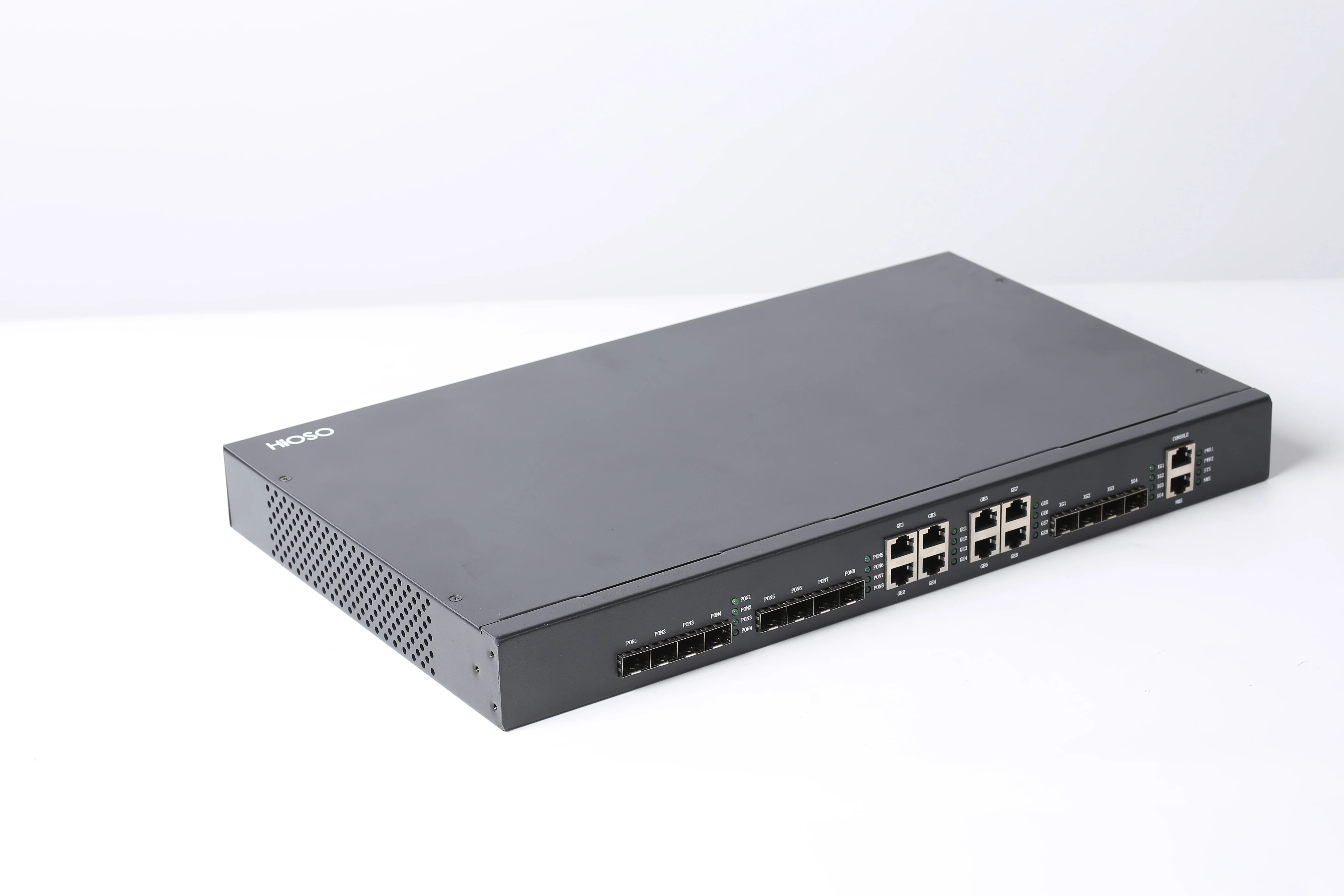

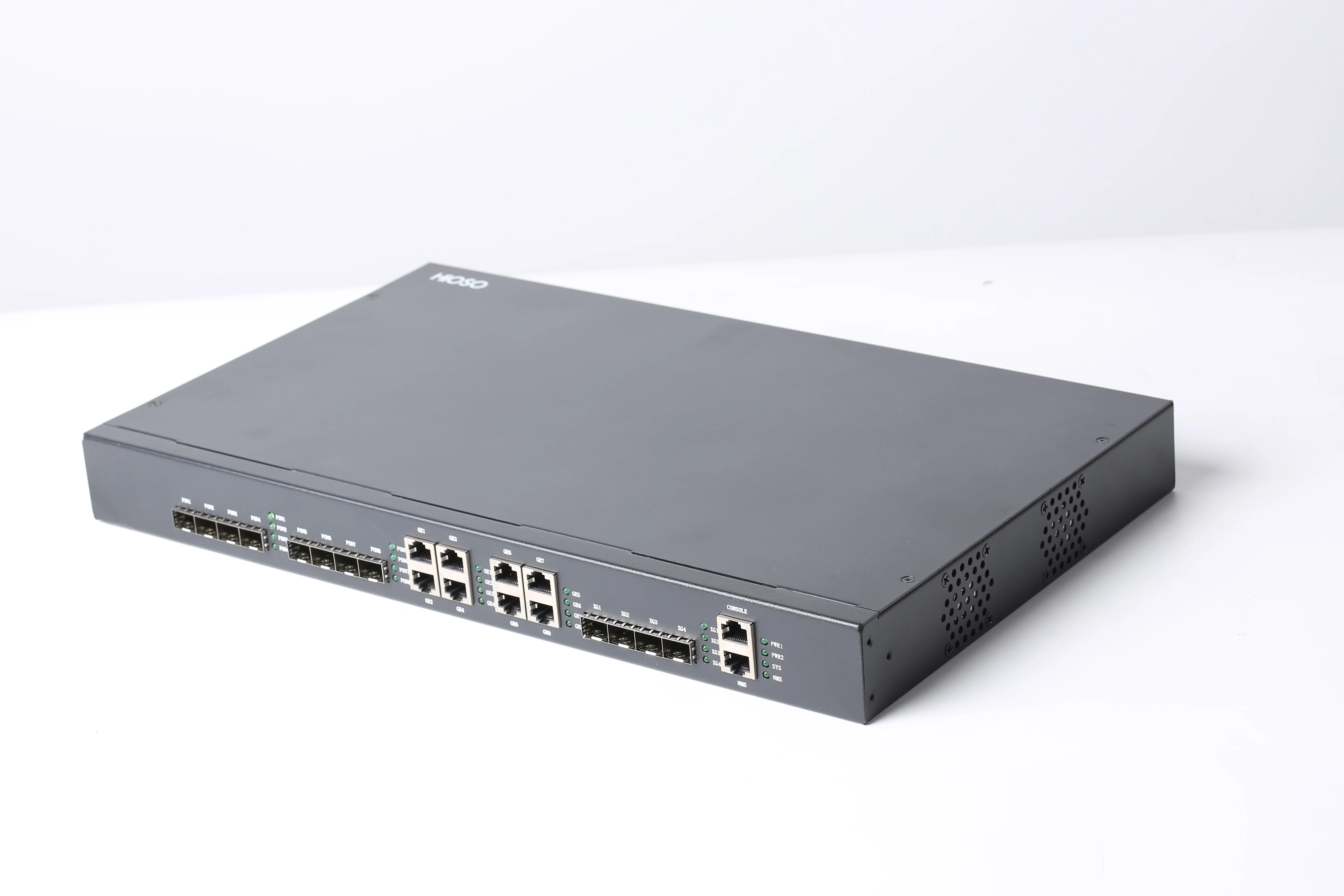

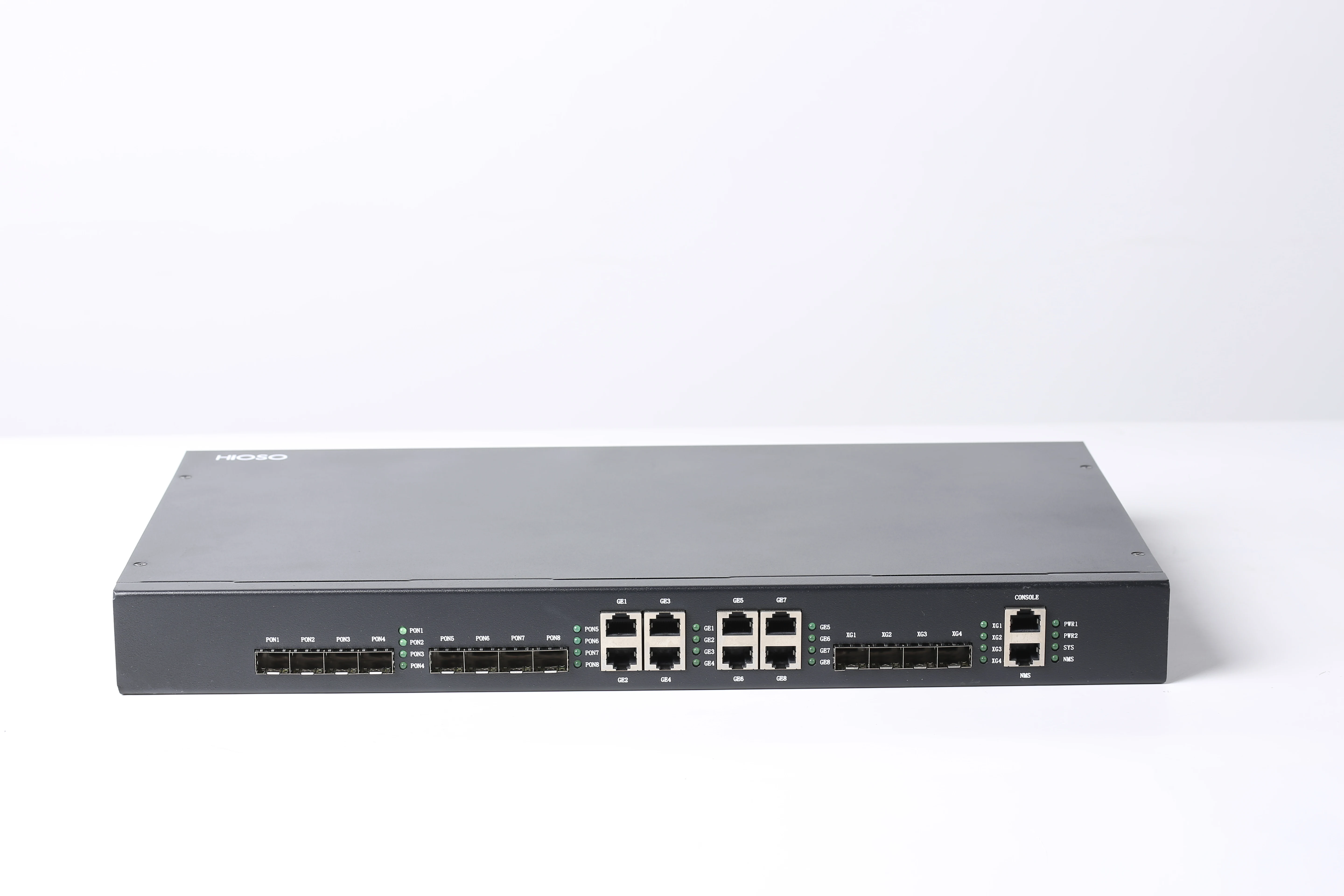

HA7308CX 1U 8PON 10G Uplink EPON OLT
The HA7308CX EPON OLT is a highly integrated mid-capacity card EPON OLT designed for carrier access and enterprise campus networks. HA7308C provides 8 downstream 1.25G EPON ports, 8 GE LAN Ethernet ports and 4 10G SFP upstream ports. The height is only 1U, which is easy to install and saves space. It adopts advanced technology to provide efficient EPON solutions. In addition, it can support mixed networking of different ONUs, saving a lot of costs for operators.


Product Description




Specification


item
value
Model Number
HA7308CX
Type
OLT
Place of Origin
China
Guangdong
Brand Name
HiOSO
Use
FTTB
Warranty Time
3 year


Parameter
Specification


Service Port
8 * PON port, 8 * GE,
4*10G SFP optical
1 console port
1 nms port

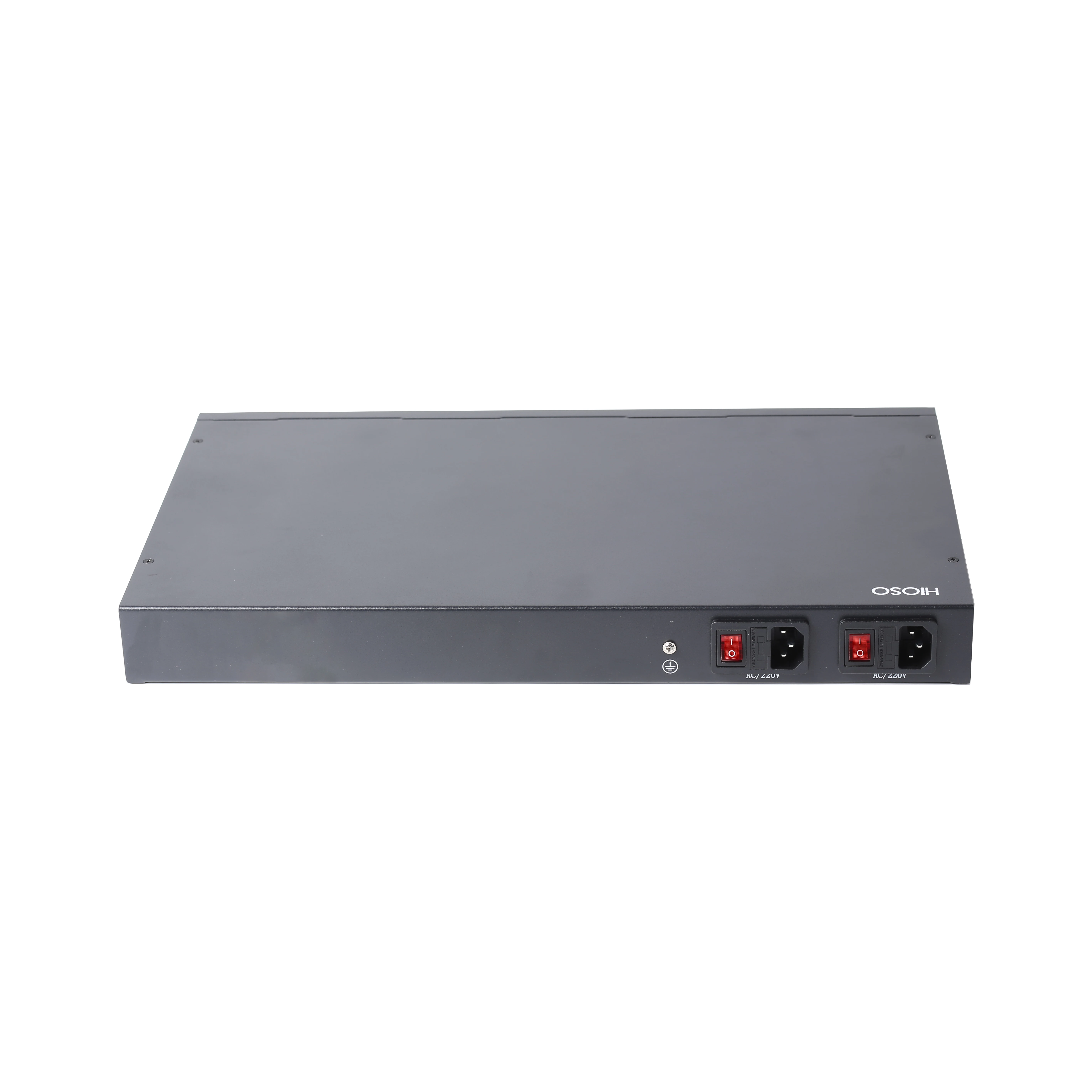

Power Supply

AC: input100~240V * 2 47/63Hz
Power Consumption
≤45W
Dimensions (Width x Depth x Height)
440mm×44mm×260mm
Weight (Full-Loaded)
≤4.5kg


Environmental Requirements
Working temperature: -10°C~55°C Storage temperature: -40°C~70°C
Relative humidity: 10%~90%, non-condensing




PON Features
IEEE 802.3ah EPON
China Telecom/Unicom EPON
Maximum 20 Km PON transmission distance
Each PON port supports the max 1:64 splitting ratio
Uplink and downlink triple churning encrypted function with 128Bits
Standard OAM and extended OAM
ONU batch software upgrade, fixed time upgrade, real time upgrade

MAC
MAC Black Hole Port MAC Limit 16K MAC address



VLAN
4K VLAN entries
Port-based/MAC-based/protocol/IP subnet-based QinQ and flexible QinQ (StackedVLAN)
VLAN Swap and VLAN Remark
PVLAN to realize port isolation and saving public-vlan resources

Spanning Tree
STP/RSTP
Remote loop detecting


Port
Bi-directional bandwidth control for onu
Static link aggregation and LACP(Link Aggregation Control Protocol)
Port mirroring


Device Security
Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP
SSHv2 Secure Shell
Security IP login through Telnet
Hierarchical management and password protection of users



Network Security
User-based MAC and ARP traffic examination
Restrict ARP traffic of each user and force-out user with abnormal ARP traffic
Dynamic ARP table-based binding IP+VLAN+MAC+Port binding
L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet




ACL
Standard and extended ACL Time Range ACL
Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination
IP(IPv4) address, TCP/UDP port number, protocol type, etc
packet filtration of L2~L7 deep to 80 bytes of IP packet head



QoS


QoS
Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and
Priority remark to port or self-defined flow and provide 802.1P, DSCP
priority and Remark
Packet mirror and redirection of interface and self-defined flow
Super queue scheduler based on port or self-defined flow. Each port flow supports 8 priority queues and scheduler of SP, WRR and
SP+WRR.
Congestion avoid mechanism, including Tail-Drop and WRED



IPv4
ARP Proxy DHCPRelay DHCP Server Static Routing OSPFv2


Multicast
IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP Fast leave
IGMP Proxy
Loop Protection
Loop back-detection
Link Protection
RSTP LACP
Device Protection
1+1 power hot backup

Network Maintenance
Port real-time, utilization and transmit/receive statistic based on Telnet802.3ah Ethernet OAMRFC 3164 BSD syslog Protocol Ping
and Traceroute
Device Management
CLI, Console port, Telnet and WEBRMON (Remote Monitoring)1, 2, 3, 9 groups MIB NTPNetwork management
