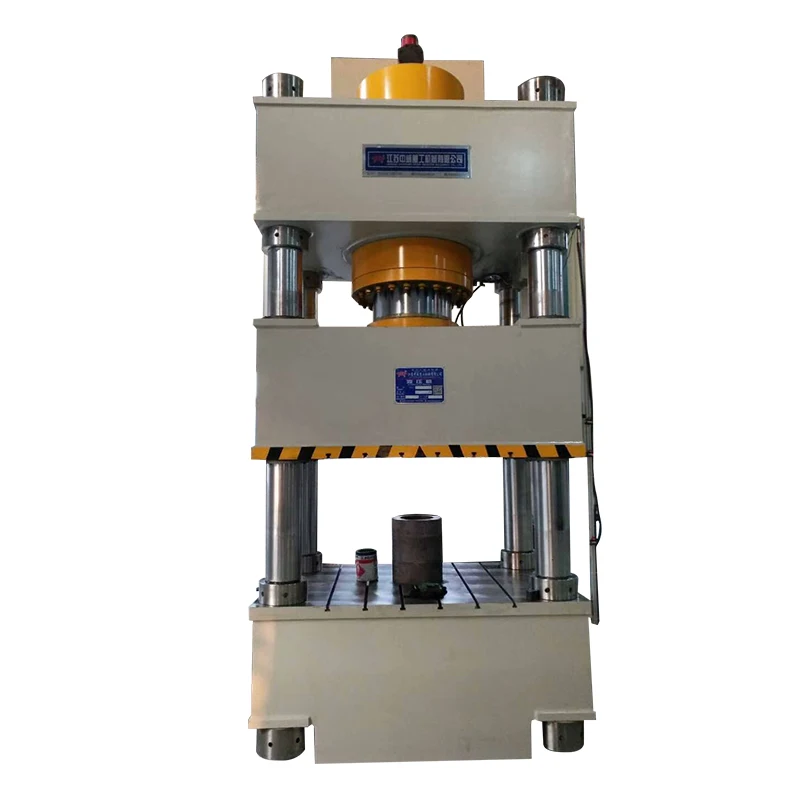

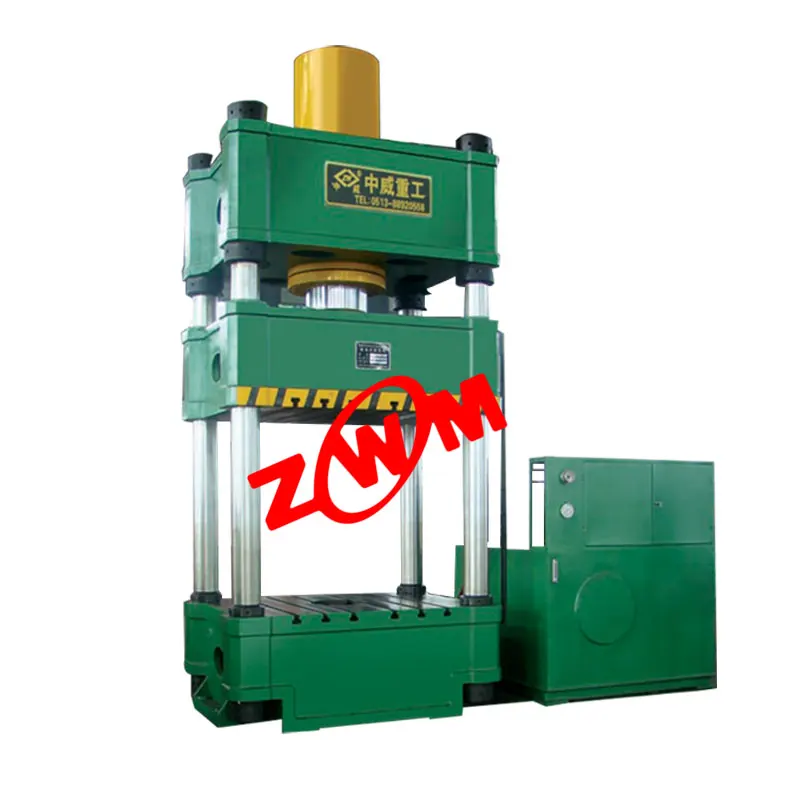

High Quality Hydraulic Forging Hot Press For Metal

Product Overview

Description

MODEL	Nominal  force	Return force	Max.hydraulic pressure	Slide Stroke	Daylight	Effective table		Dimension			Motor
						L-R	F-B	L-R	F-B	Height
	KN	KN	MPa	mm	mm	mm	mm	mm	mm	mm	KW
YZW32-40	400	40	25	450	750	580	460	1800	1200	2600	4
YZW32-63	630	60	25	500	750	560	500	2400	1400	3100	7.5
YZW32-100A	1000	100	25	600	1000	1000	800	2500	1500	3150	7.5
YZW32-100	1000	100	25	600	880	720	580	2700	1700	3400	11
YZW32-160C	1600	160	25	700	900	1000	800	2700	1700	3400	11
YZW32-200	2000	200	25	700	1100	1000	900	2825	1500	3725	15
YZW32-315	3150	315	25	800	1250	1260	1200	3235	1500	4295	18.5
YZW32-400	4000	400	25	800	1250	1260	1200	3235	1500	4500	22
YZW32-500	5000	500	25	900	1500	1400	1400	4060	1800	4995	37
YZW32-500C	5000	500	25	900	1500	2400	1400	6500	1800	4740	37
YZW32-630	6300	630	25	900	1500	1500	1500	4200	2000	5600	44
YZW32-800	8000	800	25	900	1600	1600	1600	4800	4000	6000	60
YZW32-1000	10000	1000	25	900	1600	1600	1600	5200	4300	6450	60
YZW32-1250	12500	1200	25	900	1600	1700	1600	5200	4300	6450	74
YZW32-1600	16000	1600	25	1000	1800	2000	1600	6500	4500	6500	90
YZW32-2000	20000	2000	25	1200	2000	2000	2000	6500	4500	6800	148
YZW32-2500	25000	2500	25	1200	2000	2500	2400	6600	4500	8450	148
YZW32-3000	30000	3000	25	1200	2000	3000	2500	8000	4600	10000	180
YZW32-3500	35000	3500	25	1200	2500	3000	2500	8000	3500	11000	250
YZW32-4000	40000	4000	25	1200	2500	4500	2500	9500	3700	7650	350
YZW32-5000	50000	5000	25	1200	2500	4500	2500	10000	3700	7850	450



Application area:

This series of hydraulic press is suitable for drawing, bending, flanging, cold extruding, punching and other processes of metal materials, as well as for correction, pressing, powder products, abrasive products, pressing and forming, as well as pressing and forming of plastic products and insulating materials. It is commonly used in pressing process and pressing forming process.

Optional accessories:

Blanking buffer device, move table, photoelectric safety protection device, oil cooling device, touch type industrial display screen, blanking device (hydraulic or mechanical), imported PLC, clamping device, mold lifter, mold shifting arm, top hydraulic system, slider locking mechanism.

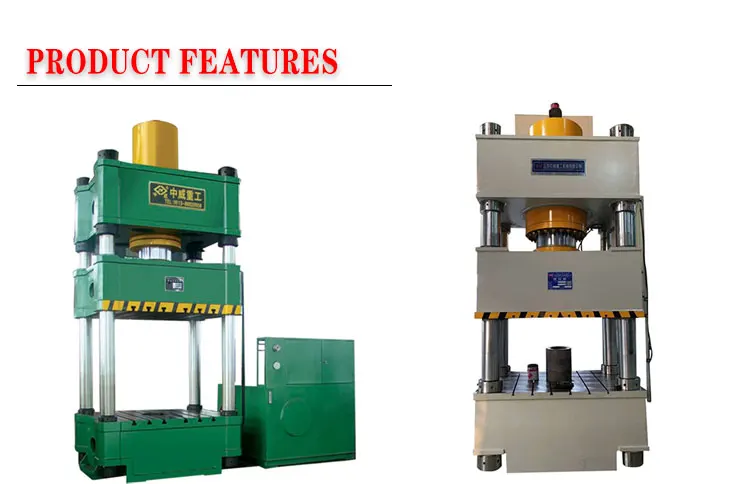

1). Working pressure and slide stroke can be adjusted .
2).Column and piston rod with heat treatment to extend their life
3). Oil cylinder adopt welded steel frame rigid to deflection moment.
Shot blasting and specially treated against RUST.
4). Overload overflow protection is outfitted to hydraulic system,
can assure no leakage,and the oil level can be read or seen directly
5). Hydraulic support insurance circuit to prevent go down of slide out of control.
6). Electrical panel with cooling system designed to meet CE Standards and composed
of automation and electrical equipments with SIEMENS brand.





Q: What’s the yield strength for material used for bending?

--- 235Mpa. If you have special request, please point out when make inquiry.

Q: What should I buy as spare parts?

---- top tool, quick clamp.

Q: How about your machine quality? We are worry about the quality.

ZHONGWEI is a mature brand in CHINA, through our many years research in technology, our design including structure and detailed security and precision has enhanced greatly, and can match all the CE standard or more strict standard. We have 29 after-sales service sites in China and agent in America. Our machines distribute worldwide to about 60 countries where there are metal plate industry ,there are ZHONGWEI machines. And where there are our machines, there are good reputation and terminal user satisfaction.

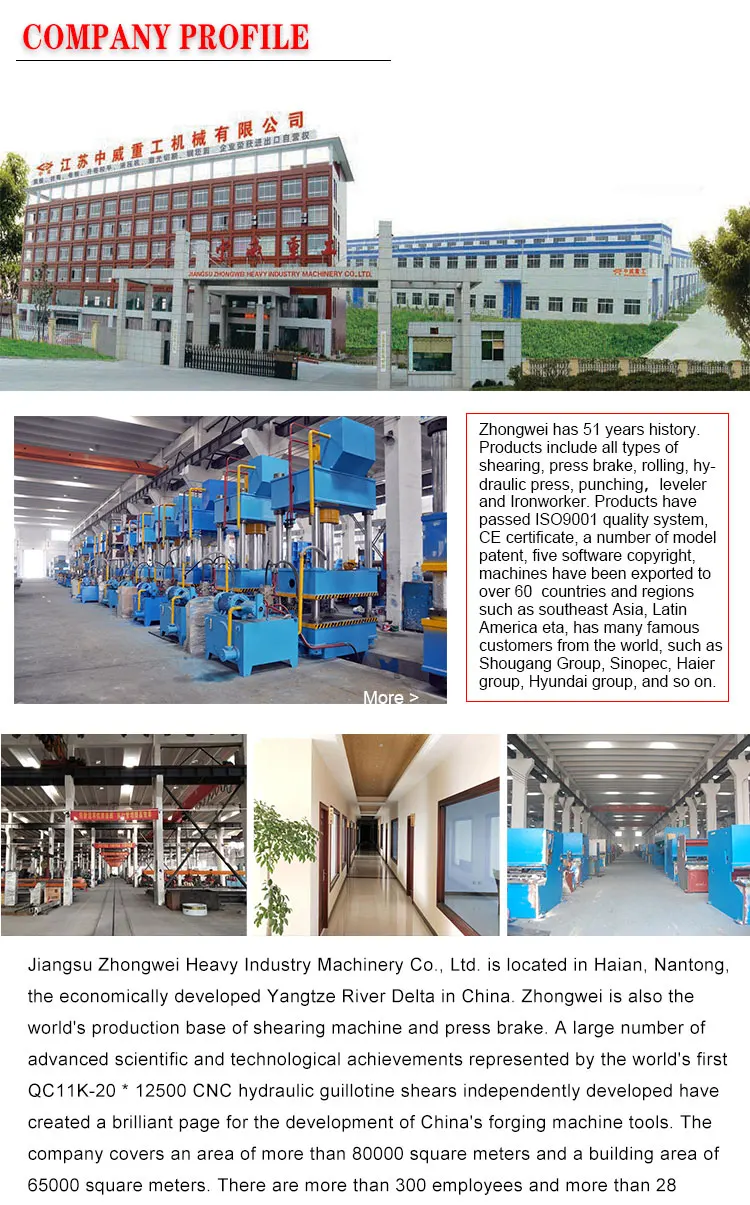

Q: How about your manufactory in CHINA?

ZHONGWEI located in HAIAN CITY,JIANGSU PROVINCE who is the leading area in China and also in the worldwide as the center of the metal plate solution machines, We have worked Over 40 years in this area and totally have about 300 staffs. By cooperate with top research institute, we received the national fund research projects and supported by government. Rich experience in this field with professional technical supporting and oriented service.



Q: Do you accept L/C payment term?

Yes,we accept 100% L/C at sign from almost all countries.
