1200MM Rubber Conveyor Belt Splicing Joint Press Machine
- Category: Plastic & Rubber Processing Machinery >>>
- Supplier: Qingdao,Antai,Mining,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Product Name | Water Cooling Conveyor Belt Vulcanizing Splicing Joint Press Machine Vulcanizer | |
Conveyor belt type | canvas, nylon, steel cord core, PVC / PVG | |
Application | mining, cement,power plants, ports, building materials, chemical and other sectors. | |
Can splicing max belt width | 2800mm | |
Water Cooling Conveyor Belt Vulcanizing Splicing Joint Press Machine Vulcanizer | ||
FEATURES
• Signature ANTAI “Pressure Bag” uniform pressure system.
• Custom “Extruded Plank” cooling system within platens.
• Innovative “Silicone Element” fast heating system.
• Custom “Extruded Plank” cooling system within platens.
• Innovative “Silicone Element” fast heating system.
• Automatic mute pressure pumps for operating pressures above 20kg/cm2(2.0MPa).
• ZLJ platens are built to order with all dimensions offered to accommodate various belt widths.
• DELIXI electrical apparatus element assembled into insulating and waterproof control panel.
• All electrical systems are CE, CSA and UL approved.
• DELIXI electrical apparatus element assembled into insulating and waterproof control panel.
• All electrical systems are CE, CSA and UL approved.
Click here for more information !!!
Our Advantages

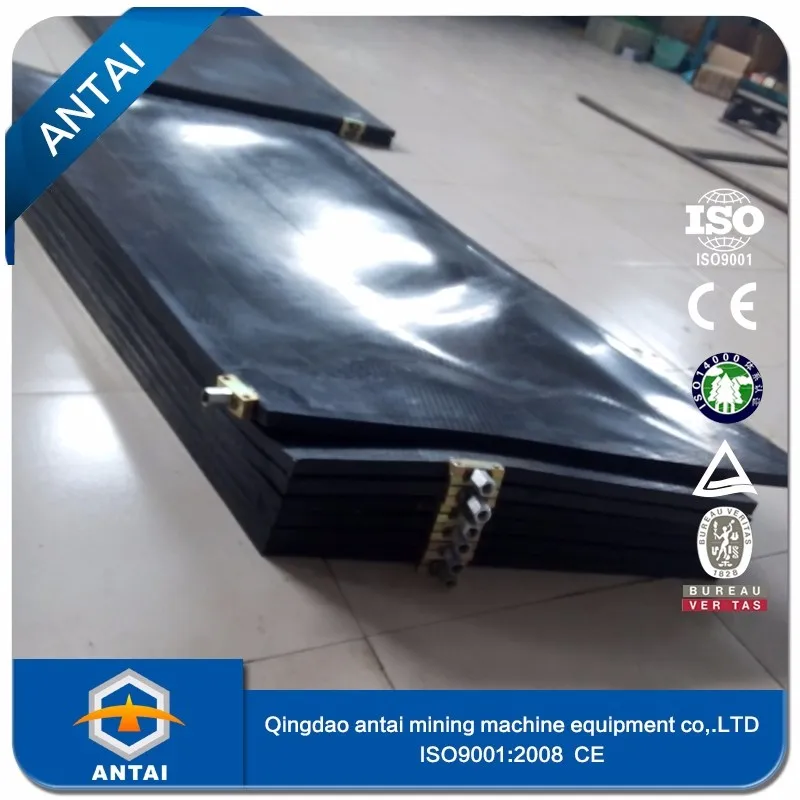

HEATING PLATEN
Custom extruded plank, silicone heating elements (up to 180°C/356°F), and durable composite insulating packaging are used to
construct a flexible platen that contours to belt irregularities.
It takes 15~25mins rise up to vulcanizing temperature (about 145°C).
The flush “quick connect” make smooth profile. Recessed power connections are sealed for moisture resistance.
construct a flexible platen that contours to belt irregularities.
It takes 15~25mins rise up to vulcanizing temperature (about 145°C).
The flush “quick connect” make smooth profile. Recessed power connections are sealed for moisture resistance.
PRESSURE SYSTEM
Signature ANTAI “Pressure Bag” uniform pressure system is lighter up to 4 times than the outdated pressure bag.
The pressure bag can reach full expansion in one time and ensure the uniform pressure up to 3.0MPa.
The pressure bag can reach full expansion in one time and ensure the uniform pressure up to 3.0MPa.
PRESSURE PUMP
Automatic mute pressure pump own the features as smaller size, lighter weight and high impact-resistance. Compared with the manual pump, the operating pressure can be 23kg/cm2 (2.3MPa).
COOLING SYSTEM (Option Available)

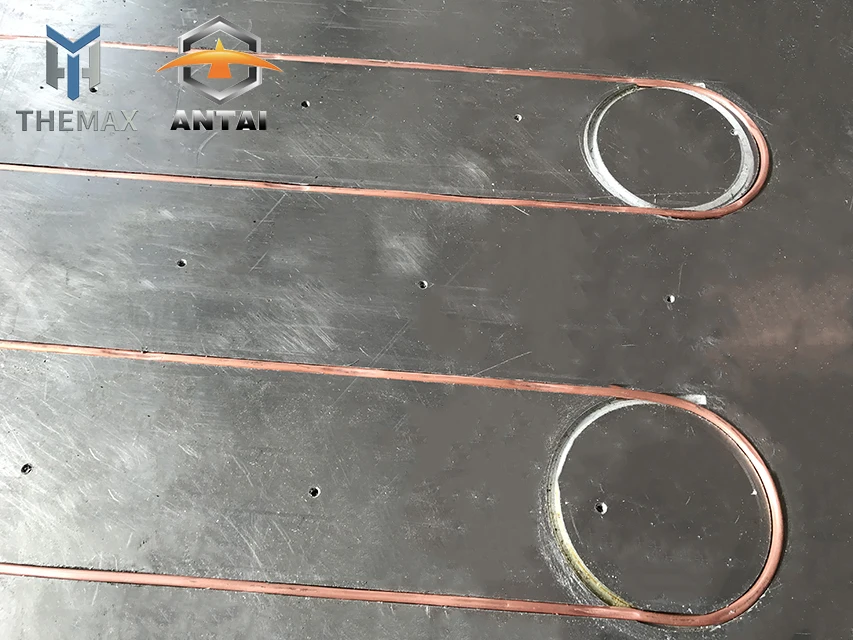

Custom “Extruded Plank” cooling system within platens is made by several cuprum pipelines, it only takes about 20mins to drop the temperature down to 60°C.

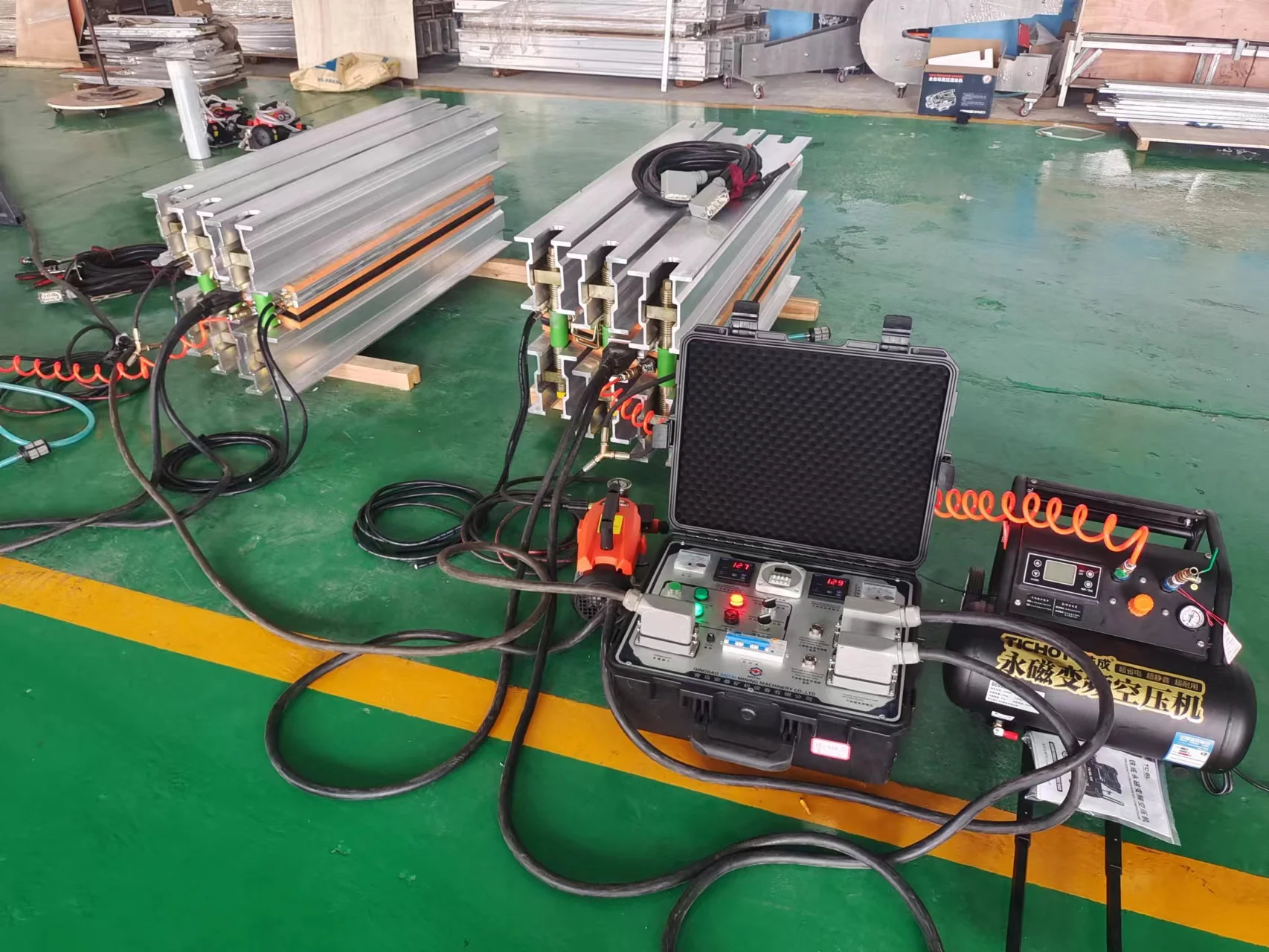

AUTOMATIC CONTROL BOX
With automatic temperature control, security alarm and automatically switch off the power. The control box can monitor the temperature of 3-5 different points on each heating platen at the same time to ensure the result of jointing.
Main Parts

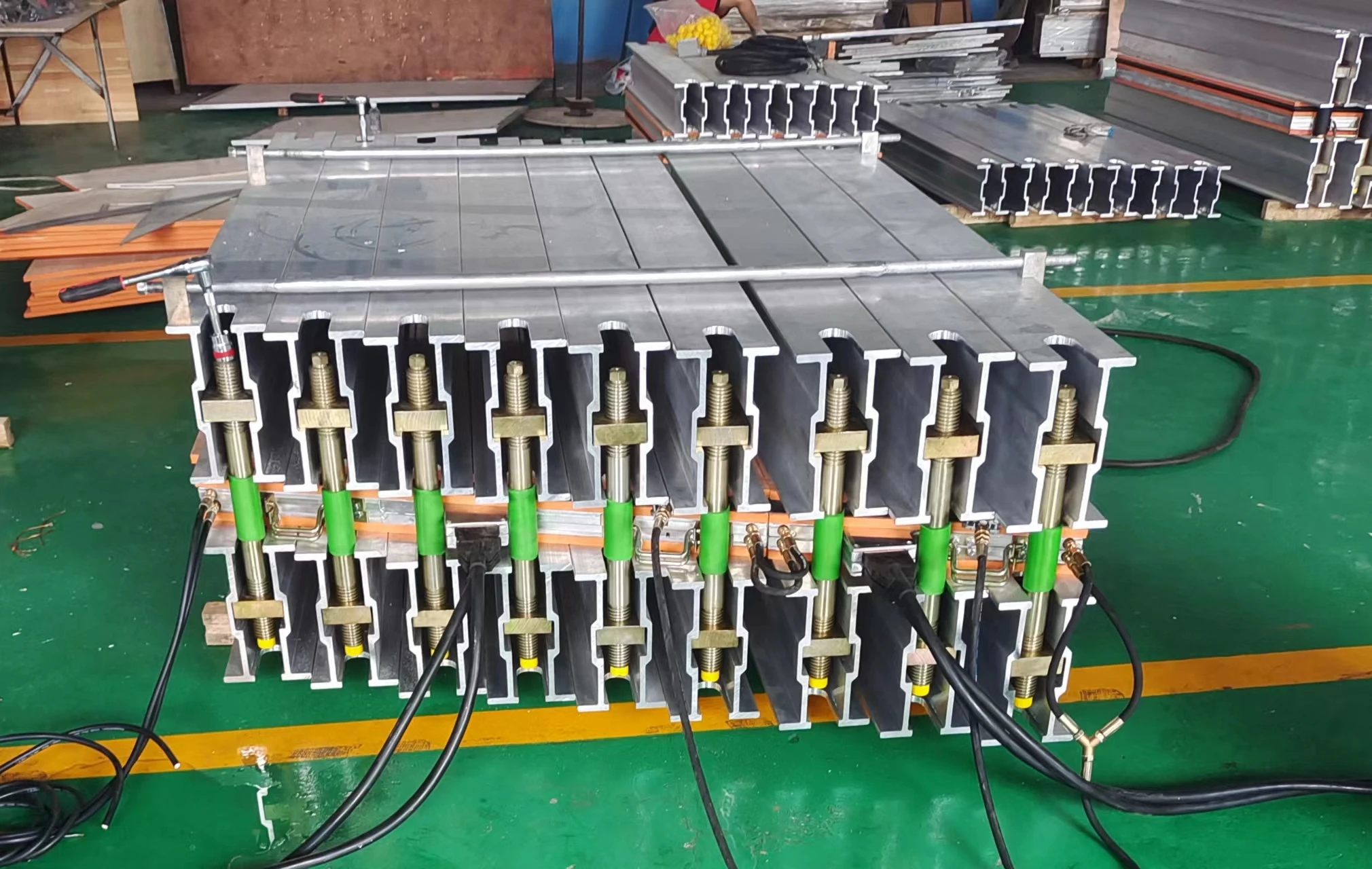

ZLJ conveyor belt vulcanizing machines can be used by one or multiple combinations according to the joint length of the belt.The main configuration of a single vulcanizing machine is as following:
Name | Amount |
The whole machine | 1 set |
Ratchet wrench | 2 piece |
steel pad | 1 set |
Clamping device | 1 set |
Electric control box | 1 set |
Power cable | 1 root |
Control cable | 2 root |
Thermal resistance | 2 pieces |
Water pump | 1 set |
Pressure pipe | 2 roots |
Model and Specifications
1.Heating: electric heating type.
2.Pressurized: hydraulic type.
3.Supply voltage: 1140 V，660 V，450 V，415 V，380 V，220 V，50 Hz or as customized.
4.Heating power of a single heating plate per unit area ≥ 7000 W / ㎡.
5.Equipped with digital temperature control system, vulcanizing temperature adjustable 0-199 °C.
6.Heating time(room temperature raise to 145°C)≤25 mins.
7.Vulcanization pressure can be set to≤2 MPa.
8.Automatic control of temperature rise, heat preservation and temperature limit protection.
3.Supply voltage: 1140 V，660 V，450 V，415 V，380 V，220 V，50 Hz or as customized.
4.Heating power of a single heating plate per unit area ≥ 7000 W / ㎡.
5.Equipped with digital temperature control system, vulcanizing temperature adjustable 0-199 °C.
6.Heating time(room temperature raise to 145°C)≤25 mins.
7.Vulcanization pressure can be set to≤2 MPa.
8.Automatic control of temperature rise, heat preservation and temperature limit protection.
Technical Parameters (Reference)
(Except for 830 mm, 1000 mm and other conventional sizes, any non-standard size is accepted.)
Product packaging
We use fumigation-free box as our packing box.It has clean and tidy appearance,easy to load and unload.Comply with the export standards of the customs.
Customer Photos

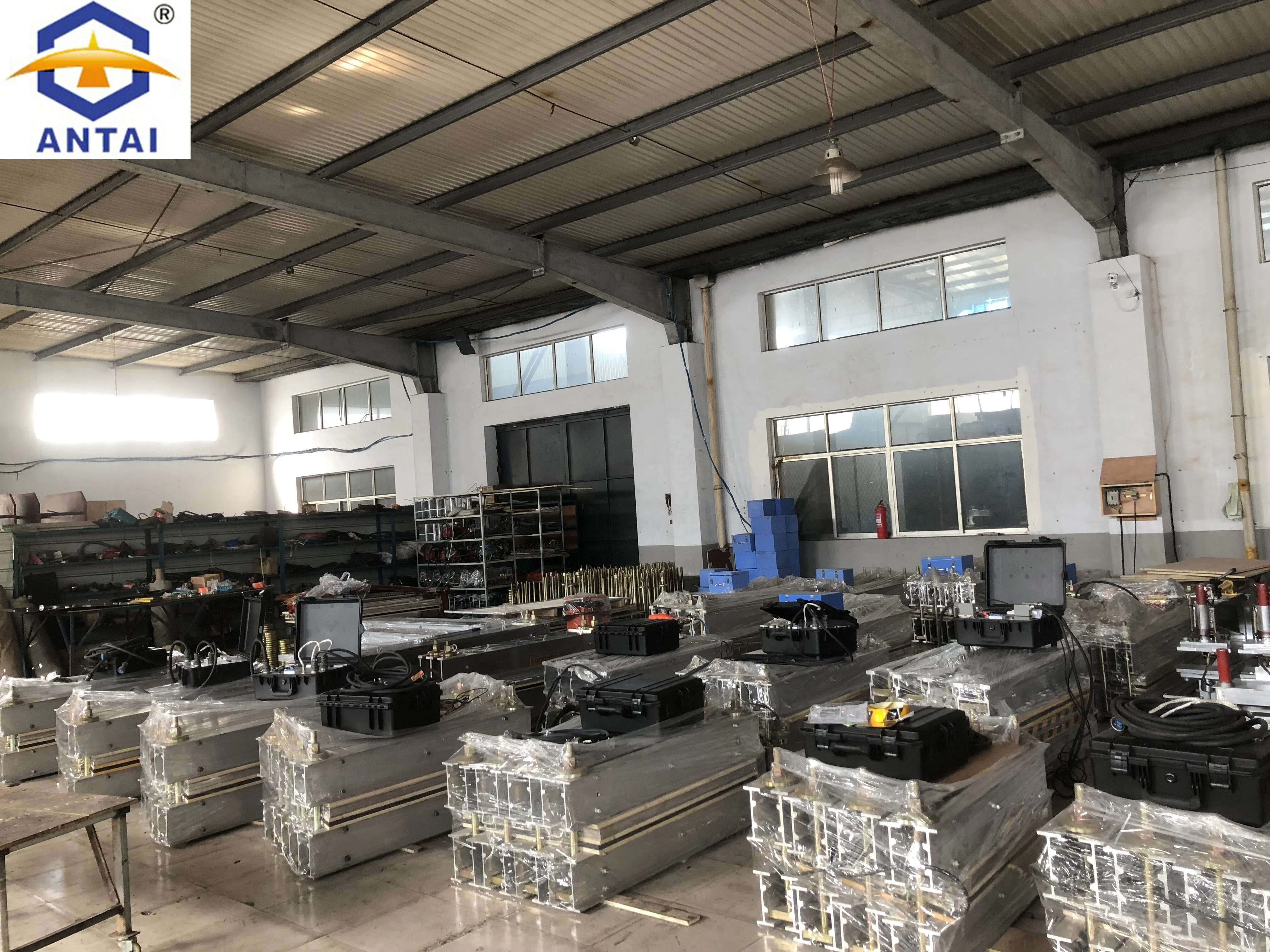

Our Plant
Certifications
We are the Direct Manufacturer of conveyor belt vulcanizing equipment. Our company is the direct manufacturer supplier in China for the production of the pressurized bag. ALMEX STYLE available,with lower ANTAI price.
Yes! We promise you the lowest price in China. In case of the higher price you may get from our domestic trading company Please keep in touch with me.
