Instant Coffee Powder Roll Compactor Laboratory Granulator Mixing Granulating Machine
- Category: >>>
- Supplier: Foshan Xingle Machinery Equipment Co. Ltd.
Share on (1600667680263):
Product Overview
Description
Products Description

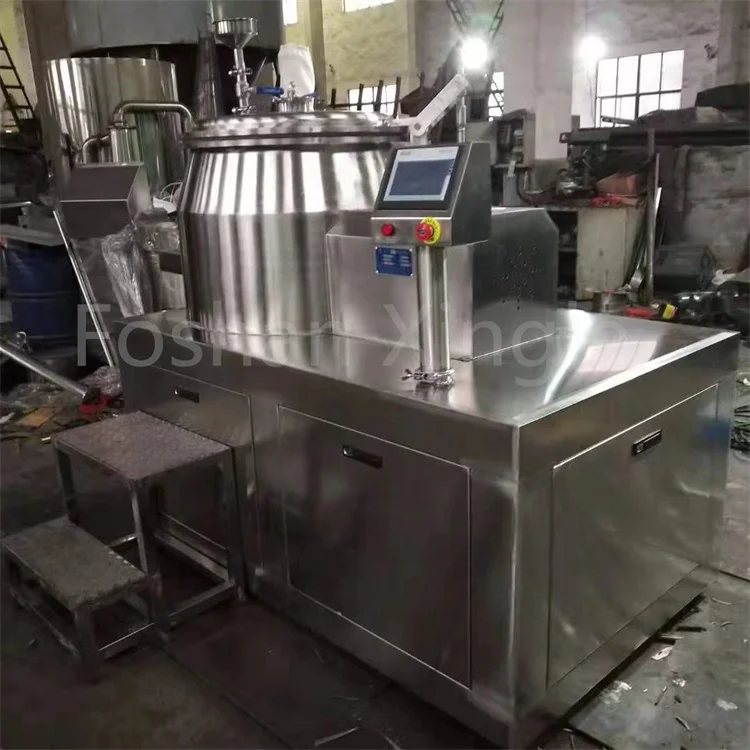

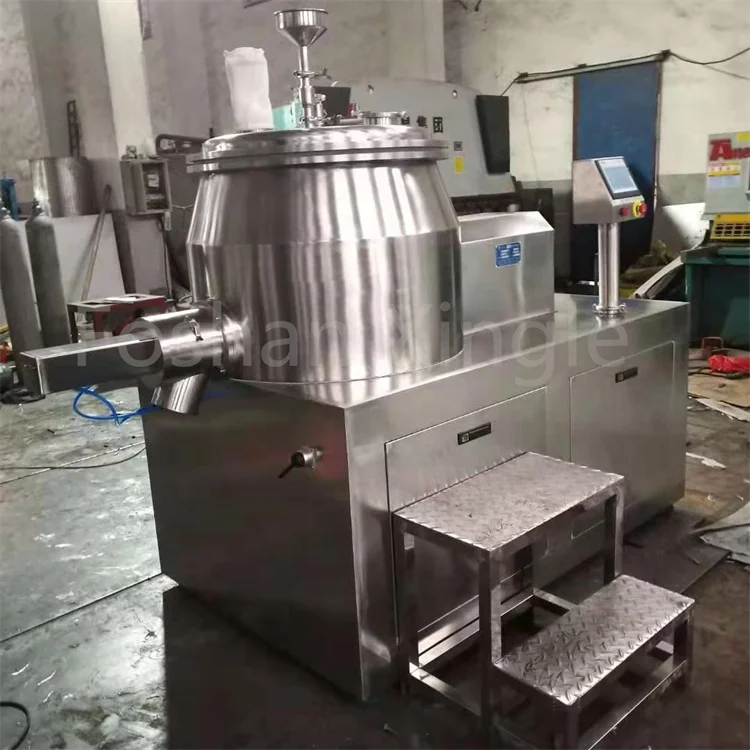

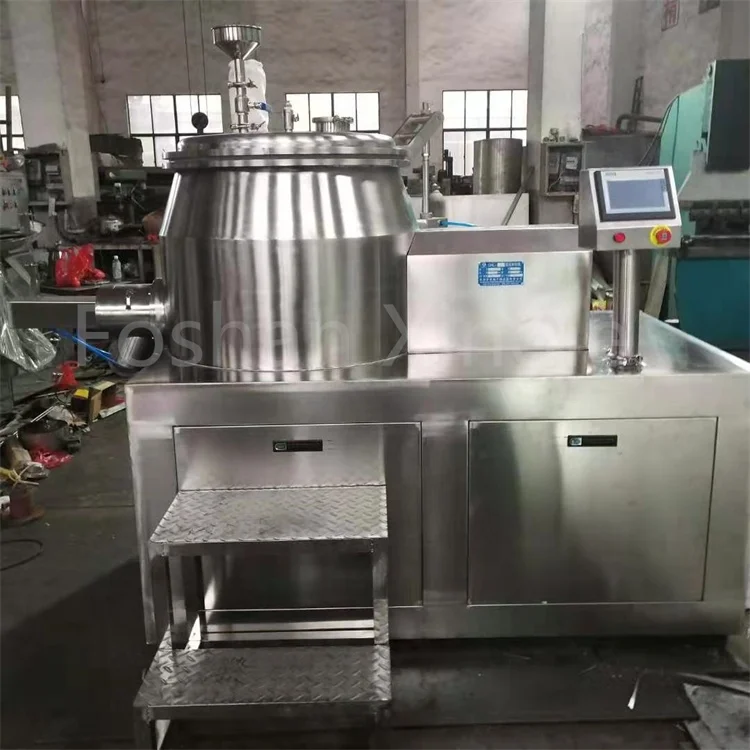

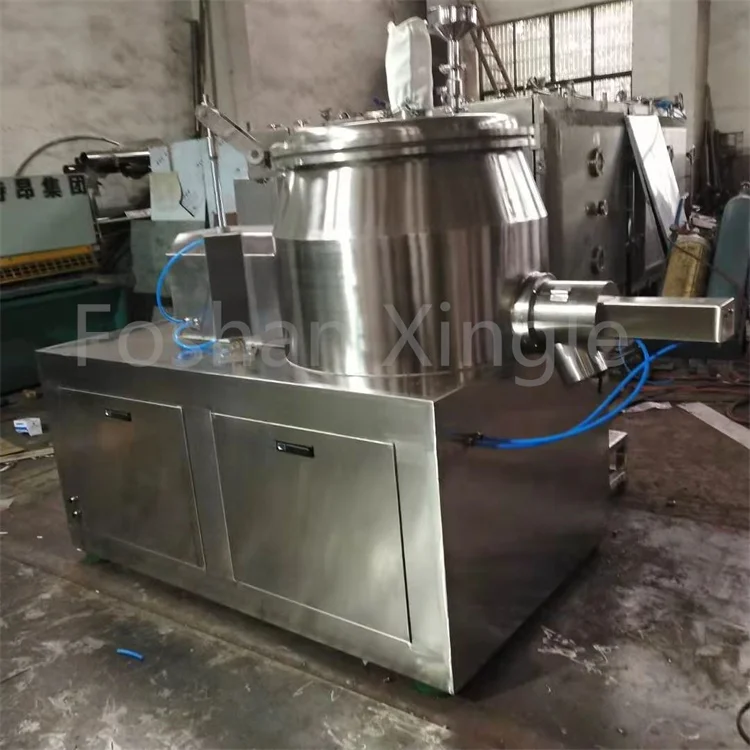

GHL-300 High Speed Mixing Wet Granulator
1. The working principle of the machine
The powder material and the binder are fully mixed into the moist soft material by the bottom mixing slurry in the cylindrical container, and then cut into uniform wet particles by the high-speed grinding slurry placed on the side.
2. Main Features
3. The horizontal cylinder structure is adopted, and the structure is reasonable.
4. Inflatable and sealed drive shaft, which can be switched to water when cleaning.
5. Fluidized granulation, the granulation is approximately spherical, and the fluidity is good.
6. The amount of adhesive is reduced by 25% compared with the traditional process, and the drying time is shortened.
7. Each batch is dry mixed for 2 minutes and granulated for 1 to 4 minutes, and the work efficiency is 4 to 5 times higher than the traditional process.
8. Complete dry mixing → wet mixing → granulation in the same closed container, the process is reduced, and it meets the requirements of GMP.
The powder material and the binder are fully mixed into the moist soft material by the bottom mixing slurry in the cylindrical container, and then cut into uniform wet particles by the high-speed grinding slurry placed on the side.
2. Main Features
3. The horizontal cylinder structure is adopted, and the structure is reasonable.
4. Inflatable and sealed drive shaft, which can be switched to water when cleaning.
5. Fluidized granulation, the granulation is approximately spherical, and the fluidity is good.
6. The amount of adhesive is reduced by 25% compared with the traditional process, and the drying time is shortened.
7. Each batch is dry mixed for 2 minutes and granulated for 1 to 4 minutes, and the work efficiency is 4 to 5 times higher than the traditional process.
8. Complete dry mixing → wet mixing → granulation in the same closed container, the process is reduced, and it meets the requirements of GMP.
Main Parameter
Model | GHL-300 |
Capacity(kg/batch) | 120-150 |
Mixing speed | 13/16 KW |
Hybrid power | 46 |
Cutting speed | 1500/3000 r/min |
Cutting power | 4.5/5.5KW |
Dimensions L×W×H | 1850×1100×1650mm |
Foshan Xingle Machinery Equipment Co., Ltd. is a professional manufacturer and supplier of machinery and enjoys a good reputation in local and global markets. We are specialized imachines including pulverizes, mixer, Granulator, coating machine, counting machine, blister packaging machine, cartoning machine, labeling machine,ampoule filling and sealing machine, oral liquid filling production line, ampoule printing machine, suppository machine, we can undertake concept design, process design turnkey project and so on.
High-quality machinery, competitive prices and sincere customer service are highly appreciated by customers. Our machines have been exported to many countries in the world, North America, Europe, Australia, South America, Southeast Asia and Africa. In order to provide the best quality, the products we manufacture comply with GMP, cGMP and other international standards.
High-quality machinery, competitive prices and sincere customer service are highly appreciated by customers. Our machines have been exported to many countries in the world, North America, Europe, Australia, South America, Southeast Asia and Africa. In order to provide the best quality, the products we manufacture comply with GMP, cGMP and other international standards.
Q: Why choose us?
A: We have been supplying machines including blender,counting machine,blister packing machine etc for over 14 years. What we offer is a good product at a reasonably price.
Q: Can I customize the product?
A: Abosolutely. We can customize machine according to your need. Also we can the package the products according to your request.
Q:What's the delivery time?
A:if machine we have in stock we ship in 7 days ,if not have in stock producing time it is around 15- 45days depends on different machine.
Q: Can I customize the product?
A: Abosolutely. We can customize machine according to your need. Also we can the package the products according to your request.
Q:What's the delivery time?
A:if machine we have in stock we ship in 7 days ,if not have in stock producing time it is around 15- 45days depends on different machine.
