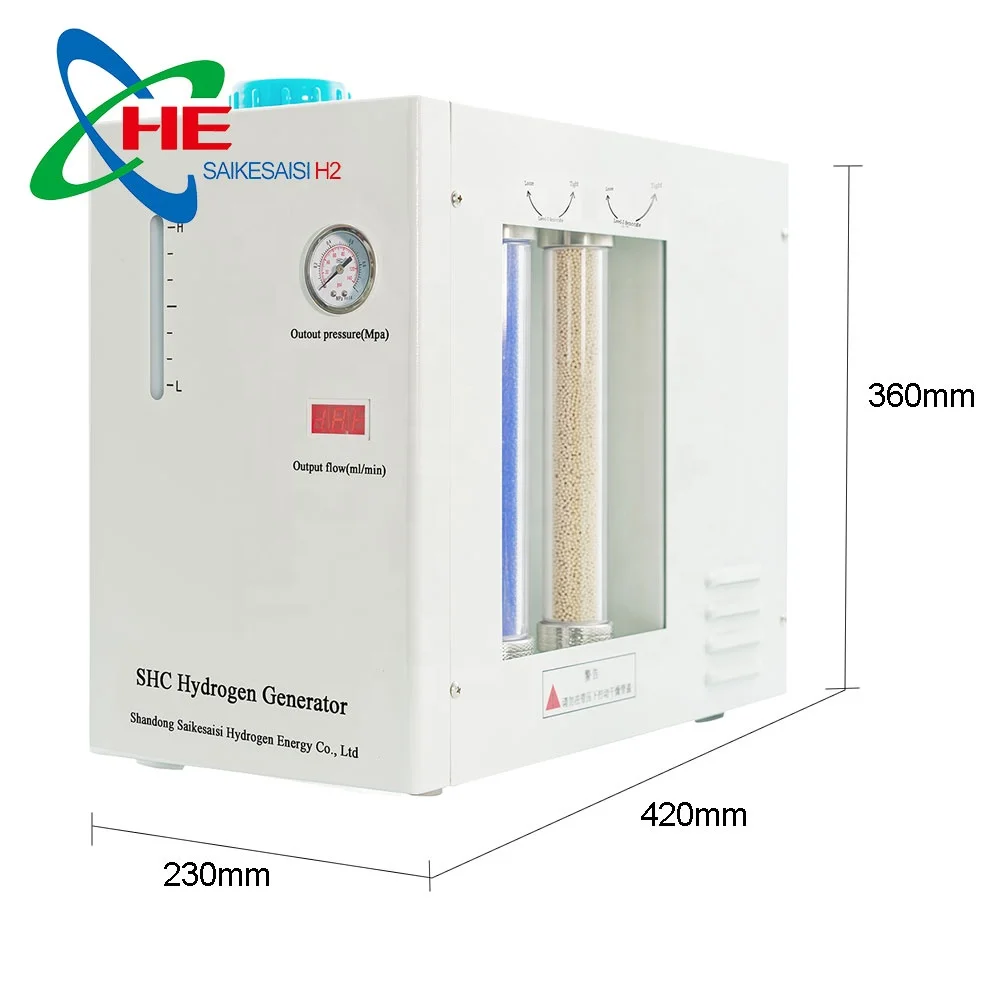

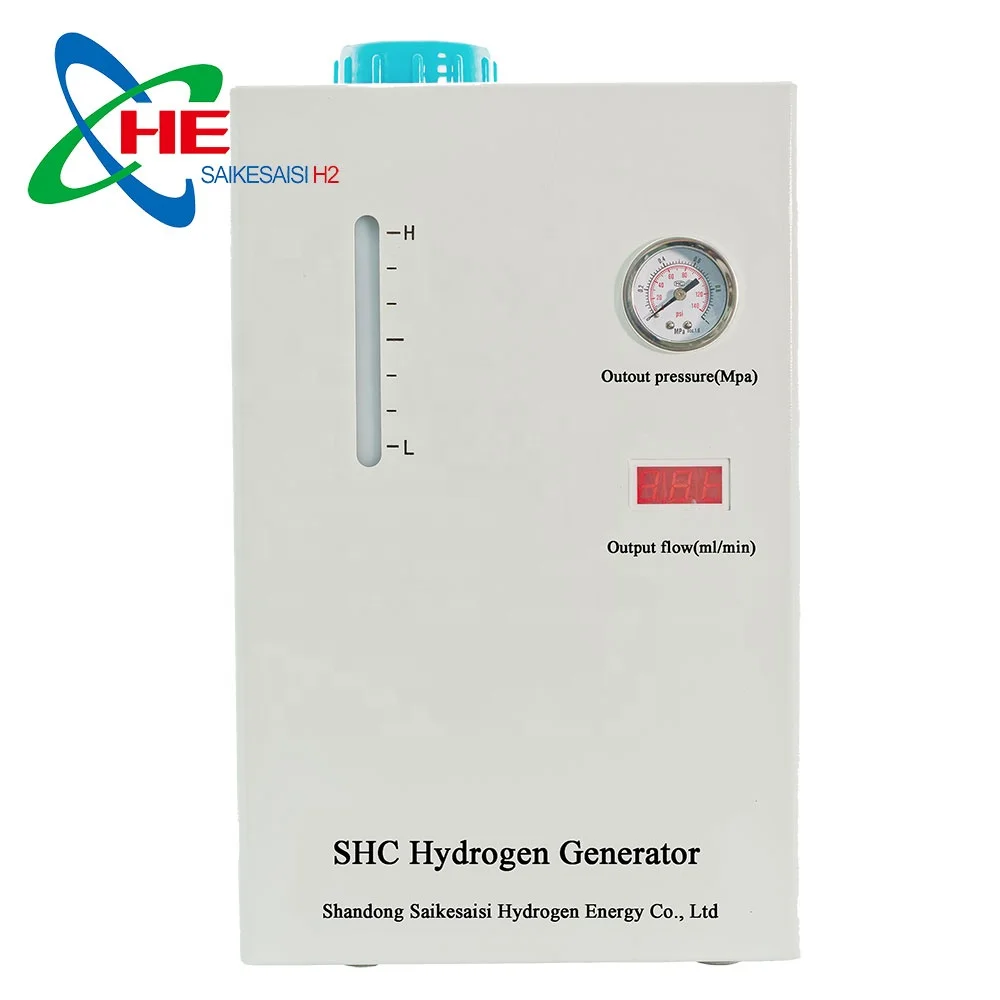

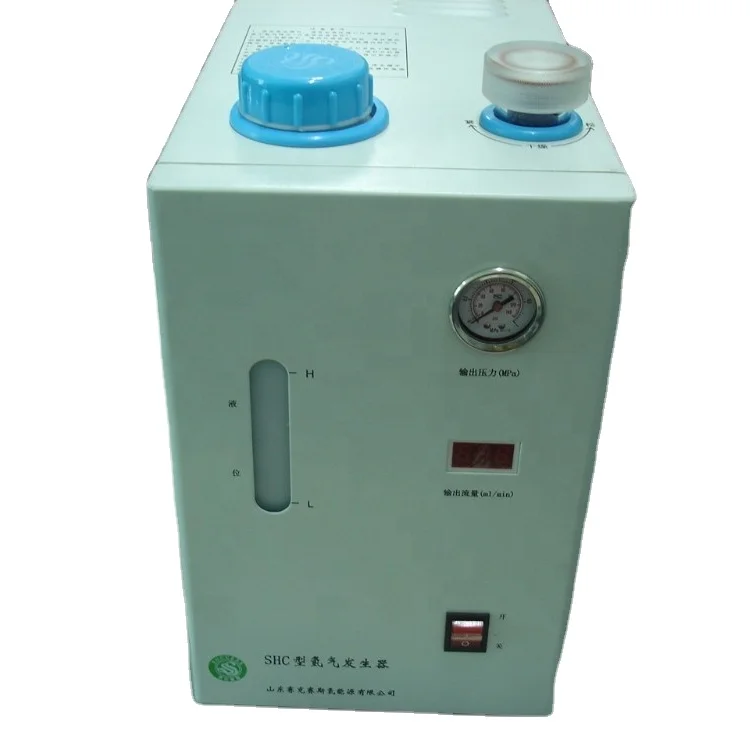

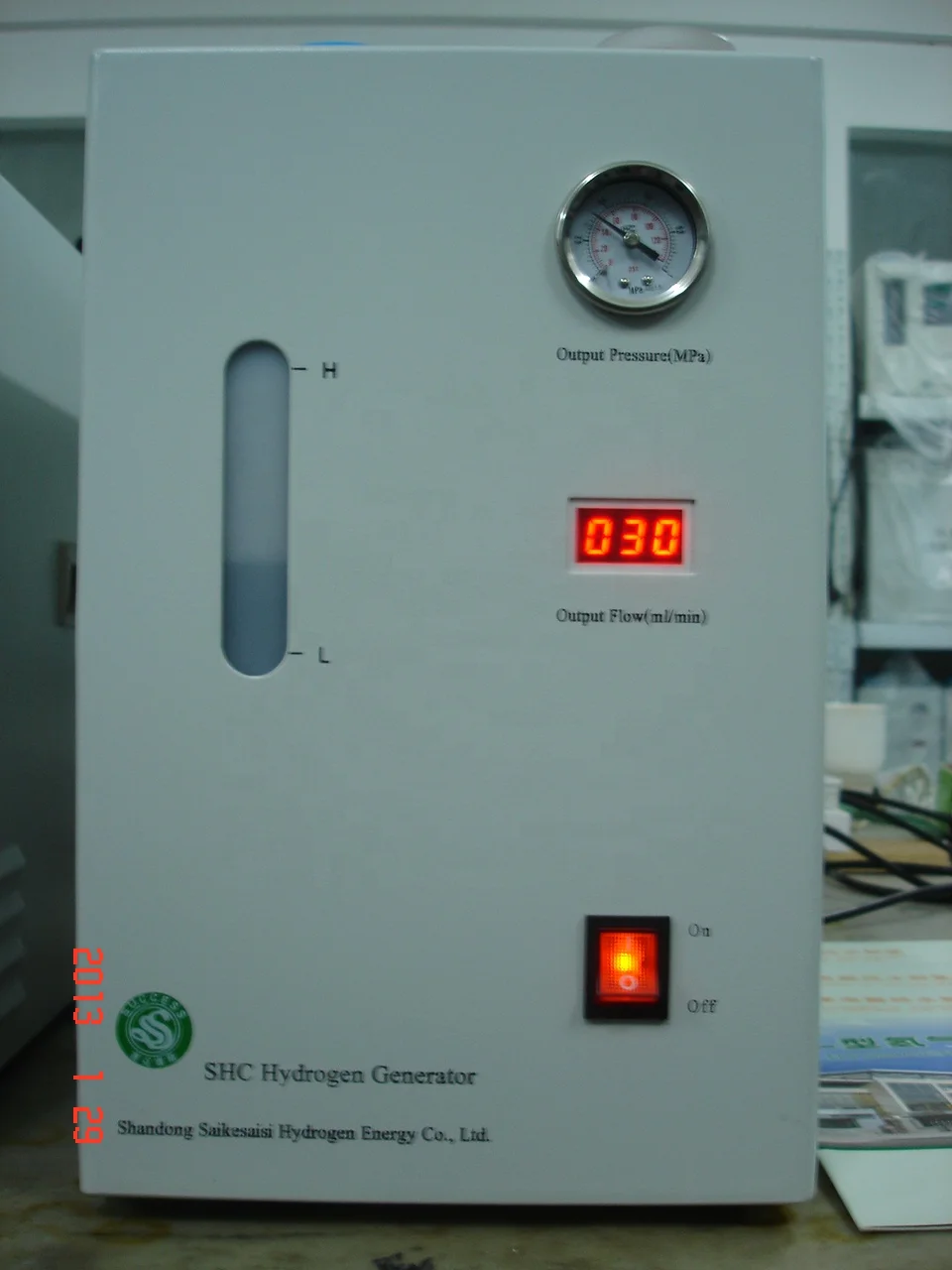

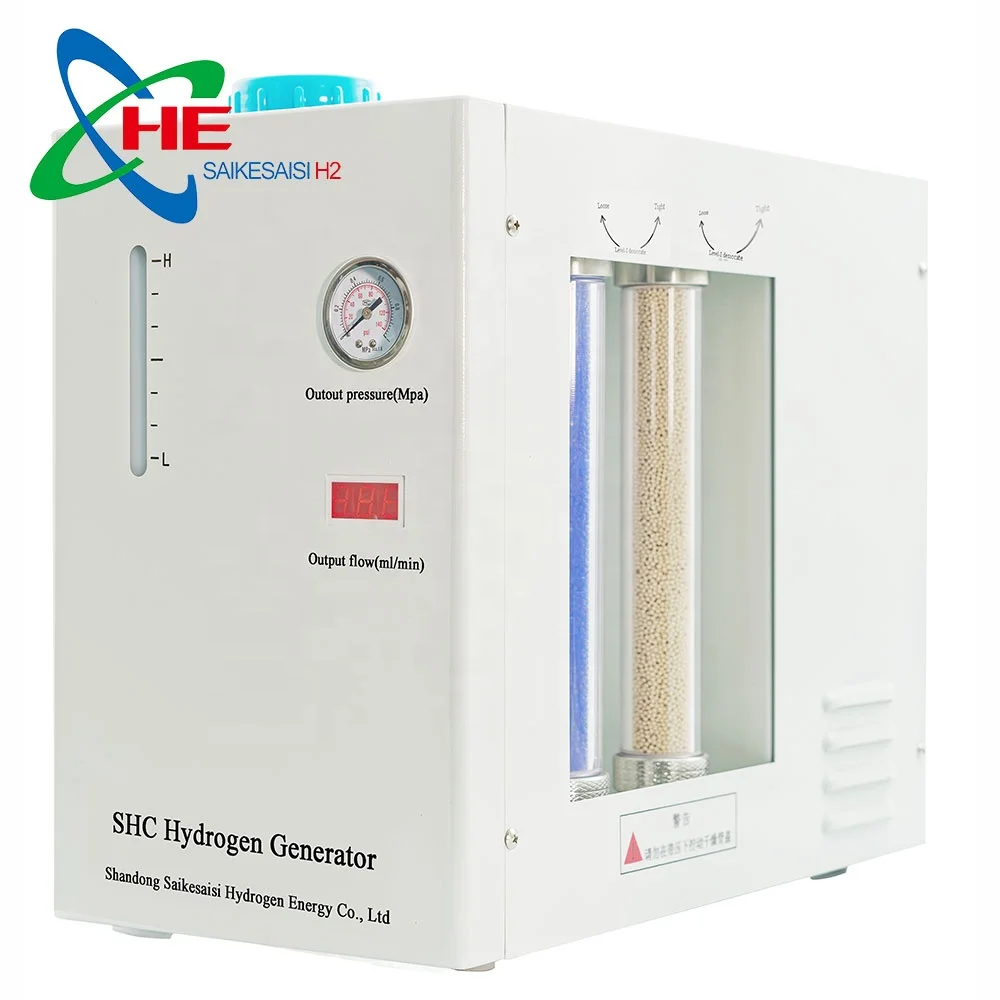

500ml/min SHC Series gas production machine alkaline water electrolysis hydrogen generator
- Category: >>>
- Supplier: Shandong Saikesaisi Hydrogen Energy Co. Ltd.
Share on (1600667715664):
Product Overview
Description
Products Description
SHC series hydrogen generator price is to electrolysis KOH liquid to produce hydrogen. There are many intelligent control
equipment inside the equipment, easy and safe. The equipment could meet requirement of many kinds of (GC) gas chromatograph at home and abroad.
equipment inside the equipment, easy and safe. The equipment could meet requirement of many kinds of (GC) gas chromatograph at home and abroad.
The operational principle of this instrument is traditional electrolyzing lye. The conducting medium in the cell is water solution of KOH. The membrane between the two electrode chambers is for the navigation electrolysis equipment. After electrifying direct current, the electro-chemical reaction of water molecule occurs. It produces oxygen on the anode, and hydrogen on the cathode. The reaction equation is as follows:
Anode: 2OH--2e → H2O 1/2O2↑
Cathode: 2H2O 2e → 2OH- H2↑
Final reaction equation: 2H2O → 2 H2↑ O2↑
The pressure control, protective pressure, flow display and flow tracking are all automatic control. The hydrogen output is
self-regulation according to the using hydrogen flow under stable pressure (in the range of output flow).
Anode: 2OH--2e → H2O 1/2O2↑
Cathode: 2H2O 2e → 2OH- H2↑
Final reaction equation: 2H2O → 2 H2↑ O2↑
The pressure control, protective pressure, flow display and flow tracking are all automatic control. The hydrogen output is
self-regulation according to the using hydrogen flow under stable pressure (in the range of output flow).
Specification
Model | SHC-500 |
Output flow rate | 0-510 ml/min |
Output Pressure (MPa) | 0.02-0.4 |
Over-pressure protection value (MPa) | 0.45 |
Hydrogen purity | 99.99 % |
Input power | 300 w |
Weight | 17KG |
Details Images
Recommend Products
Certifications
Feature and Advantage
1. Easy operation, safe and reliable, adding lye only for one time, only replenishing distilled water, switching power on to produce gas (available for several sets of Gas Chromatagraphy)
2.Special devices for preventing backflow of lye.
3. Cylinder-shaped electrolysis cell, high grade stainless steel 316L used as material for electrolysis cell.
4. High electrolysis efficiency, gas purity and output flow will stay regular under continual use.
2.Special devices for preventing backflow of lye.
3. Cylinder-shaped electrolysis cell, high grade stainless steel 316L used as material for electrolysis cell.
4. High electrolysis efficiency, gas purity and output flow will stay regular under continual use.
Packing & Delivery
Contact Us
We can make alkaline type hydrogen generators with the output flow rate being from 300 ml/min to 7000 ml/min and PEM hydrogen generators with the output flow rate being from 50 ml/min to 200Nm3/h.
Please tell me your requirements, so i can commend you proper products.
