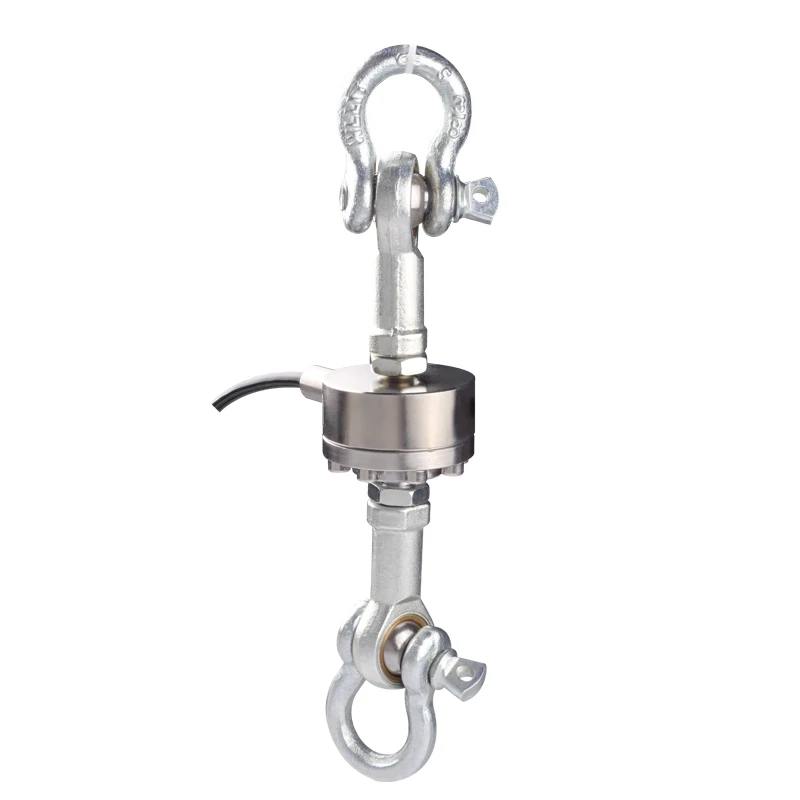

Indicator/Weighing/testing machine Factory Force Sensor 100/200/500kg 1/2t Low Profile Disk Load Cell
- Category: >>>
- Supplier: Lascaux Microelectronic Device (tianjin) Co. Ltd.
Share on (1600667840468):
Product Overview
Description

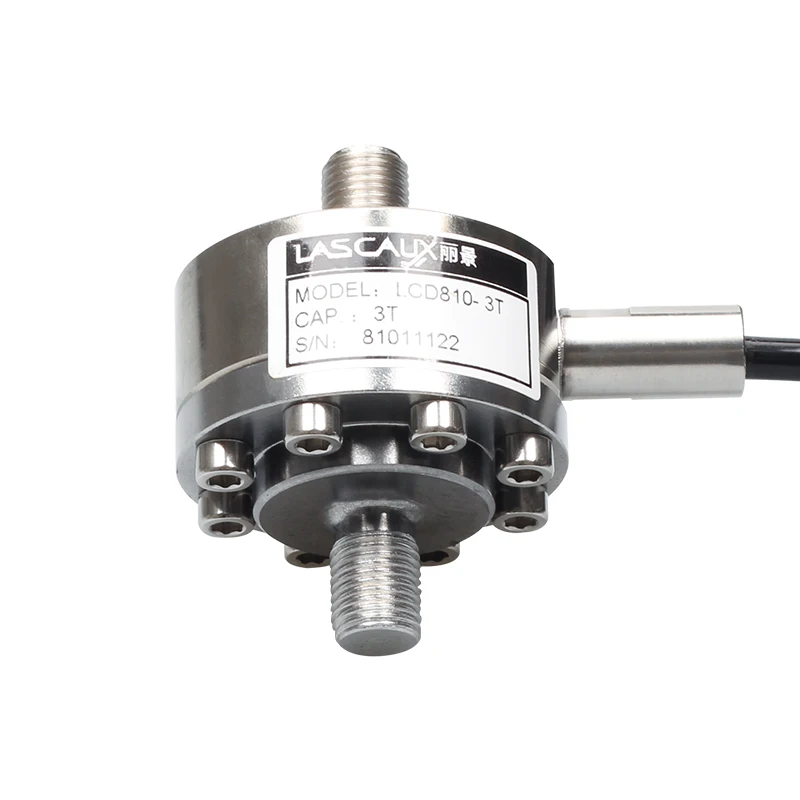

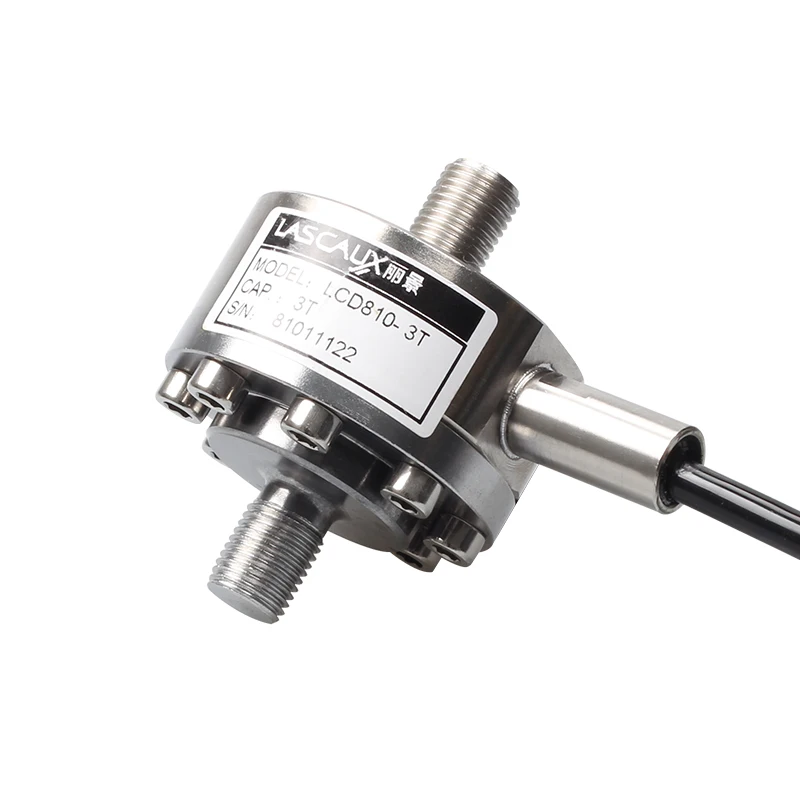

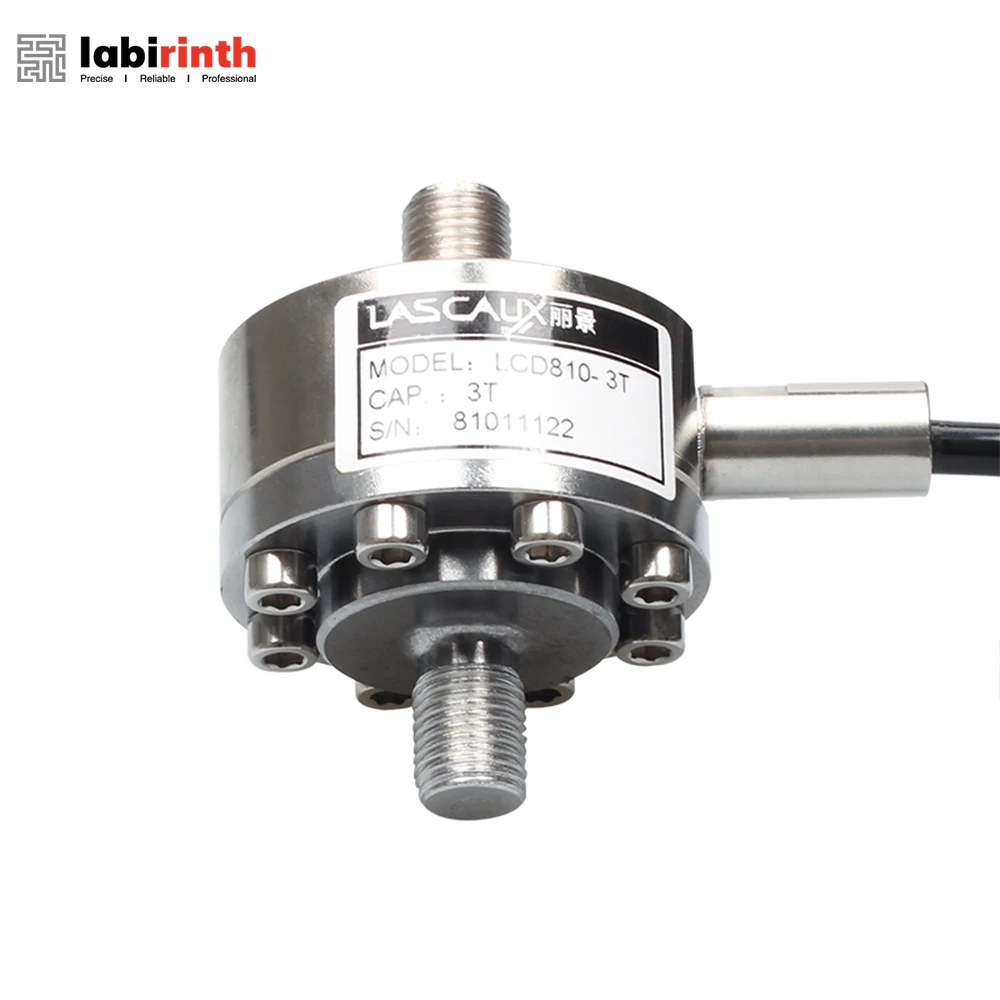

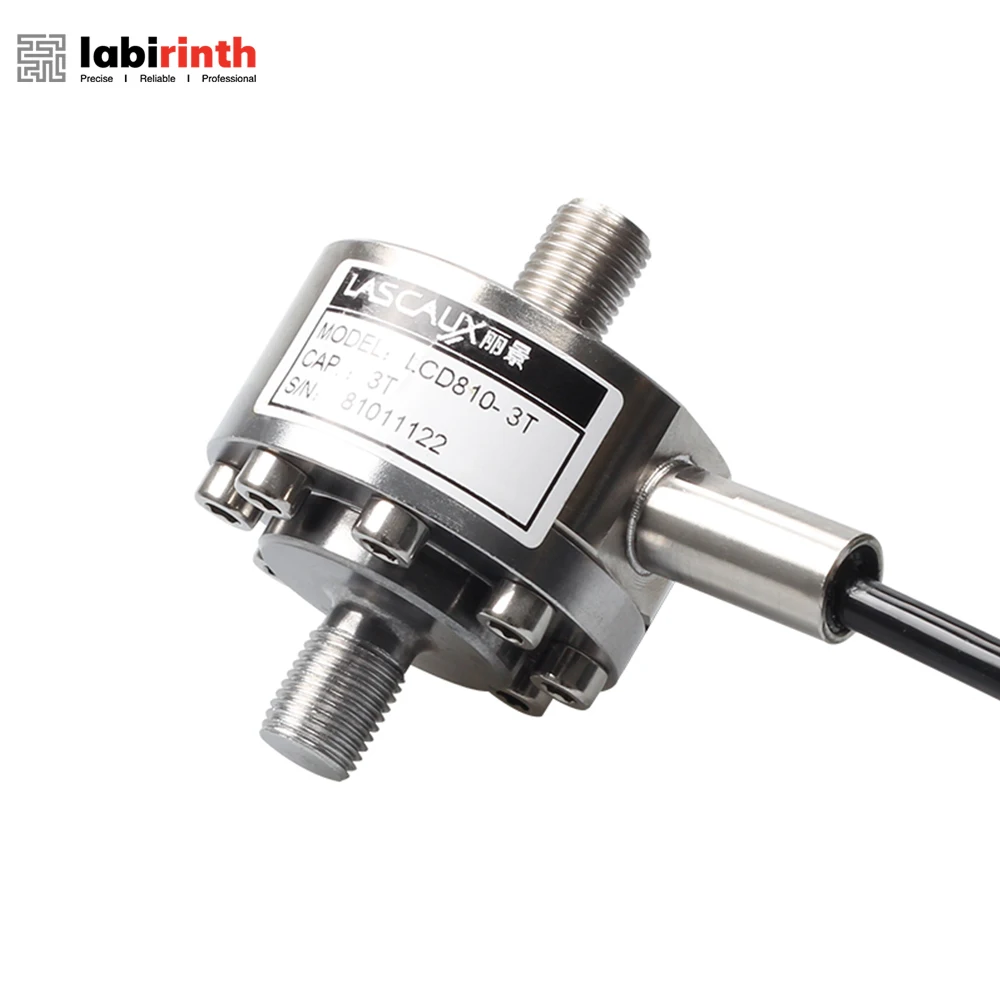

LCD810 Force Transducer
● Alloy Steel Material Structure
● Compact Structure, Easy to Install
● High Precision,High Accuracy
● Compact Structure, Easy to Install
● High Precision,High Accuracy
LCD810 Force Transducer
Description:
2. Compact structure, easy to install
3. Compression and tension load cell
4. Low profile
5. Stainless steel material，Seal by welding
Specifications: | ||||
Rated Load | kg | 100,200,500 | ||
t | 1,2 | |||
Rated Output | mV/V | 1.8~2.0 | ||
Zero Balance | %R.O. | ±1 | ||
Creep after 30 minutes | %R.O. | ±0.1 | ||
Comprehensive Error | %R.O. | ±0.02 | ||
Compensated Temp. Range | ℃ | -10~+40 | ||
Operating Temp. Range | ℃ | -20~+70 | ||
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.05 | ||
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.05 | ||
Recommended Excitation Voltage | VDC | 5-12 | ||
Input impedance | Ω | 770±10 | ||
Output impedance | Ω | 700±5 | ||
Insulation resistance | MΩ | ≥5000（50VDC） | ||
Safe Overload | %R.C. | 150 | ||
Ultimate Overload | %R.C. | 300 | ||
Material | Stainless Steel | |||
Degree of protection | IP66 | |||

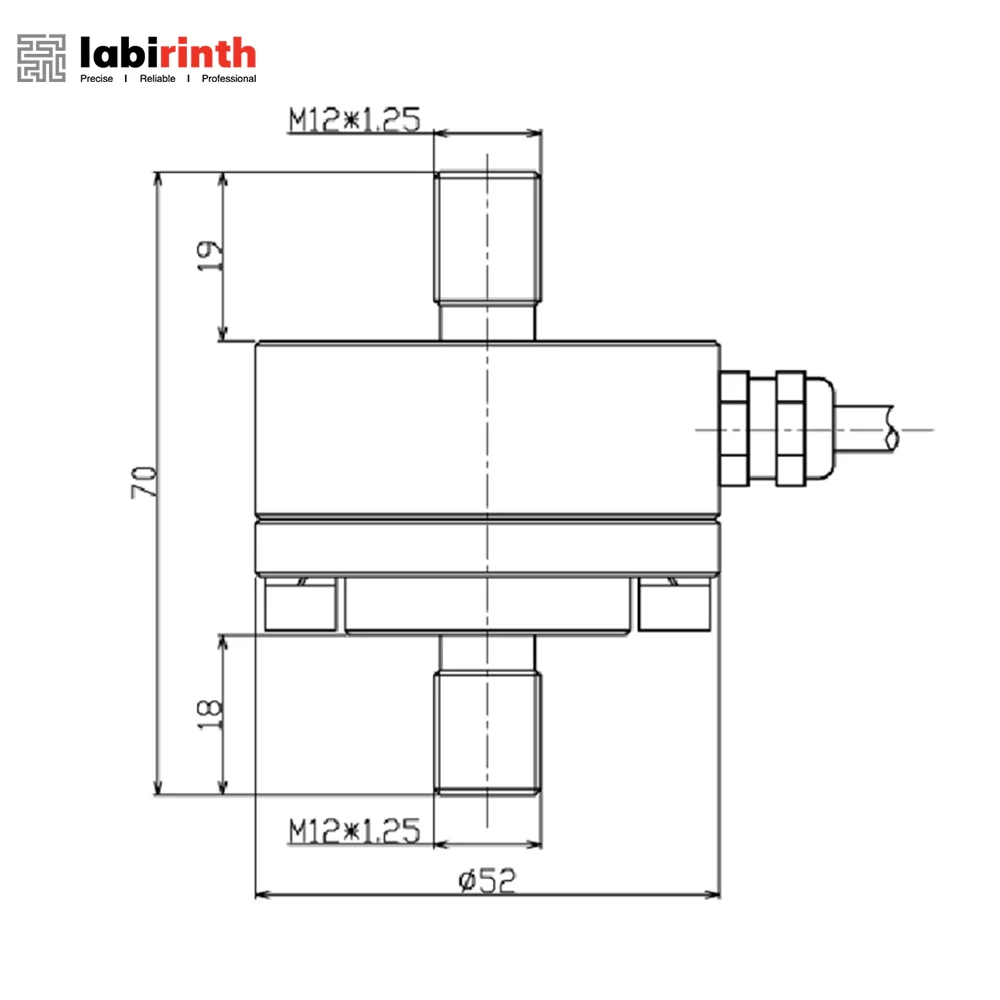

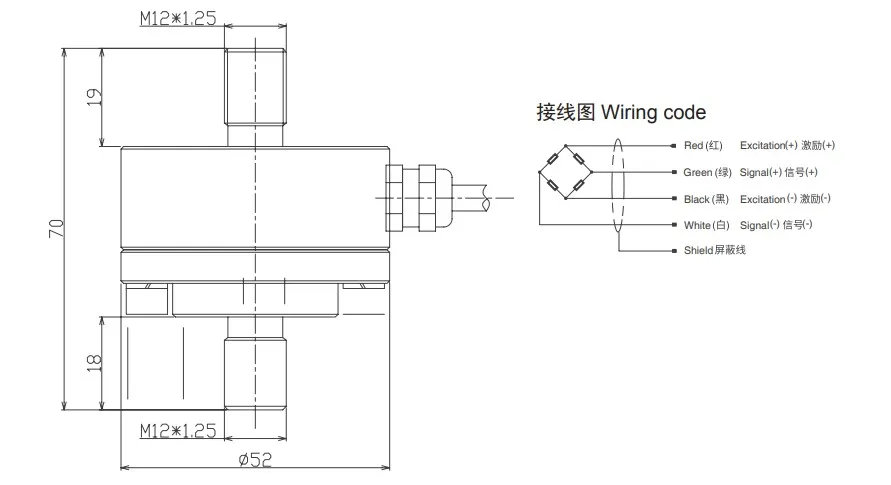

Dimension（in mm）& Capacity & Wiring Code： | ||||

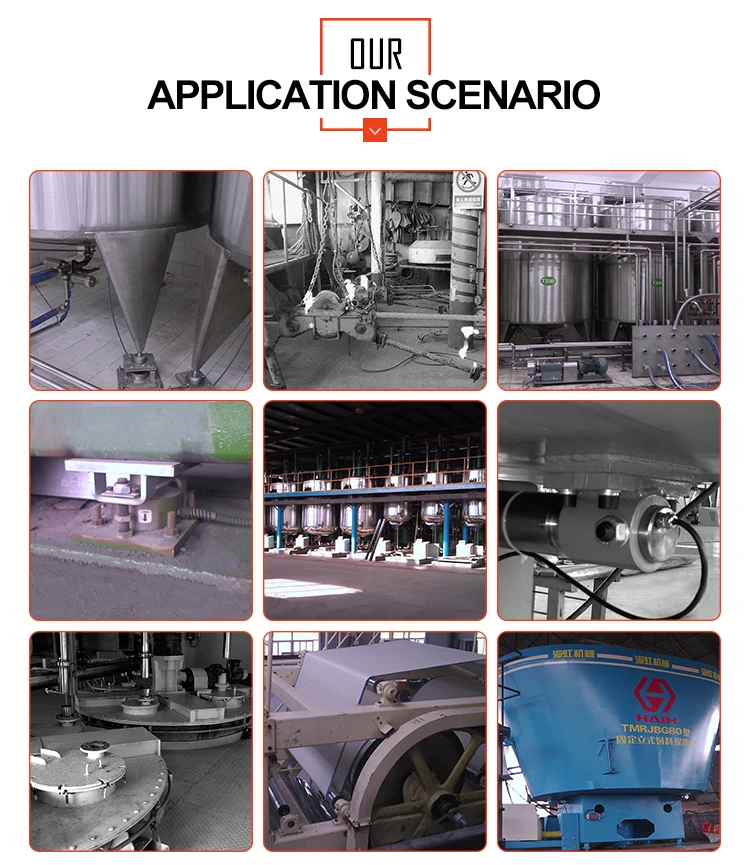

Applications:
Be suitable for a wide range of applications including testing or weighing systems.
Be suitable for a wide range of applications including testing or weighing systems.
Our Services:
Service standards: we are committed to provide a high quality and responsive service to all clients
The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 5 working days to reach from from our side to your side, which is very convenient for your business.
OEM ODM available
OEM ODM available

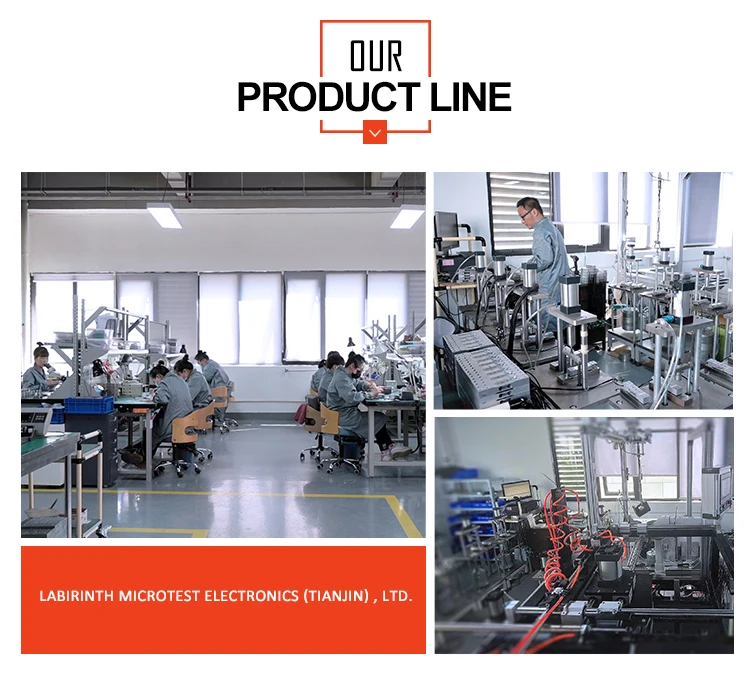

Product Line
