1200 ton machine hydraulic machine press hydraulic
- Category: >>>
- Supplier: Shandong Woda Heavy Machinery Co. Ltd.
Share on (1600668016455):
Product Overview
Description
Product Description

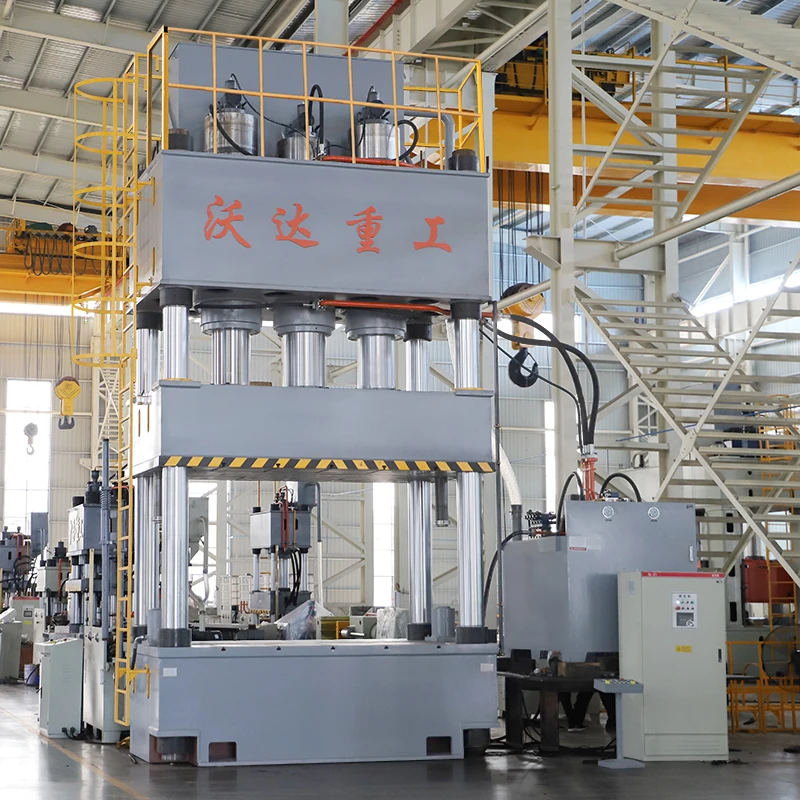

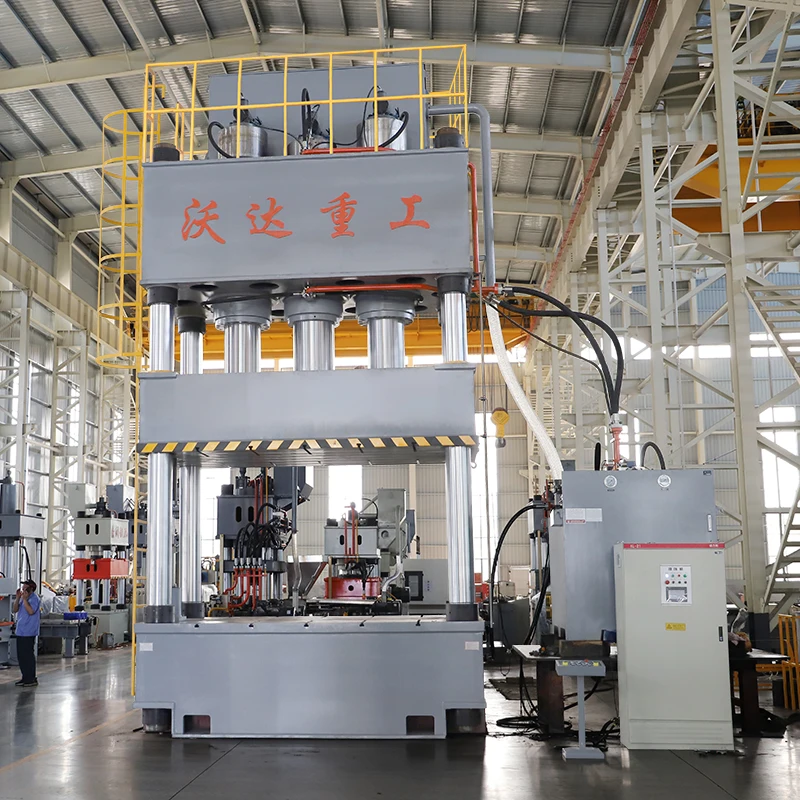

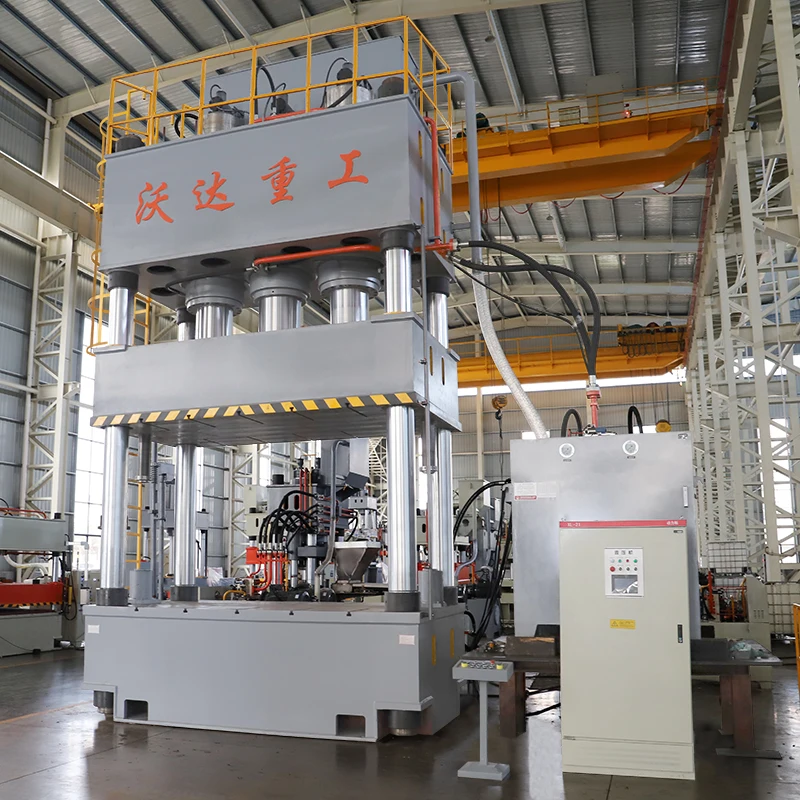

1200 ton machine hydraulic machine press hydraulic:
Characteristics:
1200 ton machine hydraulic machine press hydraulic adopts three cylinder and four column structure.The table is specially manufactured according to the needs of customers, with different tonnage. The hydraulic control adopts the embedded control valve system, which reduces the output point, has reliable action and long service life. It is a development technology of first stabilizing voltage, then stabilizing voltage and second stabilizing voltage. With time delay function, the working pressure path can be adjusted within the specified range, and the button centralized control can realize manual, semi-automatic and automatic three forms.
Specification
1200 ton machine hydraulic machine press hydraulic:
Specification | 800T | 1000T | 1200T | 2000T | ||
Liquid maximum working pressure | 25 | 25 | 25 | 25 | ||
Slider effective stroke(mm) | 900 | 900 | 900 | 900 | ||
Maximum opening height(mm) | 1500 | 1500 | 1600 | 1600 | ||
Working table size(mm) | 1500*1500 | 1500*1500 | 1700*1600 | 2000*2000 | ||
Motor power(kw) | 37*2 | 37*2 | 37*2 | 45*2 | ||
Ejection force(T) | 100 | 100 | 200 | 250 | ||
Ejection stroke(mm) | 350 | 350 | 450 | 450 | ||
Detailed Images
Shot blasting combines three new processes of high pressure vacuuming dough clearance.After the equipment is commissioned,the fuel tank is opened again,and the hydraulic oil flows into the main tank through the high pressure,and the components of each part are cleaned twice.
The cartridge valve is integrated into the system to reduce leakage points,reliable operation and long service life,The two way cartridge valve controls the flow and pressure of the hydraulic oil,and the pressure is stable.
03.HIGH PRESSURE PIPELINE
The use of seamless steel pipe effectively solves the traditional hydraulic oil pipe easy to age,poor pressure resistance.
04.HYDRAULIC PRESS PISTON ROD
Medium-frequency hardening of 45 steel, deepening the material 2-3 mm, making the surface hardness of the piston rod to
55,effective solution to seal ring injury,not easy to scratch.
55,effective solution to seal ring injury,not easy to scratch.
Related Products
Company Profile
Shandong Woda Heavy Industry Machine Tool Co., Ltd. is a company focusing on r&d, design, production and after-sales service of large and medium-sized hydraulic machinery equipment, with an annual output value of 150 million yuan and a workshop of more than 20,000 square meters. Now it has more than 120 employees, including 5 engineers and 2 senior engineers. It has successfully applied for more than 10 national patents, and many papers have been included in EI database by American Engineering Information Company, the most famous information company in the field of engineering and applied science.
Packing & Shipping
FAQ
1.Where is your factory location?
A:Our factory is located in Tengzhou City,Shandong province of China.
A:1200 ton machine hydraulic machine press hydraulic warranty time is 12 months and we can Provide Technical support online service and Machine operation Vedio.We also can provide on-site training and commissioning Video.
3.How about your machine quality?
A:Woda is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
4.Why Choose your company?
A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.
5.What’s your hydraulic press machines minimum order quantity?
A:Our machine generally MOQ is 1 set ,only some lowest price products , we need to order more than 1 set. We will indicate it in our offer.
A:Our machine generally MOQ is 1 set ,only some lowest price products , we need to order more than 1 set. We will indicate it in our offer.
6.What is your trade terms?
A:We accept FOB, CFR,CIF or others terms.
A:We accept FOB, CFR,CIF or others terms.
