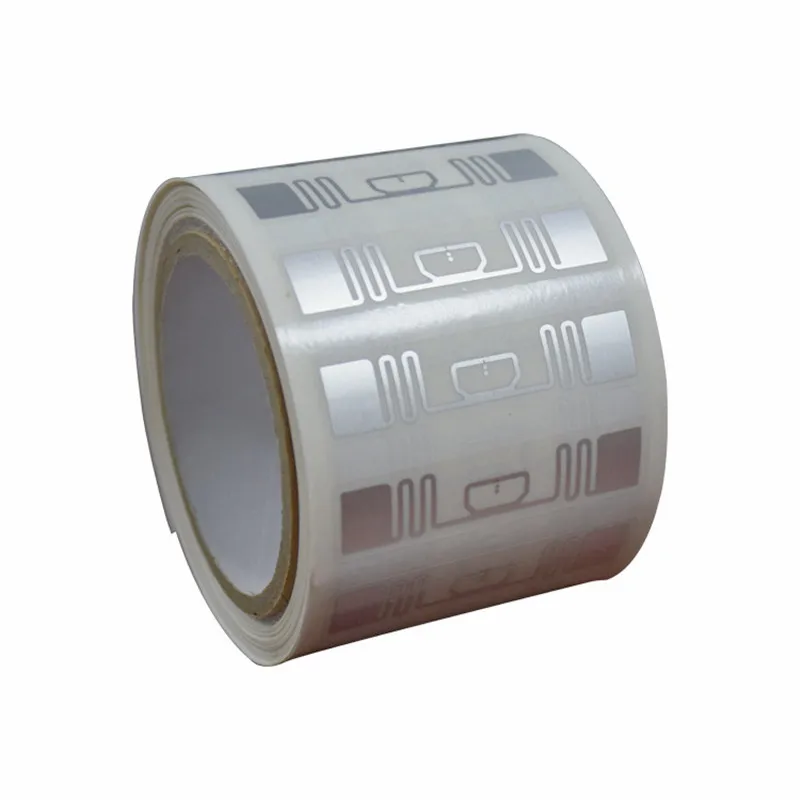

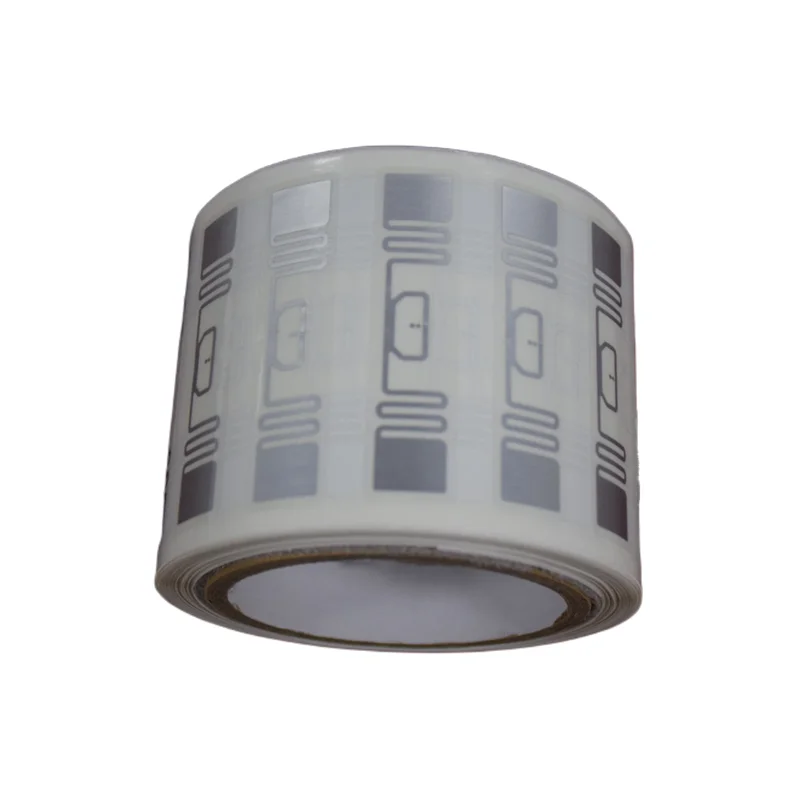

Factory Price Waterproof 73*21MM RFID UHF Tag Label Sticker for Warehouse Management
- Category: >>>
- Supplier: Quanzhou Hecere Electronic Co. Ltd.
Share on (1600668033701):
Product Overview
Description
Features:
UHF tags, realize long reading distance, can be used for warehouse management, logistics management , we provide solutions .
we not only provide tags, but also software
HC-WI-7017
1.Physical Parameters
1.1.3: size
2.Electrical Parameters
Item | Description | Note | |
Manufacturer/Chip | U8 |
| |
Base Material | PET |
| |
Antenna Craft | Aluminum etching (AL 10um) |
| |
Protocol | Global EPC Class1 Gen2 ISO/IEC 18000-6C |
| |
Chip Storage | EPC | 128 Bits | Pre-serialization for 96-bit EPC |
TID | 96 Bits | 48-bit unique serial number factory-encoded into TID | |
Password | 32 bits access code, 32 bits Inactivation code | Read-write | |
Frequency | 860Mhz-960Mhz |
| |
Working Method | Passive |
| |
Working Recycling | >100000 Times | Human body model (HBM) | |
Data Storage | >10 Years | ||
Chip Antistatic (ESD) | 2000V | ||
3.Instructions
3.1
When move tags or use tags, please prevent
them from water. Also, please avoid violent
Impact, squeeze and bend.
3.2
Working Temperature/Humidity: -20℃~50℃/20%~90% RH
Storage Temperature/Humidity: -40℃~70℃/20%~90% RH(Non-condensing)
Best Storage Temperature/Humidity: 20℃~30℃/50%
Storage Time: 2 years (The effect of glue is diminishing start from the second year.)
4.Packing
4.1 Packing quantity: Standard packing is 1000pcs/roll 2000pcs/roll...5000pcs/roll, 8rolls(16rolls)/carton.
4.2 Packing Details:
Each roll has a piece of extra support paper to protect the inlay from falling down during the strong friction and impact.
Pearl cotton is used to wrap the roll of inlay, then the roll will be put into the antistatic packaging bag.
The 8 rolls will be packed by a hard carton.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with trading department
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. Or it is 8-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance.
B: Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
