Factory Price MOA Automatic Zinc Oxide Arrester Comprehensive Tester
- Category: Other Electrical Instruments >>>
- Supplier: Weshine,Electric,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description

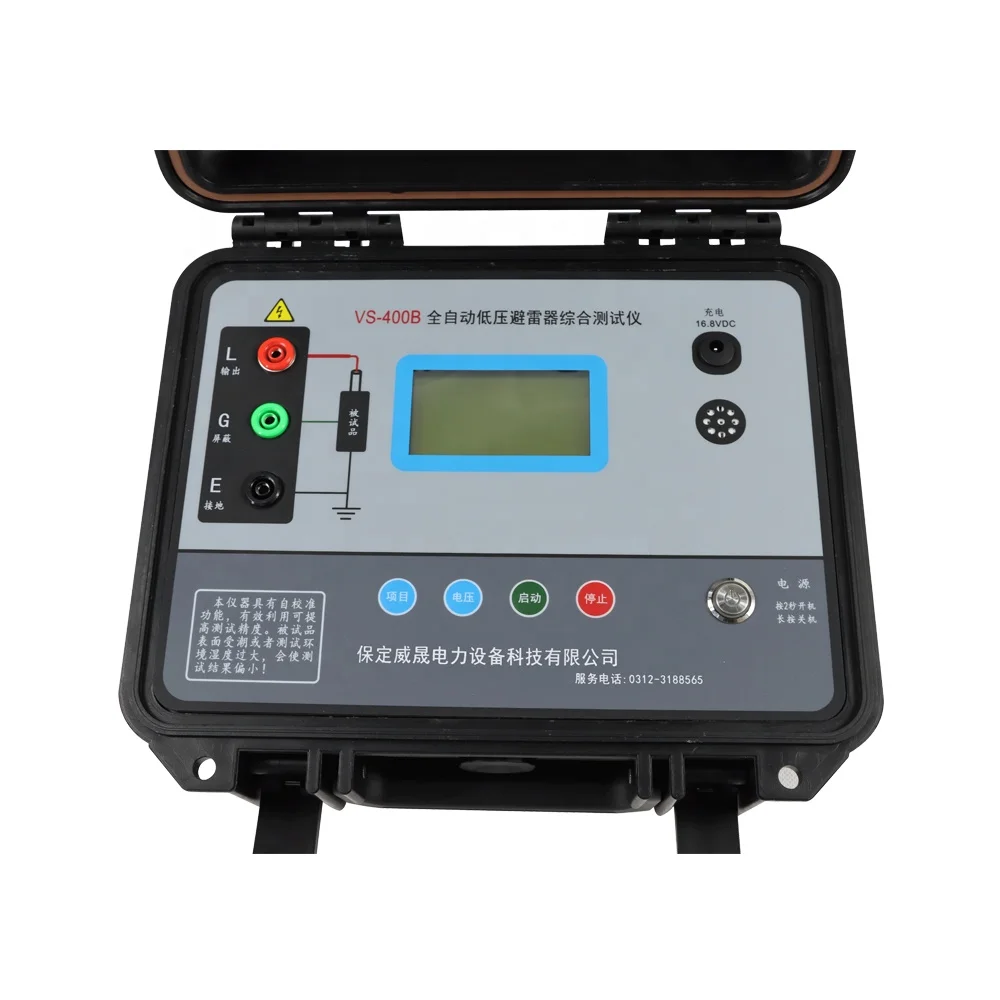

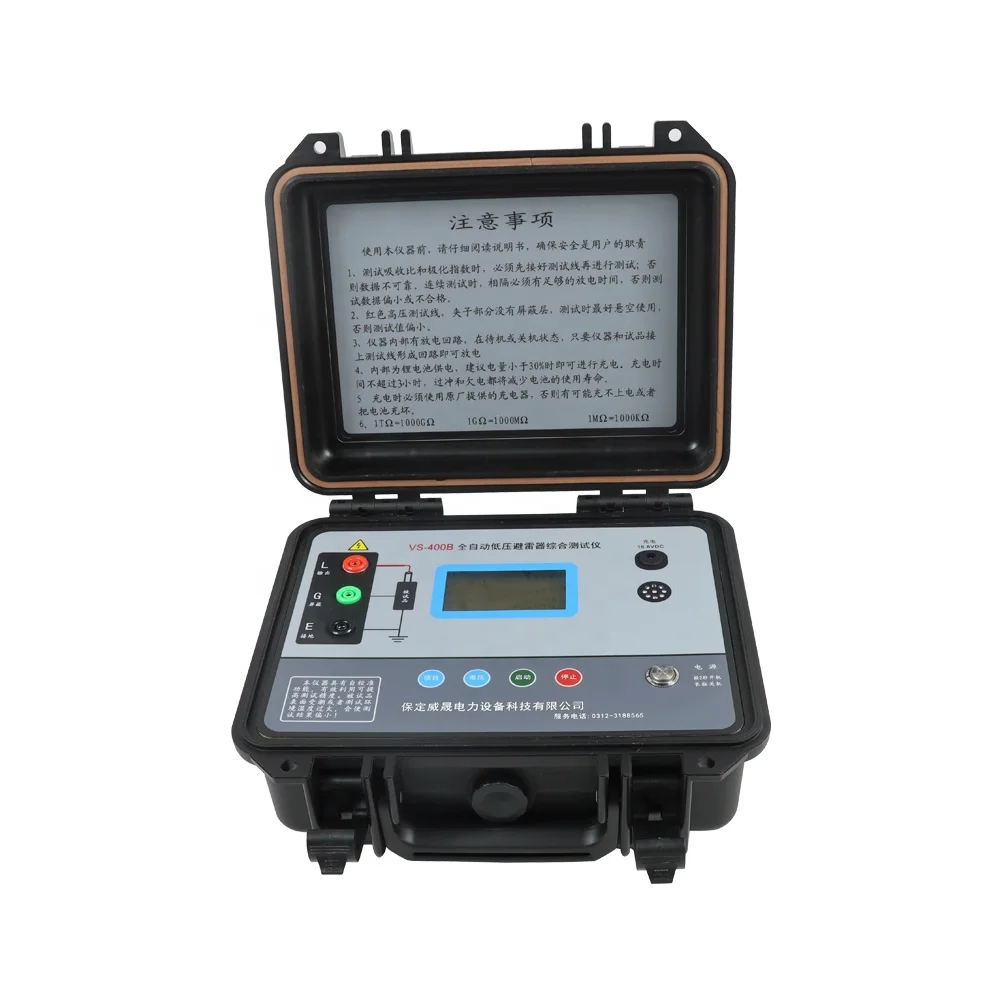

Factory Price MOA Automatic Zinc Oxide Arrester Comprehensive Tester
The MOA Automatic Zinc Oxide Arrester Comprehensive Tester has two main test functions:
Low voltage zinc oxide arrester (MOA) test and insulation resistance test.
MOA test can automatically test the zinc oxide arrester with voltage less than 4000V at 1mA;
Insulation resistance test includes absorption ratio, polarization index, rapid test, insulation test, in the laboratory for verification, please select the QUICK TEST option.
Features
1. This MOA Automatic Zinc Oxide Arrester Comprehensive Tester can be widely used in equipment maintenance of substations and power plants, and to measure insulation resistance, absorption ratio and polarization index of high-voltage electrical equipment such as transformers, reactors, capacitors, and circuit breakers. The leakage current of the low-voltage arrester of the power distribution cabinet is automatically tested.
2. The MOA Automatic Zinc Oxide Arrester Comprehensive Tester is controlled by a microcomputer and has a full Chinese operation interface. It can automatically complete the MOA test, the absorption ratio of the insulation resistance, and the polarization index test; it has functional options such as withstand voltage test and rapid test.
3. During the test and after the test is over, press the [↑] key to save the data; after each automatic test, if the test data is valid, the system will automatically save it.
4. The instrument has its own clock and temperature and humidity test functions, which can save 100 sets of MOA test data and 100 sets of insulation resistance test data.
5. The output power is large, and the short-circuit current is greater than 5mA, that is, the charging current to the load is 5mA.
6. The use of new circuit design and the introduction of digital filtering technology has strong anti-interference ability and is suitable for complex high-voltage field measurements.
7. Electromagnetic compatibility design, strong impact resistance, safety plastic case, easy to carry. Built-in large-capacity 2600mAh lithium battery. Intelligent charging circuit, long battery life.
8. With automatic discharge function after the test, there are voice and text information prompts during the discharge process. The time to discharge to 60V is less than 10 seconds.
9. Using 128*64 dot matrix graphic LCD display, with green backlight, not affected by light, making the reading clearer.
10. The meter will automatically shut down if there is no action for 10 minutes.
2. The MOA Automatic Zinc Oxide Arrester Comprehensive Tester is controlled by a microcomputer and has a full Chinese operation interface. It can automatically complete the MOA test, the absorption ratio of the insulation resistance, and the polarization index test; it has functional options such as withstand voltage test and rapid test.
3. During the test and after the test is over, press the [↑] key to save the data; after each automatic test, if the test data is valid, the system will automatically save it.
4. The instrument has its own clock and temperature and humidity test functions, which can save 100 sets of MOA test data and 100 sets of insulation resistance test data.
5. The output power is large, and the short-circuit current is greater than 5mA, that is, the charging current to the load is 5mA.
6. The use of new circuit design and the introduction of digital filtering technology has strong anti-interference ability and is suitable for complex high-voltage field measurements.
7. Electromagnetic compatibility design, strong impact resistance, safety plastic case, easy to carry. Built-in large-capacity 2600mAh lithium battery. Intelligent charging circuit, long battery life.
8. With automatic discharge function after the test, there are voice and text information prompts during the discharge process. The time to discharge to 60V is less than 10 seconds.
9. Using 128*64 dot matrix graphic LCD display, with green backlight, not affected by light, making the reading clearer.
10. The meter will automatically shut down if there is no action for 10 minutes.
Specification
item | value |
Place of Origin | China |
Product Name | MOA Automatic Zinc Oxide Arrester Comprehensive Tester |
Brand Name | Weisheng |
Model Number | VS-400B |
Display Type | Digital Only |
Measuring Range | 0~50GΩ |
Accuracy Class | High |
Supply Voltage | DC16.8V/2600mAh |
Operating Temperature | -10℃~50℃ |
Dimensions | 430mm(L)*320mm(W)*180mm(H) |
Weight | 6.3Kg |
Output Voltage | 500V,1000V,2500V,5000V |
Output Voltage Resolution | 0.1V |
Output Voltage Accuracy | ±5% |
Current Range | 0-5000μA |
Current Resolution | 1μA |
Current Accuracy | ±0.5% |
Charger Input Voltage | 140VAC~240VAC,50-60Hz |
Relative Humidity | ≤90%RH |
Warranty | 1 Year |
Main
1. Output voltage: 500V, 1000V, 2500V, 5000V. Resolution: 0.1V, output error: ±5%.
2. Current measurement error: ±0.5%, minimum resolution 1μA. Measuring range: 0-5000μA.
3. Rated working conditions: Rated storage conditions:
2. Current measurement error: ±0.5%, minimum resolution 1μA. Measuring range: 0-5000μA.
3. Rated working conditions: Rated storage conditions:
Ambient temperature: 0℃~40℃ Ambient temperature: -10℃~+50℃
Relative humidity: 20%~90%RH, no condensation. Relative humidity: ≤90%RH, no condensation.
4. Power supply:
Internal power supply: DC16.8V/ 2600mAh;
External power supply: charger input voltage 140VAC~240VAC 50-60Hz. Output voltage: 16.8VDC/1A.
5. Dimensions: 285mm×247mm×120mm. Weight of the instrument: 2.5kg. Whole machine weight: 6.3kg
Relative humidity: 20%~90%RH, no condensation. Relative humidity: ≤90%RH, no condensation.
4. Power supply:
Internal power supply: DC16.8V/ 2600mAh;
External power supply: charger input voltage 140VAC~240VAC 50-60Hz. Output voltage: 16.8VDC/1A.
5. Dimensions: 285mm×247mm×120mm. Weight of the instrument: 2.5kg. Whole machine weight: 6.3kg
Measuring range and accuracy:
(when the measured resistance is less than 10MΩ, it is normal for the voltage to drop)
Rated voltage | Measuring range | ||
500V | Measuring range：0～50GΩ; Extend the measurement range to：100GΩ | ||
±（5%+5dgt）. (0～9.99GΩ ) | |||
±（10%+5dgt）. (10.0GΩ～39.9GΩ ) | |||
±（20%+5dgt）. (40.0GΩ～100GΩ ) | |||
1KV | Measuring range：0～100GΩ; Extend the measurement range to：200GΩ | ||
Measuring range | ±（5%+5dgt）. (0～19.9GΩ ) | ||
±（10%+5dgt）. (20.0GΩ～79.9GΩ ) | |||
±（20%+5dgt）. (80.0GΩ～200GΩ) | |||
2.5KV | Measuring range：0～250GΩ; Extend the measurement range to：500GΩ | ||
Measuring range | ±（5% +5dgt）. (0～49.9GΩ) | ||
±（10% +5dgt）. (50.0GΩ～199GΩ) | |||
±（20% +5dgt）. (200GΩ～500GΩ) | |||
5KV | Measuring range：0～500GΩ ; Extend the measurement range to：1000GΩ | ||
Measuring range | ±（5% +5个5dgt）. (0～99.9GΩ ) | ||
±（10% +5dgt）. (100GΩ～199GΩ ) | |||
±（20% +5dgt）. (200GΩ～1000GΩ ) | |||
