High Power 160W Blue & White Dual Color COB for Fishing Light
- Category: >>>
- Supplier: Shenzhen Getian Opto- Electronics Co. Ltd.
Share on (1600668069728):
Product Overview
Description

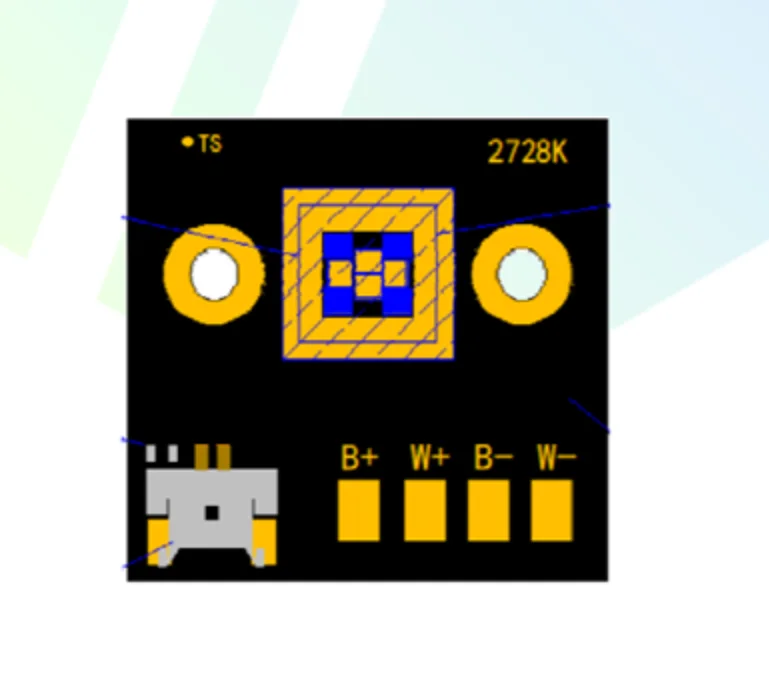

High Power 160W Blue & White Dual Color COB for Fishing Light
Product Description
This 160W Blue & White LED are Safe, reliable, thermoelectric separated
Ceramic base with bare Osram vertical chips mounted, multiple gold wires bonded
High heat conductivity red copper substrate
High-temperature eutectic welding technique
Reliable raw materials applied with super-fast heat transfer
Patented phosphor coating technology
Outstanding Projecting Performance
Flexible Application Features
Equipped with temperature sensor and quick connector
Features:
• Highly compact led modules with Blue & White Color
• High current operation: up to 6V@10 A*2
• High power & lux density, 160W
• Available in Blue 450-460nm & White 3000K 3700K 4000K
• Window protected package design improves optical coupling efficiency
• Low thermal resistance chip-on-board packaging technology.
• Environmentally friendly, compliant with RoHS and REACH requirements
Applications:
- LED Fishing lights
- Stage and Entertainment spotlights, narrow beam projectors
Specifications:
Other Blue + White LED List for Fishing Light, Stage Light
20W, 30W, 40W, 60W, 80W, 120W, 135W, 160W, 200W LED Blue & White
| Product Model | Power (W) | VF (V) | IF (A) | Max Current (A) | CCT (K) | CRI | φ (lm) |
| GT-PST20W3B47070C-2728G | 20 | 3-4 | 3 | 3 | 3600-3800 | 65 | 600-800 |
| 3-4 | 3 | 3 | 450-460 | / | |||
| GT-PST20W3B47070C-2728H | 20 | 6-7 | 1.5 | 1.5 | 2800-3000 | 65 | 600-800 |
| 6-7 | 1.5 | 1.5 | 450-460 | / | |||
| GT-PST30W3B47070C-2728G | 30 | 3-4 | 5 | 5 | 3600-3800 | 65 | 1200-1400 |
| 3-4 | 5 | 5 | 450-460 | / | |||
| GT-PST40W3B47070C-2728G | 40 | 3-4 | 6 | 6 | 3600-3800 | 65 | 1200-1400 |
| 3-4 | 6 | 6 | 450-460 | / | |||
| GT-PST40W3B47070C-2728H | 40 | 6-7 | 3 | 3600-3800 | 1200-1400 | ||
| 6-7 | 3 | 450-460 | |||||
| GT-PST60W3B47070C-2728G | 60 | 3-4 | 10 | 3600-3800 | 2200-2400 | ||
| 3-4 | 10 | 450-460 | |||||
| GT-PST60W3B47070C-2728H | 60 | 6-7 | 5 | 5 | 3600-3800 | 65 | 2000-2400 |
| 6-7 | 5 | 5 | 450-460 | / | |||
| GT-PST80W3B47070C-2728H | 80 | 6-7 | 6 | 6 | 3600-3800 | 65 | 2200-2400 |
| 6-7 | 6 | 6 | 450-460 | / | |||
| GT-PST120W3B41313D-3236D | 120 | 6-7 | 9 | 9 | 3600-3800 | 65 | 5000-5500 |
| 6-7 | 9 | 9 | 450-460 | / | |||
| GT-PST120W3B41010B-2728K | 120 | 6-7 | 10 | 10 | 3600-3800 | 65 | 5000-5500 |
| 6-7 | 5 | 5 | 450-460 | / | |||
| GT-PST135W3B41111B-4036F | 135 | 9-11 | 10 | 10 | 3600-3800 | 65 | 3200-3500 |
| 9-11 | 5 | 5 | 450-460 | 1 | |||
| GT-PST160W3B41010B-2728K | 160 | 6-7 | 10 | 10 | 3600-3800 | 65 | 5000-5500 |
| 6-7 | 10 | 10 | 450-460 | / | |||
| GT-PST200W3B41010F-2728O | 200 | 6-7 | 12 | 12 | 3600-3800 | 65 | 6000-7000 |
| 6-7 | 12 | 12 | 450-460 | / |
