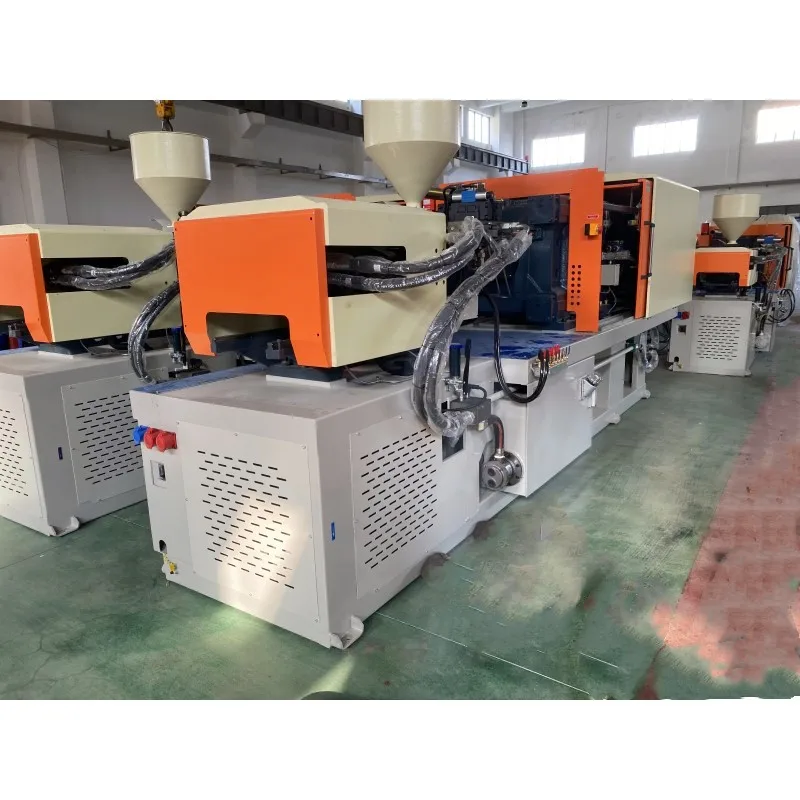

plastic toothpick tableware storage container cutlery plastic making SAILAI 238 TON injection molding moulding machine
- Category: >>>
- Supplier: Ningbo,Sailai,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

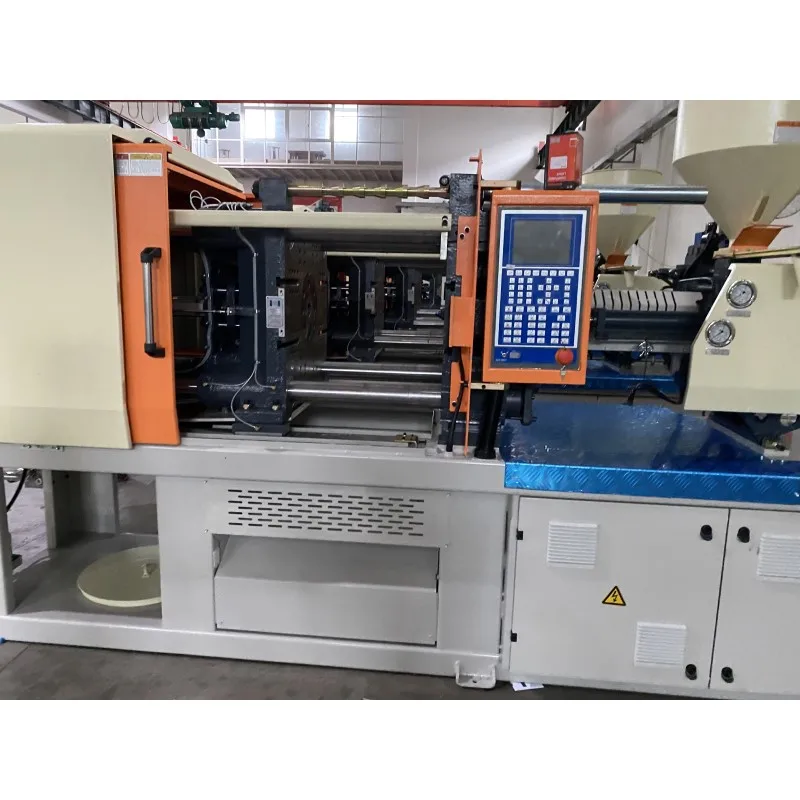

plastic toothpick tableware storage container cutlery plastic making SAILAI 238 TON injection molding moulding machine
MACHINE MODEL | SLA108 | ||||
INJECTION UNIT | A | B | C | ||
SCREW DIAMETER （MM） | 45 | 50 | 55 | ||
SCREW L/D RATIO （L/D） | 24.4 | 22 | 20 | ||
INJECTION PRESSURE（Mpa） | 219 | 178 | 147 | ||
SHOT VOLUME（CM³） | 398 | 491 | 594 | ||
INJECTION WEIGHT (G) | 362 | 447 | 541 | ||
INJECTION RATE(CM³/S) | 153 | 189 | 229 | ||
SCREW SPEED(RPM) | 200 | ||||
INJECTION STROKE(MM) | 250 | ||||
CLAMPING UNIT | |||||
CLAMPING FORCE(KN) | 2380 | ||||
TOGGLE STROKE(MM) | 475 | ||||
SPACE BETWEEN TIE-BARS(MM) | 520X520 | ||||
MAX.MOLD HEIGHT(MM) | 560 | ||||
MIN.MOLD HEIGHT(MM) | 200 | ||||
EJECTOR STROKE(MM) | 150 | ||||
EJECTOR TONNAGE(KN) | 71 | ||||
OTHERS | |||||
MAX.PUMP PRESSURE（Mpa） | 16 | ||||
SERVO MOTOR POWER(KW) | 22 | ||||
HEATER POWER(KW) | 12 | ||||
HEATING SECTION(part) | 3+1 | ||||
OILTANK CUBAGE(L) | 300 | ||||
MACHINE DIMENSIONS(M) | 5.6X1.4X2.3 | ||||
MACHINE WEIGHT(T) | 5.6 | ||||
