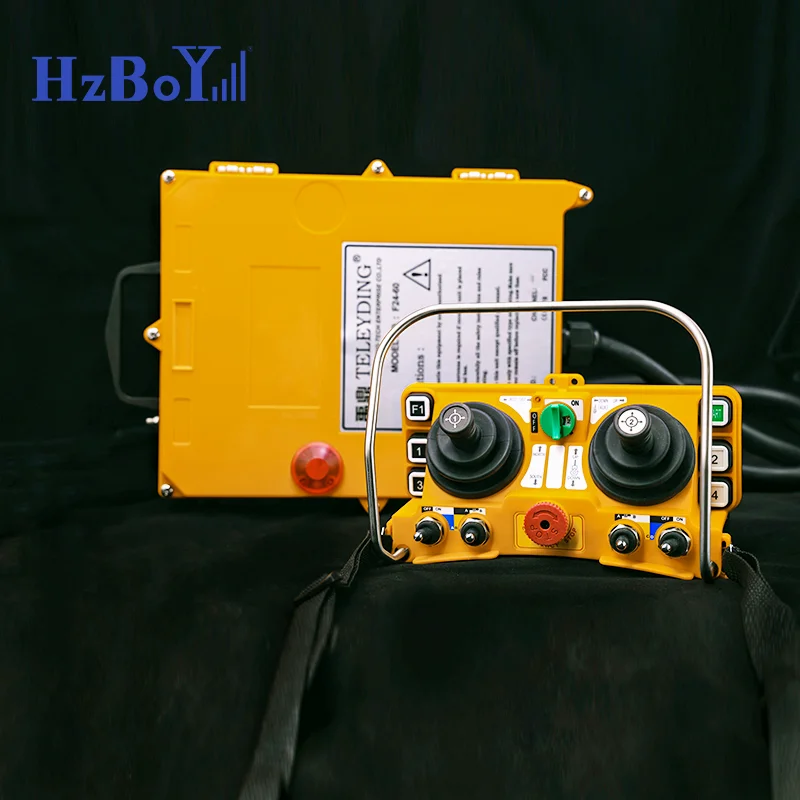

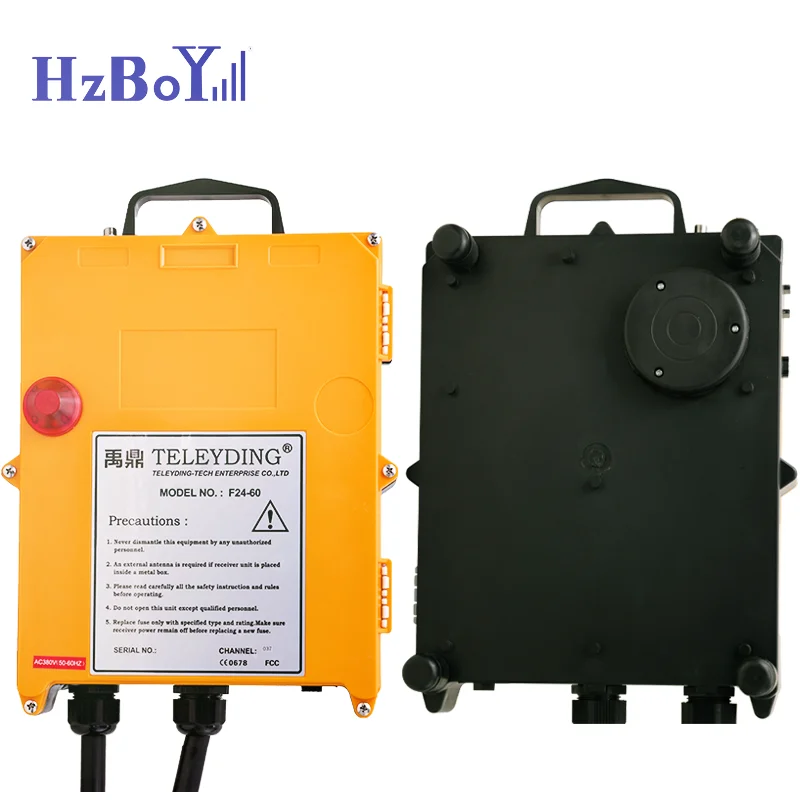

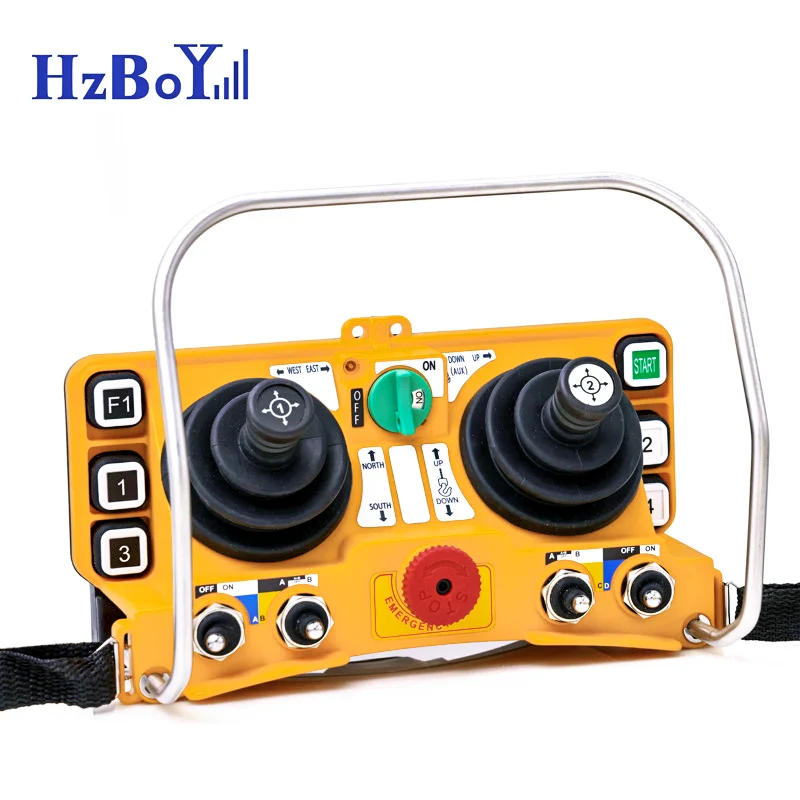

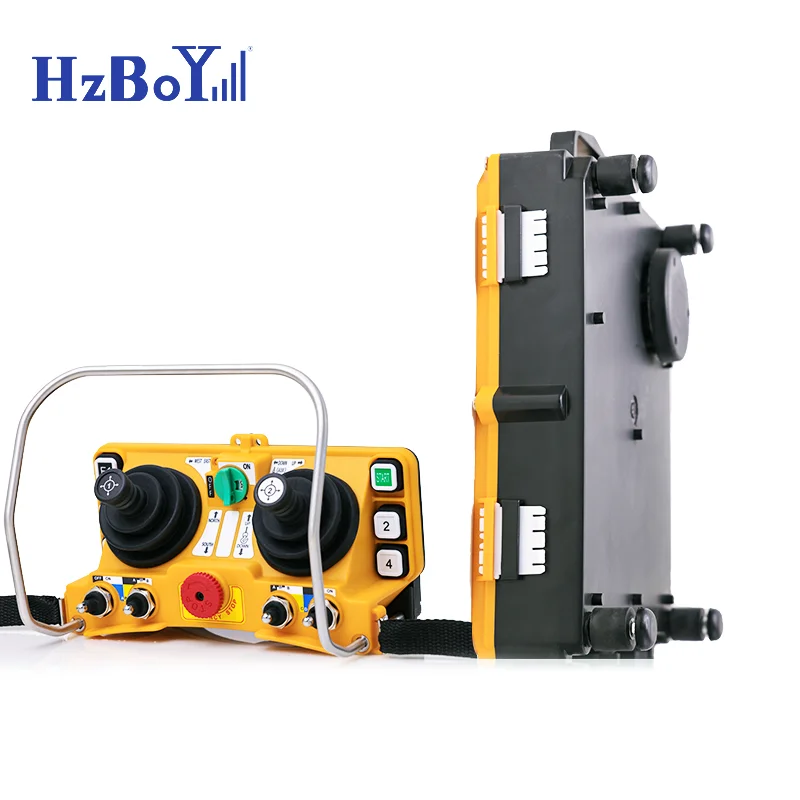

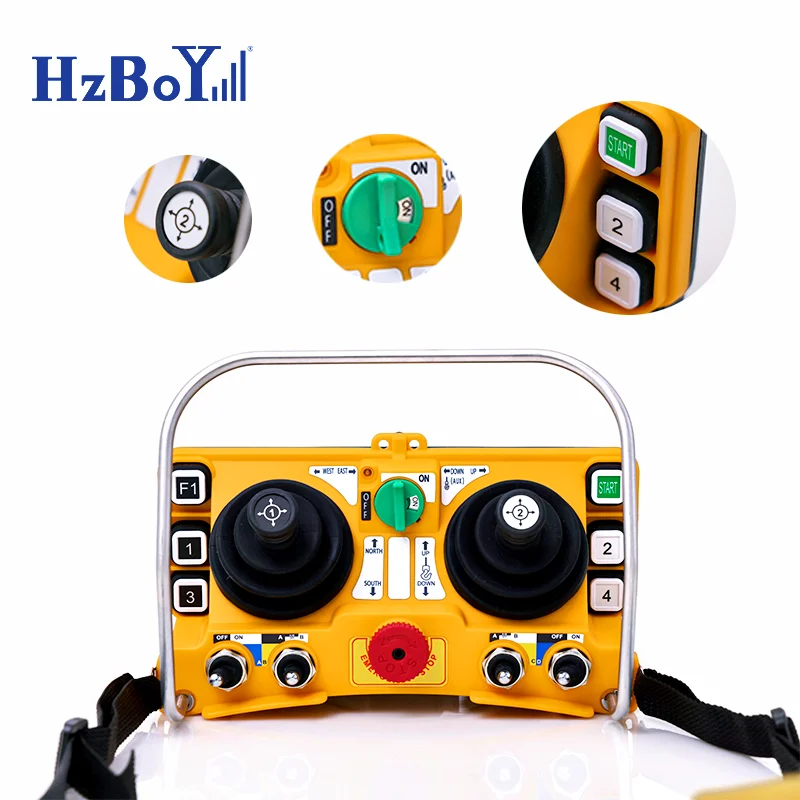

F24 60 Telecrane Joystick Wireless Remote Control Transmitter Receiver For Drilling
- Category: >>>
- Supplier: Yuding (Shenzhen) Technology Co. Ltd.
Share on (1600668391039):
Product Overview
Description
Specification
F24-60A
Upgraded version, the joystick and gear are made of metal, flexible operation, clear gear, more durable, long service life, not easy to damage！
High sensitivity, fast response, normal use in rainy days, improved production efficiency, and more security
1. 6 function buttons, 4 three-position or two-position rotating switch, stop, rotary start switch 2 five-step joysticks with 10
million times of mechanical life and pure proportion.
2. Control contact is up to 40.
3. With battery voltage warning device, the power supply is cut off during low power.
4. Safety switch key is to prevent from unauthorized user.
5. Program the button function by computer software.
6. The spare buttons can be programmed to normal, toggle, interlock or start, etc.
7. Start button can be program to be start, normal, toggle function etc.
8. Installed with proportional module for analog signal output (optional)
1. 6 function buttons, 4 three-position or two-position rotating switch, stop, rotary start switch 2 five-step joysticks with 10
million times of mechanical life and pure proportion.
2. Control contact is up to 40.
3. With battery voltage warning device, the power supply is cut off during low power.
4. Safety switch key is to prevent from unauthorized user.
5. Program the button function by computer software.
6. The spare buttons can be programmed to normal, toggle, interlock or start, etc.
7. Start button can be program to be start, normal, toggle function etc.
8. Installed with proportional module for analog signal output (optional)
Safety code | 32 bits (4.3 billion) |
Frequency range | VHF: 310~331MHz; UHF: 425~446MHz |
Transmitted power | ≤10dBm |
Place of Origin | China |
Material | Plastic And Silicone |
Code | Copy Code Optional |
Transmitter power supply | 4 AA batteries |
Function | Waterproof, Anti shock, Protective, Shockproof, Single Speed, Adjustable, Wireless Control, Portable, Universal Remote, Temperature |
Usage | Industrial Equipment |
Application | Industrial |
Frequency | 315MHz /433MHz |
Voltage | DC12-24V/AC36-440V/12-600V |
Warranty | 12 Months Gurantee |
Channel | 80-100 Channel |
Distance | 100/150/300m |
Custom Key Function&Number | Fully Customized |
MOQ | 2 PCS |
Custom Service | Logo Custom |
Product Description
