Reverse Osmosis Industrial Commercial Mineral Pure Water Purification System Filter Machine Ro Reverse Osmosis System

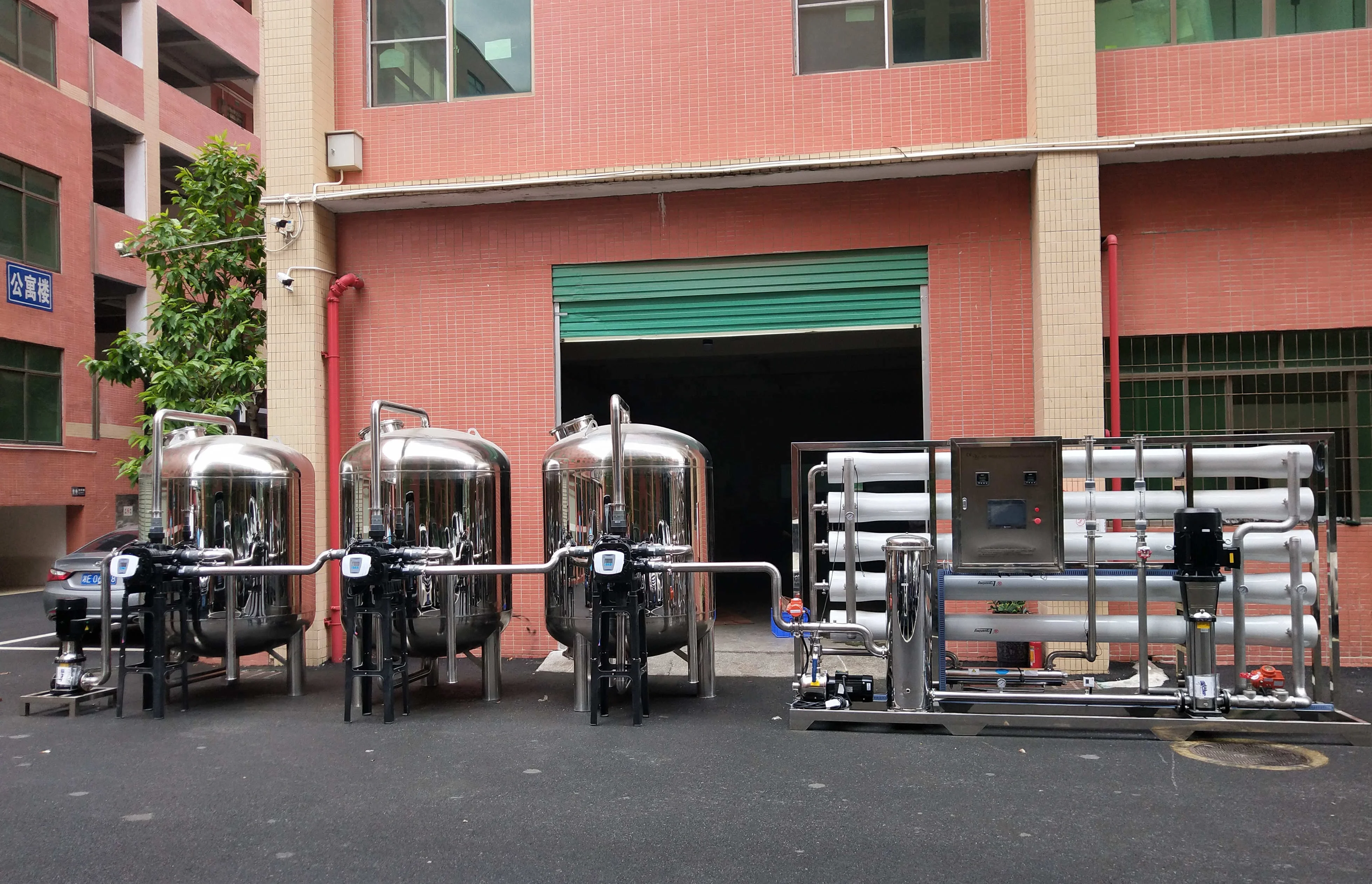

Machine Photo
Products Description
A.Description of ro water system
Reverse Osmosis or (RO) can be described as a procedure whereby pure water and contaminants is divided via a semi-permeable membrane(s) with very fine pores. This method is a necessary technique employed in the majority of water purification systems. Reverse Osmosis is considered to be a highly effective approach to eliminating water impurities, such as Toxic Heavy Metals i.e. Lead and Radium, Mercury, Chlorinated Pesticides, organic matters, Turbidity & Dissolved Solids, bacteria, virus.
RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water, power stations, electronic industries, cosmetics production, pharmaceuticals factories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.
RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water, power stations, electronic industries, cosmetics production, pharmaceuticals factories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.
B.Main Parameters of the Reverse Osmosis System

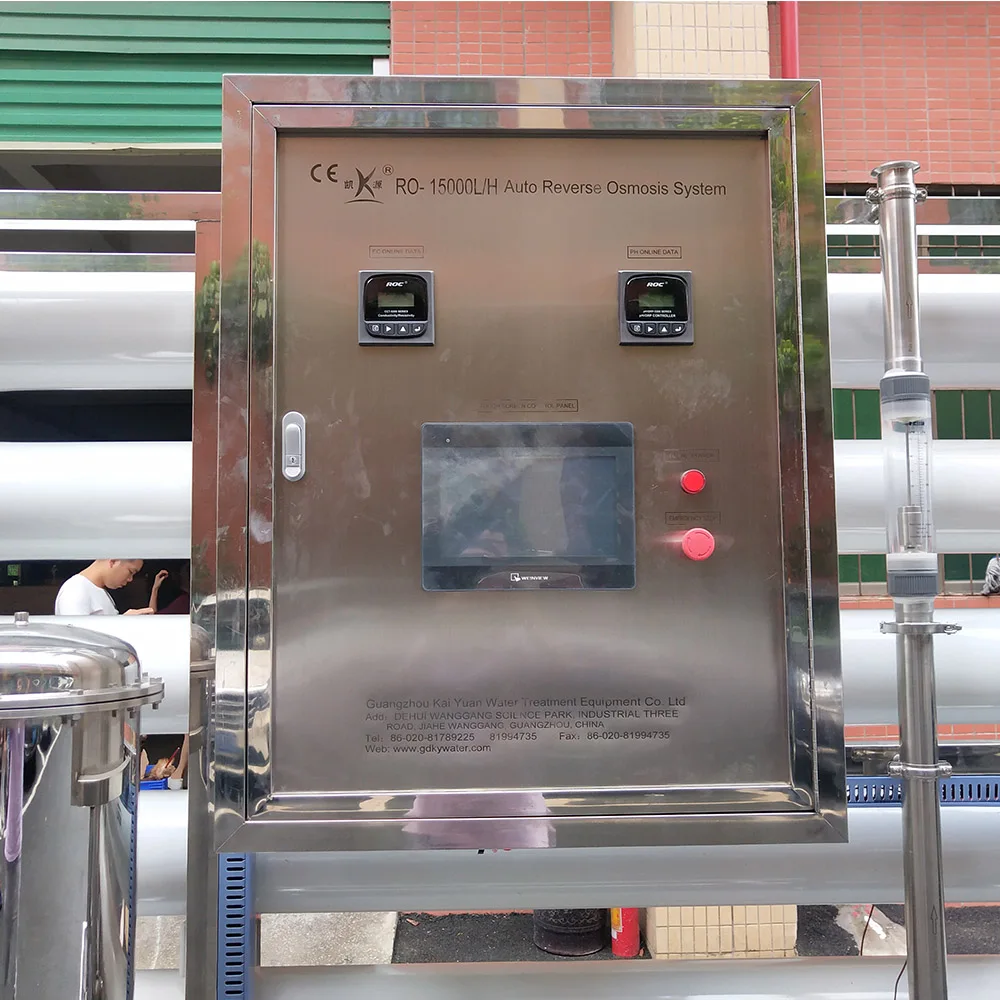

Model | KYRO-15000 |
Production capacity | 15000L/H |
Power | About 19kw |
RO membrane | USA RO membrane 8040 |
Power supply | AC 380V 50Hz 3phase or 220V 50hz single phase |

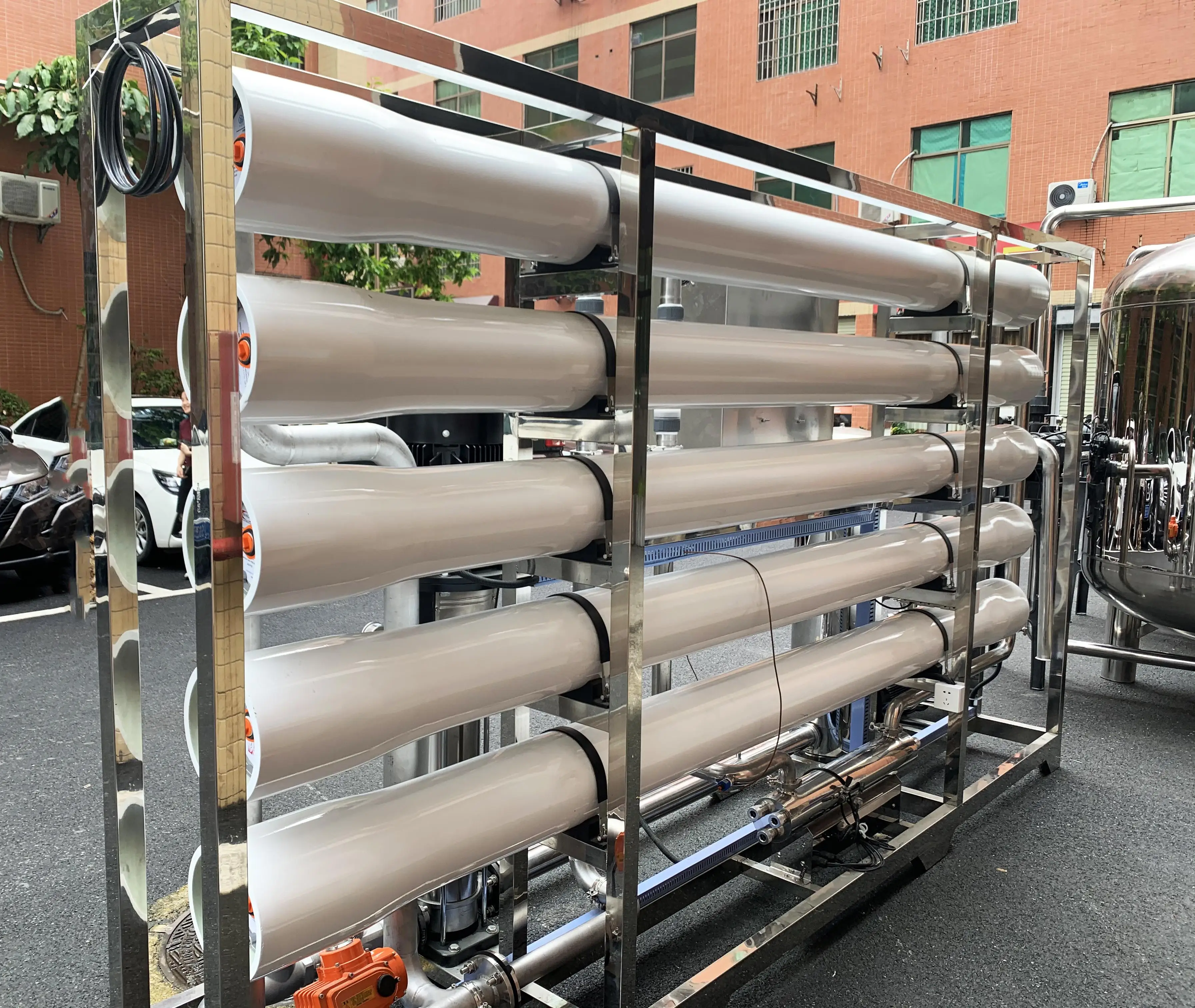

Membrane housing | FRP, 8040, 4pcs |
Raw water pump | Nanfang pump |
Quartz sand filter Activated carbon filter Control valve | FRP; Quartz sand FRP ;Activated carbon Automatic control valve |
Security filter | 30″×5μm , 12pcs |
High pressure pump | Nanfang pump |
Desalination rate | 97% - 99% |
Recovery rate | 50%-75% |
Size (mm) | main machine: 4000*1800*2500mm |
Material | FRP+SUS304+PVC |
Certificate | CE&ISO9001 |
Warranty | One year |
C.Every part of the reverse osmosis system
S/N. | Commodity name | Application | Remark |
1 | Raw water tank | Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system | Customer provide for themselves, because big size will result in expensive freight |
2 | Raw water pump or called booster pump | Provide needed pressure for every pretreatment filter | We can provide CNP pumps or USA pumps |

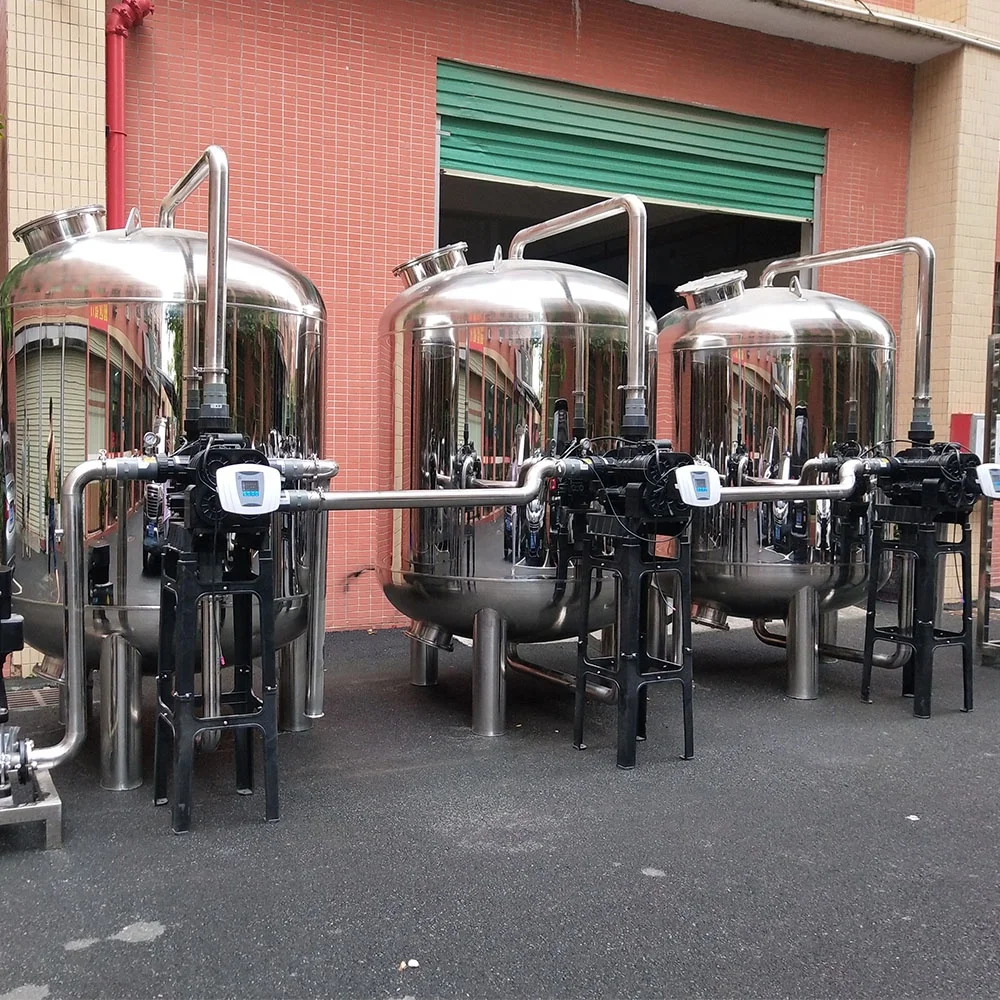

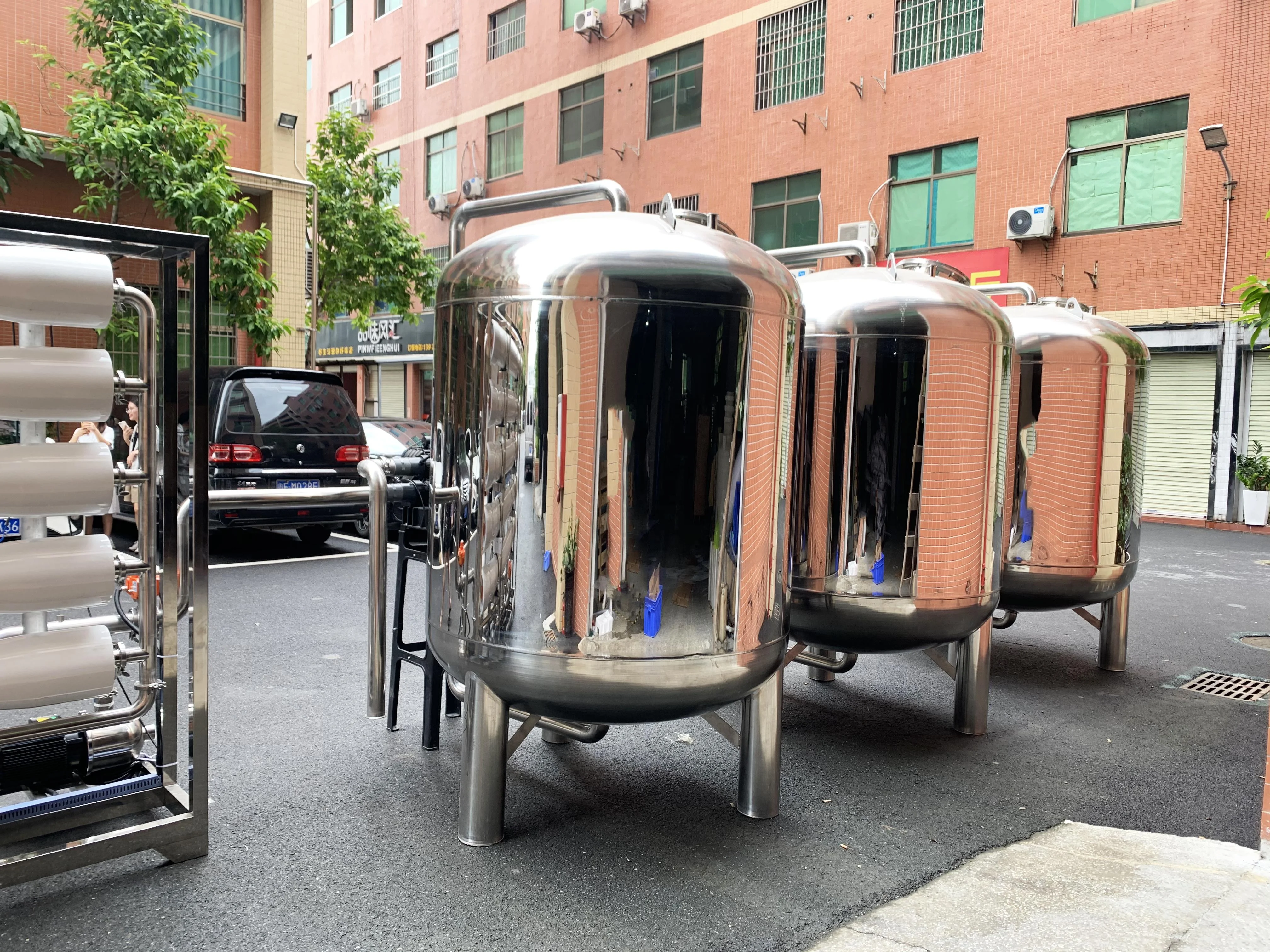

3 | Mechanical filter or called quartz sand filter or sand filter | We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. | We use China brand or WAVE CYBER brand |
4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual,chlorine and organics substances. | We use China brand or WAVE CYBER brand |
5 | Water softener, demineralizer, or called Na+ exchanger (optional) | Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling | We use China brand or WAVE CYBER brand |
6 | Antiscalant dosing system or PH regulating system | Dosing antiscalant into feed water, prevent the ro membranes from blocking, prolong the lifetime of RO membranes. Regulating PH to suitable range. | Italy SEKO dosing pump or German Prominent |
7 | Security filter or pp filter, or called PP sediment filter | prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm, | Stainless steel housing or PVC housing |
8 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Grundfos optional |

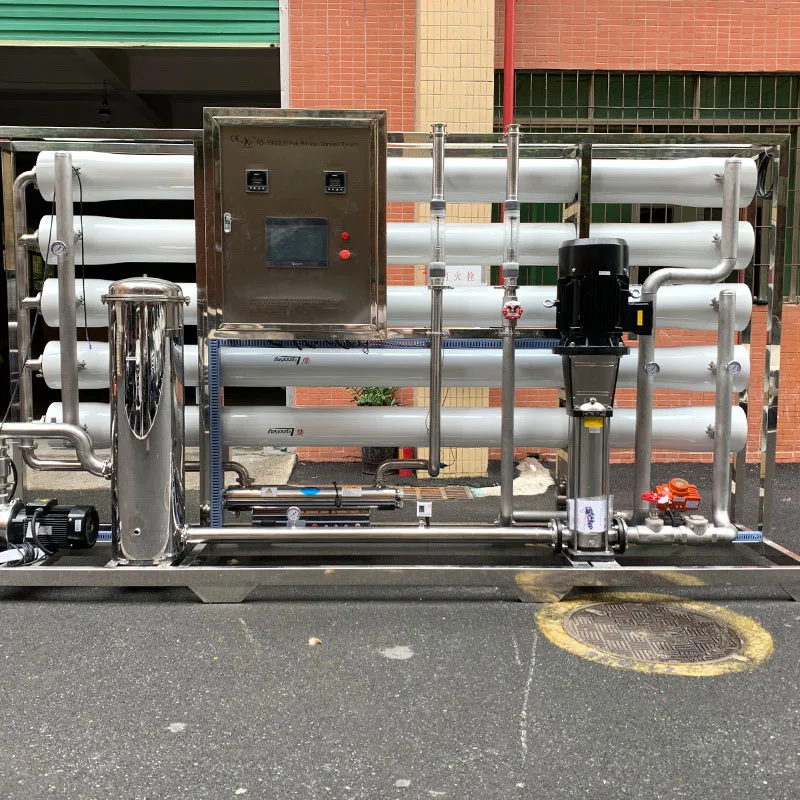

9 | RO(reverse osmosis) system | Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. | RO membranes USA Filmtec ; Domestic well-known brand VONTRON. |
10 | CIP cleaning system(optional) | Cleaning RO membranes with chemicals | CNP pumps |
11 | Sterilizing device(optional) | UV sterilizer or ozone generator | DAHUAN ozone , ClearUV UV Lamp |

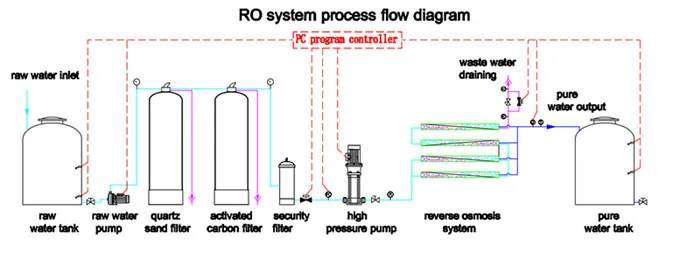

D.Working Process
Raw water pump→ Mechanical filter(Quartz sand filter)→ Activated carbon filter→ Sodium-ion exchanger(Water softener)→ Security filter→ High pressure pump →Reverse osmosis→ Ozone sterilizer (UV sterilizer).
E.Product Details

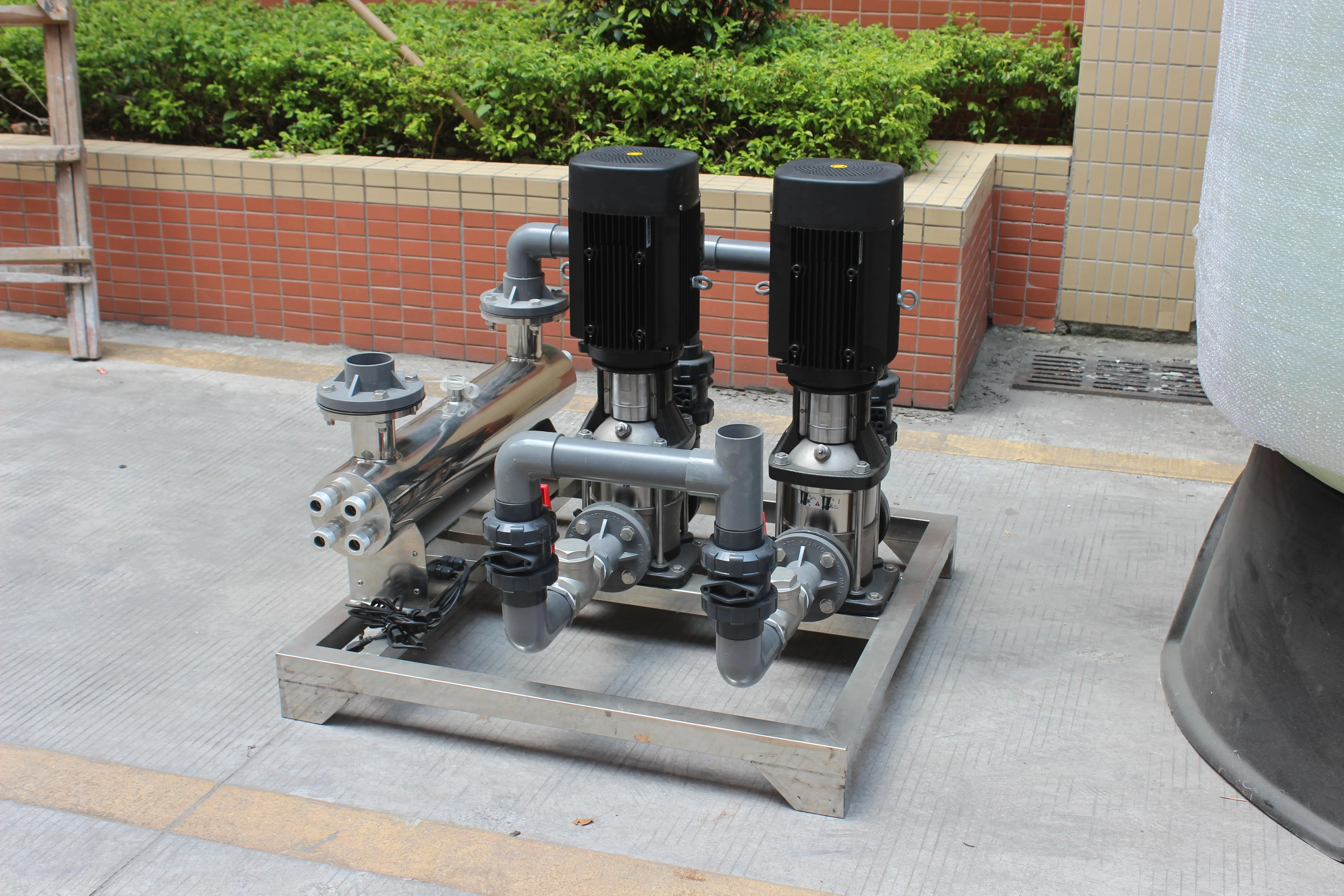

Raw water pump
CNP Pump, the well-know domestic pump.
It provide needed pressure for every pretreatment filter(like quartz sand filter, activated carbon filter, water softener security).
We can also customize others pumps.
How long the consumables should be replaced?
All the consumable replace period will be depend on the feed water quality.
PP filter cartridge
Advice Replacement time: every month
Quartz sand
Advice Replacement time: Every 15 - 18 months
Activated Carbon
Advice Replacement time: Every 15 - 18 months
Resin
Advice Replacement time: Every 15 - 18 months
RO membrane (LCLE4040)
Advice Replacement time:
Every 2 years
Every 2 years
UV lamp
Advice Replacement time:
9000 hours
9000 hours
