Product Description
Nitinol is a unique material. No other material exhibits the mechanical shape memory superelasticity and the thermal shape memory effects. This is especially true for Nitinol tubing.Fields of applications of Nitinol tubes are peripheral stents,cardio stents and other medical devices for the human body. We only deliver Nitinol tubes with the mechanical properties, requested tolerances and appropriate surface quality for stent use. All our Niti tubes are made according to customers specifications.

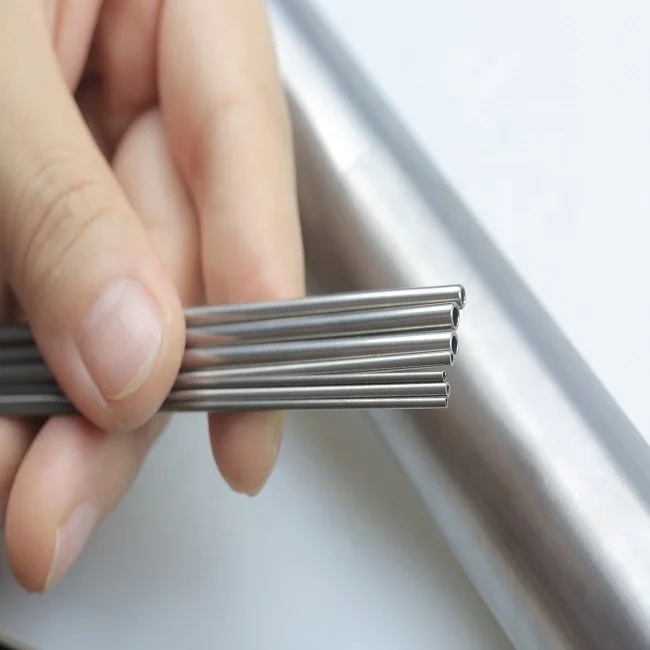

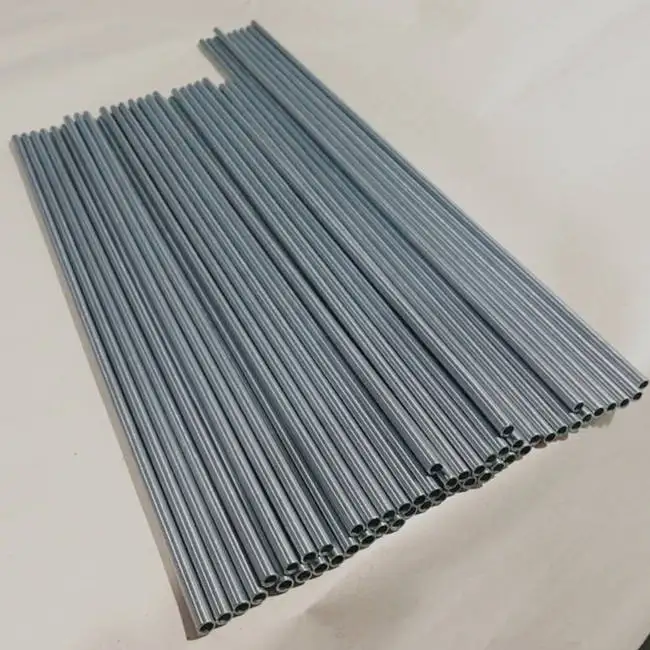

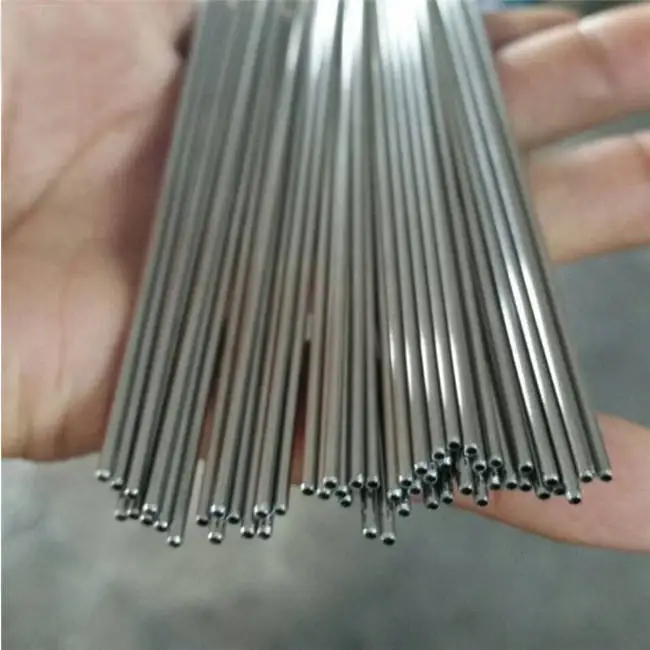

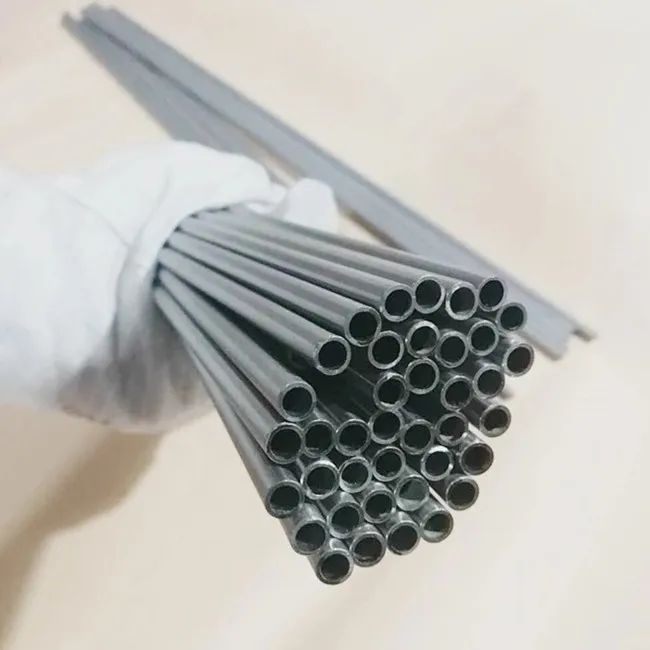

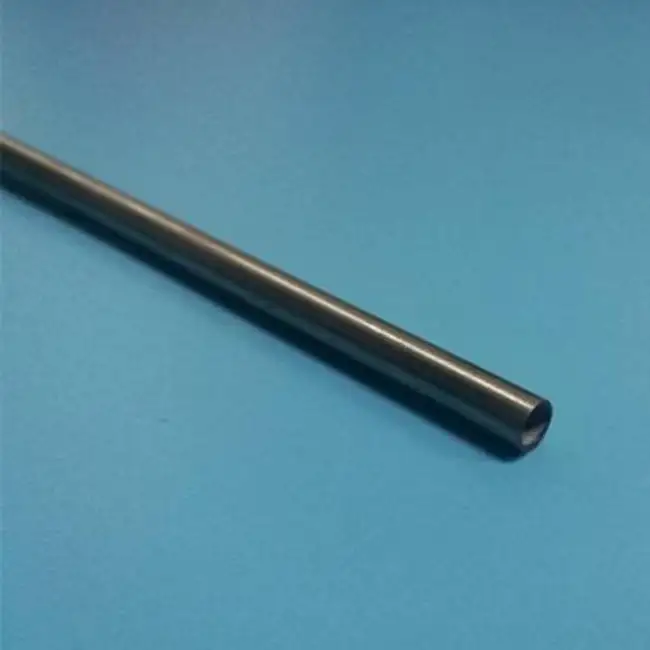

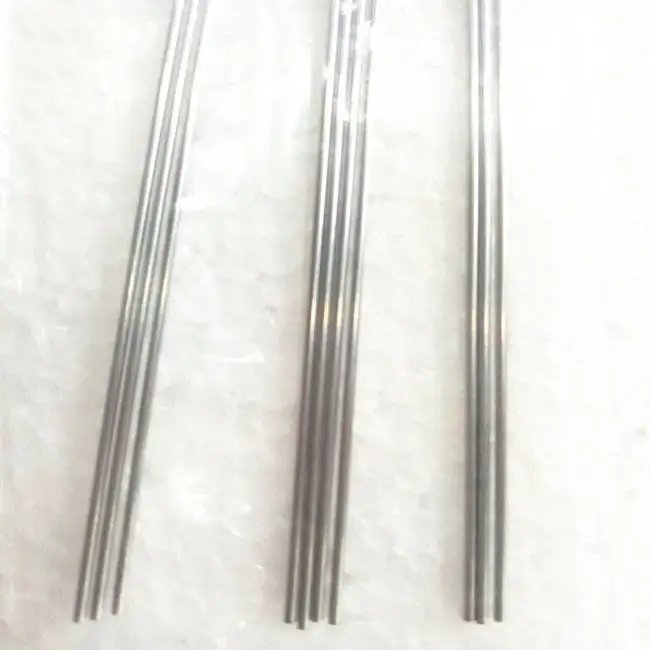

Nitinol tubing for medical devices
Medical devices use requires high quality surface on Nitinol tubing. The technology and tube making processes developed by Vascotube have been perfected over many years of practice. Using our experience, combined with new technologies and custom made machinery, we have been able to develop a drawing process that avoids the need for slurry cleaning, chemical cleaning or mechanical removal operations on the inner surface of the drawn tube. Our process allows us to attain a roughness value of Ra 0,1 µm.
Dimension
|
Out Diameter 0.70mm~6.00mm, Wall Thickness ≥ 0.2 mm.
|
Alloys
|
Superelastic, Shape Memory Available and Custom Alloy Formulations
|
Temperature Range ( Af )
|
- 20 ~ 100 deg. C
|
Surface
|
Natural Oxide, Pickled/Etched, Centerless Ground and Mechanically-cleaned
|
Thermomechanical Conditions
|
As Cold-Worked, Straight Strain Annealed and Shape Set Annealed.
|
Certification
|
Transformed Temperatures, Tensile Properties, Chemical Composition andCustomer Specific Requirements
|
Chemical Composition:
Component
|
wt %
|
Nickel
|
54,50-57,00
|
Cobalt
|
max. 0,050
|
Iron
|
max. 0,050
|
Carbon
|
max. 0,050
|
Nioium
|
max. 0,025
|
Copper
|
max. 0,010
|
Chromium
|
max. 0,010
|
Oxygen + Nitrogen
|
max. 0,050
|
Hydrogen
|
max. 0,005
|
Titanium
|
balance
|
Mechanical / Superelastic Tubes Properties:
Ultimate Tensile Strength
|
min. 1000 MPa
|
Fracture Elongation
|
min. 10 %
|
Loading Plateau Stress (at 3% strain)
|
min. 380 MPa
|
Permanent Set (after 6% strain)
|
max. 0,3 %
|
Austenite Finish Temperature(Af)
|
max. 15 °C
|
Physical Tube Properties:
Melting Point
|
1310 °C
|
Density
|
6,5 g/cm3
|
Specific el. Resistivity
|
82 μΩcm
|
Coefficient of Thermal Expansion (CTE)
|
11×10-6 °K
|
Modulus of Elasticity
|
41-75 GPa
|
Company Information

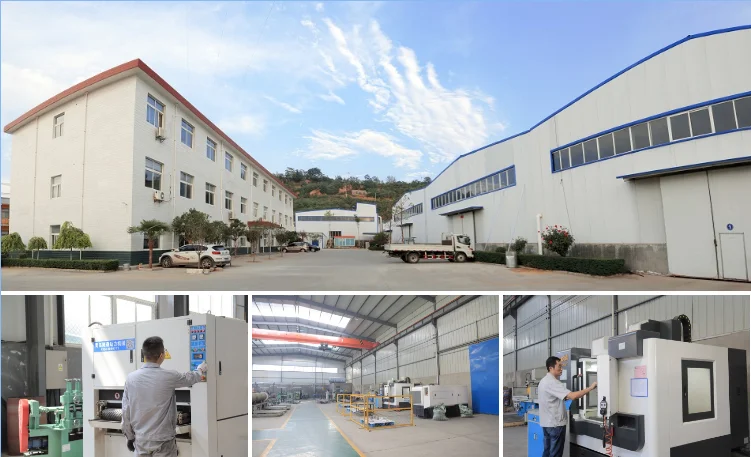

Xian Ocean Material Technology Co.,Ltd. Is a professional supplier of kinds of nonferrous metals, our main products is titanium,tungsten, molybdenum, tantalum, niobium, and nickel etc in form of sheet, plate, foil, strip, wire, rod, tube, machined parts etc, R&D alloy and new material as customer`s enquiry. Advanced technology and processing equipment, experienced technical personnel, strict quality control, to ensure product quality, our products are exported to Europe, America, southeast Asia and other countries,widely used in the fields of medical, aviation, military, industrial, etc.
1. Over 10 years experiences in nonferrous and refractory metals industry, profeesional sales service online .
2. Strict quality control system and issue third party test report before ship to assurance high quality.
3. Customized as different enquiry or drawing, our advantage of kinds of nonstandard parts and new alloy material products.
4. Big inventory of normal size or standard parts and fast lead time.
5. Not only offer material but solution to help you choose the suitable material
Packaging & Shipping
1. Packaging: carton/wooden case
2. Shipping: By sea, air or Express, we will choose the best way with lowest price.
FAQ
Q: Are you a factory or a trading company?
A: We have our factory and production line.
Q:Can I get some samples?
A: We are pleased to offer you sample at very reasonable price and the delivery time is within 3 days after confirmation.
Q: What is the MOQ?
A: We have products in stock. for the products we don't have in stock, the MOQ is negotiable, which will take your demand as our first priority.
Q: Can you customized as enquiry or drawing?
A: Yes we can customzied for you.
Q. Whats your lead time?
A: 5-7 days, if big quantity negotiation, try our best to save time for you based on high quality.
Q: How about the quality control?

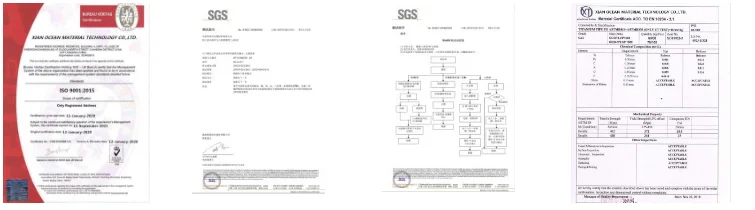

A: We have our own quality control system and we have also done SGS test. If necessary, we can support other third party inspection.
