Product Overview
Description
solar off grid system solar outdoor camping generator 10W portable solar energy system small energy solar lighting system
This is Mini DC solar lantern. It can provide power for all kinds of low voltage electrical appliances, such as Automobile electric appliance, DC LED, Mobile phone, digital products. With complete functions, simple operation,no need complex installation, plug and play.
1. MCU control (Micro Control Unit), PWM type charging work in with advanced charging and discharging
control algorithm, it can effectively prolong the service life of battery.

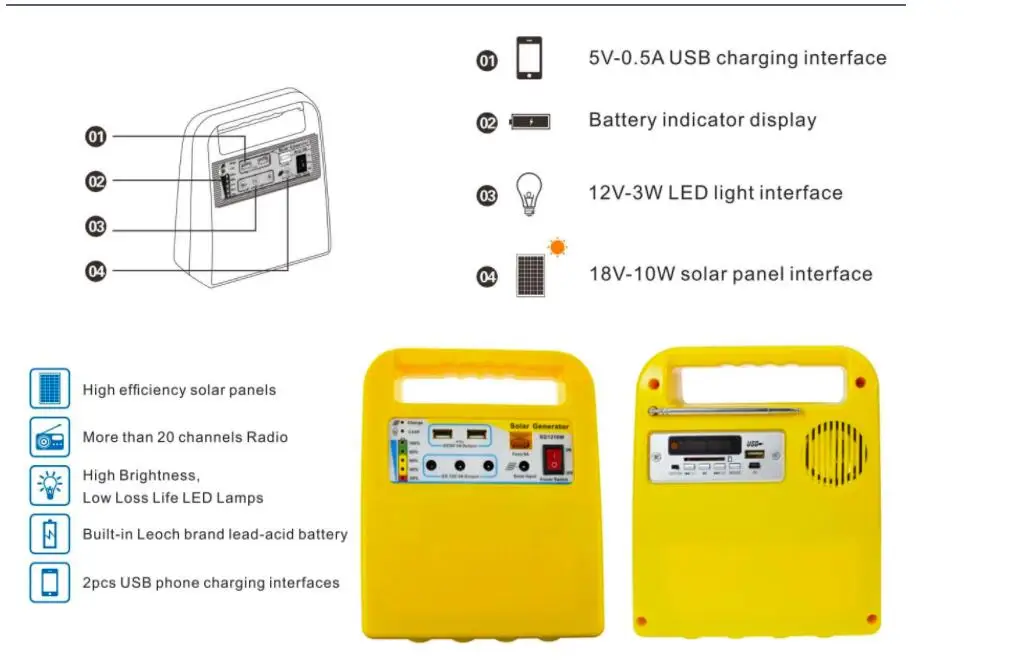

2. Offer DC 12V output interface and 5V USB output interface.
3. 5 grade Indicator for Capacity of battery, Indicators for LVD, Charging, Float charging, and Overloading.
4. All round Reverse Connected Protection, Reverse Charging Protection, Overcharging Protection,
Overload Protection
5. It can direct start charging function without turn on the production, so the self-consumption will be low.
6. Battery Low final protection, no need to worry about destroyed battery because long time forgetting to
close the system.
7. Optional MP3 Decoding and Radio.
8. Support for multiple color selection, to meet the different needs of customers.
1. MCU control (Micro Control Unit), PWM type charging work in with advanced charging and discharging
control algorithm, it can effectively prolong the service life of battery.
2. Offer DC 12V output interface and 5V USB output interface.
3. 5 grade Indicator for Capacity of battery, Indicators for LVD, Charging, Float charging, and Overloading.
4. All round Reverse Connected Protection, Reverse Charging Protection, Overcharging Protection,
Overload Protection
5. It can direct start charging function without turn on the production, so the self-consumption will be low.
6. Battery Low final protection, no need to worry about destroyed battery because long time forgetting to
close the system.
7. Optional MP3 Decoding and Radio.
8. Support for multiple color selection, to meet the different needs of customers.

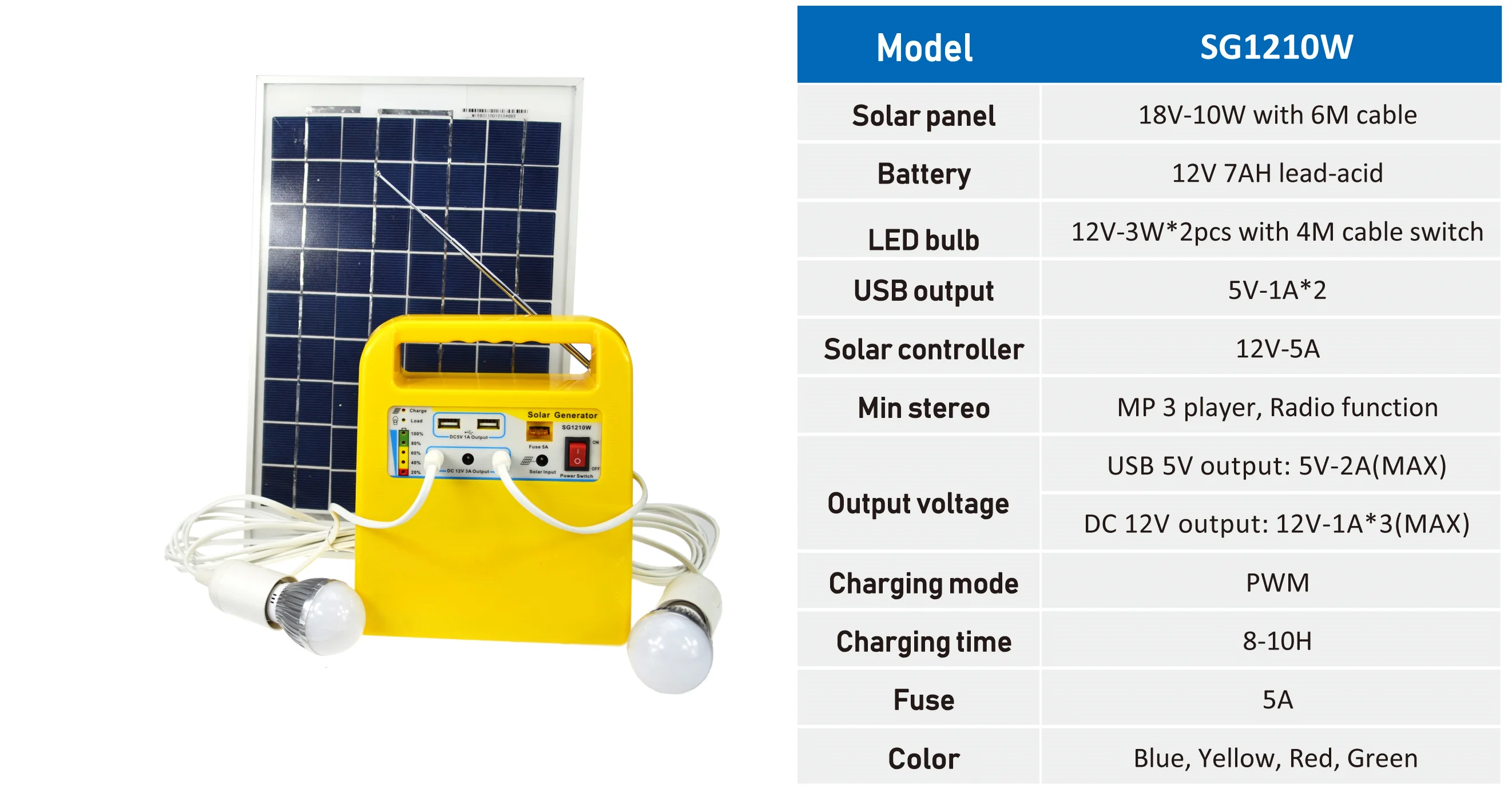

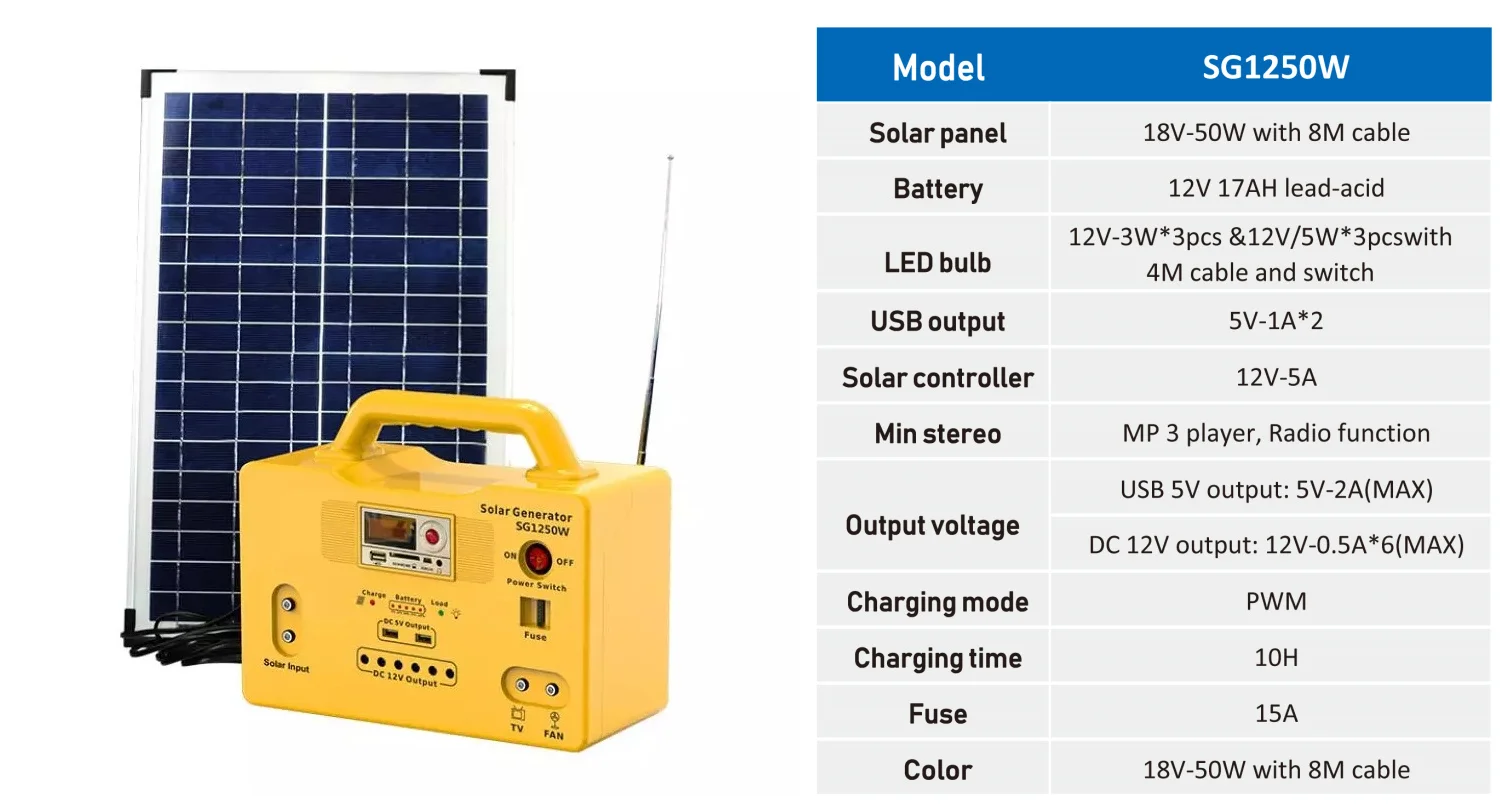

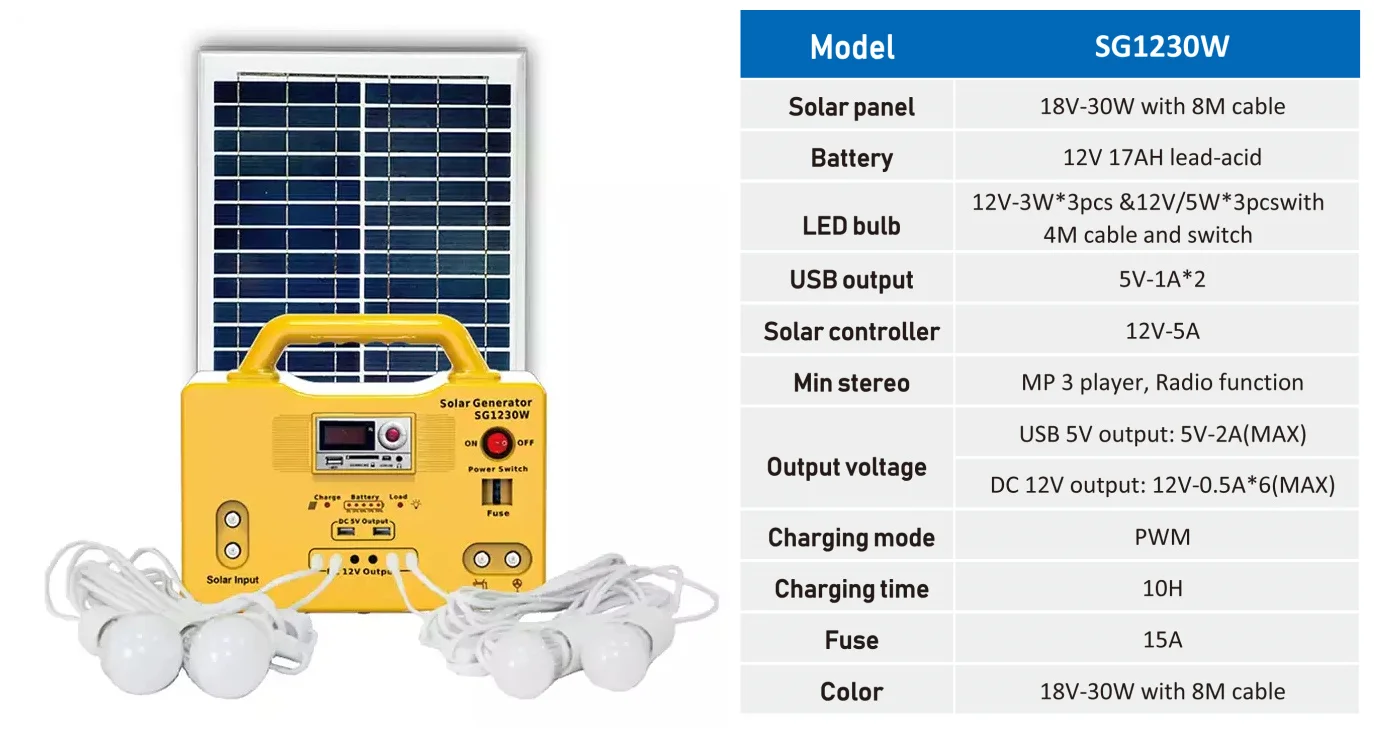

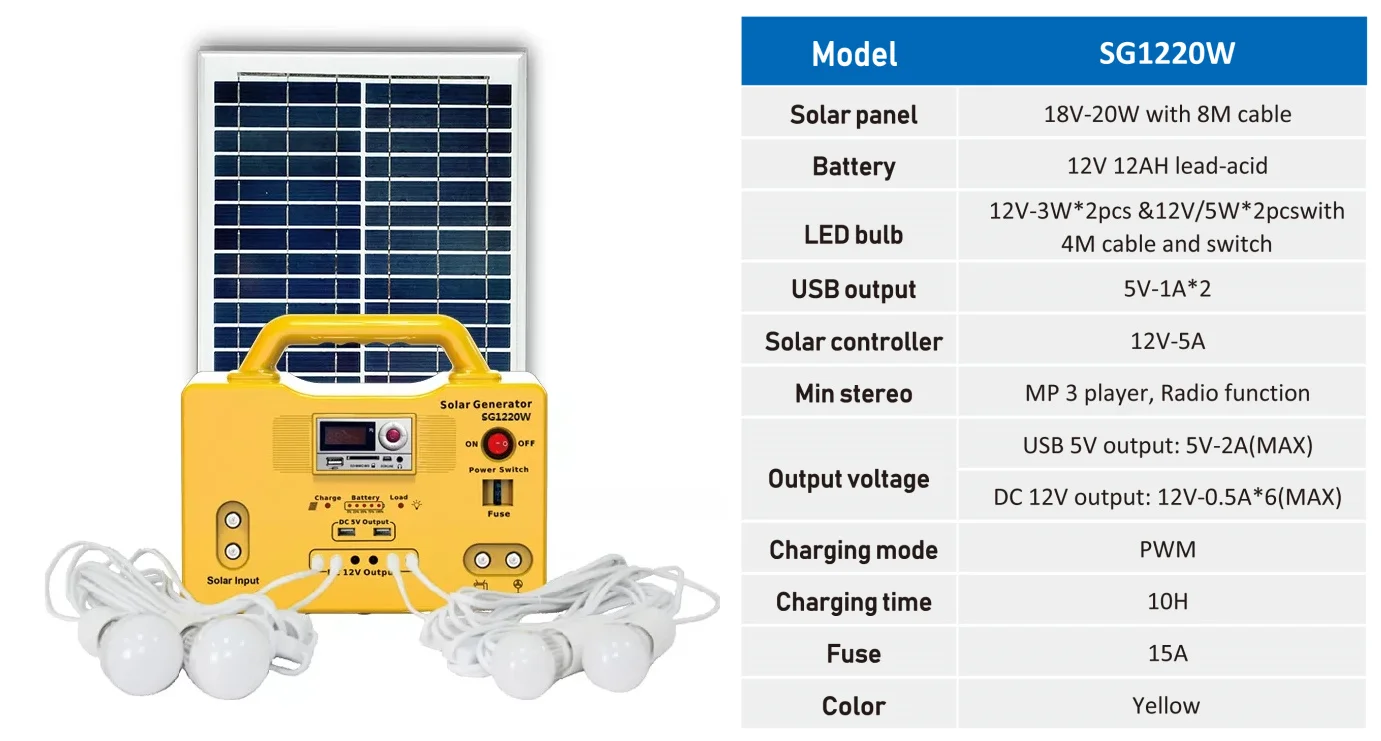

Model | SG1210W | SG1220W | SG1230W | SG1250W |
Solar panel | 18V-10W with 6M cable | 18V-20W with 8M cable | 18V-30W with 8M cable | 18V-50W with 8M cable |
Battery | 12V 7AH lead-acid | 12V 12AH lead-acid | 12V 17AH lead-acid | 12V 17AH lead-acid |
LED bulb | 12V-3W*2pcs with 4M cable switch | 12V-3W*2pcs &12V/5W*2pcswith 4M cable and switch | 12V-3W*3pcs &12V/5W*3pcswith 4M cable and switch | 12V-3W*3pcs &12V/5W*3pcswith 4M cable and switch |
USB output | 5V-1A*2 | 5V-1A*2 | 5V-1A*2 | 5V-1A*2 |
Solar controller | 12V-5A | 12V-5A | 12V-5A | 12V-5A |
Min stereo | MP 3 player, Radio function | MP 3 player, Radio function | MP 3 player, Radio function | MP 3 player, Radio function |
Output voltage | USB 5V output: 5V-2A(MAX) | USB 5V output: 5V-2A(MAX) | USB 5V output: 5V-2A(MAX) | USB 5V output: 5V-2A(MAX) |
DC 12V output: 12V-1A*3(MAX) | DC 12V output: 12V-0.5A*6(MAX) | DC 12V output: 12V-0.5A*6(MAX) | DC 12V output: 12V-0.5A*6(MAX) | |
Charging mode | PWM | PWM | PWM | PWM |
Charging time | 8-10H | 10H | 10H | 10H |
Fuse | 5A | 15A | 15A | 15A |

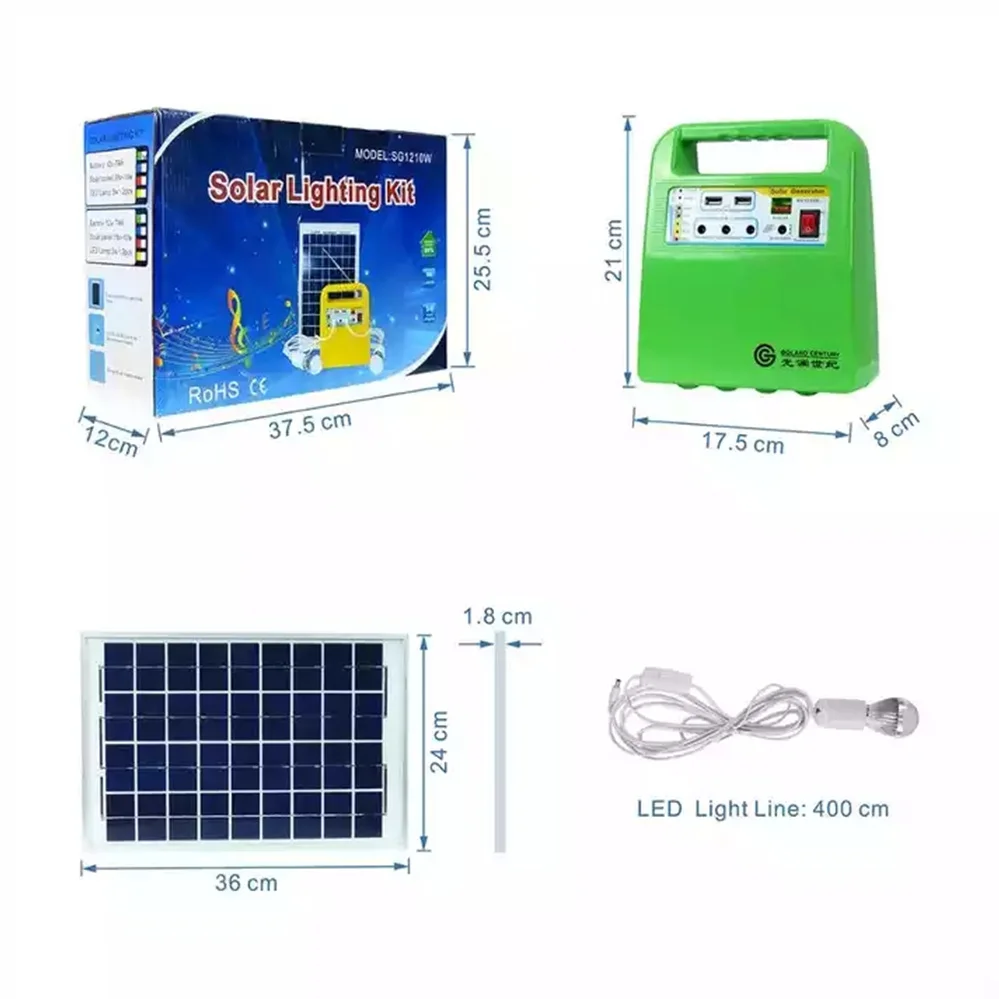

Package | 1pcs/CTN, 4.85KG, 368*117*250mm, 4pcs/CTN, 19.4KG, 500*388*270mm | 2pcs/CTN, 13.25KG, 535*350*315mm Solar panel package: 10pcs/CTN, 23.15KG, 510*340*385mm | 2pcs/CTN, 17KG, 535*350*315mm Solar panel package: 10pcs/CTN, 30.5KG, 720*325*378mm | 2pcs/CTN, 17KG, 535*350*315mm Solar panel package: 5pcs/CTN, 23KG, 725*530*240mm |
Color | Blue, Yellow, Red, Green | Yellow | Yellow | Yellow |
