DR Veterinary X ray Detector for Digital Radiography Medical Diagnostic Equipment
- Category: >>>
- Supplier: Shanghai,Haobo,Imaging,Technology,Co.,Ltd.
Share on:
Product Overview
Description
FEATURES AT A GLANCE
Name | 17*17 Inch Portable X Ray Flat Panel Detector |
Model Number | Whale4343PSM |
Sensor | A-Si |
Active Area | 430 x 430 mm |
Communication Interface | Gigabit Ethernet |
* Pixel Pitch: 140 μm
* Pixel Matrix: 3072x3072
* ADC:16-bit
* Gain Stage: Multi-Gain
* Scintillator: GOS/CSI
* Water Proof: IPX0
* Calibration: Software
* Radiation Hardness：≥1000Gy
* ADC:16-bit
* Gain Stage: Multi-Gain
* Scintillator: GOS/CSI
* Water Proof: IPX0
* Calibration: Software
* Radiation Hardness：≥1000Gy
Sensor Protection Material:
Carbon Fiber
Housing Material:
High Strength Aluminum Alloy
Dimension: 460 x 460 x 15 mm
Weight: 4.6 Kg
High Speed Connector
Materials and Indicator
Aluminum
Product Overview

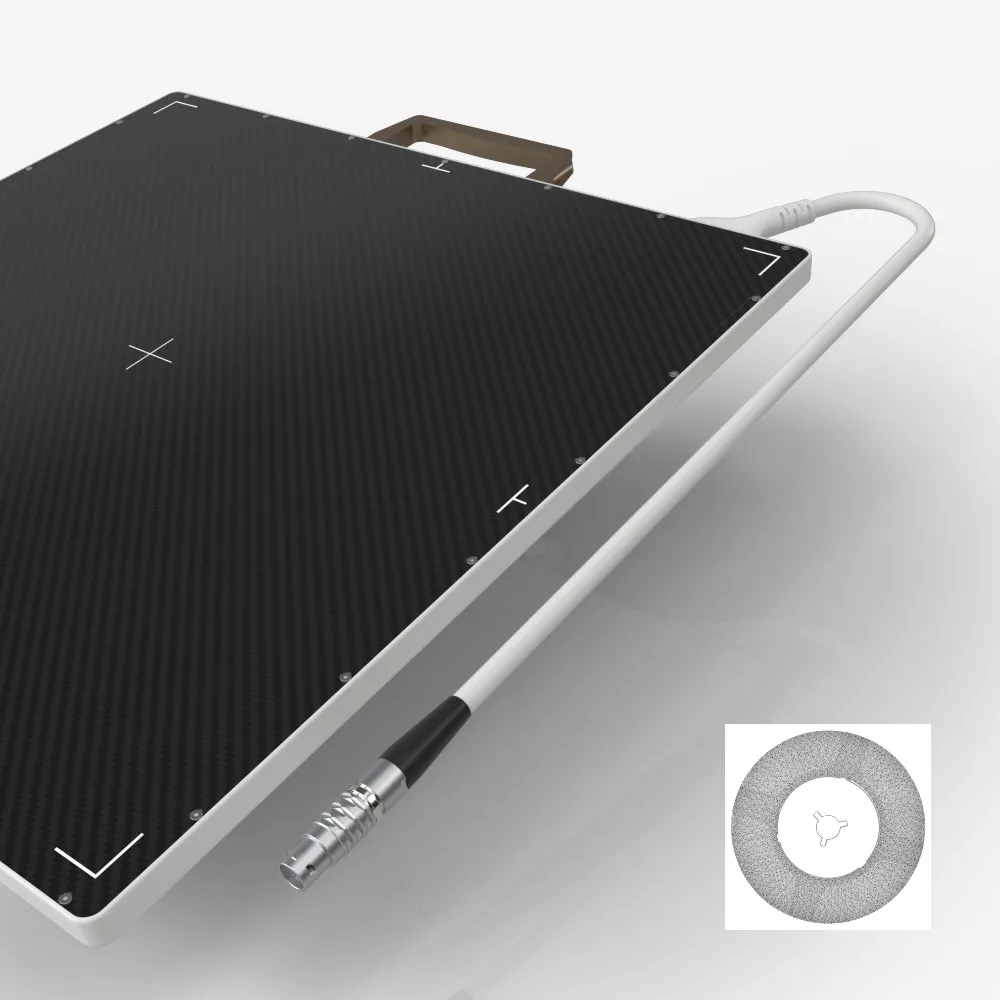

Whale4343PSM Portable X Ray Flat Panel Detector
Whale4343PSM X Ray Detector is portable and low noise x-ray flat panel detector, based on A-Si (amorphous silicon) technology.
A-Si (amorphous silicon) has a lot of advantages such as
higher image quality,
Whale4343PSM flat panel detectors are widely used in medical, industrial, veterinary and research areas.
A-Si (amorphous silicon) has a lot of advantages such as
higher image quality,
larger dynamic range
LONG life span
multi-gain stage
multi-gain stage
Multi-gain stage makes the flat panel detector be suitable for high sensitivity and large dynamic range requirements.
Whale4343PSM flat panel detectors are widely used in medical, industrial, veterinary and research areas.
PRODUCT SPECIFICATIONS
Production Process
Designing
The core R&D team members have master's and doctor's degrees at home and abroad.
Production
100,000 grade purification room was put into use. Our workers are assembling the Flat Panels.
Adjusting
Laboratory technician is adjusting the machine
Testing
Each of the product is carefully tested before shipping.
Fast Delivery
Most of main products could be produced and delivered within 7 work days.
Various Models

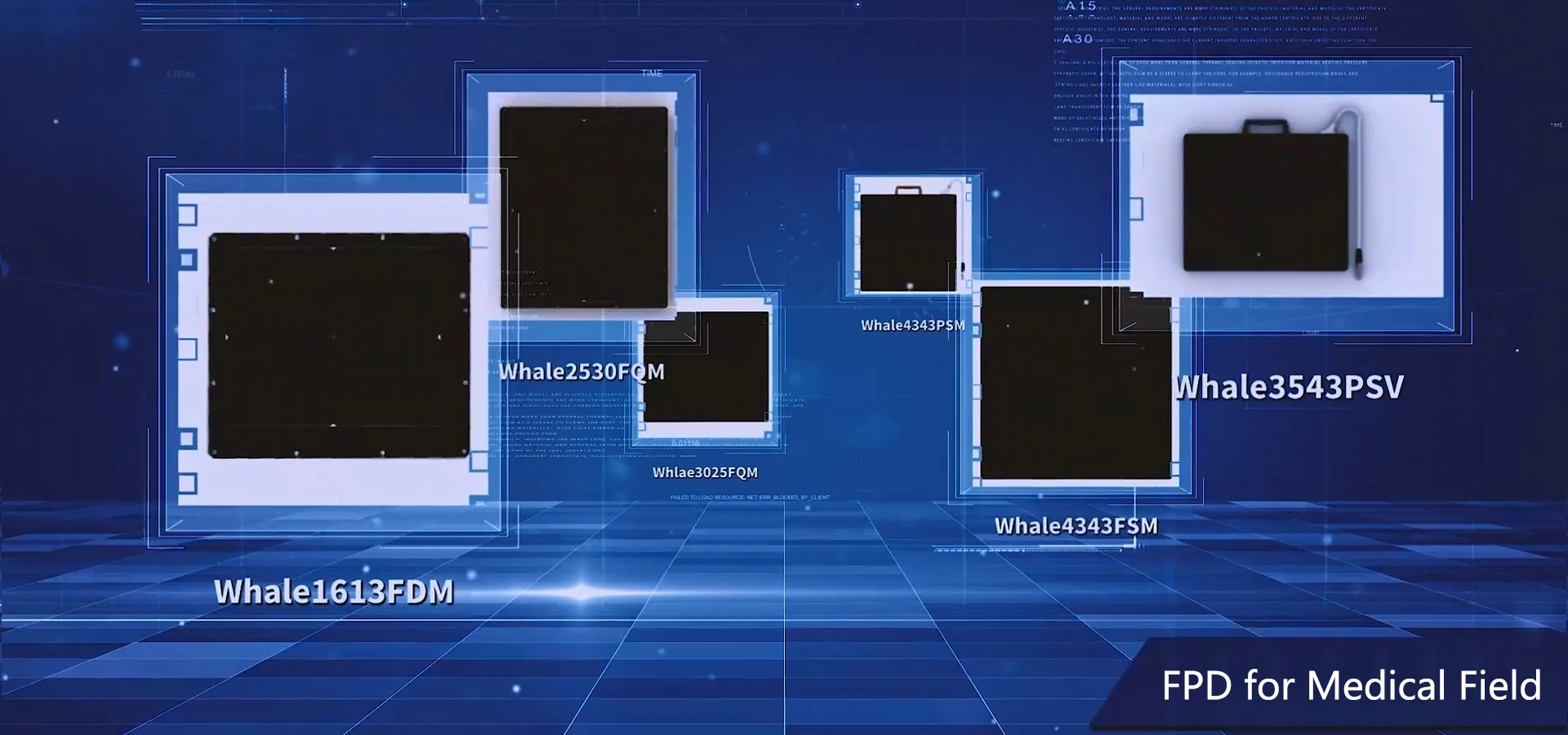

Presently, we have designed and produced over 90 different types of X Ray Flat Panel Detectors.
Product packaging
Accessories
AC Adapter; AC POWER CORD, 5 Meters Network Cable, 5 Meters high-voltage power lines, adapter junction box, USB flash disk, Quality Certificate, warranty card, package list.
Back Side
After the accessories are properly packed, the Flat Detector is about to be checked, cleaned, disinfected and packed. This is the back side.
Front Side
The Flat Panel Detector is firmly set into the PE Foam Insert.
Package
The Flat Panel is about to shipping.
Certifications
We have obtained 23 patents
5 utility model patents
18 software Copyrights
18 software Copyrights
High technology research & development capability
High R&D investment
Innovation consciousness
Market competitiveness
Development potential
Operation and management ability
Company Profile
Shanghai Haobo Imaging Technology Co., Ltd.
Shanghai Haobo Imaging Technology Co., Ltd.(also known as:Haobo Imaging) is an imaging technology enterprise that independently develops and produces X-ray flat panel detectors (FPD): A-Si, IGZO and CMOS in China.
Based in Shanghai, China's financial center, Haobo imaging through technical iteration and independent innovation, has become one of the few detector companies in the world that simultaneously master the technical routes of amorphous silicon, oxide and CMOS.
We provide comprehensive solutions for hardware, software and complete image chain to meet the diversified needs of customers.
Our business scope covers over 80 countries and regions around the world.
We produce digital X-ray flat panel detectors to cover application fields such as medical treatment, industry and veterinary.
New Years Dinner
Team Building
Technology | ||
Sensor | A-Si | |
Scintillator | GOS / CSI | |
Active Area | 430 x 430 mm | |
Pixel Matrix | 3072 x 3072 | |
Pixel Pitch | 140 μm | |
AD Conversion | 16 bits | |
Interface | ||
Communication Interface | Gigabit Ethernet | |
Exposure Control | Trigger In(Edge or Level) / Trigger Out (Edge or Level) | |
Image Acquisition Time | ≤1 seconds | |
Operating System | Windows7 / Windows10 OS 32 bits or 64 bits | |
Technical Performance | ||
Resolution | 3.5 lp/mm | |
Energy Range | 40-160 KV | |
Lag | ≤1% 1st frame | |
Dynamic Range | ≥86dB | |
Sensitivity | 540 lsb/uGy | |
SNR | 48 dB @(20000lsb) | |
MTF | 70% @(1 lp/mm) | |
38% @(2 lp/mm) | ||
21% @(3 lp/mm) | ||
DQE | 58% @(0 lp/mm) | |
41% @(1 lp/mm) | ||
25% @(2 lp/mm) | ||
Mechanical | ||
Dimension(H x W x D) | 460 x 460 x 15 mm | |
Weight | 4.6 Kg | |
Sensor Protection Material | Carbon Fiber | |
Housing Material | High Strength Aluminum Alloy | |
Environmental | ||
Temperature Range | 10~35℃(operating); -10~50℃(storage) | |
Humidity | 30~70% RH(non-condensing) | |
Vibration | IEC/EN 60721-3 class 2M3(10~150 Hz,0.5 g) | |
Shock | IEC/EN 60721-3 class 2M3(11 ms,2 g) | |
Dust and Water Resistant | IPX0 | |
Power | ||
Supply | 100~240 VAC | |
Frequency | 50/60 Hz | |
Consumption | 14W | |
Application | ||
Medical | Digital Radiography | |
