China Manufacturer Smart Wi Fi Energy Monitor P1 Meter
- Category: >>>
- Supplier: Chengdu Hop Telecom Co. Ltd.
Share on (1600669442011):
Product Overview
Description
Our Partners
Products Description
Rated | -48V |
Input | -60V~-40V |
Range | 0.8Un~1.1Un |
Limit | 0.8Un~1.1Un |
Channel No | 10 Channel of dc power |
Input Current | 50A,100A, 200A, 400A |
Impulse Constant | 6400imp/kWh |
Energy Measuring Range | 0-39999999.99 kWh |
Power Range | 0-99.9999kW |
Clock Accuracy | ≤0.5s/d(23℃), variation with temperature change is better than 0.1s / d |
Display Type | LCD |
Power Consumption | ≤2W |
Interface | Interface |
Protocol | MODBUS, DL/T 645-1997 |
Operating Temperature | -20℃~60℃(<-25℃ custom) |
Storage Temperature | -40℃~70℃ |
Humidity | ≤98%(40℃±2℃), no condensation |
Installation | 35mm standard din rail installation |
Altitude | ≤ 5000m |

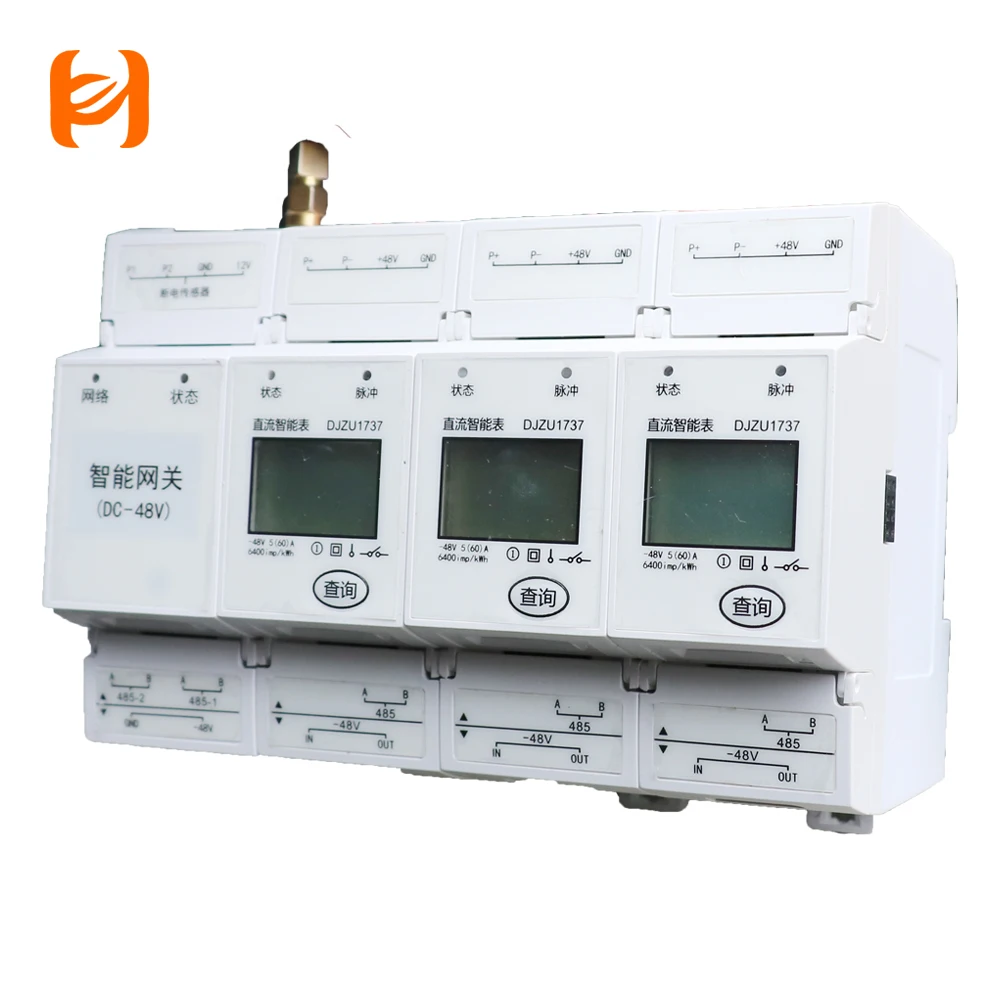

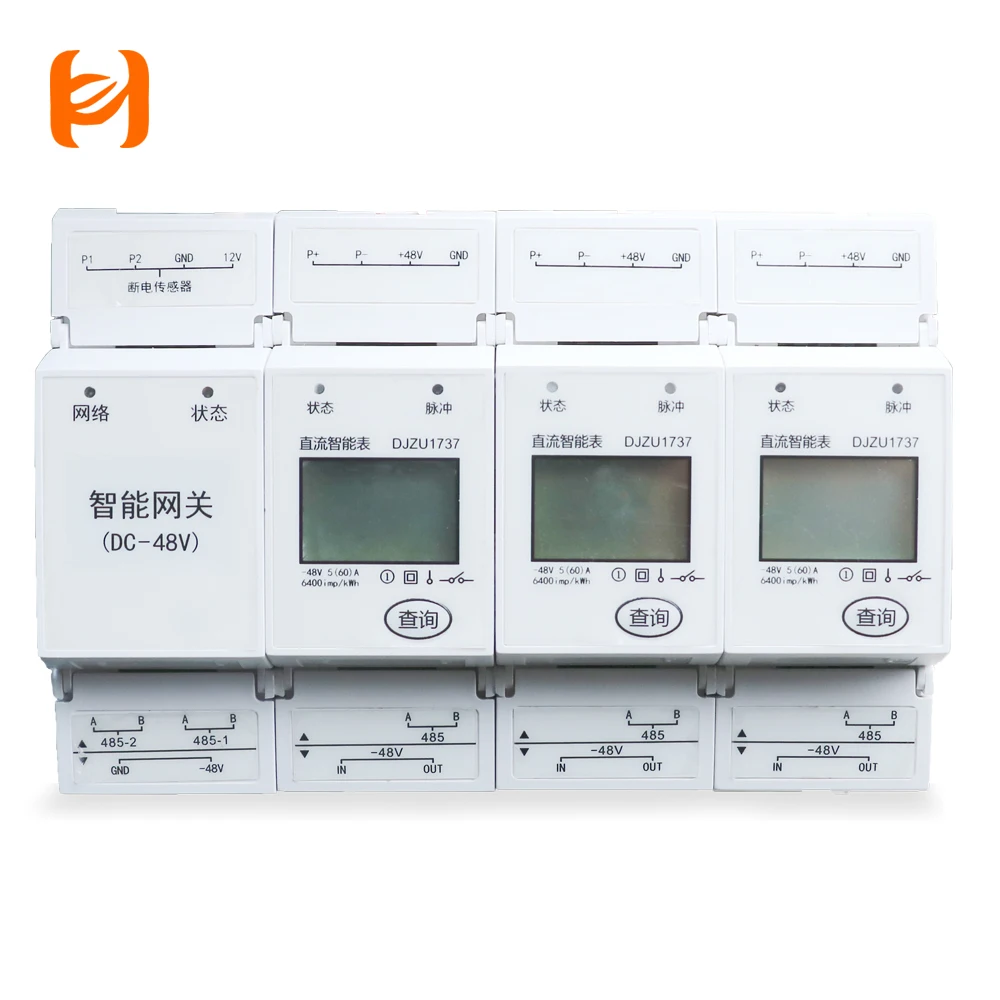

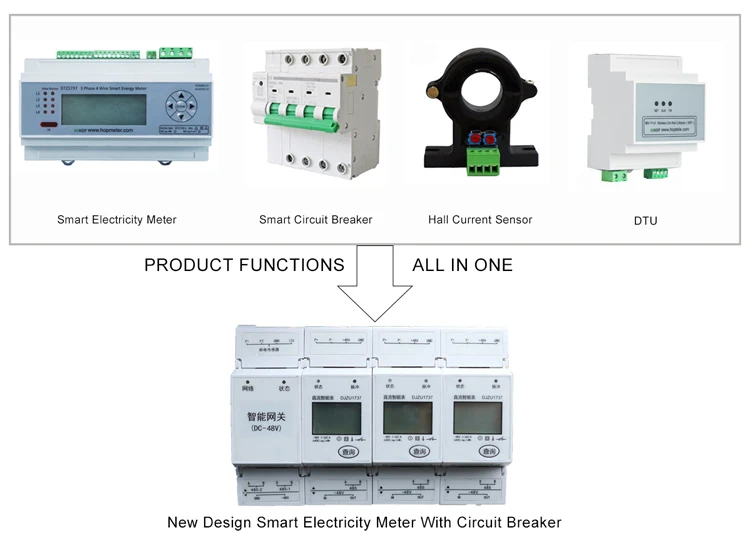

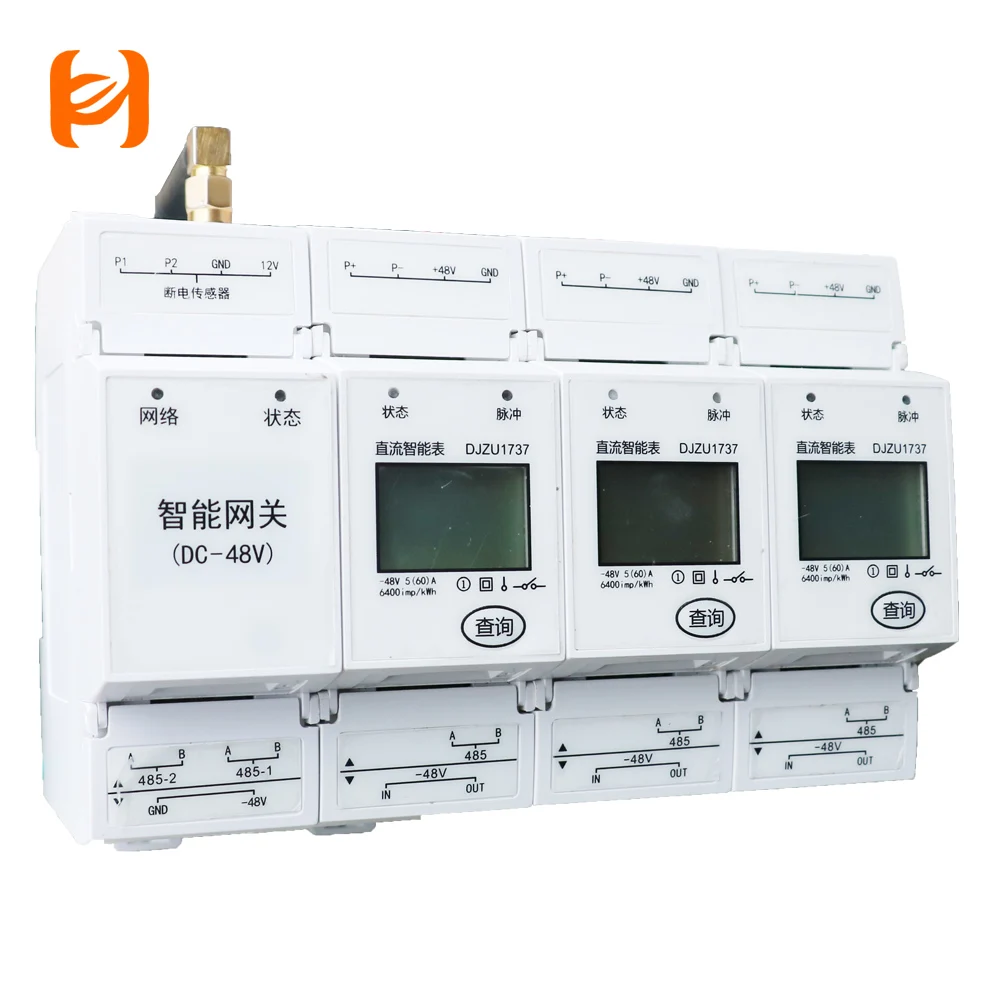

DJZU1737 series of DC smart meters, the latest research and development of smart meters, can realize the four functions of meter + current transformer + circuit breaker + DTU through a din rail meter. The occupied space is reduced by at least half, and the cost is saved by 1/3. The meter can be opened and closed by remote communication.
Functions&Advantage
Smart DC Meter Function
1. Multiloop DC energy measuring with up to 10 loops.
2. Each loop meter can measure the current combined energy, individually measure current, voltage, energy, power and electricity consumption of current month.
3. Built-in DTU
Current Transformer Function
3. Built-in DTU
Current Transformer Function
The electric meter has built-in current transformer, no need to buy a current transformer separately, and no need to wire.
Smart Circuit Breaker Function
Smart Circuit Breaker Function
The electric meter can perfectly replace the function of the circuit breaker. It can be switched on manually or remotely controlled via RS485/NB-loT/4G/lora.
Advantage
Advantage
1. No need to purchase additional circuit breakers and current transformers, reducing costs
2. Reduce the size of the power distribution box, and the power distribution installation is more convenient and easy
2. Reduce the size of the power distribution box, and the power distribution installation is more convenient and easy
Company Profile
Certifications
CE-EMC \\ CE-LVD \\ ROHS \\ ISO14001 \\ ISO9001 \\ OHSAS180001
FAQ
Q: Do you have APP for dc energy meter?
A: Since different areas' clients have different using habit, so APP is always customized for clients according to the developing instructions clients give.
Q: Can the dc energy meter support wireless communication?
A: Yes, but it need to connect with a data collector first.
Q: Can you put our logo on the Modbus dc energy meter?
A: Yes, we can put your logo on the meter, data collector(concentrator) and system software.
