Banana Pi BPI R3 MediaTek MT7986 Quad core Cortex A53 MT7531Chip 2G DDR RAM 8G eMMC Support POE Linux 5.4 EC25 LTE 4G SD Card
- Category: >>>
- Supplier: Shenzhen SHCHV Technology Co. Ltd.
Share on (1600669458477):
Product Overview
Description
Description

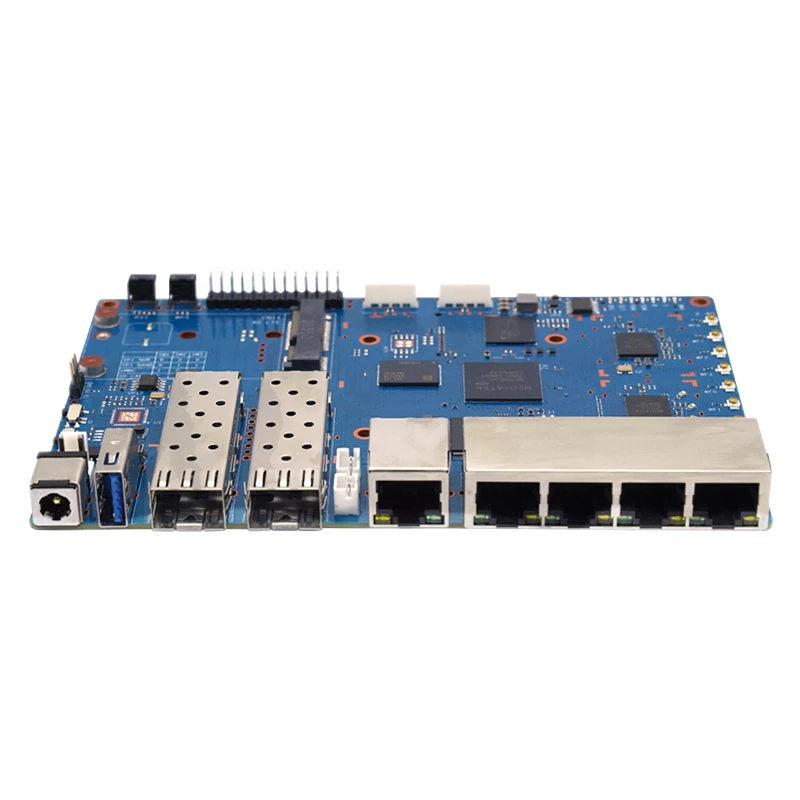

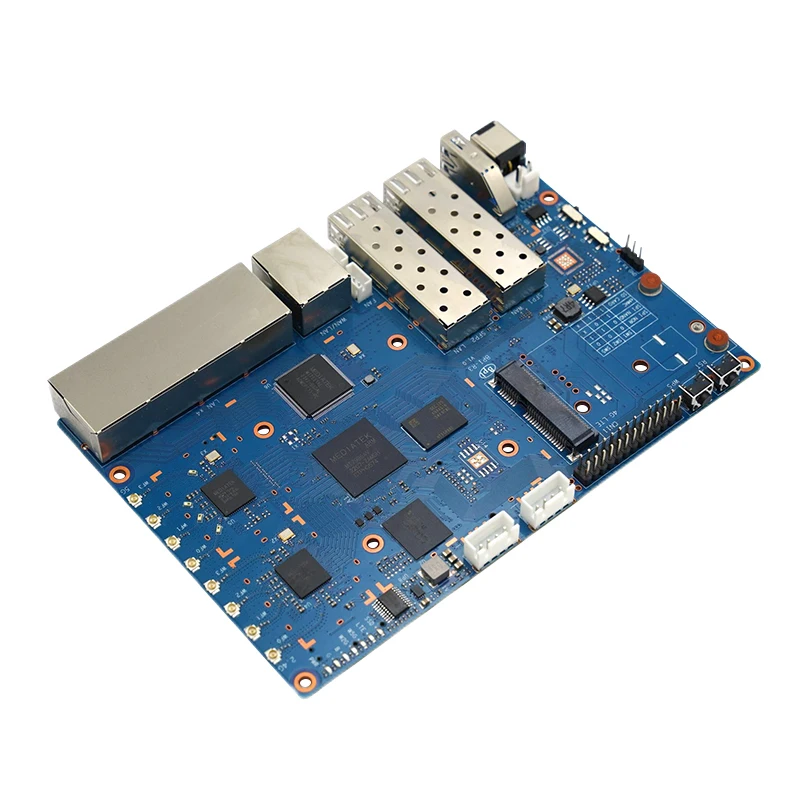

Banana Pi BPI-R3 Router board is with MediaTek MT7986 (Filogic 830) quad core ARM A53 + MT7531A chip design, 2G DDR RAM, 8G eMMC flash onboard. It is a very high performance open source router development board, support Wi-Fi6 2.4G wifi use MT7975N and 5G wifi use MT7975P, support 2 SFP 2.5GbE port, and 5 GbE network port.
MediaTek MT7986(Filogic 830)
The MT7986(Filogic 830) integrates four Arm Cortex-A53 cores up to 2GHz with up to 18,000 DMIPs of processing power and 6Gbps of dual 4x4 Wi-Fi 6/6E connectivity. It has two 2.5g Ethernet interfaces and serial peripheral interfaces (SPI). Filogic 830‘s built-in hardware acceleration engine enables fast and reliable Wi-Fi offloading and wireless network connection. In addition, the chip supports Mediatek FastPath™ technology, which is suitable for games, AR/VR and other low-latency applications. Wi-fi 6E has many advantages over its predecessors, including lower latency, larger bandwidth capacity and faster transmission
rates. Wireless network devices supporting the 6GHz band mainly use 160MHz wide channel and 6GHz uncongested bandwidth to provide multigigabit transmission and low-latency wi-fi connection, providing reliable wireless network for streaming media, games, AR/VR and other applications.
The MT7986(Filogic 830) integrates four Arm Cortex-A53 cores up to 2GHz with up to 18,000 DMIPs of processing power and 6Gbps of dual 4x4 Wi-Fi 6/6E connectivity. It has two 2.5g Ethernet interfaces and serial peripheral interfaces (SPI). Filogic 830‘s built-in hardware acceleration engine enables fast and reliable Wi-Fi offloading and wireless network connection. In addition, the chip supports Mediatek FastPath™ technology, which is suitable for games, AR/VR and other low-latency applications. Wi-fi 6E has many advantages over its predecessors, including lower latency, larger bandwidth capacity and faster transmission
rates. Wireless network devices supporting the 6GHz band mainly use 160MHz wide channel and 6GHz uncongested bandwidth to provide multigigabit transmission and low-latency wi-fi connection, providing reliable wireless network for streaming media, games, AR/VR and other applications.
Application direction
Internet service Router
Wireless Router
Wireless Repeater
Home security Gateyway
Home Automation
Nas device
Network and communication applications
Key Features
MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53+MT7531 chip design
Wifi 6/6E 4x4 2.4G Wifi(MT7975N) +4x4 5G Wifi(MT7975P)
2G DDR RAM
8G eMMC flash
2 SFP 2.5GbE
5 GbE network port
POE support (optional)
Mini PCIe via USB
M.2 KEY-E PCIe inerface
Mciro SD card interfact
26 PIN GPIO
Internet service Router
Wireless Router
Wireless Repeater
Home security Gateyway
Home Automation
Nas device
Network and communication applications
Key Features
MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53+MT7531 chip design
Wifi 6/6E 4x4 2.4G Wifi(MT7975N) +4x4 5G Wifi(MT7975P)
2G DDR RAM
8G eMMC flash
2 SFP 2.5GbE
5 GbE network port
POE support (optional)
Mini PCIe via USB
M.2 KEY-E PCIe inerface
Mciro SD card interfact
26 PIN GPIO

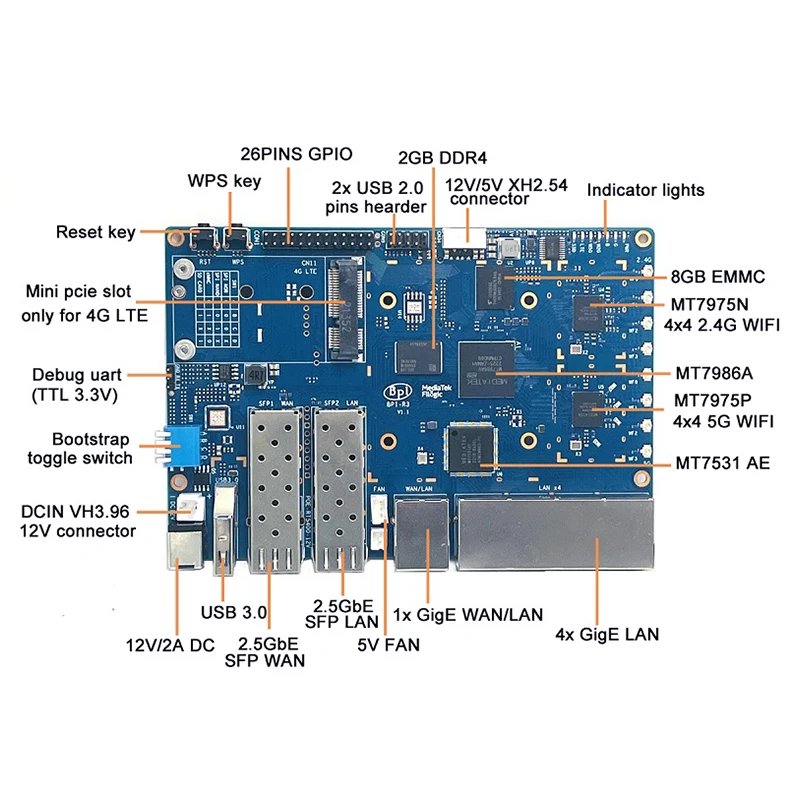

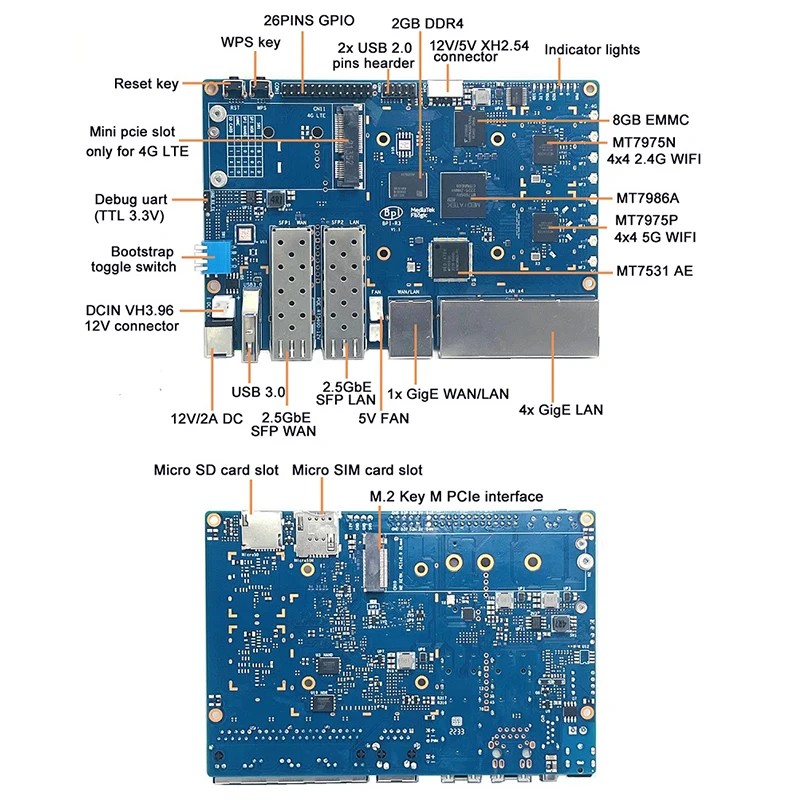

Hardware interface
Jumper Setting of Banana pi BPI-R3 | |||||||
Jumper Setting | SW1 | SW2 | SW5 | SW6 | |||
SPIM-NoR | Low | Low | Low | X | |||
SPIM-Nand | High | Low | High | High | |||
eMMC | Low | High | X | Low | |||
SD card | High | High | X | High | |||
Hardware Specification of Banana pi BPI-R3 | ||
CPU | MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53+MT7531 chip design | |
SDRAM | 2 GB LPDDR3 | |
On board Storage | MicroSD \\(TF\\) card,8GB eMMC onboard | |
GPIO | 26 Pin GPIO,some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. | |
On board Network | 5 Port 10/100/1000Mbps Ethernet | |
SFP | 2 SFP 2.5GbE | |
Wifi | Wifi 6 4x4 2.4G Wifi(MT7975N) +4x4 5G Wifi(MT7975P) | |
mini PCIE | Mini PCIe via USB | |
M.2 interface | M.2 KEY-M PCIe inerface | |
USB | 1 USB 3.0 host ,2 USB interface with slot. | |
Buttons | Reset button,WPS botton, boot switch | |
Leds | Power status Led and RJ45 Led | |
DC Power | 12V/2A with DC in | |
Sizes | 100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2 | |
Weight | 200g | |
