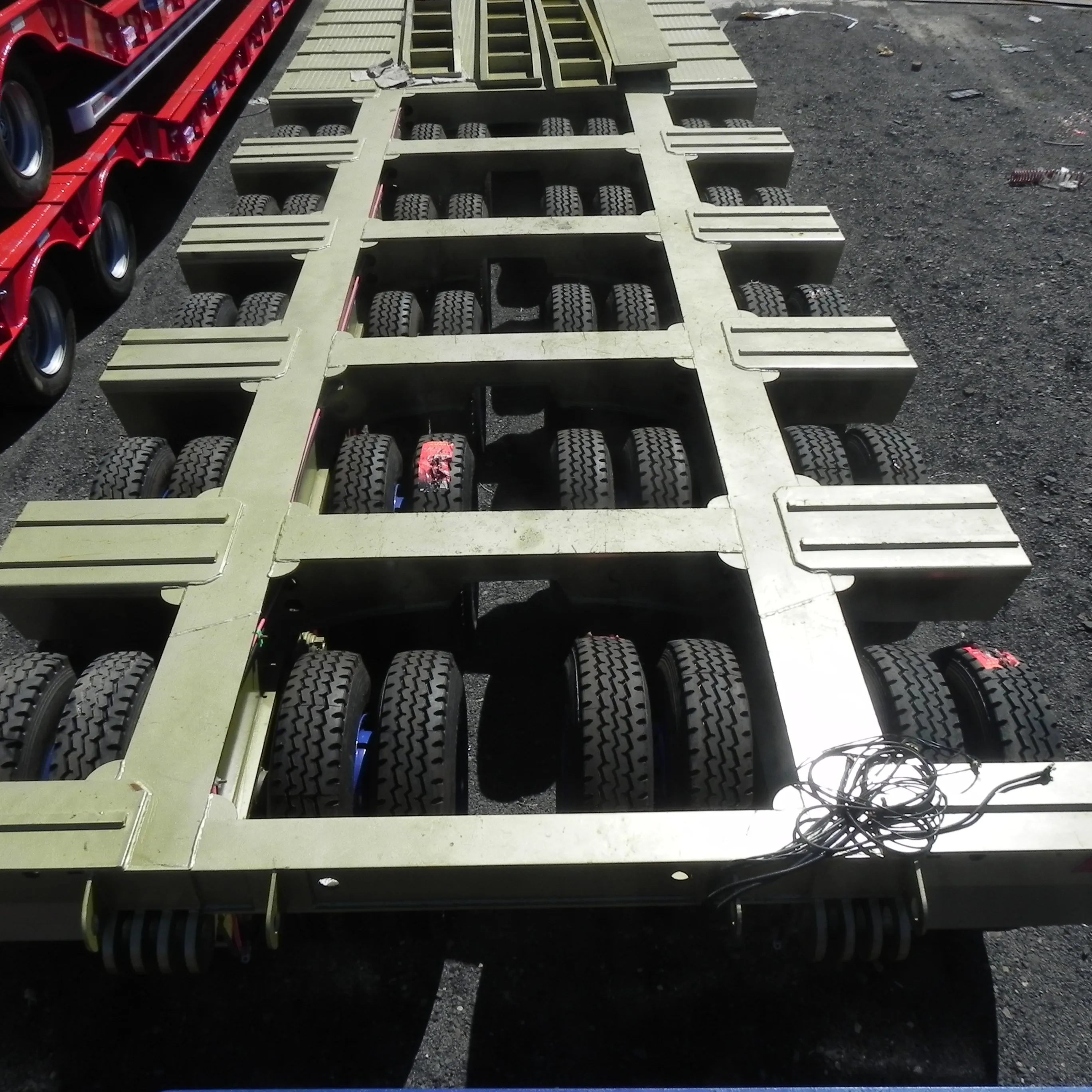

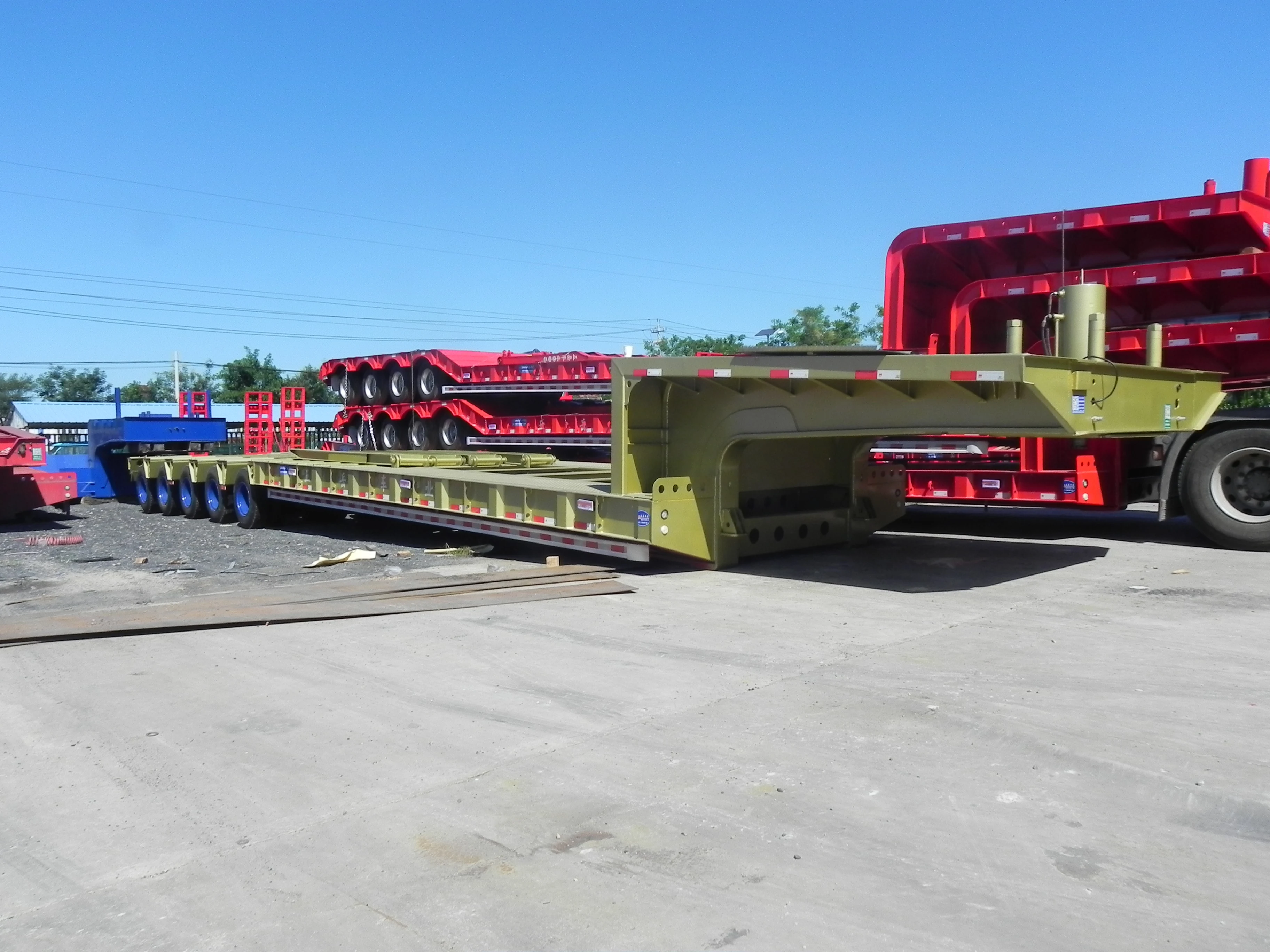

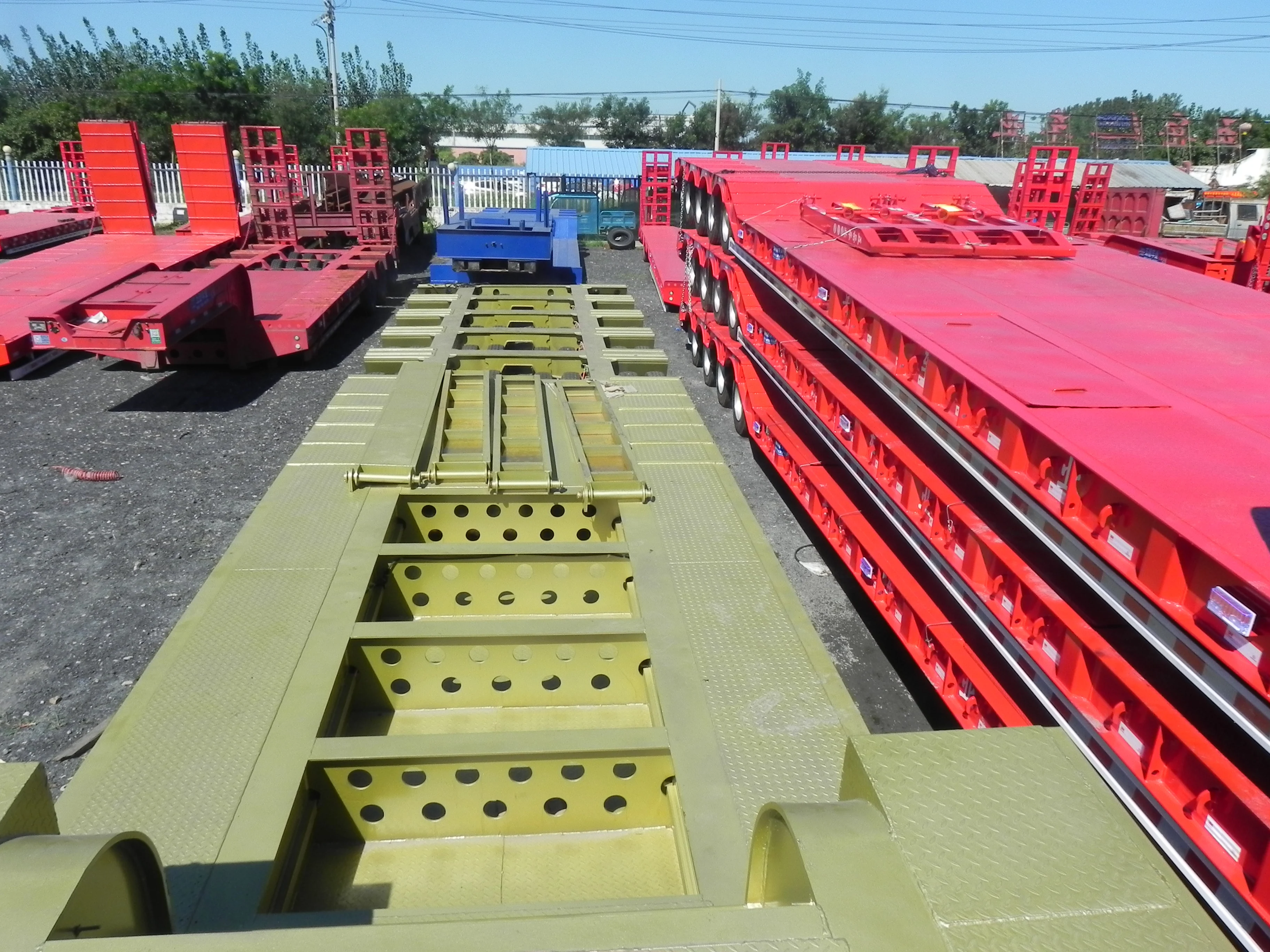

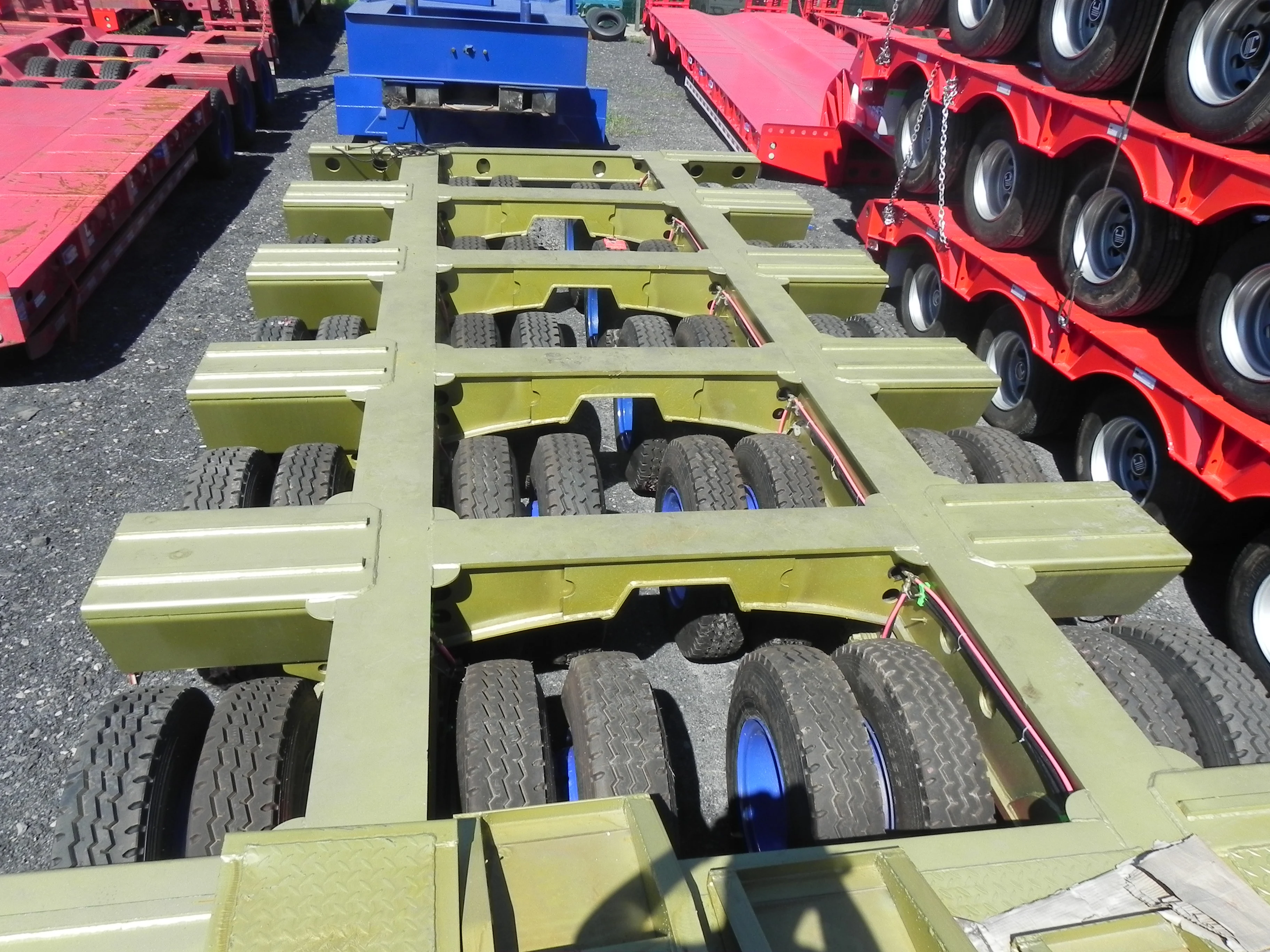

5Line 10Axles 40wheels Trailer Carry Loading 200Tons Low Bed Trailer
- Category: >>>
- Supplier: Shandong Tsd Special Vehicle Manufacturing Co. Ltd.
Share on (1600669472292):
Product Overview
Description
Low bed semi trailers are commonly used to transport heavy-duty vehicles (tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, and construction machinery (excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy-duty cargoes.its center of gravity is lower, the better the stability and safety, transport overheight cargo and overhead obstacles by the stronger the ability.
Parameter | ||
Payload | 60Ton-160ton | |
Tare weight | 100,00kg-18000KG | |
Dimension | 13000 to 16000(length)*3000(width)* 800to1200(height)mm | |
Wheel base | 1310mm | |
Fabric | ||
Main beam | Beam height 500mm, upper plate-20mm, bottom plate double 12mm, middle plate-20mm, made of Q345 steel | |
Cross/side beam | Q235 channel steel / 350mm steel I-beam | |
Bottom Thickness(mm) | Bottom: 5mm | |
Painting | Complete chassis sand blasting to clean rust,coat of anti-corrosive prime,2coats of finalpaints | |
Tool box | 1piecs | |
Welding | Long member beams be CO2 Arc welded by 80% penetration on external side and bead.All | |
other parts welding with MAG process | ||
crawling ladder | Mechanical ladder or hydraulic ladder | |
Parts | ||
Axle | 3/4/5/6 pieces x13/16/20ton FUWA Axle | |
Suspension | Mechanical suspension | |
Leaf spring | 90(W)mm*13(thickness)mm*10Layers | |
Tyre | 235/75R17.5 /8.25/16LT /11R20/315/80R22.5 | |
Rim | 6.5-17.5/6.50H/8.0-20/9.0-22.5 | |
King pin | JOST King Pin bolt-in type 2’ or 3.5’ interchangeable | |
Landing gear | Double speed,external 28tons, | |
Brake system | Dual line pneumatic brake system with WABCO emergency relay valve | |
Electrical system | 1 voltage 24v 2 Receptacle:7ways(7wire harness), | |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | ||
Packing and shipping

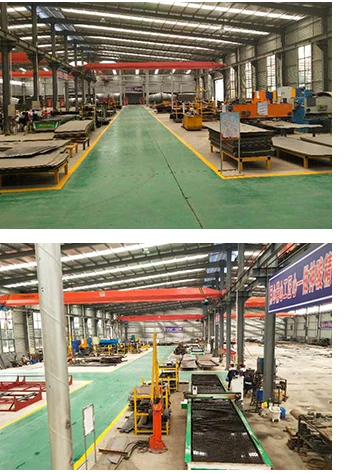

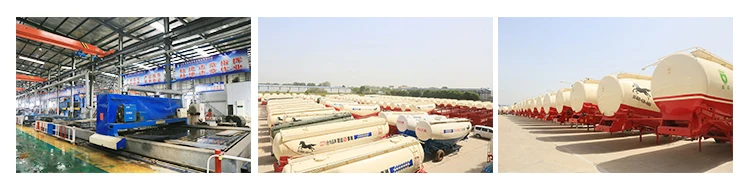

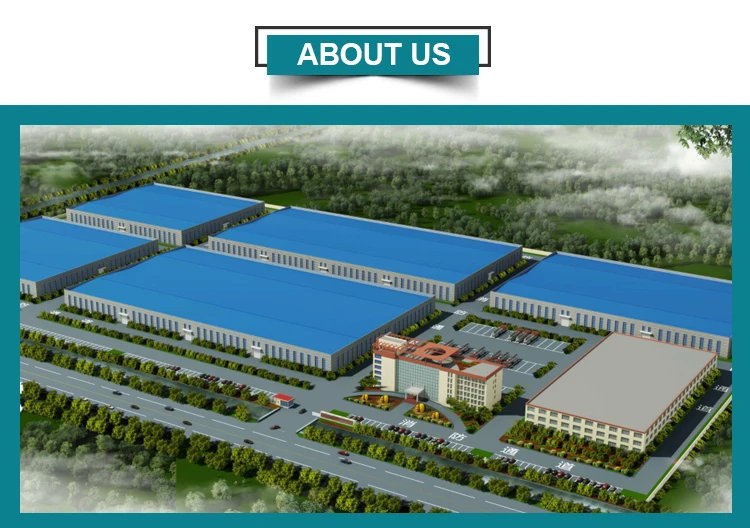

Shandong TSD Special Vehicle manufacturing CO.,Ltd locating in China biggest semi trailers production base—Liangshan county, Shandong Province. Here you can get everything regarding to all kinds of semi trailers. Since 1960s, the General Machinery Plant of China Construction Second Engineering Bureau become an early domestic leading enterprise engaged in the production of powder material transport vehicles, special oilfield vehicles, and construction machinery vehicles. As a sub branch of GMPC, TSD Special Vehicle keep focus on bulk cement tanks and other semi trailers, With two technology patent of our own, SHENJUN cement tank trailers is sharing almost 1/3 in domestic market and enjoying very good reputation also. In 2020, the company introduced domestic advanced technology and talents, and cooperated with Zoomlion and Hubei Wuhuan to start production
of sanitation vehicles, rod sweepers, rod sprinklers, garbage trucks, fire trucks, truck mounted cranes, ambulances, etc.the factory has a high-level professional, hard-working and dedicated modern staff team, more than 20 years of exploration and enterprising, and accumulated rich experience in design, development and production. We warmly welcome all friends to visit our factory any time, learn from each others and improve business, WIN-WIN TOGETHER.
of sanitation vehicles, rod sweepers, rod sprinklers, garbage trucks, fire trucks, truck mounted cranes, ambulances, etc.the factory has a high-level professional, hard-working and dedicated modern staff team, more than 20 years of exploration and enterprising, and accumulated rich experience in design, development and production. We warmly welcome all friends to visit our factory any time, learn from each others and improve business, WIN-WIN TOGETHER.
