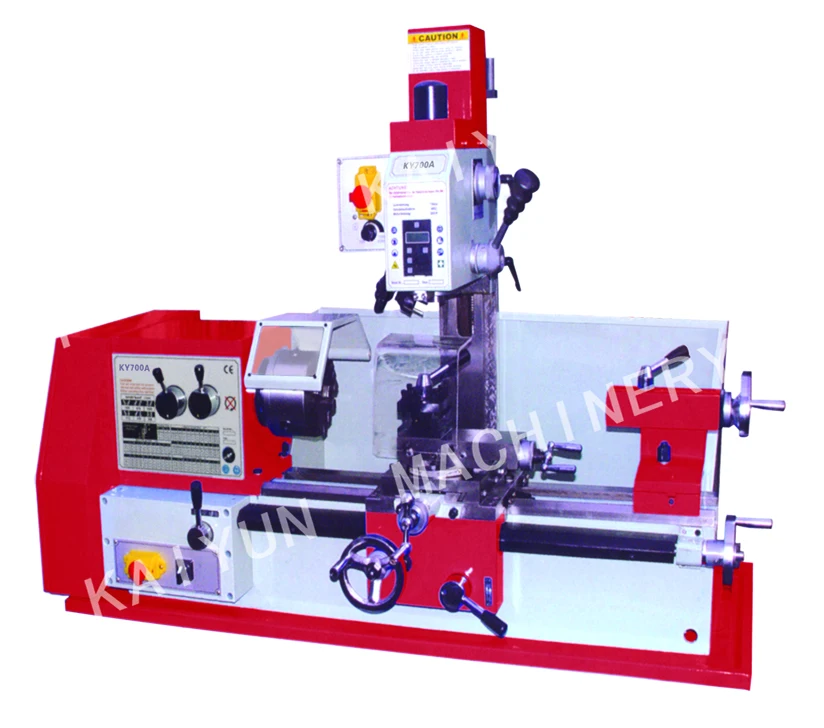

Easy to Operate Multi Function Household Bore Hole Combination Machine for drilling bead(KY450A/KY700A)
- Category: >>>
- Supplier: Yangzhou Kaiyun Machinery Co. Ltd.
Share on (1600669568656):
Product Overview
Description
Product Description
Specification | ||||||
Model No. | KY450A/KY700A | |||||
Height of center | 125mm | |||||
Distance between two centers | 450mm/700mm | |||||
Max.length cutting | 420mm/660mm | |||||
Max.Wwing ocer bed | 250mm | |||||
Max.swing over carriage | 130mm | |||||
Taper of spindle nose | MT4/27mm | |||||
Spindle speed range | 115-1620rpm | |||||
Metric thread cutting | 0.2-3.5mm(10 kinds) | |||||
Inch thread cutting | 8-56/1(20 kinds) | |||||
Moulder thread cutting | 0.1-1.25mm(10 kinds) | |||||
Range of longitudinal feed | 0.05-0.1mm | |||||
Drilling & Milling | ||||||
Taper of spindle bore | MT2 | |||||
Spindle stroke | 50mm | |||||
Range of spindle speeds | 50-2250rpm | |||||
Max.distance spindle to table | 280mm | |||||
Max.distance spindle ti column | 170mm | |||||
Head tilt | ±90° | |||||
Motor | 500W | |||||
Packing size | 1270/1510*670*1100mm | |||||
Net weight | 180/200kg | |||||
Standard accessories | ||||||
Splash guard | 1 pc | |||||
Chip tray | 1 pc | |||||
Drawbar | 1 pc | |||||
Arbor | 1 pc | |||||
Toolbox & tools | 1 set | |||||
Optional accessories | ||||||
4-jaw chuck | 1 set | |||||
Backplate | 1 pc | |||||
Follow rest | 1 pc | |||||
Steady rest | 1 pc | |||||
Face plate | 1 pc | |||||
Collet chuck | 1 set | |||||
Turning tools | 1 pc | |||||
FEATURES
1.Economical widely useful hobby lathe.
2.V-way bed is precision ground.
3.Spindle is supported by precision taperd bearing.
4.Gear head enables to quickly change speeds.
5.Power lingitudinal feed allows threading.
6.Adjustable gids for slidways.
7.Change gears has large feed and threading functions.
8.Tailstock may be offset for turning tapers.
9.Variable speed mill head
10.Mill head can be tilt ±90°.
