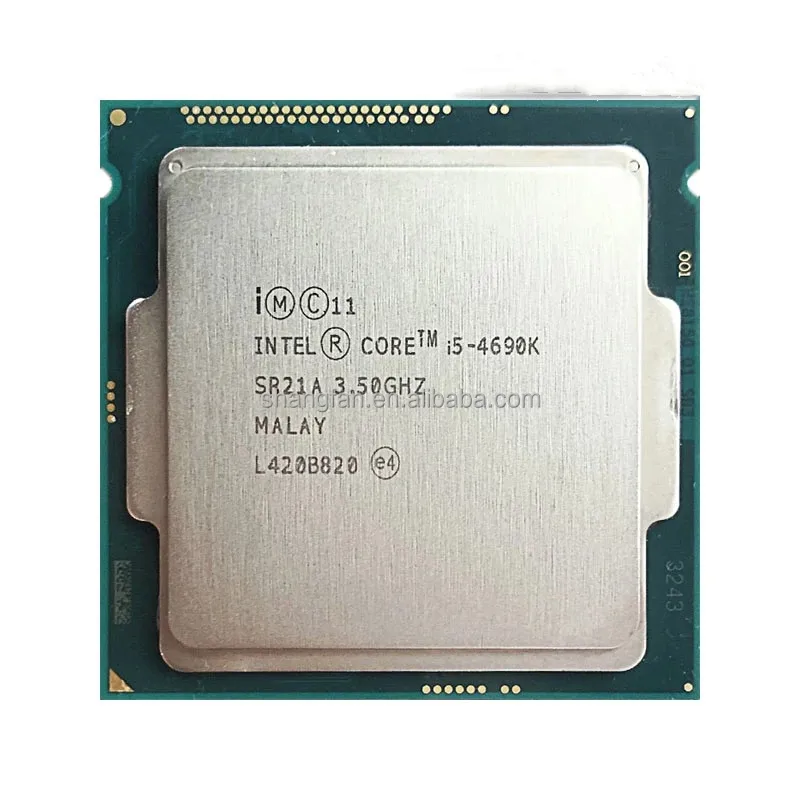

For Intel Core i5 4690K I5 4690 K 3.5 GHz Quad Core Quad Thread 88W 6M CPU Processor LGA 1150 i5 4690K

General information

Type

CPU / Microprocessor

Market segment

Desktop

Family

Model number  ?

CPU part numbers

•


  CM8064601710803 is an OEM/tray microprocessor





•


  BX80646I54690K is a boxed processor with fan and heatsink (English version)





•


  BXC80646I54690K is a boxed processor with fan and heatsink (Chinese version)





•


  BXF80646I54690K is a boxed processor without fan and heatsink




Frequency ?

3500 MHz

Maximum turbo frequency

3700 MHz (4 cores)
3800 MHz (3 cores)
3900 MHz (1 or 2 cores)

Bus speed ?

5 GT/s DMI

Clock multiplier ?

35

Package

1150-land Flip-Chip Land Grid Array

Socket

Socket 1150 / H3 / LGA1150

Size

1.48" x 1.48" / 3.75cm x 3.75cm

Introduction date

June 2, 2014

Price at introduction

$242 (OEM)
$243 (box)

S-spec numbers

Architecture / Microarchitecture

Microarchitecture

Haswell

Processor core  ?

Devil's Canyon

Core stepping  ?

C0 (SR21A)

Manufacturing process

0.022 micron

Data width

64 bit

The number of CPU cores

4

The number of threads

4

Floating Point Unit

Integrated

Level 1 cache size  ?

4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches

Level 2 cache size ?

4 x 256 KB 8-way set associative caches

Level 3 cache size

6 MB 12-way set associative shared cache

Physical memory

32 GB

Multiprocessing

Uniprocessor

Extensions and Technologies

•


  MMX instructions





•


  SSE / Streaming SIMD Extensions





•


  SSE2 / Streaming SIMD Extensions 2





•


  SSE3 / Streaming SIMD Extensions 3





•


  SSSE3 / Supplemental Streaming SIMD Extensions 3





•



  SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4  ?





•


  AES / Advanced Encryption Standard instructions





•


  AVX / Advanced Vector Extensions





•


  AVX2 / Advanced Vector Extensions 2.0





•


  BMI / BMI1 + BMI2 / Bit Manipulation instructions





•


  F16C / 16-bit Floating-Point conversion instructions





•


  FMA3 / 3-operand Fused Multiply-Add instructions





•



  EM64T / Extended Memory 64 technology / For Intel 64  ?





•



  VT-x / Virtualization technology  ?





•


  VT-d / Virtualization for directed I/O





•



  TBT 2.0 / Turbo Boost technology 2.0  ?





•


  TSX / Transactional Synchronization Extensions




Security Features

•



  NX / XD / Execute disable bit  ?





•


  SMEP / Secure Mode Execution Protection




Low power features

Enhanced SpeedStep technology  ?

Integrated peripherals / components

Integrated graphics

GPU Type: HD 4600
Graphics tier: GT2
Microarchitecture: Gen 7.5
Execution units: 20
Base frequency (MHz): 350
Maximum frequency (MHz): 1200
The number of supported displays: 3

Memory controller

The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1333, DDR3-1600
Maximum memory bandwidth (GB/s): 25.6

Other peripherals

•


  Direct Media Interface 2.0





•


  PCI Express 3.0 interface




Electrical / Thermal parameters

Maximum operating temperature  ?

72.72°C

Thermal Design Power ?

88 Watt
