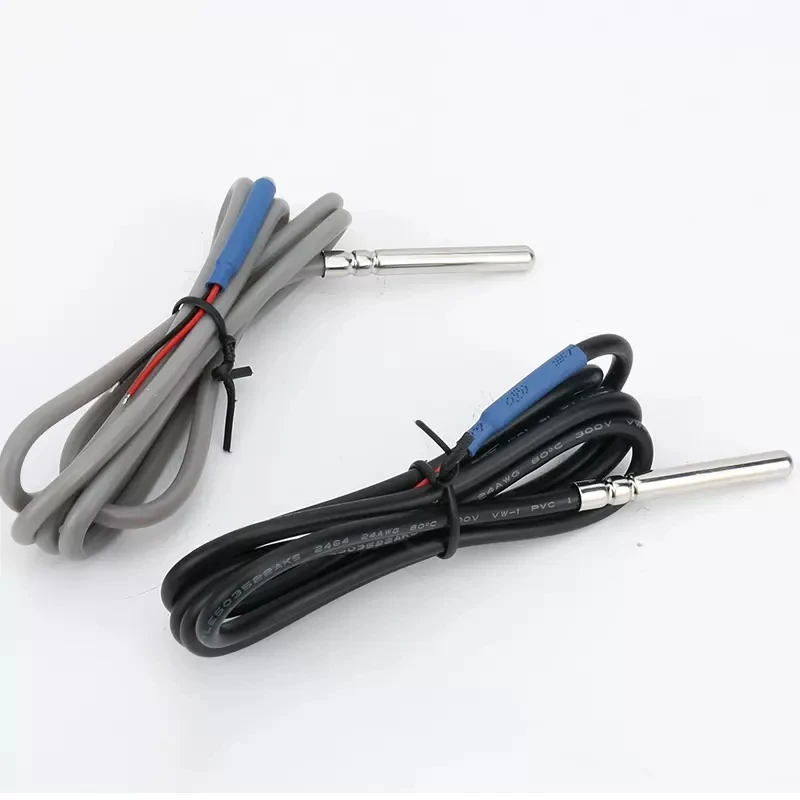

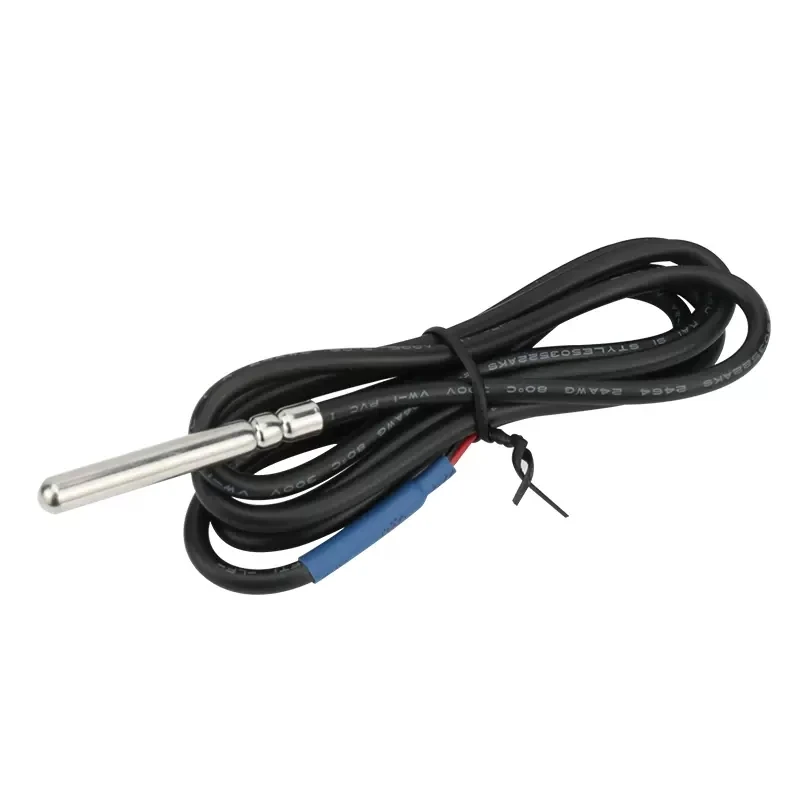

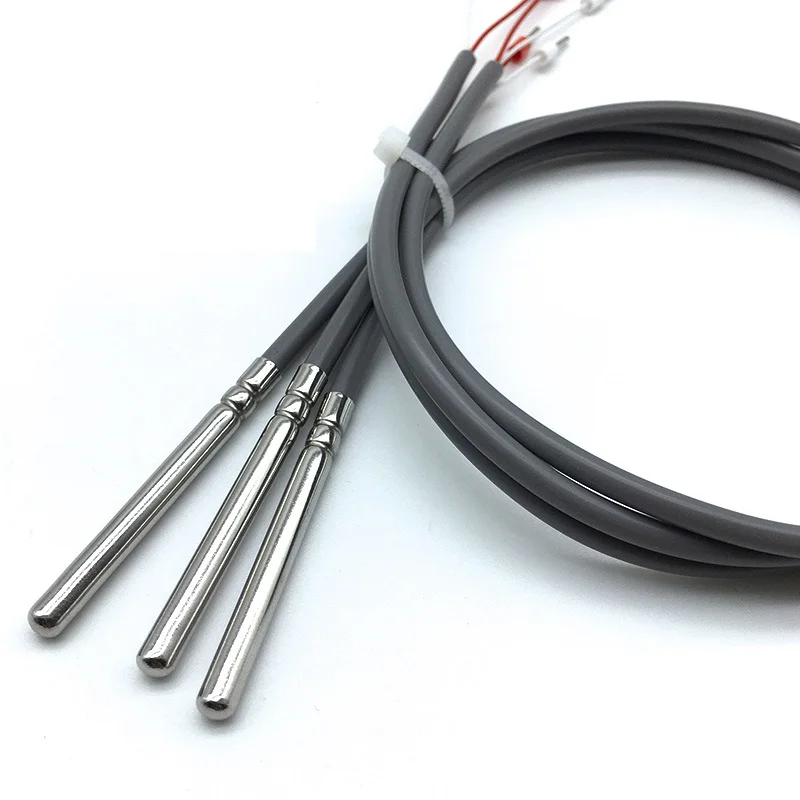

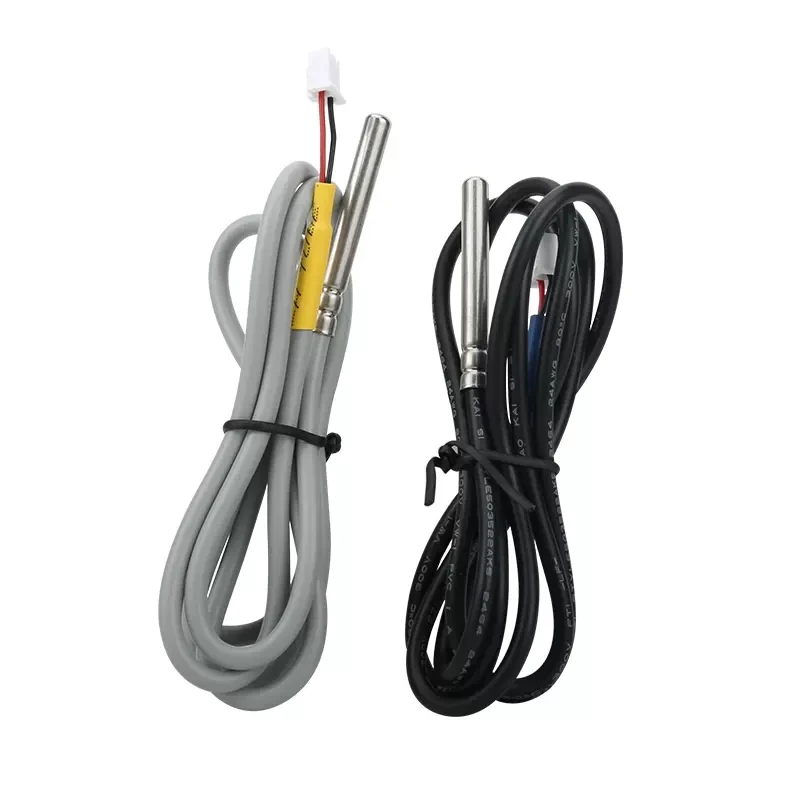

NTC Thermistor temperature sensor stainless steel waterproof probe temperature head 5k 10k 20k 50k 100k

Share on (1600669941522):


Price:

Quantity:


Product Overview

Description



Product Description


Product Name
NTC temperature sensor
Chip type
 High precision thermistor
Product classification
multi-line customization
Temperature range
PVC wire: -20-80C      , Silica gel wire: -40-260C
Specifications Model
Default value B =3950

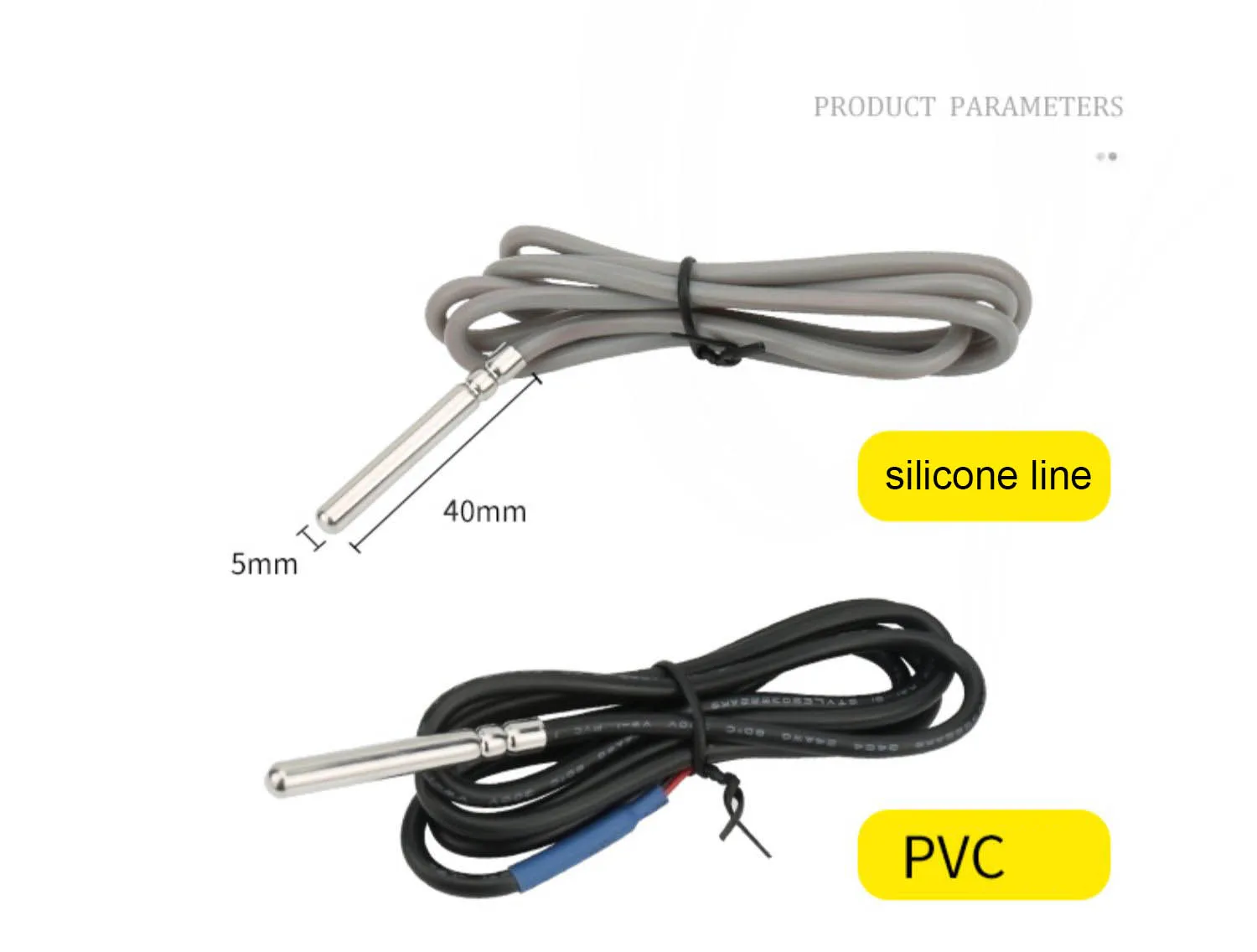

Probe length
5*40mm, other specifications can be customized
Product features
high temperature and low temperature resistance, waterproof, rust proof and oil proof Accurate temperature
measurement and strong stability
Application
temperature control instrument, medical, electrical, industrial home appliances, computer






Specification


item
value
Customized support
OEM, ODM, OBM
Place of Origin
ZHE
Brand Name
TS
Model Number
10K NTC
Measurement range
-20 to 105°C
Length of wire
1m
diameter
6mm
Length of temperature sensor
25 mm
Output
2 wires
Type
NTC 10k
Typical Dissipation Constant
5mW/ °C
Probe insulation
100MOhm
Peak Voltage sustain time
2 seconds
Material
SS304


Company Profile






Shanghai teshi Machinery Co., Ltd. is one of the areas of high-tech enterprises, with Shanghai and many other research institutes and universities jointly developed a series of temperature-controlled production of electronic products sold throughout the country. Products are renowned for their excellent performance, good looks, reliability, advanced technology, good price and market reputation, won the trust of users. 2000 has passed ISO9001: 2000 quality system certification, the company has first-class production lines and testing instruments, the quality of supervision of the whole process. Enterprises have a strong technical development team and the outcome of the patent, willing to undertake regular and special products business. For the design, installation of a variety of large, medium and small automatic temperature control system. Enterprise has always believed in the "quality of legislation market, users struggle credibility, technology and development" purposes. Welcome new and old customers to buy! Thermocouple developed under special conditions: the temperature of the thermocouple as a solution in steel, copper water, aluminum water, zinc, water, and salt and other melting furnaces, cement factories and power plants, and thermocouple under special environments, high-precision long service life, the new oxidation tungsten rhenium thermocouples, low cost, high temperature, is the ideal alternative to platinum and rhodium thermocouple, some products reach the level of military products. Produced by polytetrafluoroethylene (PTFE) tubes, plates, rods, gaskets, shaped pieces and other products, resistant to acid, alkali, corrosion resistance, ideal for a wide range of high temperature, environmental protection, use, the company has a strong technology development and patent portfolio results, to undertake regular and special products business, customers can design, installation of various large and small automatic temperature control and remote monitoring body temperature control system.
