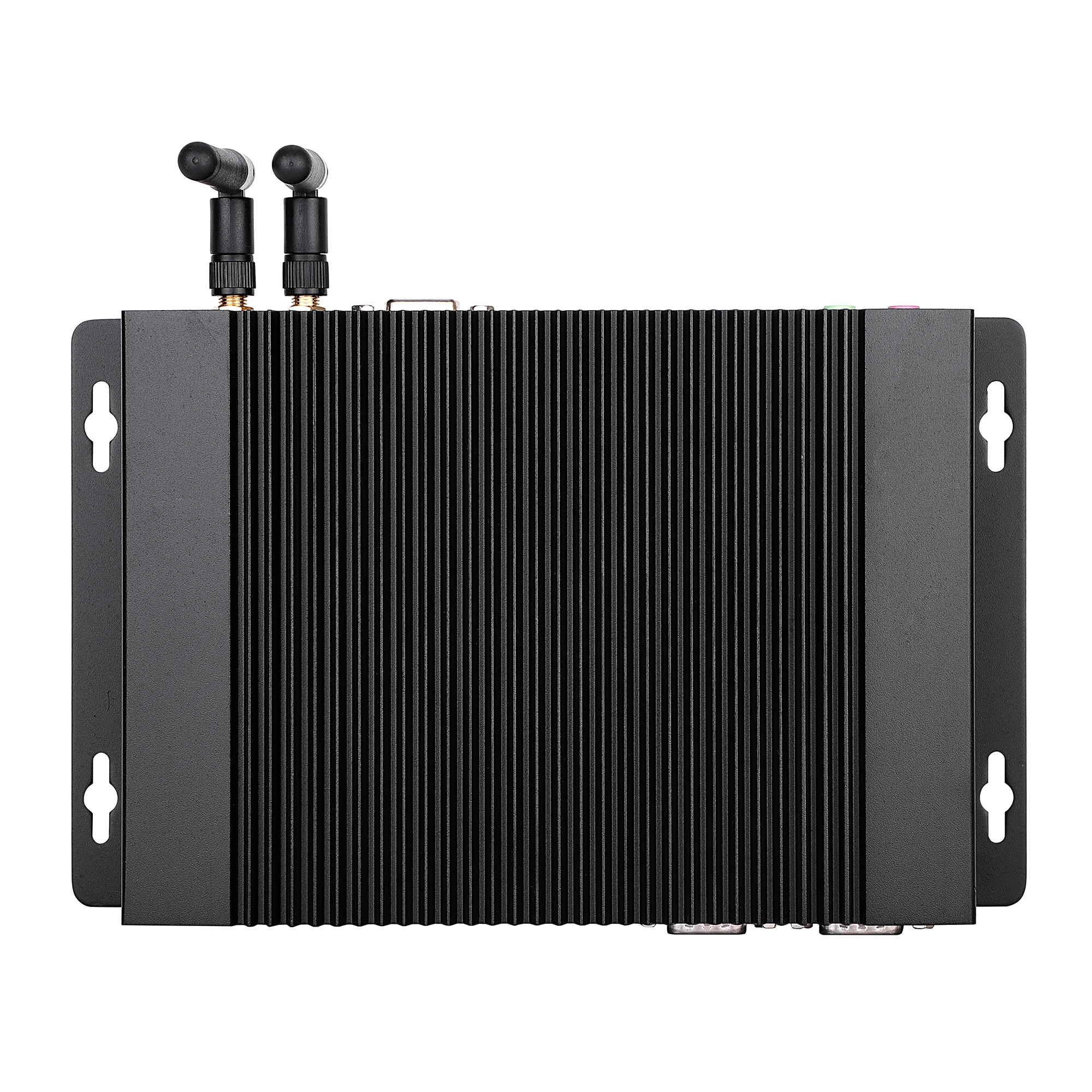

Industrial Embedded and Edge Solutions Industrial Embedded Computer 2* RS232 422 485 2* RJ45 LAN
- Category: >>>
- Supplier: Shenzhen Yiyun Electronic Limited Company
Share on (1600670200264):
Product Overview
Description
Industrial pc RS232 RS422 RS485 COM port 2LAN 2COM Embedded with SIM card slot Support 3G 4G industrial computer
For Medical Imaging Diagnostics
Product features
CPU: Intel Celeron N2920/N3520 Processor lower consumption, just 10W
RAM: Support 1*SODIMM Notebook Memory DDR3L; max to 8GB;

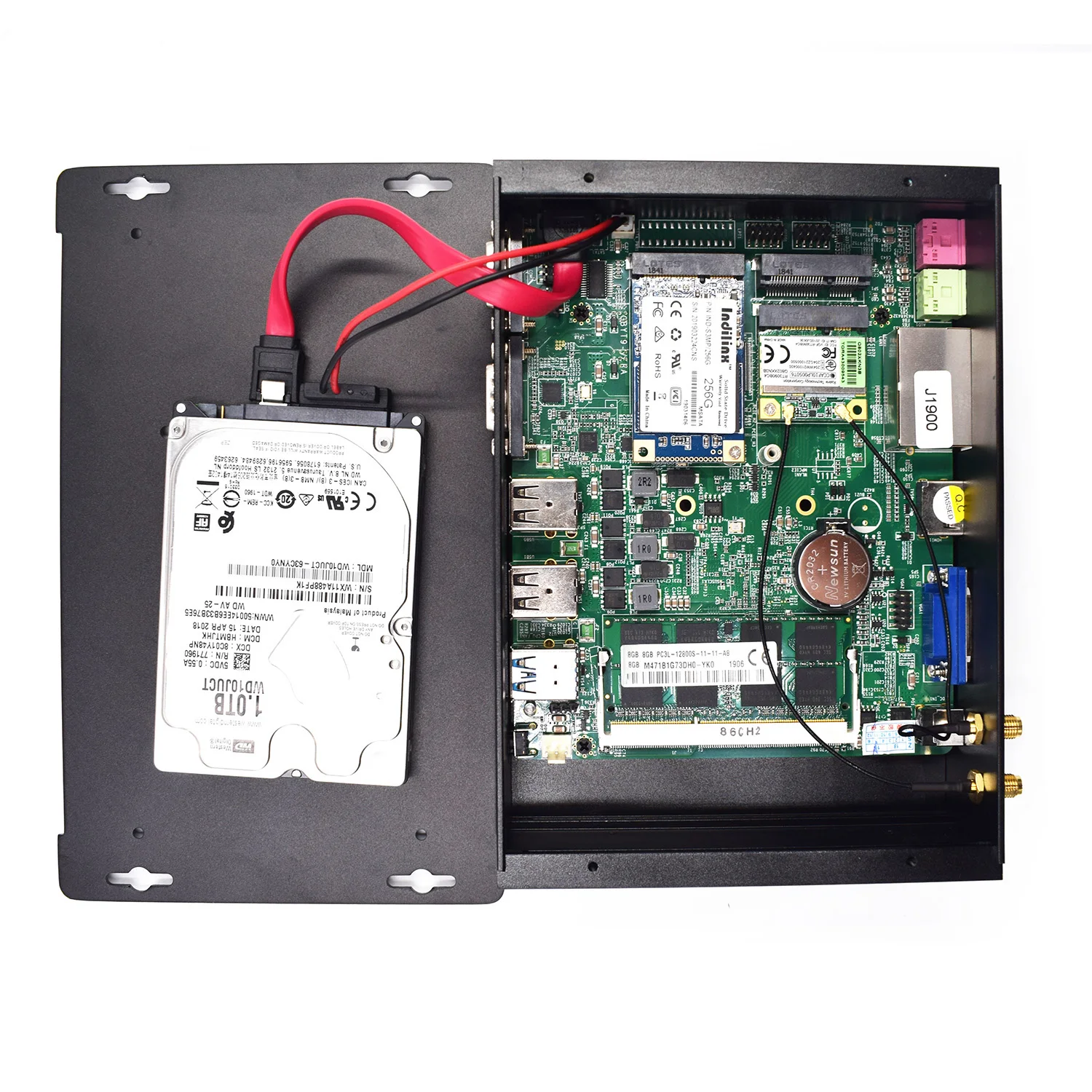

Storage:Max expanded to 1*mSATA3 SSD and 1*2.5 inch laptop SSD/HDD SATA3, no limited on storage capacity;
Operating System: Default: Windows 10; Optional: Linux Ubuntu
Wireless: 300MB WiFi with 2 Antennas
I/O:
RAM: Support 1*SODIMM Notebook Memory DDR3L; max to 8GB;
Storage:Max expanded to 1*mSATA3 SSD and 1*2.5 inch laptop SSD/HDD SATA3, no limited on storage capacity;
Operating System: Default: Windows 10; Optional: Linux Ubuntu
Wireless: 300MB WiFi with 2 Antennas
I/O:
1*HD, 1*VGA, 2*LAN Gigabit (RJ45), 2*USB 3.0, 4*USB2.0, 2*COM(RS232 RS422,RS485), External SIM Card slot. 1*Power indicator and switch, 1*DC IN ;
Internal ports: 1*mSATA3.0, support 6Gb/s, 1*SATA3.0, support 6Gb/s, 1*mini-PCIE port (for WIFI);
HD Out put: 1*HD+1*VGA,
LAN port: 2*Gigabit RJ45 port speed up to 1Gbps;
Case Material: Brushed Aluminum Alloy;
Product parameter
| General | |
| CPU | Onboard Intel Pentium N3520 2.166GHz up to 2.42Ghz Quad Core
Onboard Intel Celeron N2920 1.86GHz up to 2.0Ghz Quad Core |
| Core (FSB) | 100MHz |
| CPU Technique | 22nm |
| L3 Cache | 2 MB, CPU integrated |
| Motherboard | Intel CRESCENTBAY ( Lynx Point-LP ) |
| Support GPIO | |
| BOIS | AMI BIOS, ACPI supported |
| Support Auto power on | |
| Chipset | Intel BTY SOC |
| Memory | 1* SO-DIMM DDR3L Slot |
| Support 4GB/8GB DDR3L 1333 (Optional) | |
| Storage | 1*MSATA SSD: 16G/32G/64G/128G/256G/512G/1TB((Optional)) |
| 1*SATA HDD: 320G/500G/1TB(Optional) | |
| Operating System | Windows 7/Windows 8/Windows 10/Linux |
| Audio | ALC662 HD Audio, 6 channel sound |
| Network | Onboard Intel i211 Gigabit Network Connection |
| 10/100Mbps/1000Mbps BaseT LAN | |
| Video | Intel Haswell- ULT Integrated Graphics Controller |
| Intel HD Graphics | |
| I/O port | |

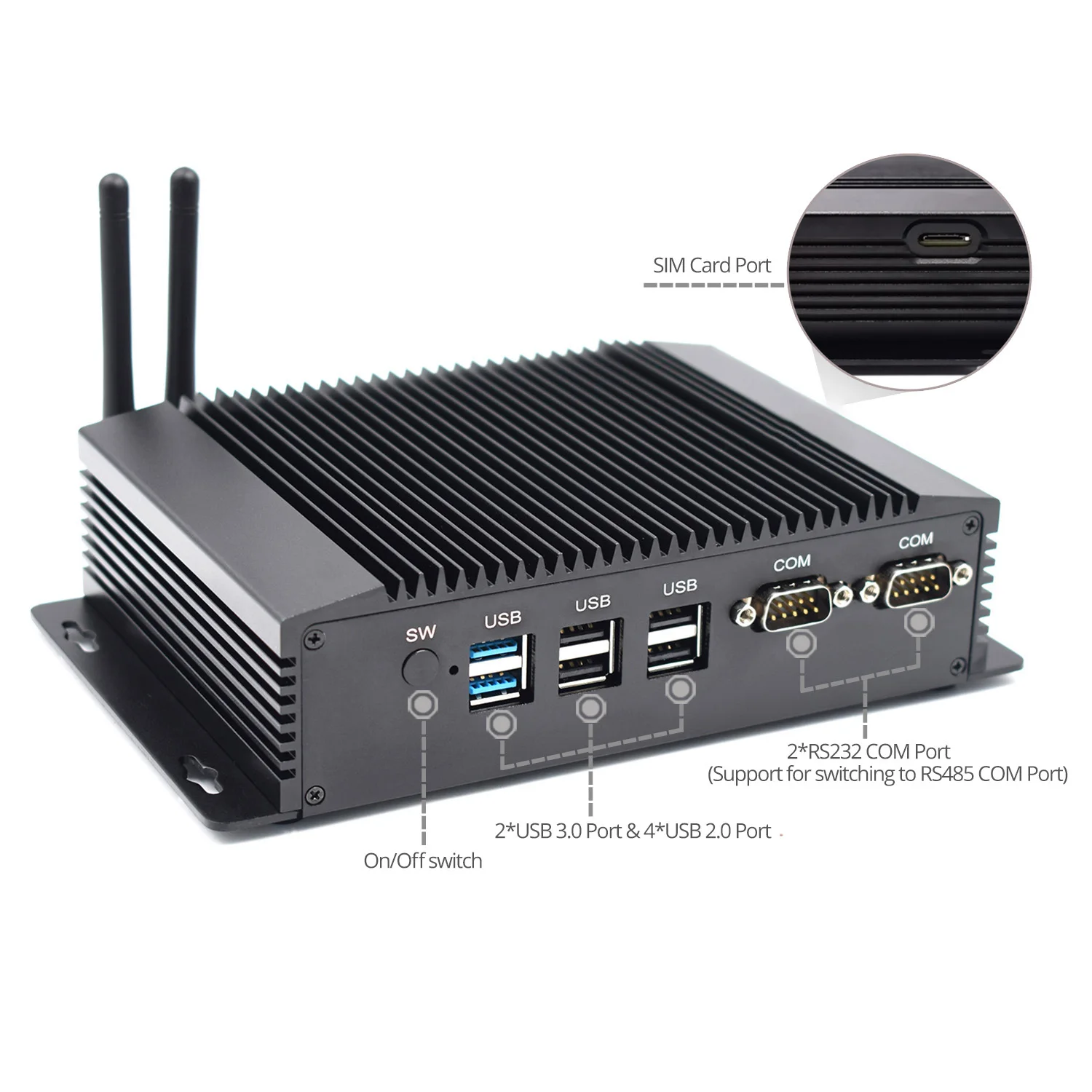

| front panel ports | 1* Switch On/Off, 1*LED, 2*USB3.0, 4*usb2.0, 2*RS232/422/485 COM |

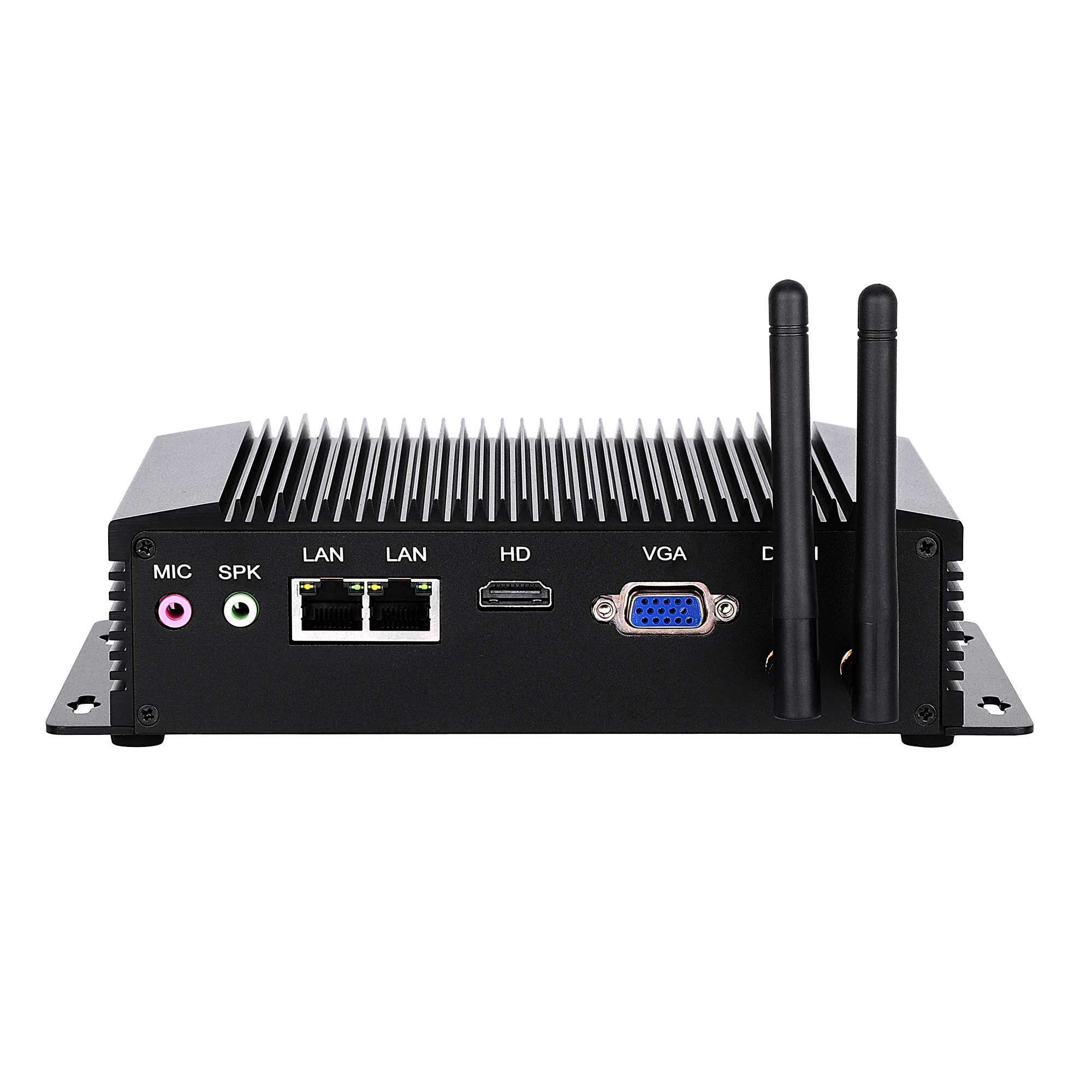

| Backside ports | 1*MIC, 1*SPK, 2*RJ45 LAN, 1*HDMI, 1*VGA, 1*DC IN, 2*Wi-Fi |
| COM | 2* RS232/RS422/RS485(convert from BIOS) |

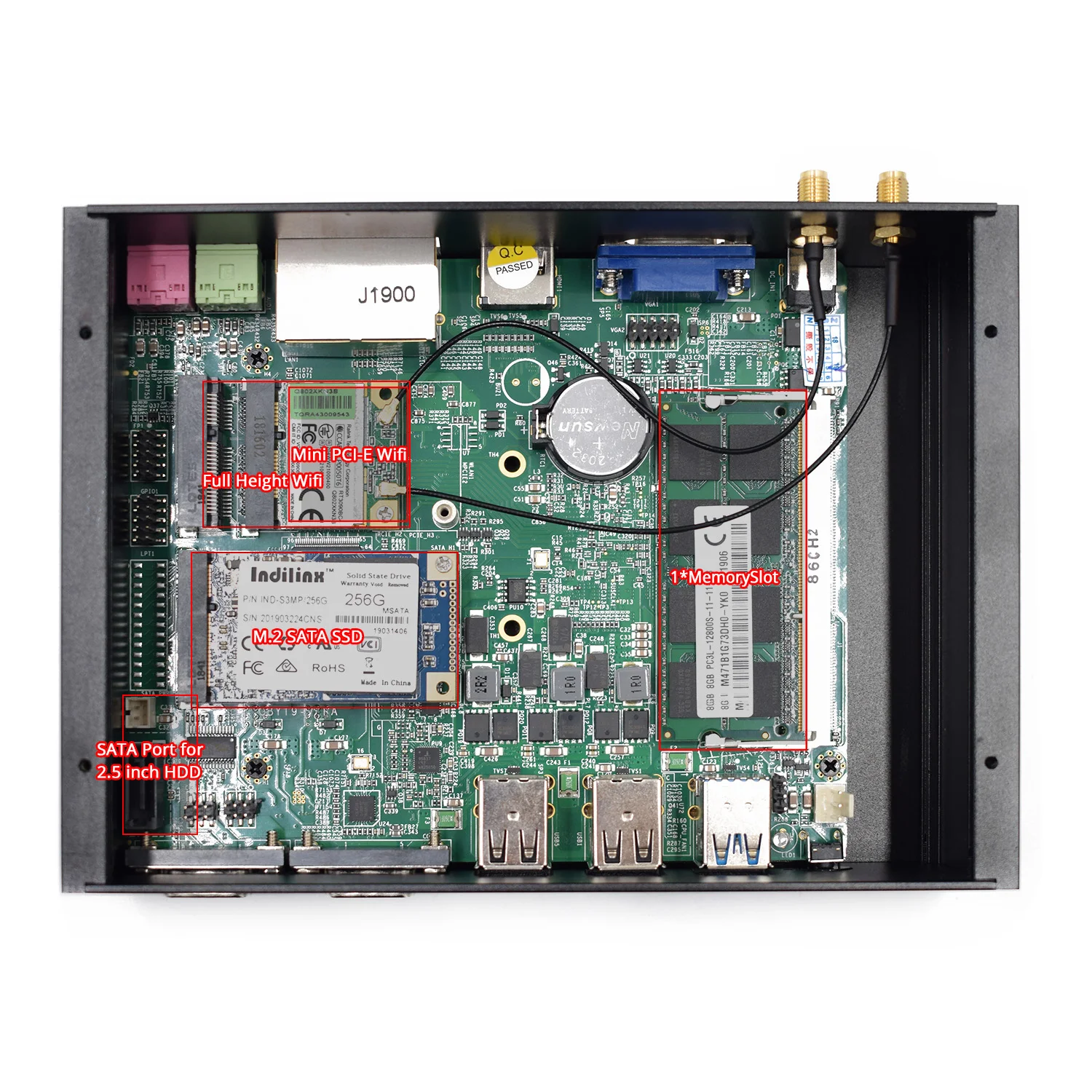

| Internal ports | 1*M-SATA3.0 port, support 6Gb/s |
| 1*SATA3.0 port, support 6Gb/s | |
| 1*mini PCIE-half port for WiFi module | |
| 1*mini PCIE-full port for 4G module | |

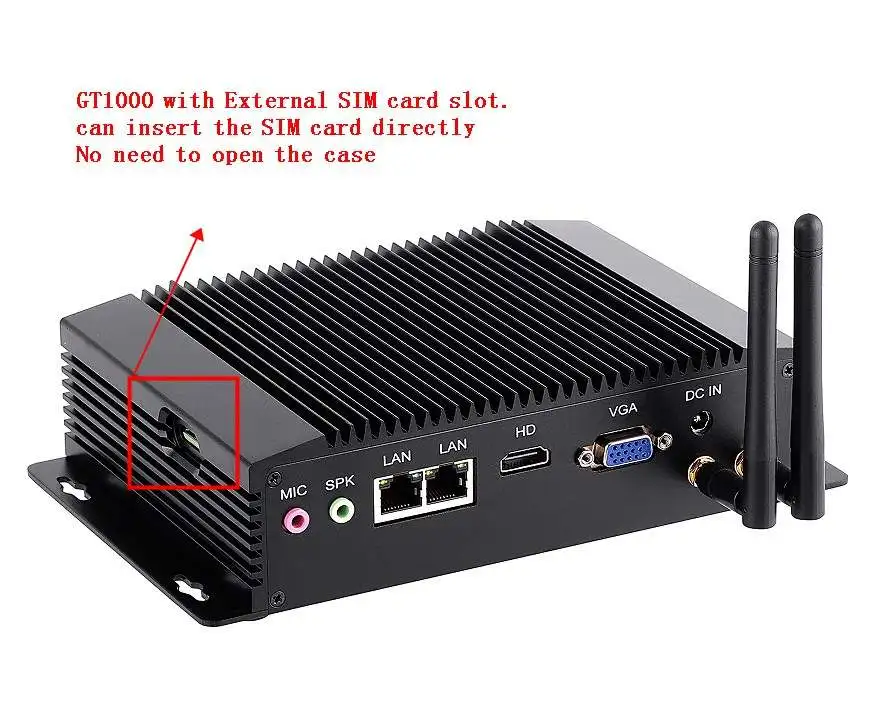

| SIM slot | Micro SIM, with PUSH function(on the side) |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC 12V/5A |
| Operating Temperature | -10/+60 Centigrade(22°F~130°F) |
| Storage Temperature | -20/+80 Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Product Dimension & Details | |

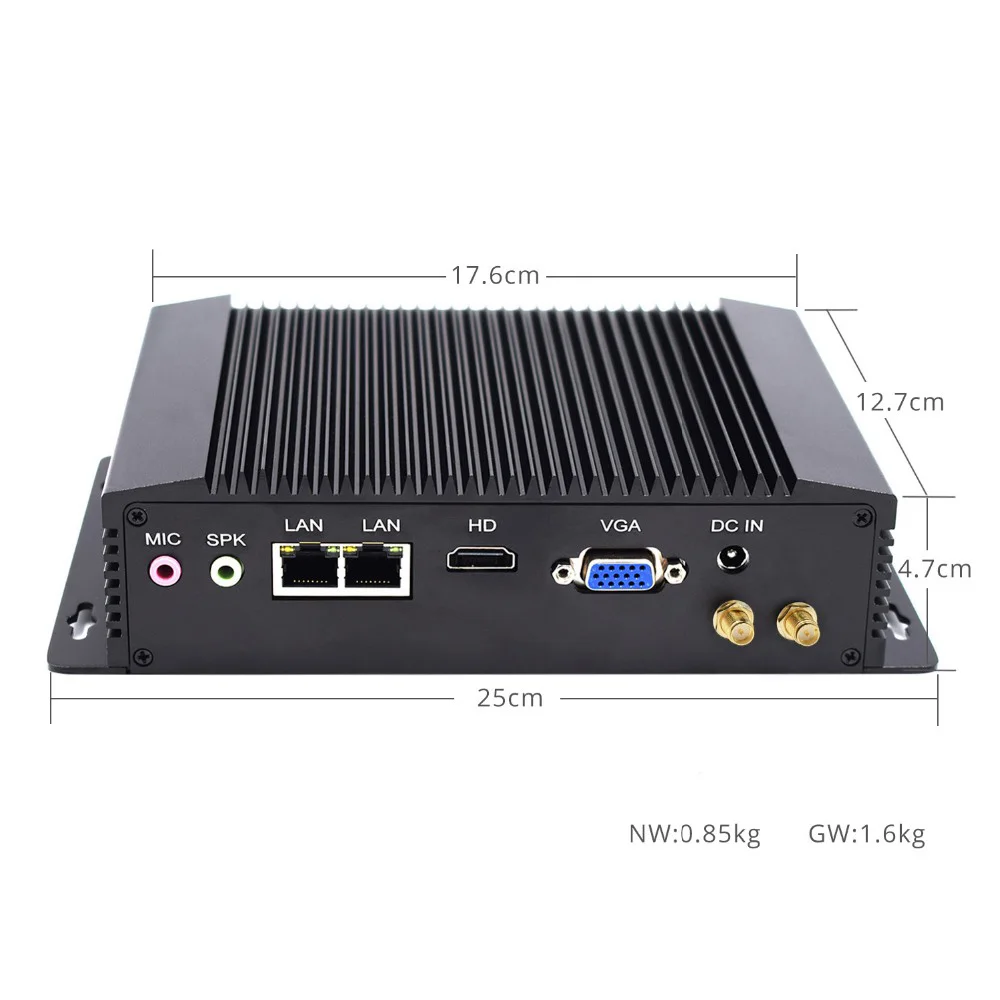

| Size | 175*125*37mm |
| Net Weight | 0.85KG |
| Gross Weight | 1.5KG(incl. package accessories) |
| Consumption | 10W |
| Shell | Black color aluminum alloy |
| Package Accessories | Mini PC.Power adapter, dual Wi-Fi antennas(optional),a Screw Bag |
Product images
