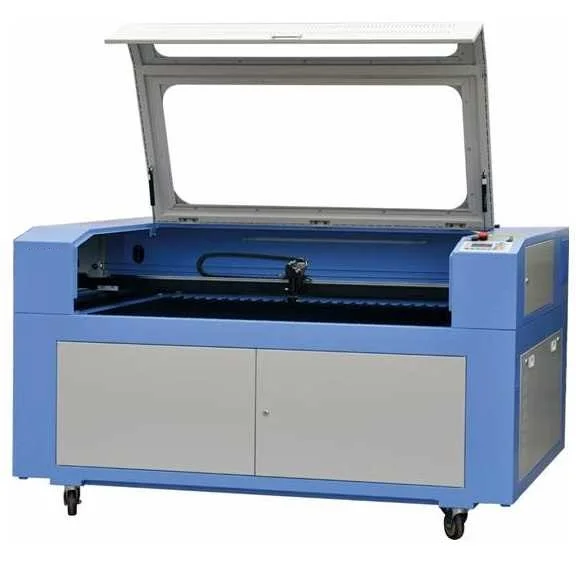

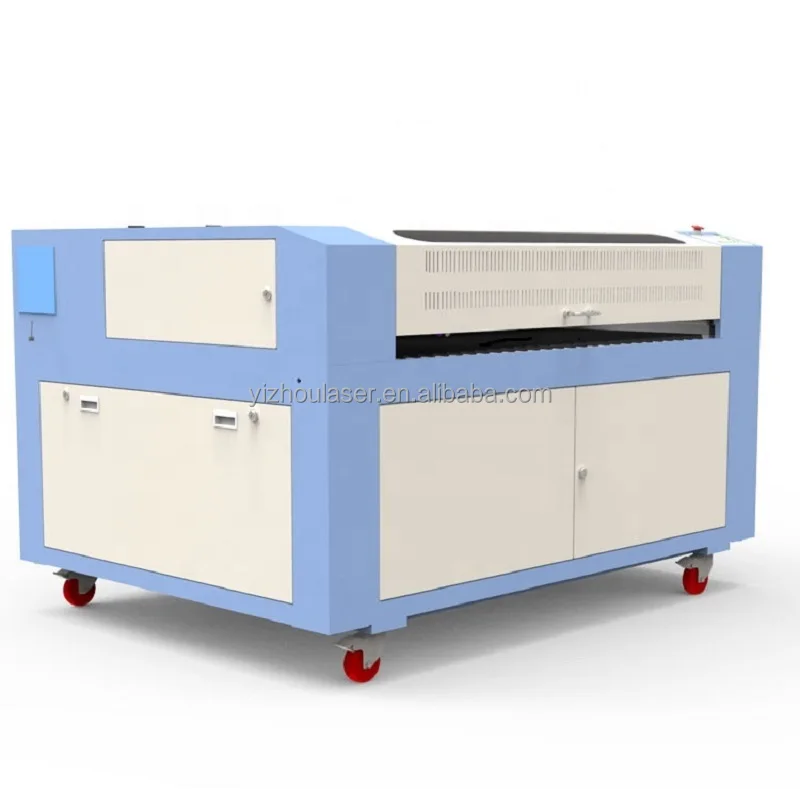

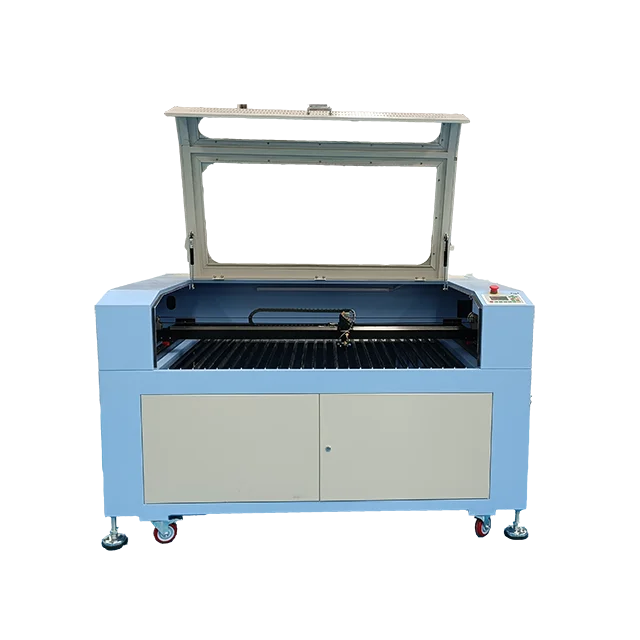

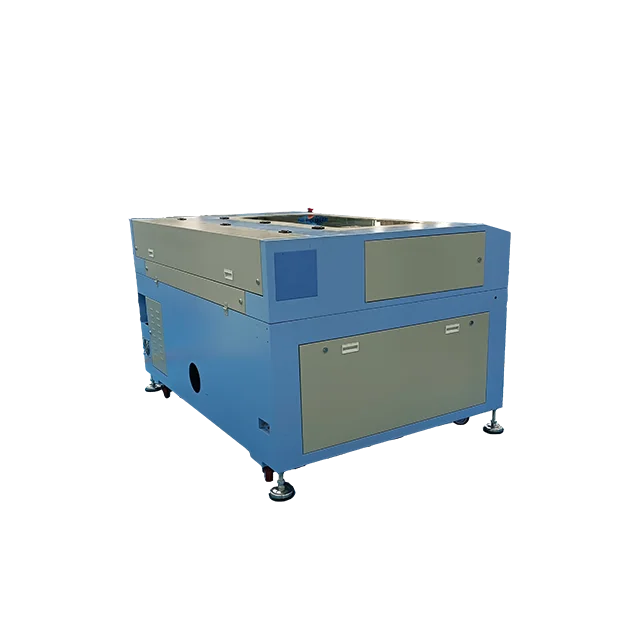

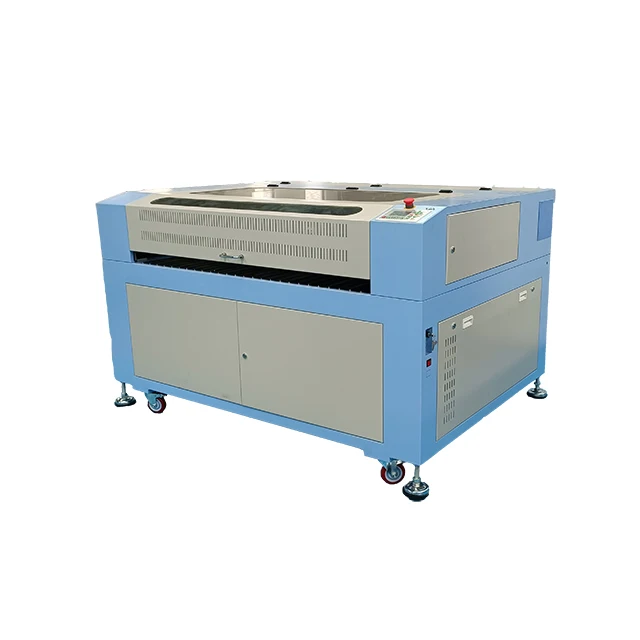

cnc 80/100w 1390 co2 granite stone glass laser engraving cutting machine
- Category: >>>
- Supplier: Jinan Yizhou Laser Technology Co. Ltd.
Share on (1600670665757):
Product Overview
Description
Product Overview

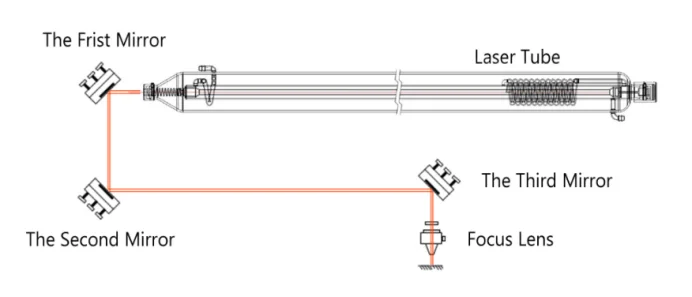

How Laser Machine Works
Y1390 laser engraving and cutting machine is used specially for the nonmetal art crafts,
gifts and the engraving of bamboo products. The mechanical structure is strong and stable,
making the machine to run at high precision. The electrical ability is stable, the engraving
speed is high, and the precision is high.
gifts and the engraving of bamboo products. The mechanical structure is strong and stable,
making the machine to run at high precision. The electrical ability is stable, the engraving
speed is high, and the precision is high.
Applicable materials:
Non-metal materials such as acrylic, double color board, Plexiglas,
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, garment and leather, embroidery, decoration and upholster industry
and wooden product, garment and leather, embroidery, decoration and upholster industry
Characteristics:
1) Japanese technical engine running, making sure the products to run at high aped and
high precision.
2) The original binding beeline lead rail, the mechanic is running well and stable.
3) Channel feeding, the feeding can be unlimited.
4) The body of the machine adopts high quality aluminum, professional model and has the
specification of strong and not easy for distortion.
5) The main parts of the electrical line adopts the imported materials, the mainly
controlled CMOS chip adopts double face CPU.
high precision.
2) The original binding beeline lead rail, the mechanic is running well and stable.
3) Channel feeding, the feeding can be unlimited.
4) The body of the machine adopts high quality aluminum, professional model and has the
specification of strong and not easy for distortion.
5) The main parts of the electrical line adopts the imported materials, the mainly
controlled CMOS chip adopts double face CPU.
What we need to know from your side:
please advise us the following information, so that we can recommend you the most suitable model, right now, feel free to contact us!
1. What kind of machine do you need? Laser cutting or laser engraving or laser marking?
2. What materials do you need to process? The size and thickness?
3. What is your business scope? Are you an end user or distributor?
1. What kind of machine do you need? Laser cutting or laser engraving or laser marking?
2. What materials do you need to process? The size and thickness?
3. What is your business scope? Are you an end user or distributor?
Technical Parameters
Working size | 1300*900mm |
Cutting depth | ≤25mm（according to material） |
Laser power | YONGLI AS6 130W |
Laser type | CO2 glass laser tube |
Laser power supply | 150W |
Mirror and Lens | 25mm Dia. Si mirror; 20mm Dia. Znse IIV-VI lens |
Engraving speed | 1-60000mm/min |
Control system | RDC6442S/RDC6445G RUIDA |
Control Software | RDWORKS V8 |
Working Table | Up and down table |
Laser head | with Pen style Auto focus and red dot positioning |
Air compressor power | Haili 165W |
Motor&Driver | Stepper Motor&Driver |
Exhaust fan Power | 550W |
Transmission | Italy PEK linear rail+ONK belt |
Cutting speed | 1-10000mm/min |
Resolution ratio | ≤0.0125mm |
Interface | USB2.0 |
Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
Cooling type | Circulation water cooling CW5000 |
Support format | JPG,JPEG, PLT, DST, PLT, BMP, DXF, AI |
Voltage | 110V/220V 50HZ 60HZ |
Operating temperature | 0-45C |
Operating humidity: | 5-95% |
Warranty | Machine:1 year, Laser tube:12 months |
N.W/G.W | 350KGS/400KGS |

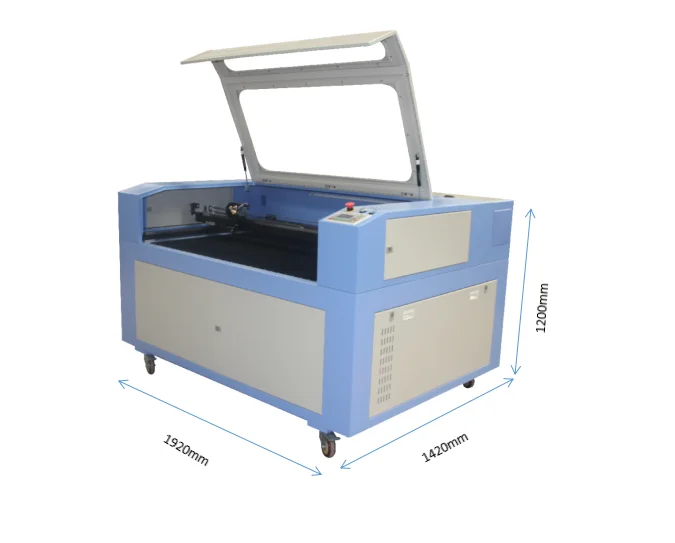

Size | 1.92*1.42*1.2m 40Q container:16SETS |

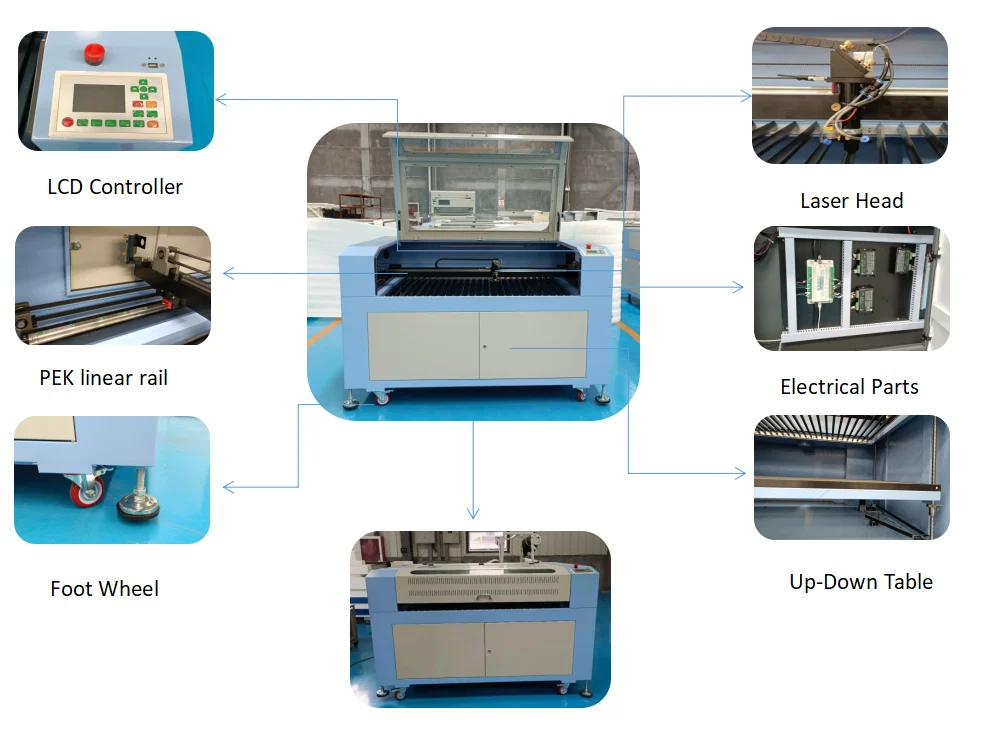

Machine Details
Easy operation LCD controller
Ruida RDC6442G/S system is a new generation system for 4-Axis control of laser engraving and cutting. Support Multi language.
With USB or WLAN Communication port
With USB or WLAN Communication port

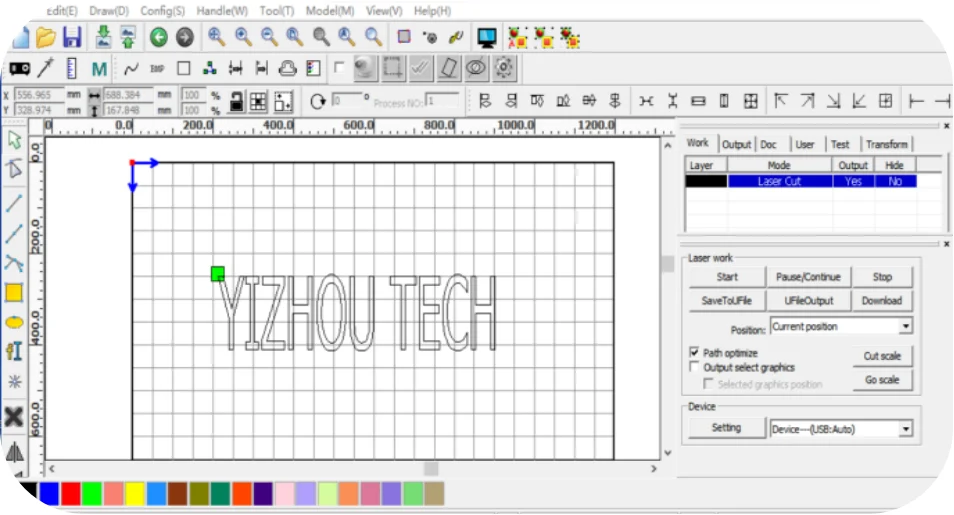

Simple Control Software
RDworksV8 software ,support multi-language
support file format: JPG,JPEG,BMP, DXF, PLT,AI etc, Communication: 10/100M Ethernet + USB 2.0 Control.
support file format: JPG,JPEG,BMP, DXF, PLT,AI etc, Communication: 10/100M Ethernet + USB 2.0 Control.

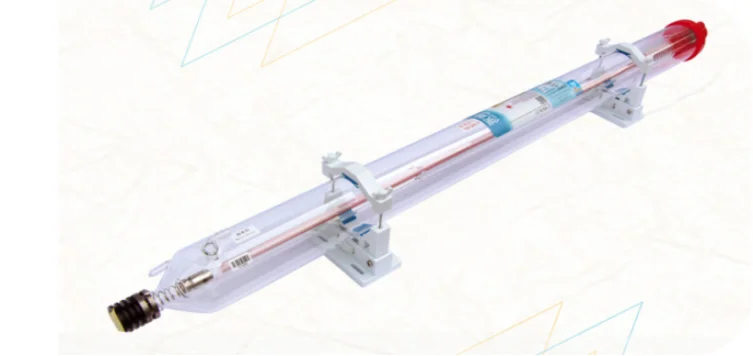

Powerful and Long Life Laser Tube
Model:AS6 YONGLI;Length:1650mm related power:130W Peak power:160W working current:30mA Diameter:80mm working life:12000hours Warranty:12 months
LCD Powerful Laser Power Supply
Model:MYJG-130W/150W
Size:305*161*91mm
Weight:3.6KGS No downtime:>35000hours
Size:305*161*91mm
Weight:3.6KGS No downtime:>35000hours
25mm Dia. Si Mirror
Silicon Mirror is a Silicon substrate, which has good optical and thermal properties. After coating a reflective film on Silicon surface, it can greatly improve its reflectance, which is approximately 99.8%, which can almost avoid the loss cause by reflection.
20mm Dia. Znse Lens
Diameter:20mm Focus length:50.8mm
Edge thickness:2.5mm
1.Double size AR coating high transmance 99.5%
2.USA CVD ZnSe Materials,up to 300W laser Resistance

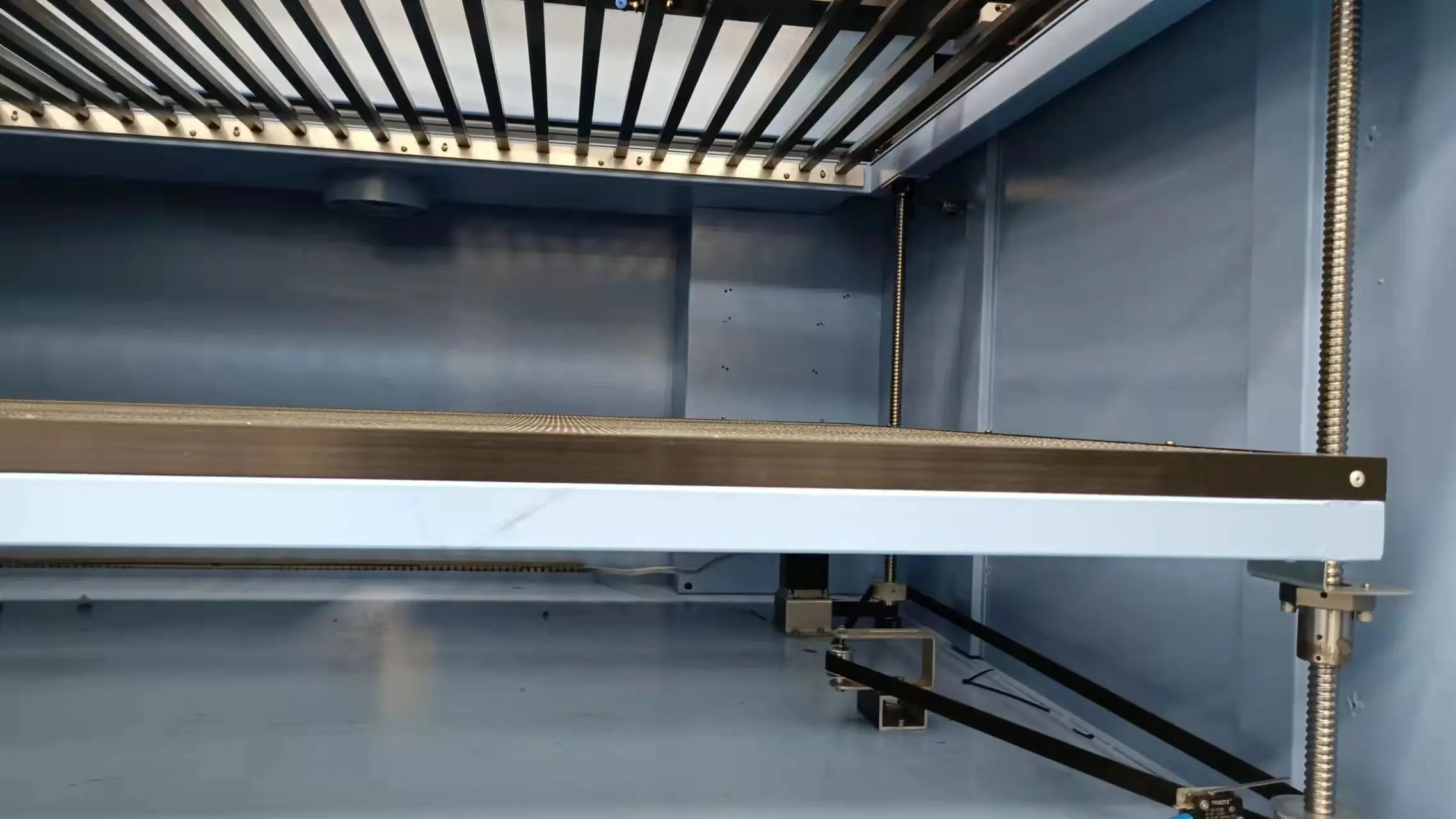

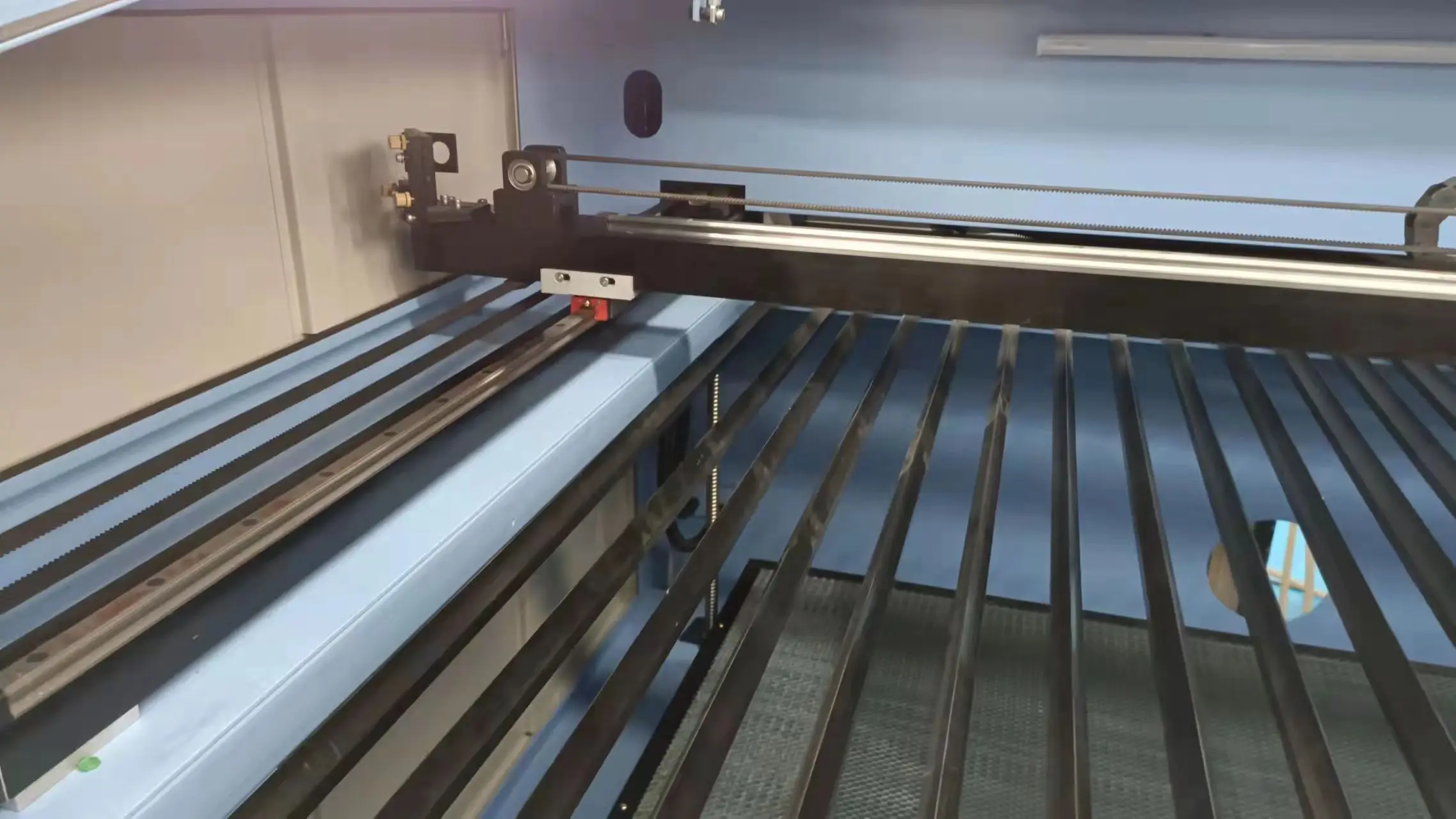

Double Table
Table: double table: honeycomb+sword blade
up-down motor: two phase stepper motor driving.
combined to auto focus function
transmission: high precision ball screw
Italy PEK linear rail
ransmission: XY PEK linear rail+ONK belt
Machine Moving stable
Powerful Chiller
Powerful cooling capacity, makes machine working normal in HOT countries and seasons.
Model:CW5000
voltage:110V/220V 50HZ/60HZ
Weight:24KGS
volume:6L
Working Current:1.4-2.1A
Size:58*29*47cm
compressor power:0.4HP/50HZ 0.52HP/60HZ
Cooling capacity:2361btu/h 50hz 2999btu/h 60hz
Maximum flow:10L/min
Model:CW5000
voltage:110V/220V 50HZ/60HZ
Weight:24KGS
volume:6L
Working Current:1.4-2.1A
Size:58*29*47cm
compressor power:0.4HP/50HZ 0.52HP/60HZ
Cooling capacity:2361btu/h 50hz 2999btu/h 60hz
Maximum flow:10L/min
Red dot Positioning and Auto Focus
Red dot positioning: Make start point visible.
Auto focus:control the up and down table to ensure the
Optimal focal length between the processed materials and the lens.
Auto focus:control the up and down table to ensure the
Optimal focal length between the processed materials and the lens.
Warning Light
Green light indicates running fine
Yellow light indicates standby states
Red light indicates a problem with the running machine
Yellow light indicates standby states
Red light indicates a problem with the running machine

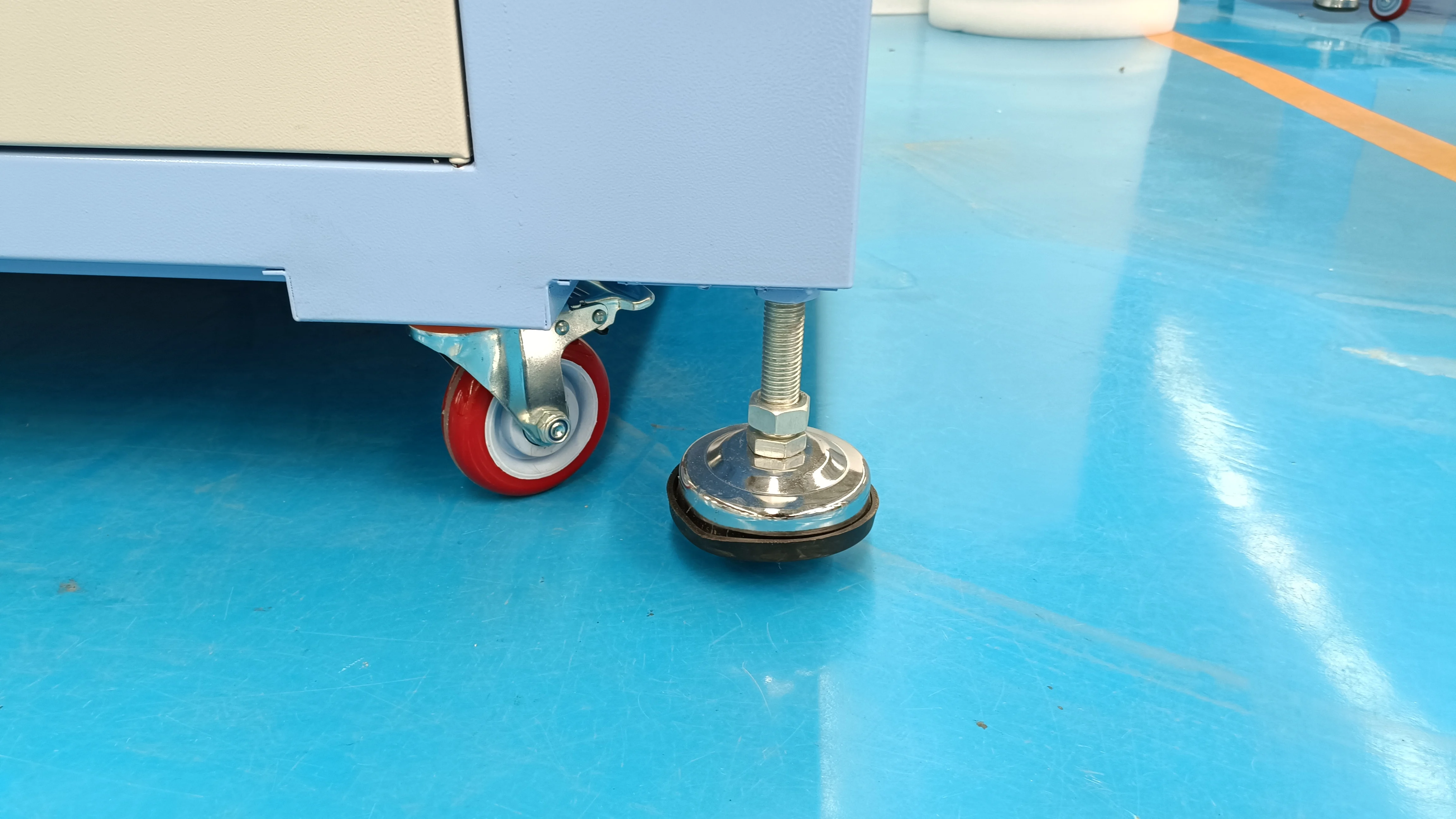

Foot and Wheel
Easy to fix the machine on floor and easy to move the machine to the different place by wheel
Samples
CO2 Laser machine applicable materials | ||||
MATERIAL | ENGRAVE | CUT | ||
Acrylic | YES | YES | ||
Ceramic | YES | |||
Cloth | YES | YES | ||
Corian | YES | YES | ||
Cork | YES | YES | ||
Delrin | YES | YES | ||
Fabric | YES | YES | ||
Fiberglass | YES | YES | ||
Glass | YES | |||
Leather | YES | YES | ||
Marble | YES | |||
Matte Board | YES | YES | ||
Melamine | YES | YES | ||
Mother of Pearl | YES | YES | ||
Mylar | YES | YES | ||
Painted Metals | YES | |||
Paper | YES | YES | ||
Plastic | YES | YES | ||
Pressboard | YES | YES | ||
Rubber | YES | YES | ||
Tile | YES | |||
Wood | YES | YES | ||
Wood Veneer | YES | YES | ||

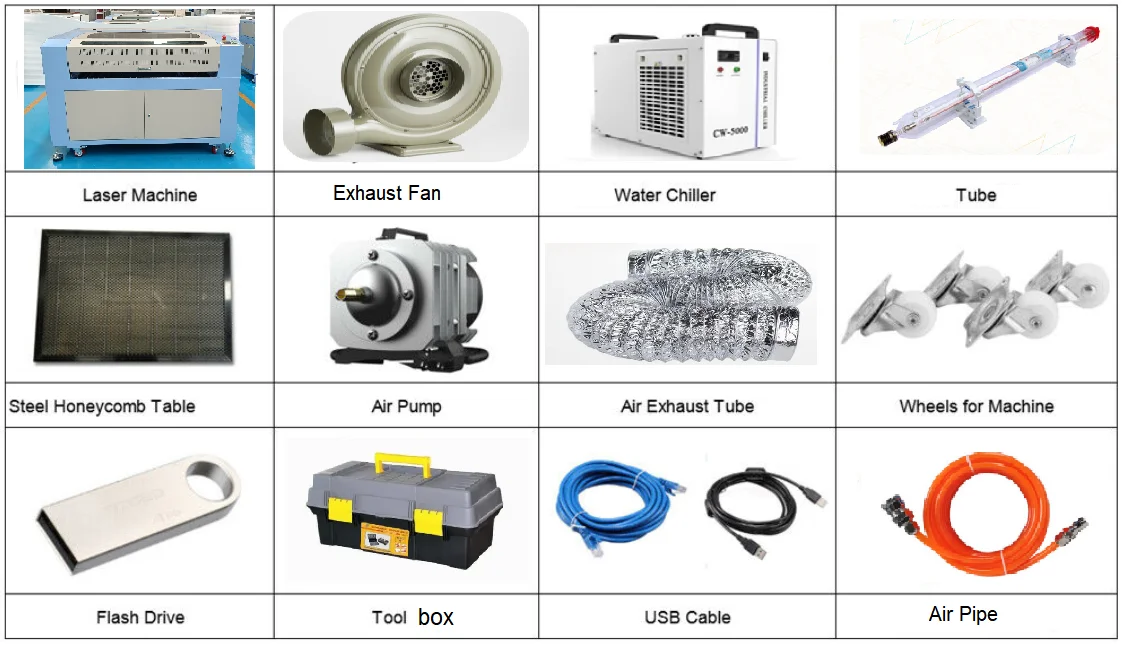

Packing List
1 x Air Pump
1X Exhaust fan
1 x Water Chiller
1 x Set of Inner Hexagon Spanner
1xLaser Tube
1 x exhaust fan Tube
1 x Screwdriver
1 x Power Cord
3 x Clamp
1 x Operation Manual
1 x USB Cable
1 x Screwdriver
1 x Adhesive Tape
1 x Network Line
1 x Exhausting Fan
1 x Flash Drive
1X Exhaust fan
1 x Water Chiller
1 x Set of Inner Hexagon Spanner
1xLaser Tube
1 x exhaust fan Tube
1 x Screwdriver
1 x Power Cord
3 x Clamp
1 x Operation Manual
1 x USB Cable
1 x Screwdriver
1 x Adhesive Tape
1 x Network Line
1 x Exhausting Fan
1 x Flash Drive
