Auto Cleaning Iron Removing Permanent Magnetic Separator For Conveyor Belt
US $289.00-$369.00
Шлифовальный круг, Пескоструйный зольный магнитный сепаратор, магнитный сепаратор для разделения железа и меди
- Category: Magnetic Separator >>>
- Supplier: Baoding Lianchi Tengbo Mechanical Equipment Factory
Share on (1600670757260):
Product Overview
Description

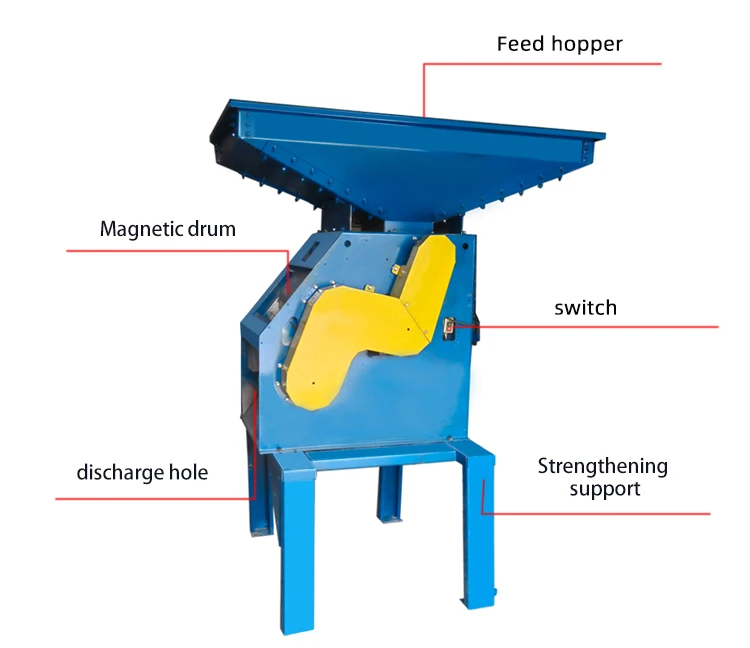

drum magnetic separator It is mainly composed of two semi-magnetic high-intensity magnetic rollers, a motor, a feeding hopper, a discharging port, a baffle, a magnetic regulating device, etc., with reasonable structure, convenient use and high iron selection efficiency. It is mainly used to sort the iron in aluminum pins, aluminum powder, copper powder, copper rice, stainless steel, zinc powder and aluminum ash. It is a trusted product of non-ferrous metal recycling manufacturers, which can continuously separate magnetic materials from non-magnetic materials and save labor in the purification process. It is an ideal product for iron scrap recycling stations, copper bar factories, foundries and individual iron sorting to remove impurities.

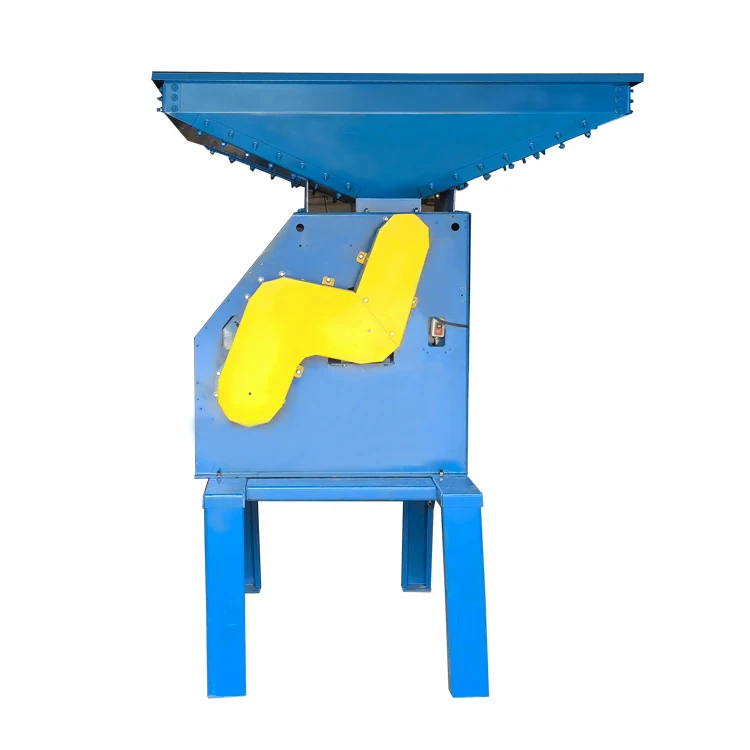

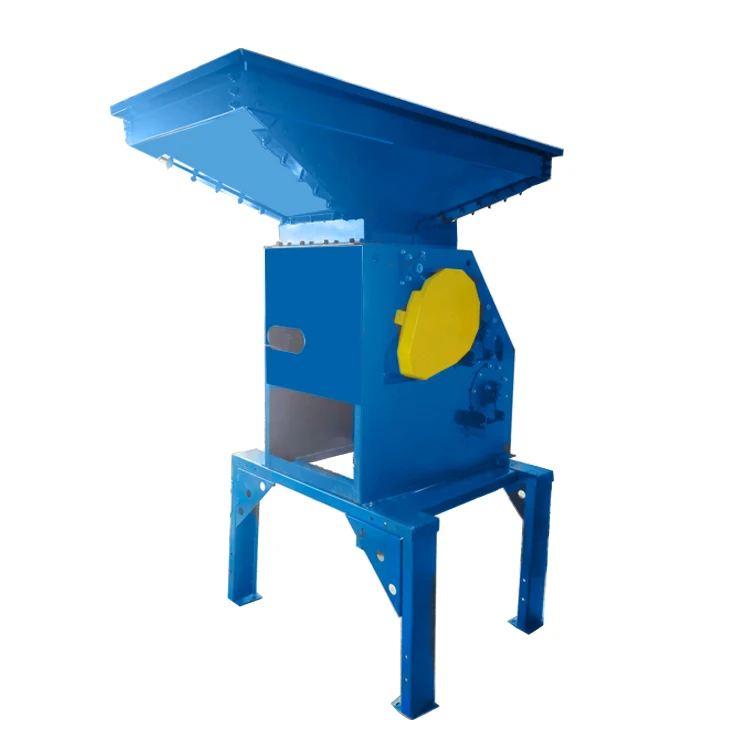

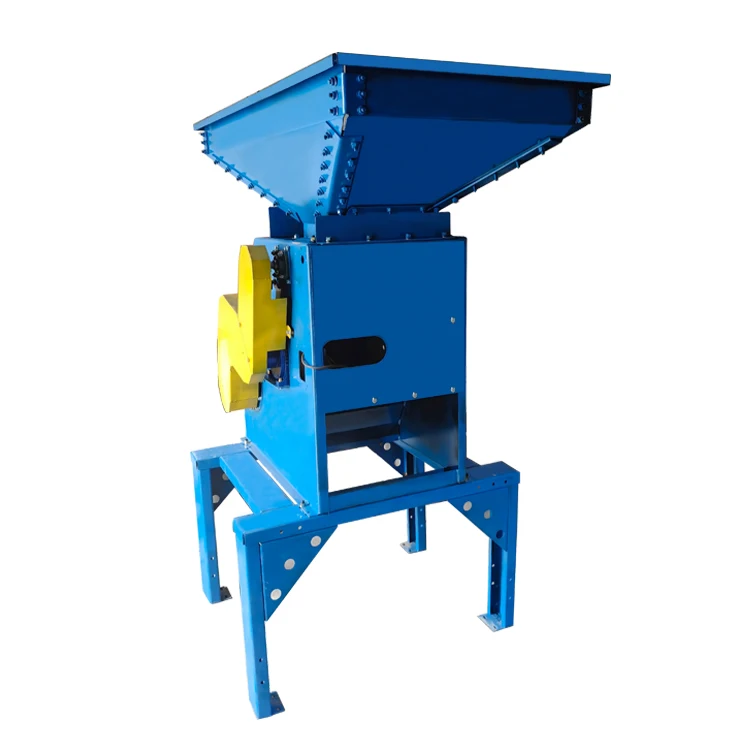

Real shot of products
name | Double drum strong magnetic separator |
Drum magnetism | 2000-2500 Gauss |
Drum specifications | 220 dia 600mm long |

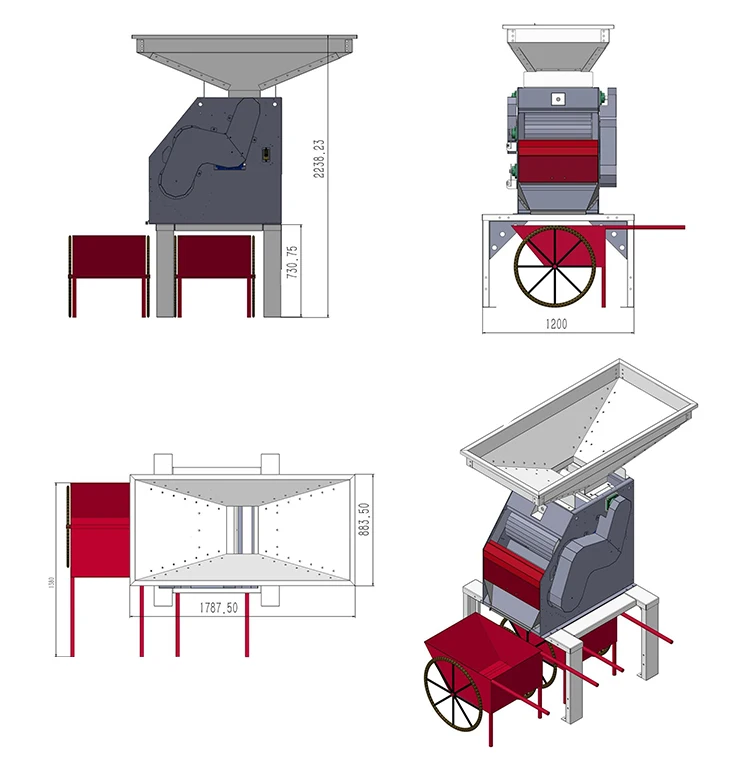

External dimensions | 1200*1788*2238mm |
weight | 550kg |
electric machinery | 0.75 kW stepless speed reducer |
Reduction gear | Stepless speed reducer, 40-200 adjustable |
Funnel size | 1788*884mm |
Product introduction
Product advantage
1. Reasonable structure design, which can be connected to the conveyor for feeding.
2. The permanent magnet is a rare earth NdFeB permanent magnet, which has a large suction force and does not demagnetize.
3. The semi-magnetic angle is reasonably equipped with a magnetic adjusting device, which can adjust the position of the semi-magnetic roller magnet.
The wide range of applications and can be used for grinding machine, lathe, foundry, tongbang, scrap metal recycling plant and renewable resources recovery plant, etc.
Sortable material
Sortable material
It can handle various iron-containing materials such as aluminum pin, aluminium scrap, scrap iron, copper rice, stainless steel, steel slag, aluminum ash, grinding wheel ash, shot blasting ash, plastic, etc.
company qualification
About us
FAQ
1. How about the quality of your products?
A: our products are produced in strict accordance with national and international standards. We will test each machine before delivery.
2.How about the warranty?
A: our products are produced in strict accordance with national and international standards. We will test each machine before delivery.
2.How about the warranty?
A: all our products are guaranteed for one year. An additional set of vulnerable parts can be brought to facilitate your replacement.
3. When is the delivery time? A: according to the specific data provided by customers, the delivery time of our customized
equipment is 15-30 days.
4. Service and payment terms? A: we can accept T / T and L / C; 30% deposit and 70% balance before ex works delivery, which is international trade practice; The finished product pictures will be provided to the customer before delivery.
3. When is the delivery time? A: according to the specific data provided by customers, the delivery time of our customized
equipment is 15-30 days.
4. Service and payment terms? A: we can accept T / T and L / C; 30% deposit and 70% balance before ex works delivery, which is international trade practice; The finished product pictures will be provided to the customer before delivery.
