90kBTU capacity regulator of liquid cooling system sensors outlet temperature to change hydraulic diameter for constant temp.
- Category: >>>
- Supplier: Shanghai Bowa International Trading Co. Ltd.
Share on (1600670958845):
Product Overview
Description
Product Overview

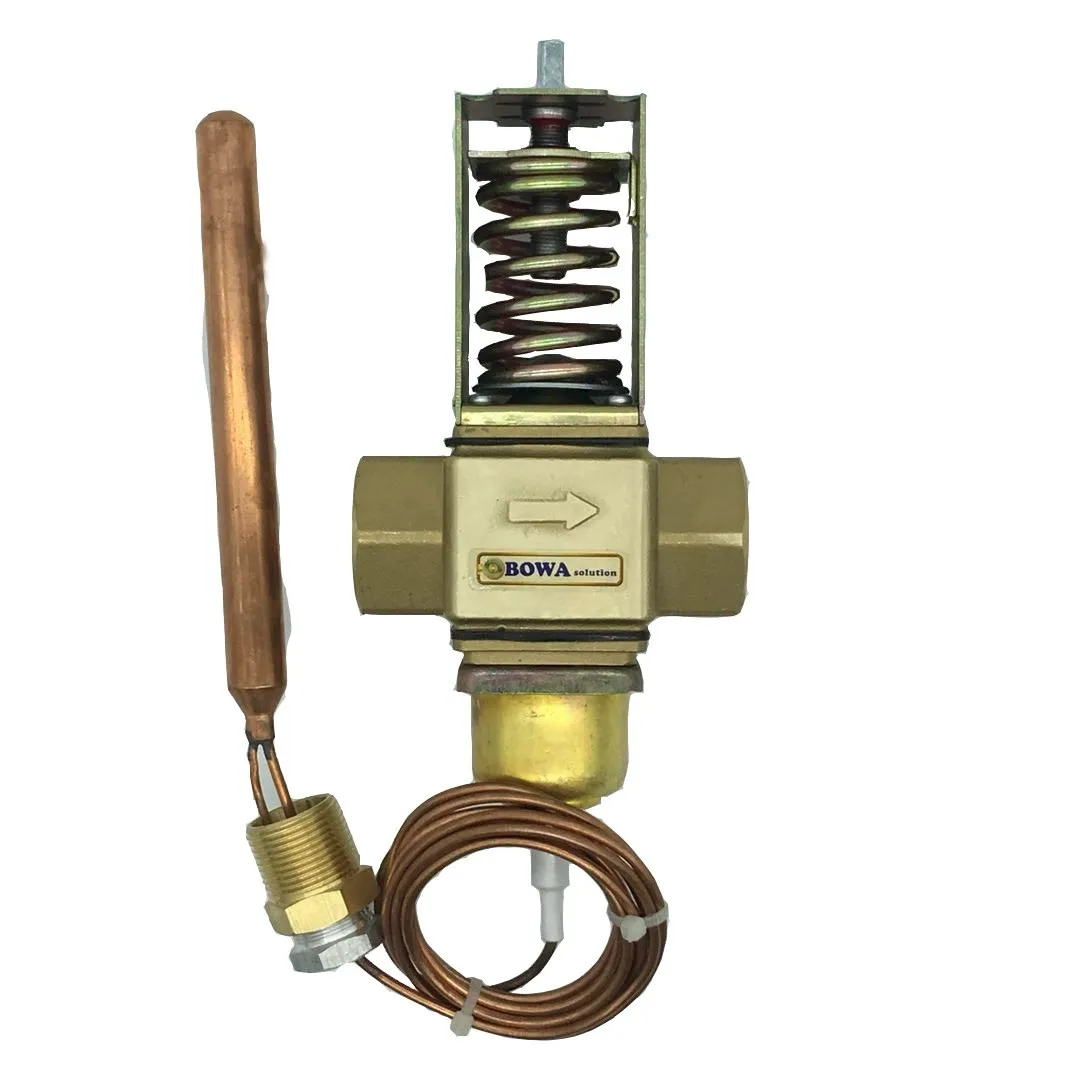

Thermostatic water valve
Thermo. operated water valves are used for proportional regulation of flow quantity, depending on the setting and the sensor temperature. It includes a series of products for both refrigeration and heating regulation. The valves are self-acting, i.e. they operate without the supply of auxiliary energy such as electricity or compressed air. The required temperature is maintained constant without unnecessary se of:
• cooling water in cooling systems,
• hot water or steam in heating systems.
The operating economy and-efficiency are maximized. The valve can be installed in either the cooling water flow line or the return line and can be used with fresh water or neutral brine.
Typical application areas:
Injection moulding machines;
Compressors;
Vacuum pumps;
Dry cleaning machines;
Distillation plants;
Printing machines;
Hydraulic systems;
Roller mills;
Biomass boilers;
Industrial lasers;
Steam sterilizers;
Medical equipment;
Food processing.
FEATURES AT A GLANCE
* Opens on rising sensor temperature
* Needs no power supply – self acting
* Insensitive to water pressure
* Insensitive to dirt
* NPT thread & Nickeled version available
* The regulation range is defined for the point at which the valve begins to open.
* The valves are pressure-relieved, i.e. the degree of opening is not affected by differential pressure Δp (pressure drop).
* Injection moulding machines
* Injection moulding machines
* Compressors and Vacuum pumps
* Dry cleaning machines & Distillation plants
* Printing machines & Hydraulic systems
* Roller mills & Biomass boilers
* Industrial lasers & Steam sterilizers
* Medical equipment & Food processing
* Dry cleaning machines & Distillation plants
* Printing machines & Hydraulic systems
* Roller mills & Biomass boilers
* Industrial lasers & Steam sterilizers
* Medical equipment & Food processing

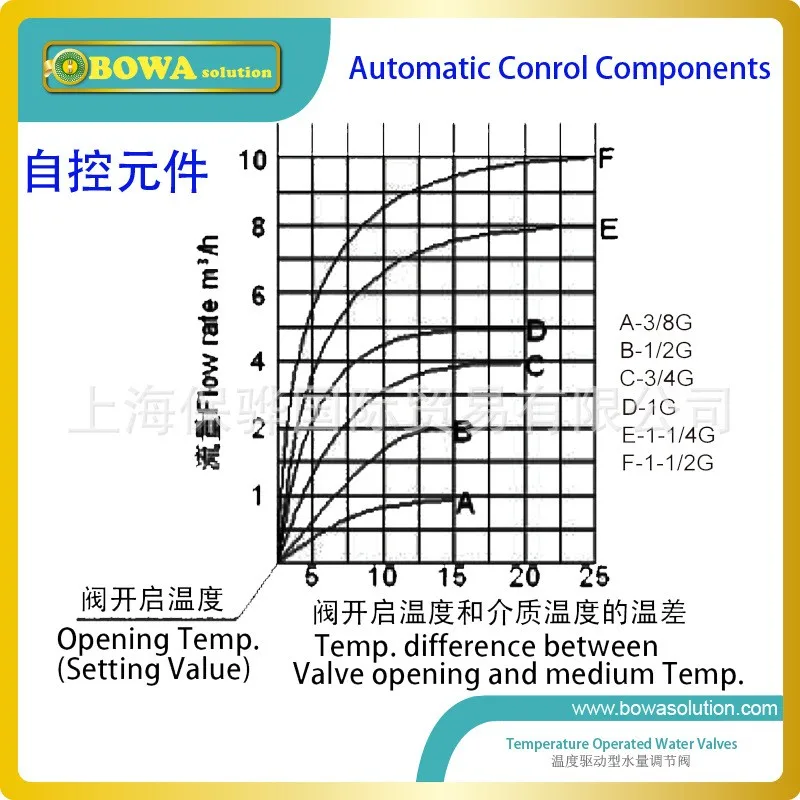

Temperature operation schema
Installation Guide

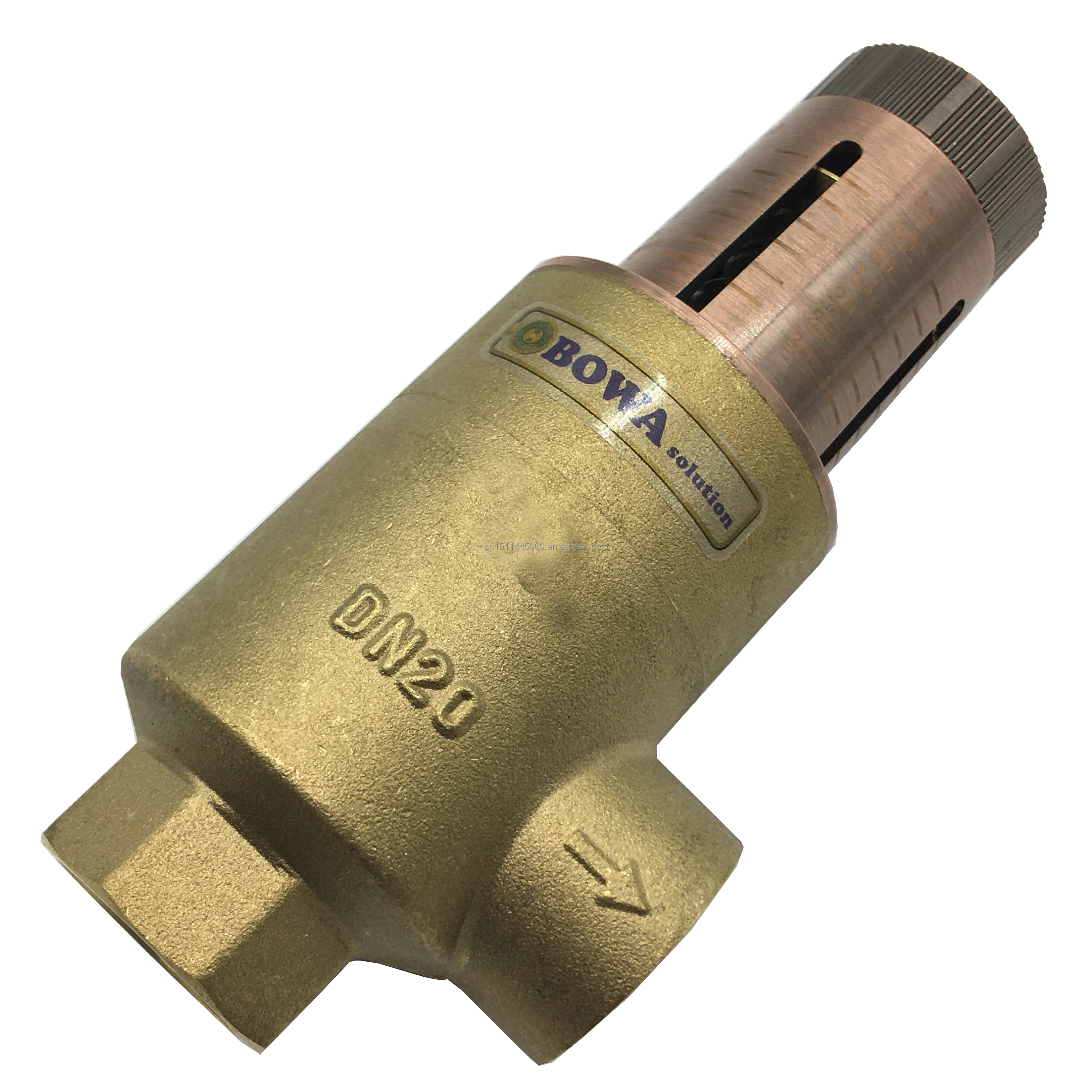

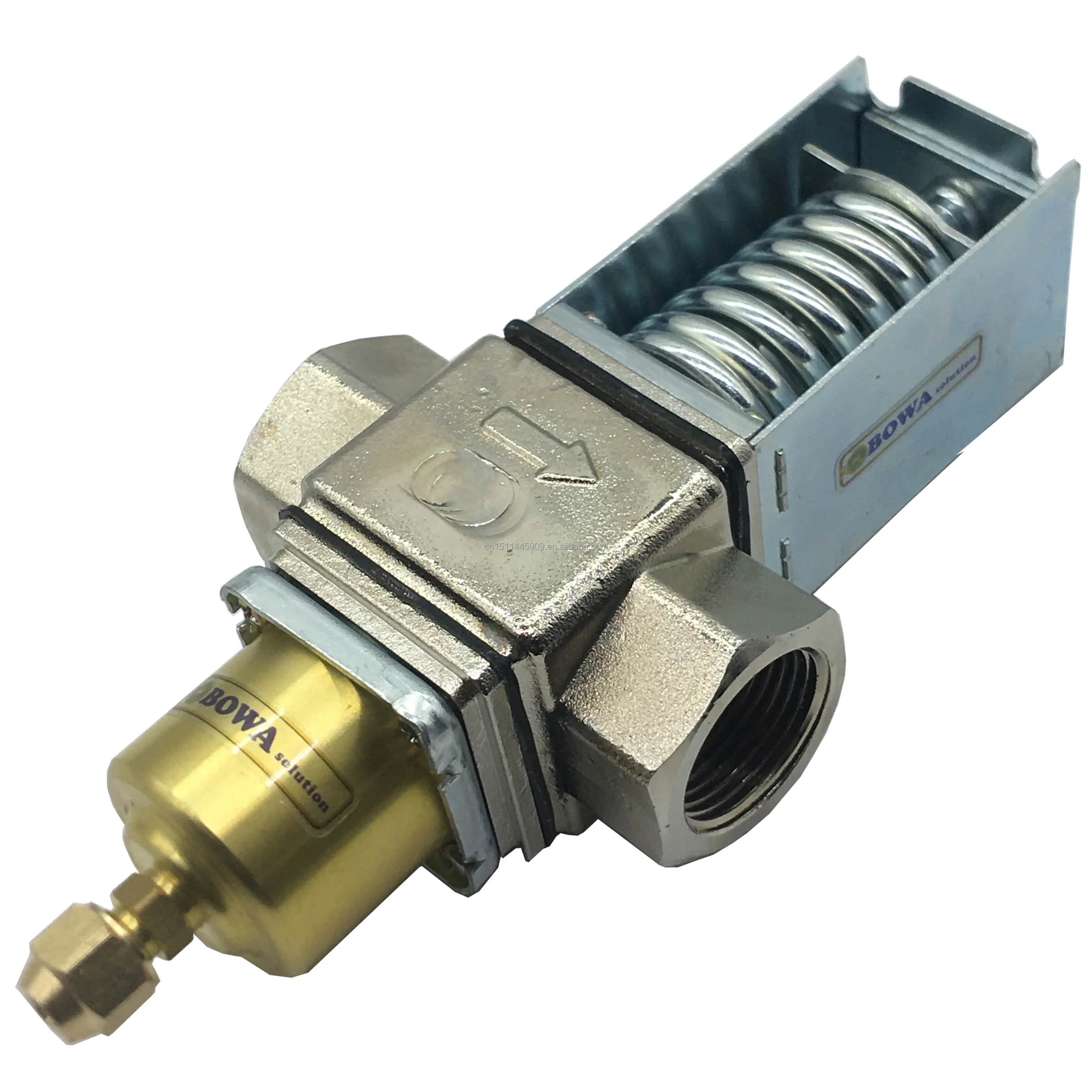

Other model
PRODUCT SPECIFICATIONS
No | Item | Data | |||
1 | KV value | 5.0m3/h | opening on a rise in sensor temperature. | ||
2 | Max. working pressure | 1.0MPa | |||
3 | Temp. adjustment range | 25~65'C | 0 ~ 30'C | 50~90'C | |
4 | Connection size | BSP G1" | |||
5 | Temp. bulb connector | G 3/4" | |||
6 | Capillary length | 2m | |||
7 | Body material | Brass | |||
8 | Product Net Weight | 1.8kgs | |||
PRODUCT CONFIGURATION

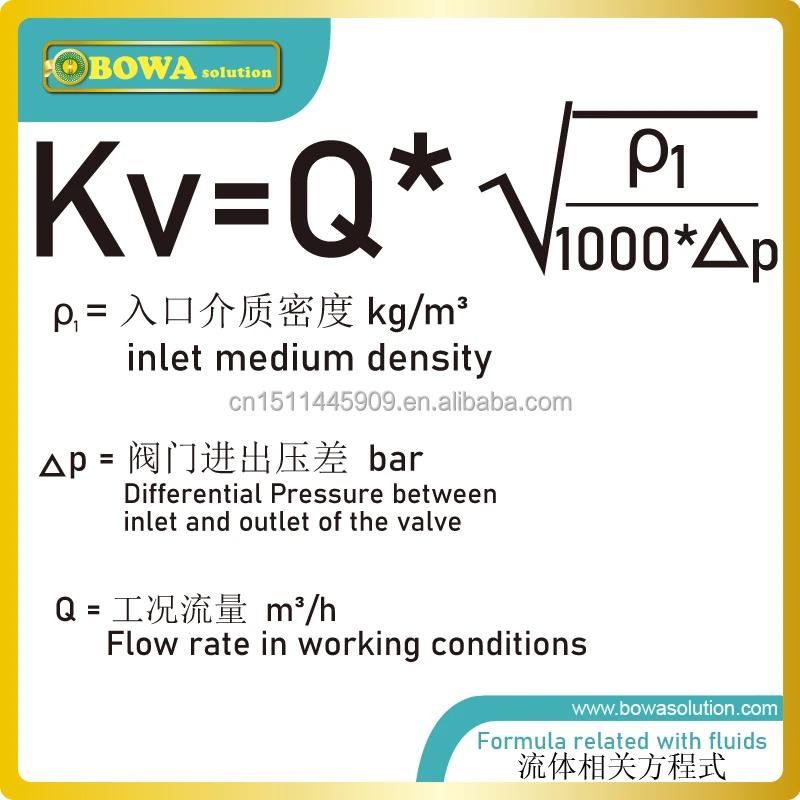

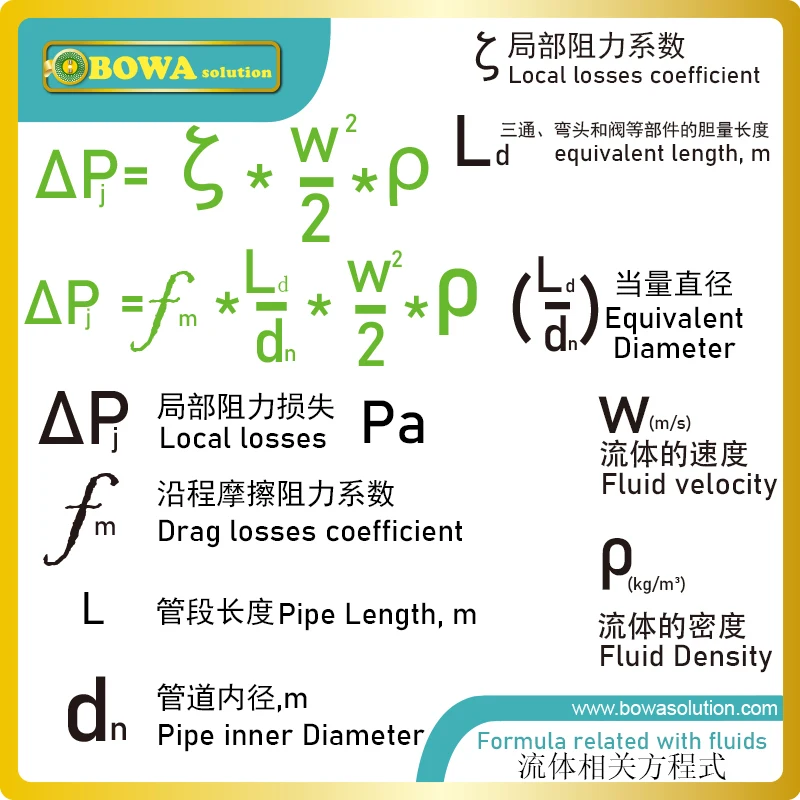

Fluild calculation

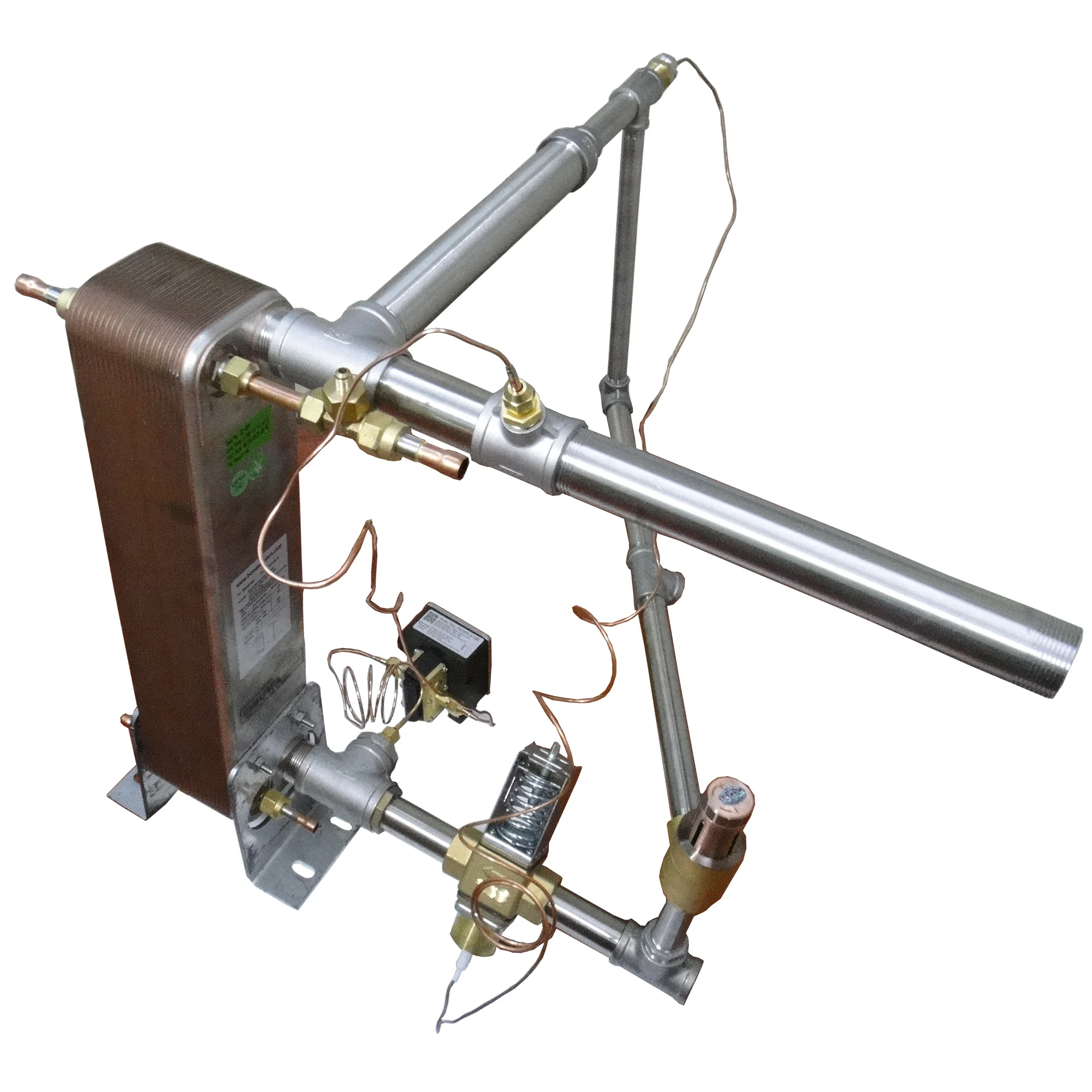

Heat pump and refrigeration plant
Installation guide
SIMILAR PRODUCTS
FAQ
Q1：How to select corrrect product
A1：Get flow rate and temperature requirements.
