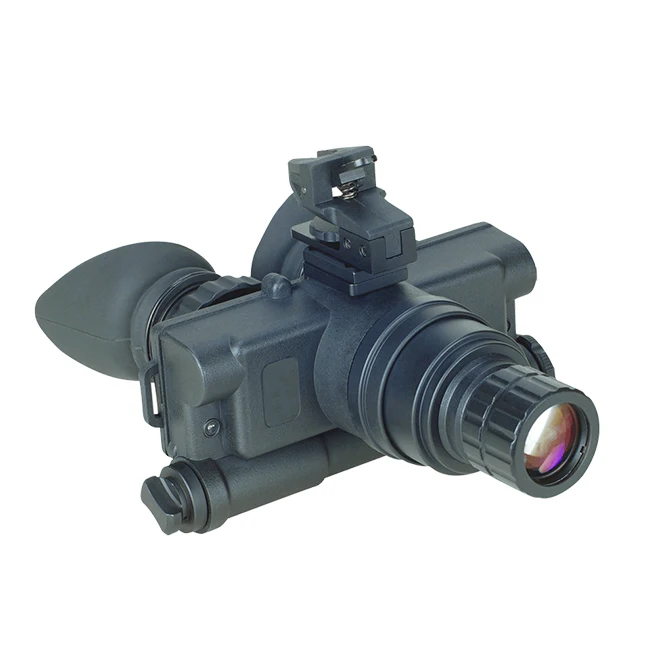

Helmet mounted nvg Gen4 night vision goggles russian Gen2/Gen3 infrared binoculars night vision goggles
Product Overview
Night Vision Goggles with 3X Magnifiers
（can be mounted on 1x lens）
Night Vision Goggles with 5X Magnifiers
（can be mounted on 1x lens）
Night Vision Goggles with 1X Lens
Night Vision Goggles with 3X Lens
Night Vision Goggles with 3.5X Lens

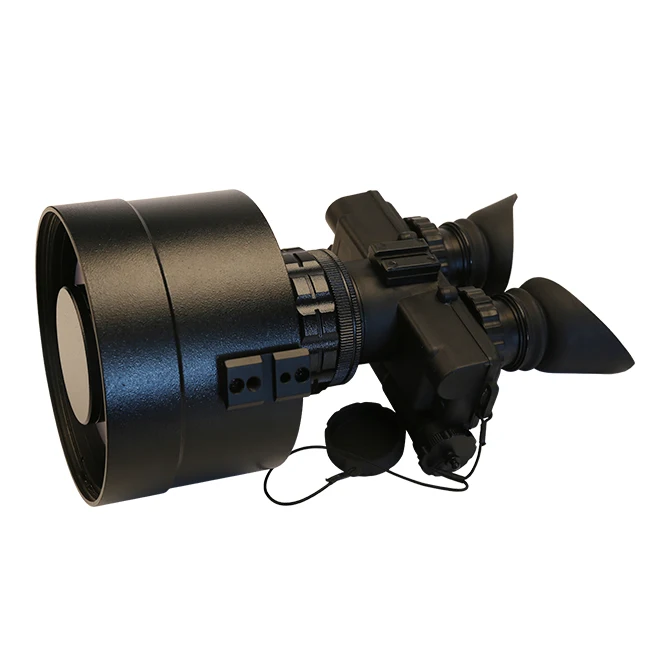

Night Vision Goggles with 5X Lens
Night Vision Goggles with 7X Lens
Night Vision Goggles with 8X Lens
Description

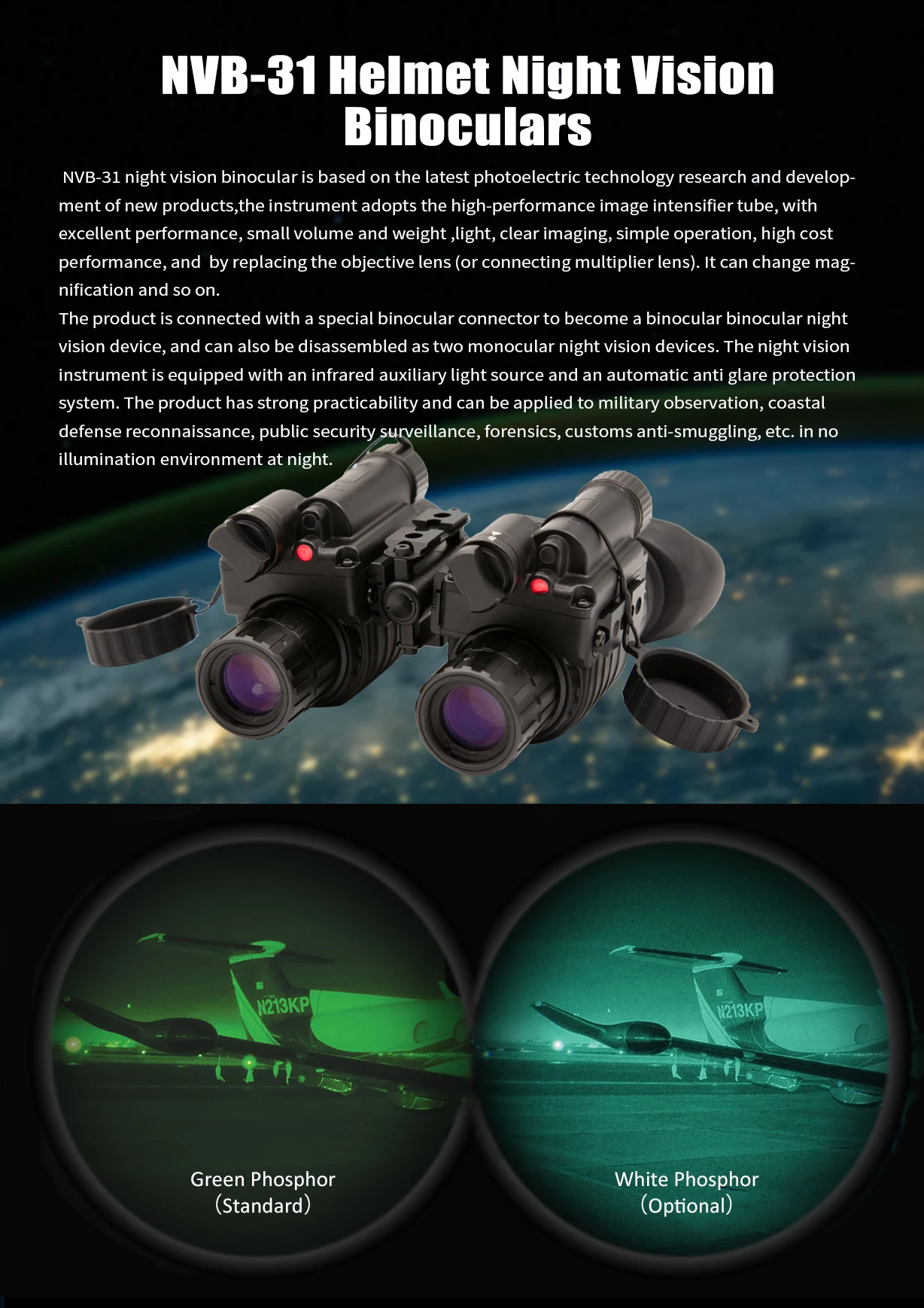

Helmet mounted nvg Gen4 night vision goggles binoculars russian Gen2/Gen3 infrared night vision goggles were developed to meet for surveillance at night. This infrared binocular helmet night vision goggles gen3 can be viewed by two eyepieces, multipurpose function support it not only can be mounted with helmet but also can be used for hand-held. It has different objective lens with different focal distance, so magnification can be changed. It adapts Gen2+ abd Gen3 image intensifier tube with the function of anti-glare and built-in IR illumiator, It is mainly used for observation, sea defense, drug smuggling investigation, vehicles and aircraft maintenance.
Technical Parameters
Specifications | ||
Model | MH-NVGs Gen2+ / Gen3 | |
Magnification | 1X | |
FOV | 40° | |
Lens system | 26.8mm F/1.2 | |
Adjusted Interpupillary distance, mm | Yes | |
Focus range | 0.25m to infinity | |
Eye relief distance | 15mm | |
Diopter setting | +5, -6 | |
Power supply | 1CR123A type battery, 3V | |
Dimension | 160x150x75mm | |
Weight( with 2 batteries), g | 500 | |
Image Intensifier Tubes | ||
Photocathode type | 18mm S-25 | |
Photocathode sensitivity | ≥550μA/Im | |
Resolution | 48-58/57-64Ip/mm | |
Luminous gain | 16000-25000 fI/fcd | |
Signal-to-noise ratio | 20:1 or better (typical) | |
Tube reliability | 10000hour | |
Keep time | 10year | |
Effective Distance | ||
Detection range | 220-280m | |
Recognition range | 175-230m | |
Environmental Data | ||
Operating temperature | -40℃ to +50℃ | |
Storage temperature | -30℃ to +50℃ | |
Immersion | hour2 meter for 1.0 hour(optional) | |
Humidity | up to 98% | |
Advantages

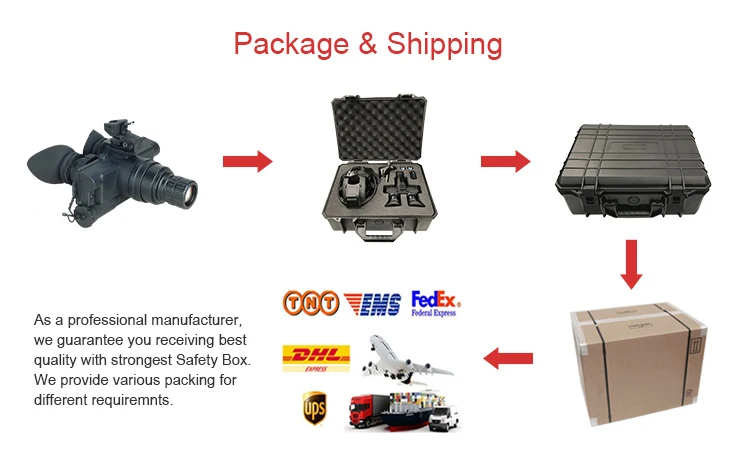

Package
We will pack infrared binocular helmet night vision goggles gen3 very well and protect it from physical damage during the transportation , insure you can receive the goods safety.

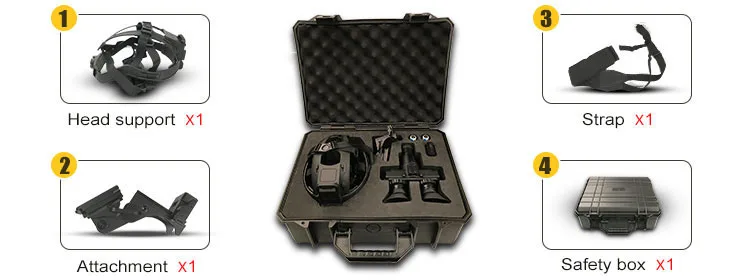

Package: Black safety box for infrared binocular helmet night vision goggles gen3.
Shipping by EMS , DHL, Fedex, TNT as your requirement.
Package: Black safety box for infrared binocular helmet night vision goggles gen3.
Shipping by EMS , DHL, Fedex, TNT as your requirement.
