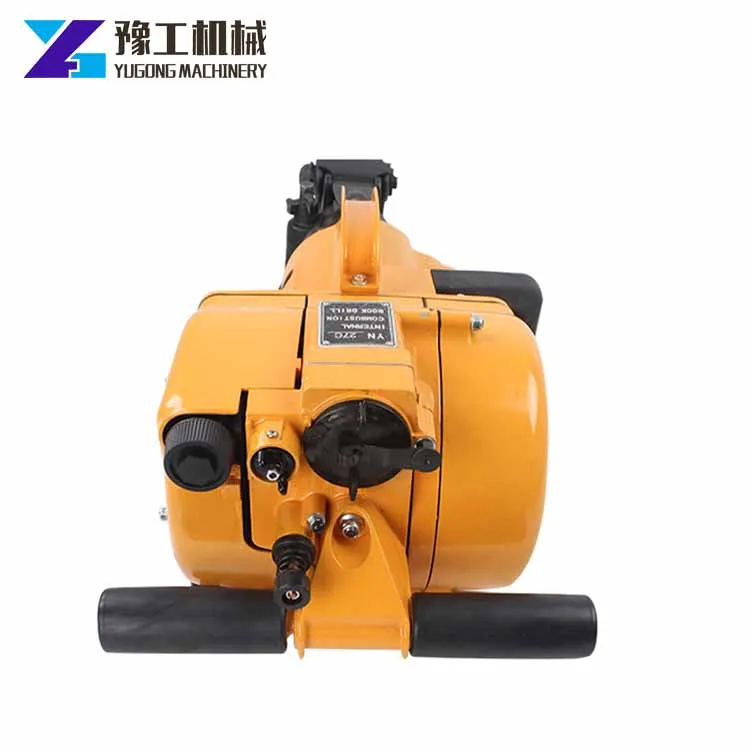

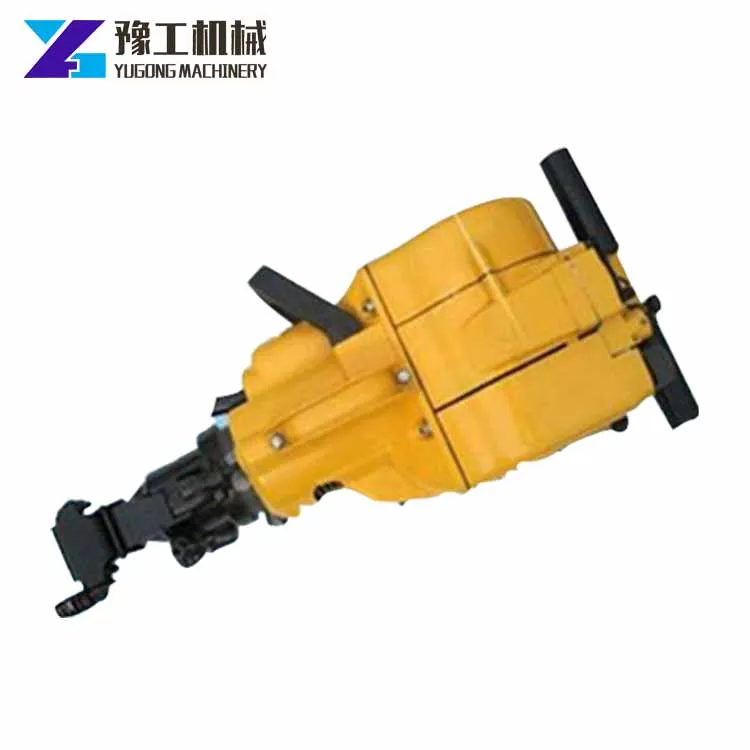

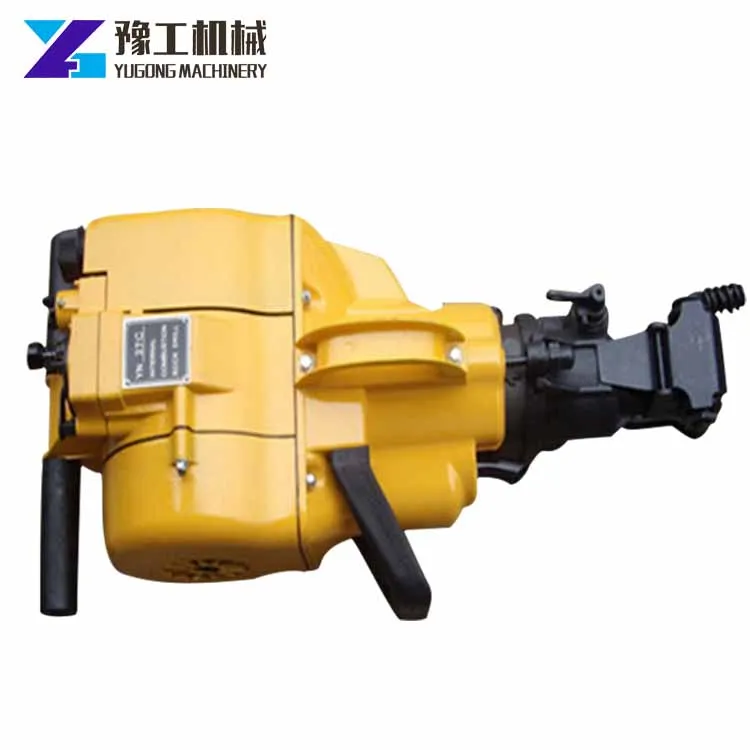

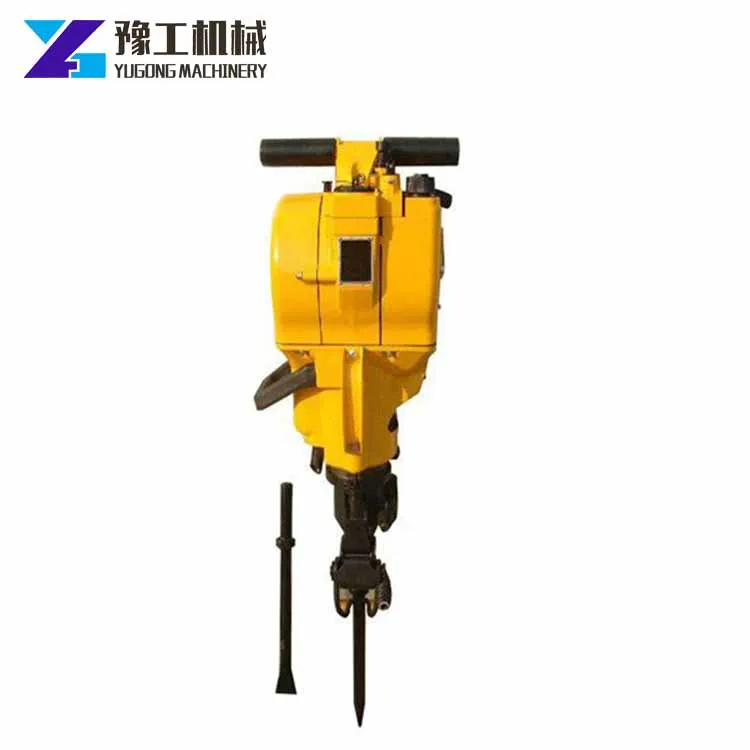

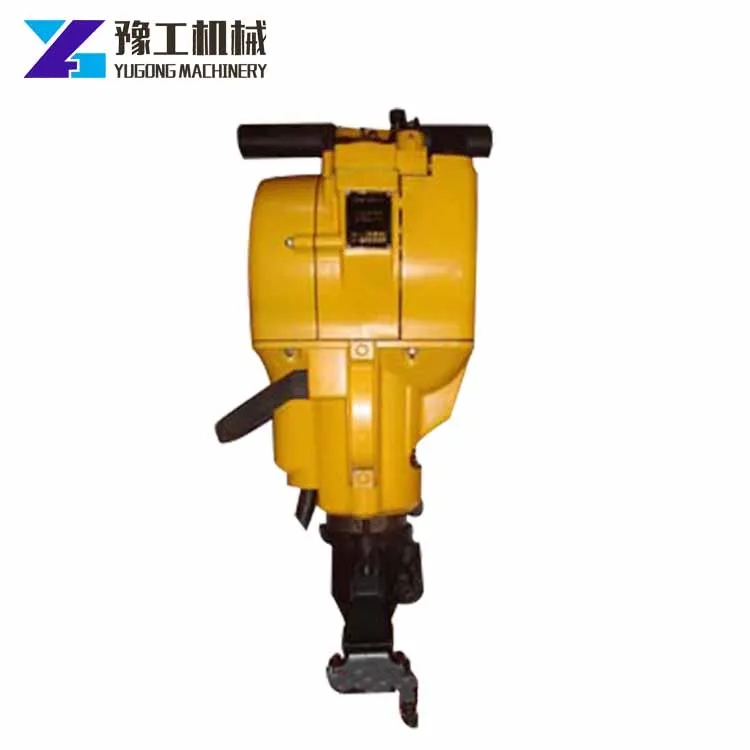

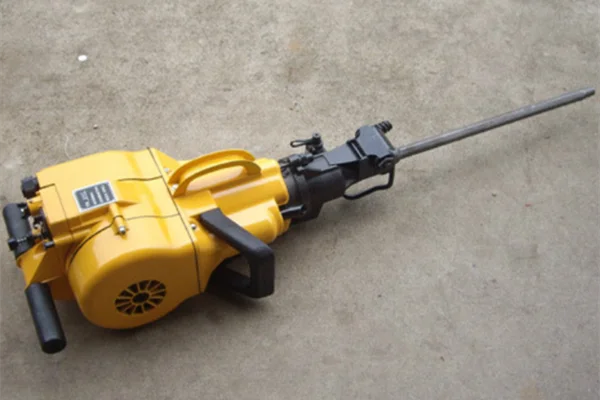

hydraulic rock drill 1. YN27C Gasoline rock drill is a small type of rock drill composed the power machine, working machine and air compressor in one.
2. YN27C Gasoline rock drill is powered by small gasoline engine and used for drilling on the hard rock with medium hardness.
3. YN27C Gasoline rock drill has independent impact function.
4. YN27C Gasoline rock drill can be used for cleaving rock, bruising concrete foundation, tamping railroad bed, small area tamping by combining with auxiliary means
5. Therefore it changes the traditional working method of rock drill, which was only used to drill blast holes. So it expands the functions of rock drill.
Specification
Model
YN27C
Weight
27kg
overall dimension
810*380*280mm
engine
single cylinder, air cooled two strokes
Cylinder diameter*stroke piston
58*70mm
Rotating speed of engine
more than 2450r/min
displacement of engine
185cm^3
carburetor
hand needle valve, no floating type
Ignition system
controllable silicon contactless system
Drilling speed
more than 2450r/min
Max drilling depth
6M
Fuel consumption
1.2L/min
Tank capacity
more than 1:14L
mixing ratio of gasoline and lubrication oil
12:01
end of drill rod dimensions
hexagonal 22*108mm
Rotating speed of drill rod
more than 200r/min
Clearance of spark plug
0.5-0.7mm

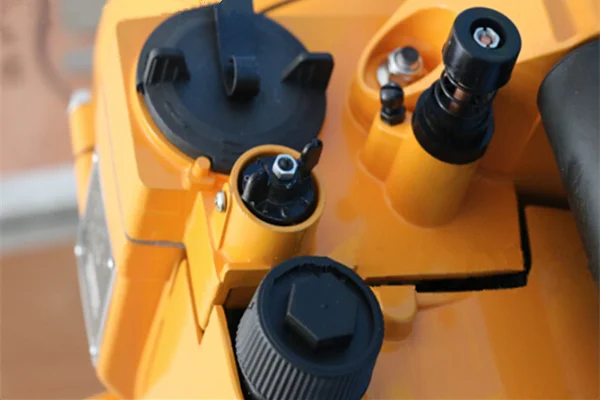

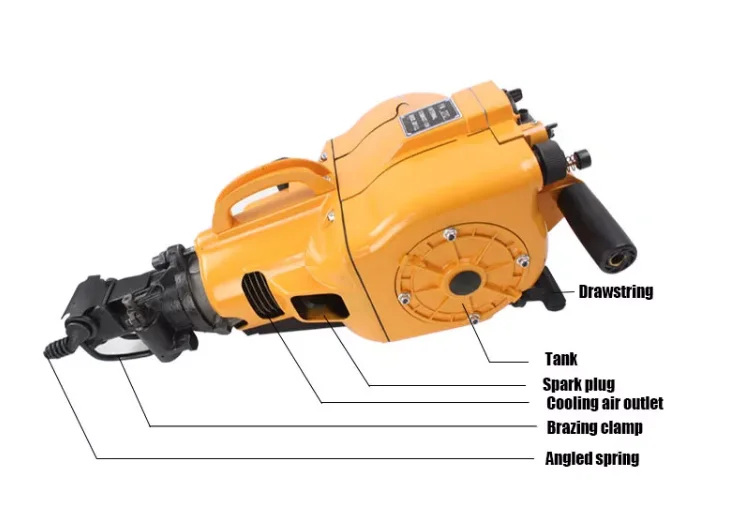

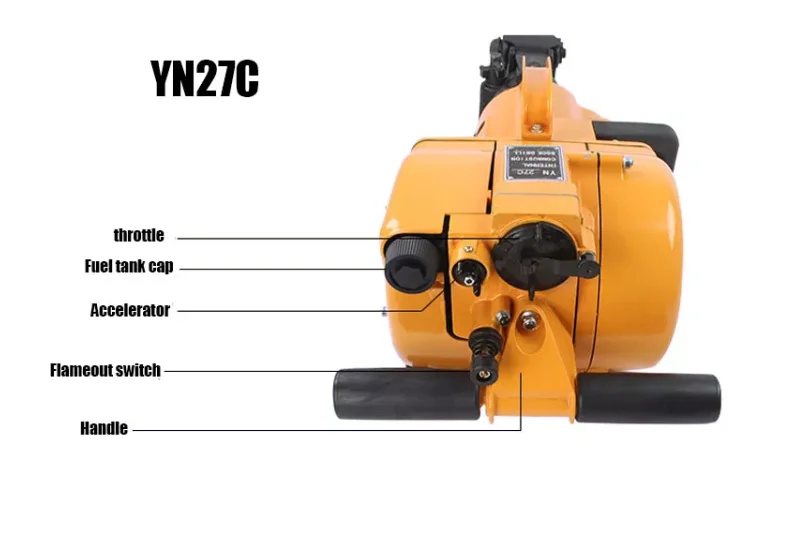

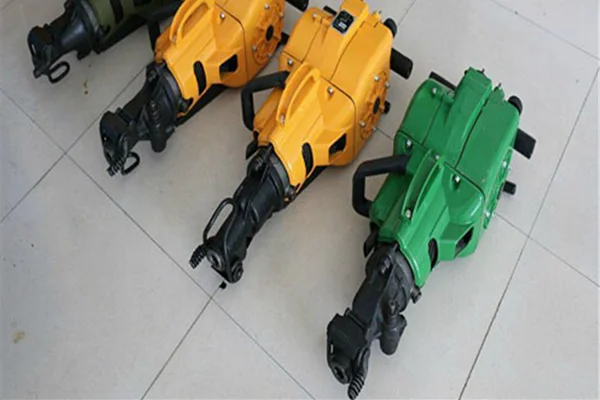

Product Description

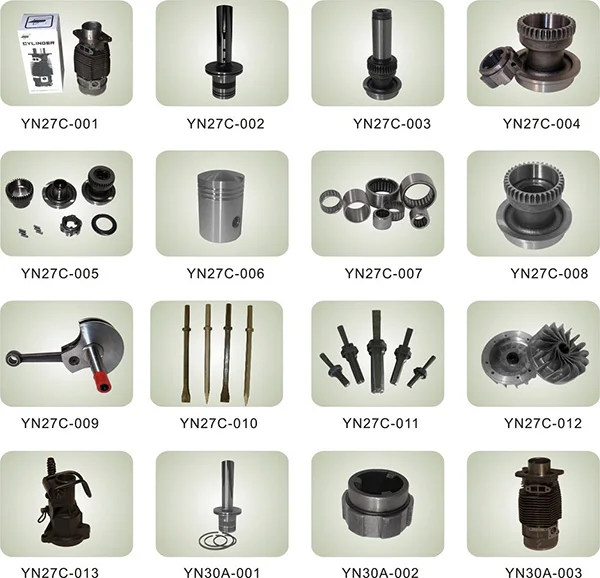

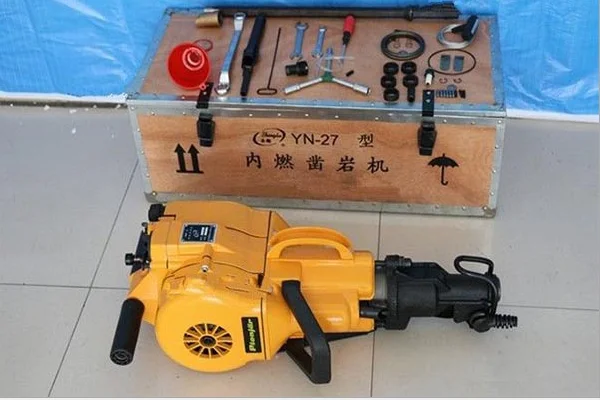

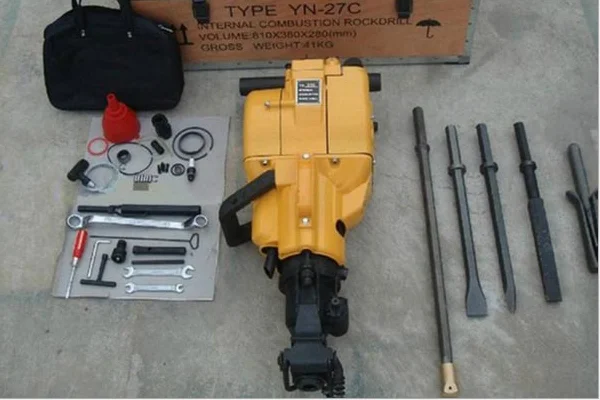

Spare Parts

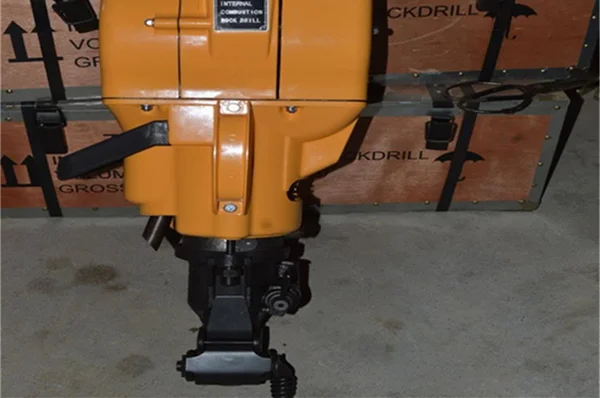

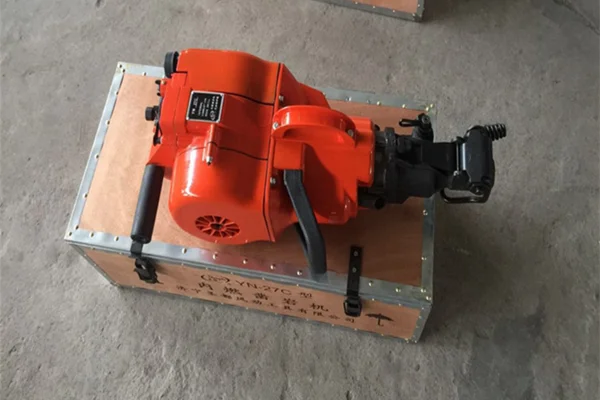

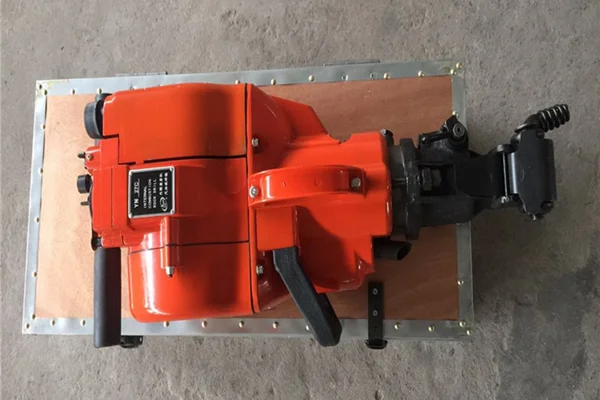

Packing & Delivery
non-fumigation wooden box, or in full container flooding pump, flood water pump, Self-Priming Diesel Engine Flood Control Pump Trash Drainage Pump Fire-Fighting Irrigation Pump
