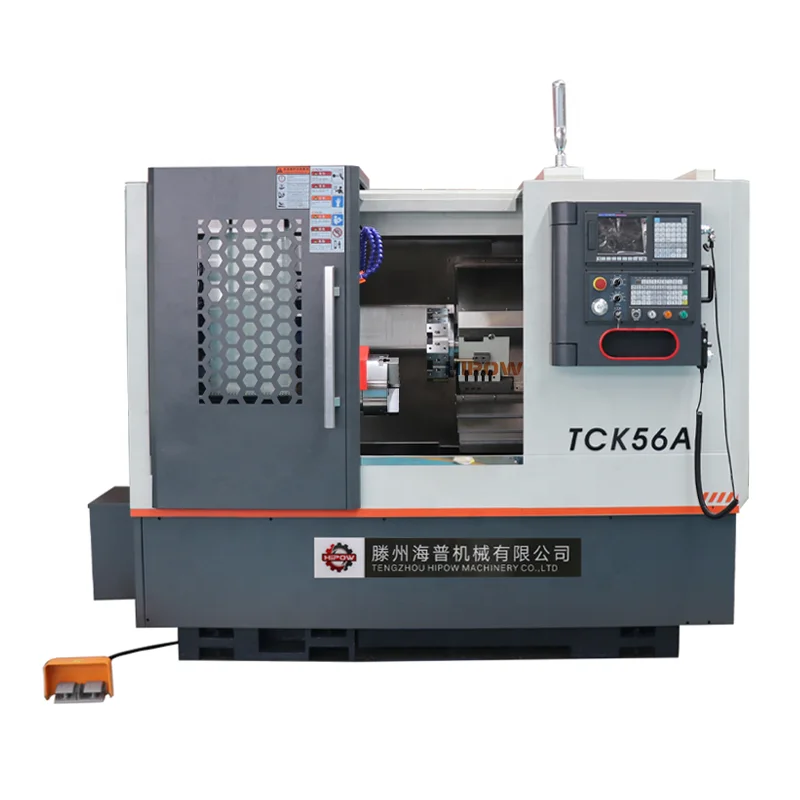

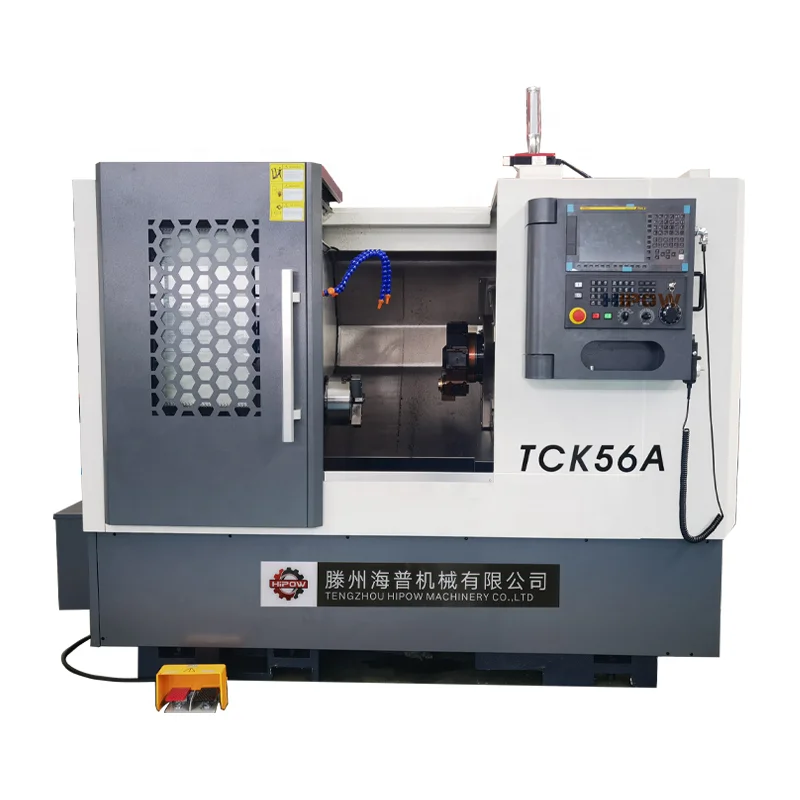

TCK66A Fanuc Inclined Bed CNC Bench Lathe Line Rail CNC Lathe Machine
- Category: >>>
- Supplier: Tengzhou Hipow Machinery Co. Ltd.
Share on (1600671972169):
Product Overview
Description
Products Description
Main Feature

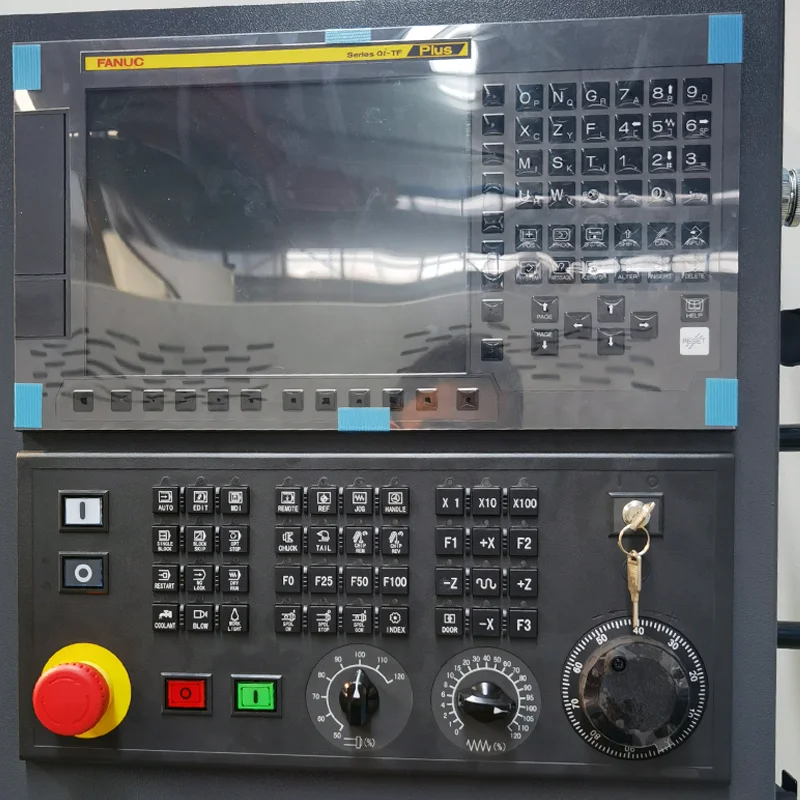

+Fanuc 0i-TF Plus Controller
+11Kw Spindle Servo motor
+ 12T Hydraulic Tool Post
+ 10 inch Hydraulic Hollow chuck

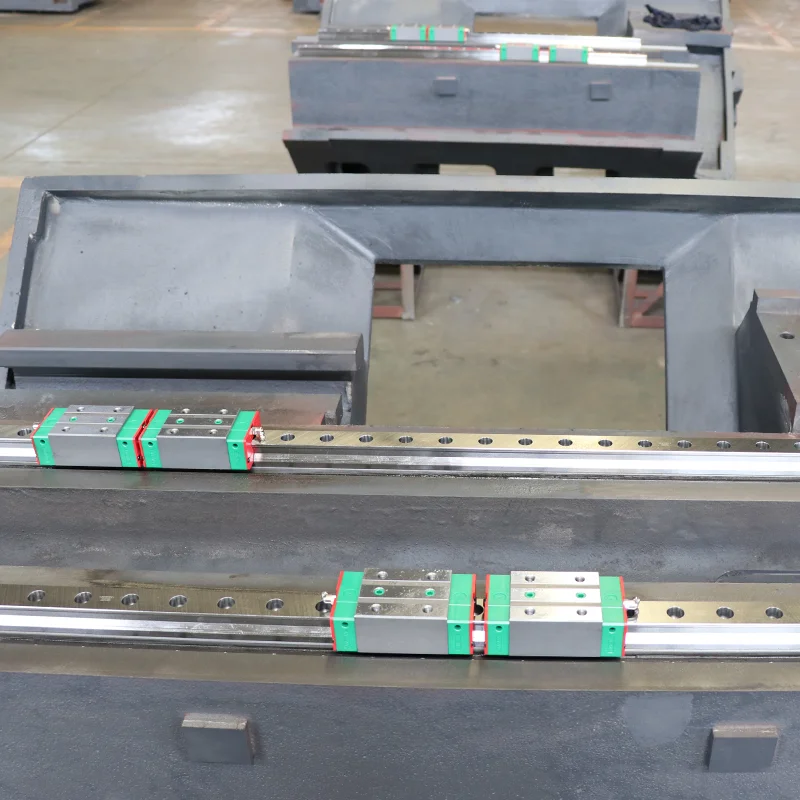

+ Taiwan HIWIN Linear Guideway

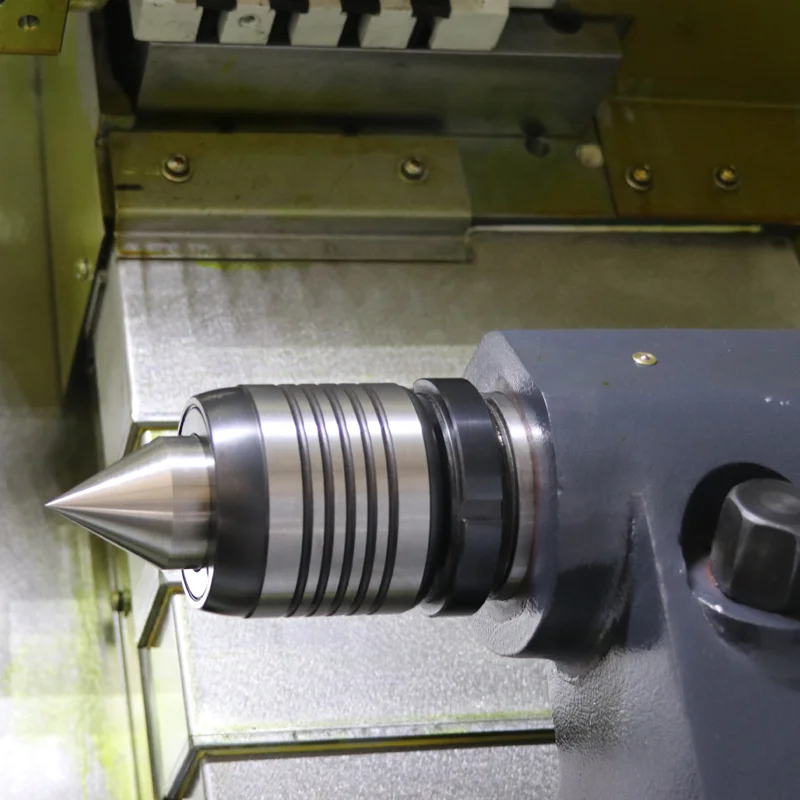

+ Hydraulic tailstock
+ Swing over bed: 560mm
+Max Processing length 500mm
+ Spindle Hole : 66mm
+ X/Z travel: 240/540mm
+Max Bar Capacity:53mm
+11Kw Spindle Servo motor
+ 12T Hydraulic Tool Post
+ 10 inch Hydraulic Hollow chuck
+ Taiwan HIWIN Linear Guideway
+ Hydraulic tailstock
+ Swing over bed: 560mm
+Max Processing length 500mm
+ Spindle Hole : 66mm
+ X/Z travel: 240/540mm
+Max Bar Capacity:53mm
Max. swing over bed | mm | Φ560 |
Max. swing over cross slide | mm | Φ260 |
Max. turning length | mm | 500 |
Max. Turning diameter | mm | 400 |
Max. Bar capacity | mm | 53 |
X axis travel | mm | 240 |
Z axis travel | mm | 540 |
Spindle unit | 200 | |
Spindle nose | A2-6 | |
Spindle bore | mm | Φ66 |
Inner diameter of drawing pipe | mm | Φ55 |
Spindle speed | rpm | 3000 |
Work piece clamping type | Hydraulic chuck | |
Spindle motor power | kw | 11 |
X/Z ball screw specification | 3210/4010 | |
X axis motor torque | N.m | 10 |
Z axis motor torque | N.m | 10 |
X axis fast feeding speed | m/min | 24 |
Z axis fast feeding speed | m/min | 24 |
X/Z repeat-ability | mm | +/-0.003 |
Tool post type | 8/12T hydraulic tool turret | |
Tail stock quill diameter | mm | 70 |
Tail stock travel | mm | 80 |
Tail stock quill taper | MT5# | |
Total rated power | kw | 14 |
Total rated current | a | 30 |
N.W. | kg | 2900 |
Machine dimension (L*W*H) | mm | 2700x2000x2000 |
High Precision Machine Body
Strictly Processed Hardened-tempered casting machine body make the lathe perform precisely.

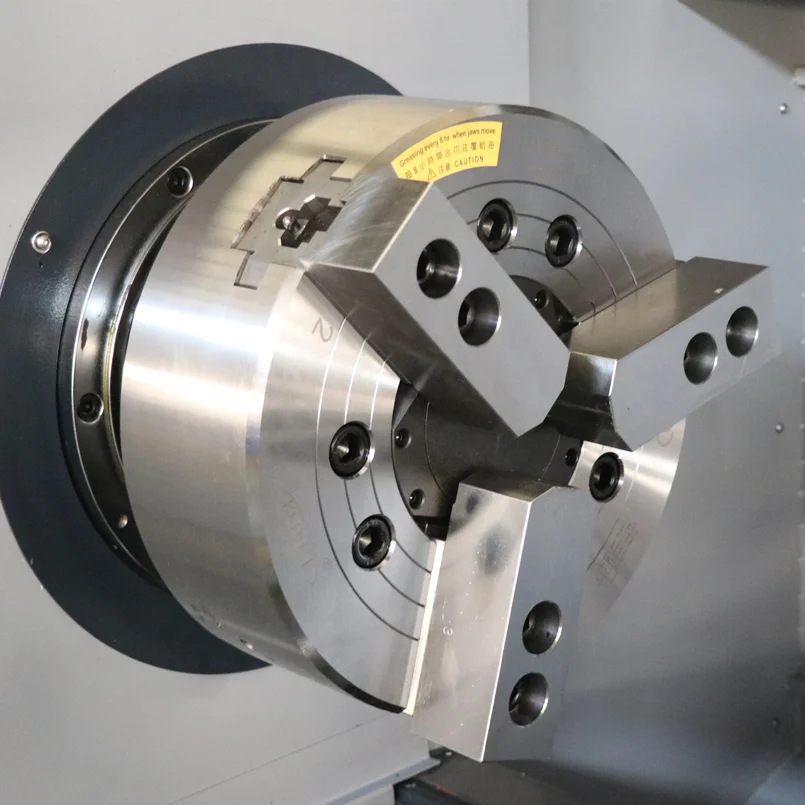

High Precision Chuck and spindle hole
1). Hydraulic chuck is standard
2). Standard spindle hole is 48mm
2). Standard spindle hole is 48mm

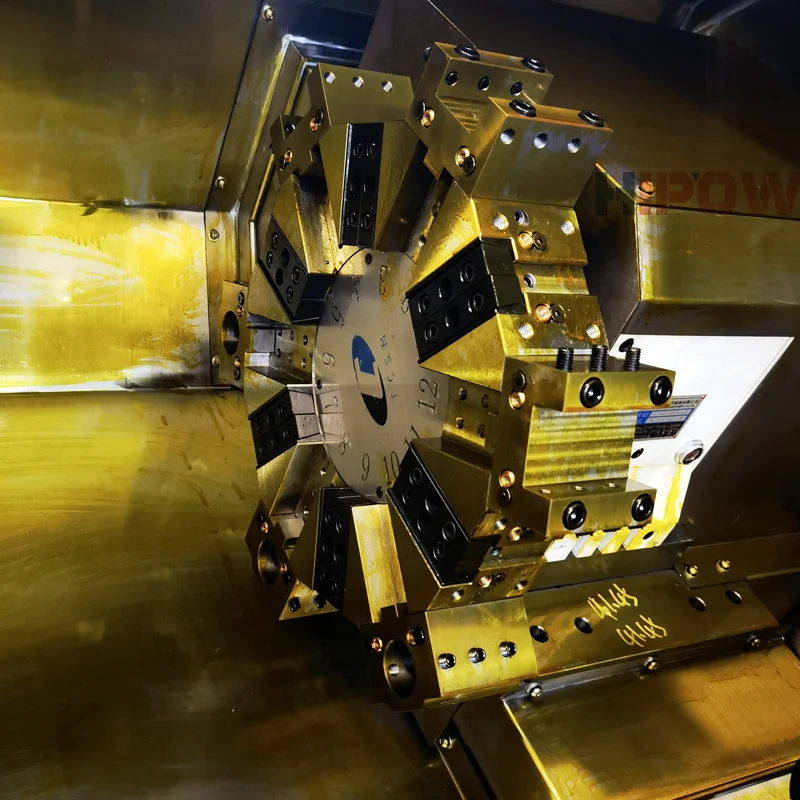

Precision Tool Post
1). Standard is Gang type 4 tool post
2). 6/8 Position electrical or hydraulic tool post can be choosen
2). 6/8 Position electrical or hydraulic tool post can be choosen
Company Profile
FAQ
Q1.How can I get a quotation?
A.Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us
directly by Trade Manager or Telephone.
directly by Trade Manager or Telephone.
Q2.Can you provide customized machine or SPM (Special purpose machine)?A.Yes, we provide
smart CNC solutions for our customer, in order to increase efficiency.
smart CNC solutions for our customer, in order to increase efficiency.
Q3.Can you provide training for operation CNC machines?A.
Yes, free training in our factory is available.
Yes, free training in our factory is available.
Q4.How about your price?A.Send me details about what you need, you will get the
best price in China. The price is competitive over the world.
best price in China. The price is competitive over the world.
Q5.What’s the delivery time, and what’s the package?A.Normally the
delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
